Classic Cycle Double Crown Chopper Springer Fork for Disc Brake 1 1/8 Steerer
Community Bilder

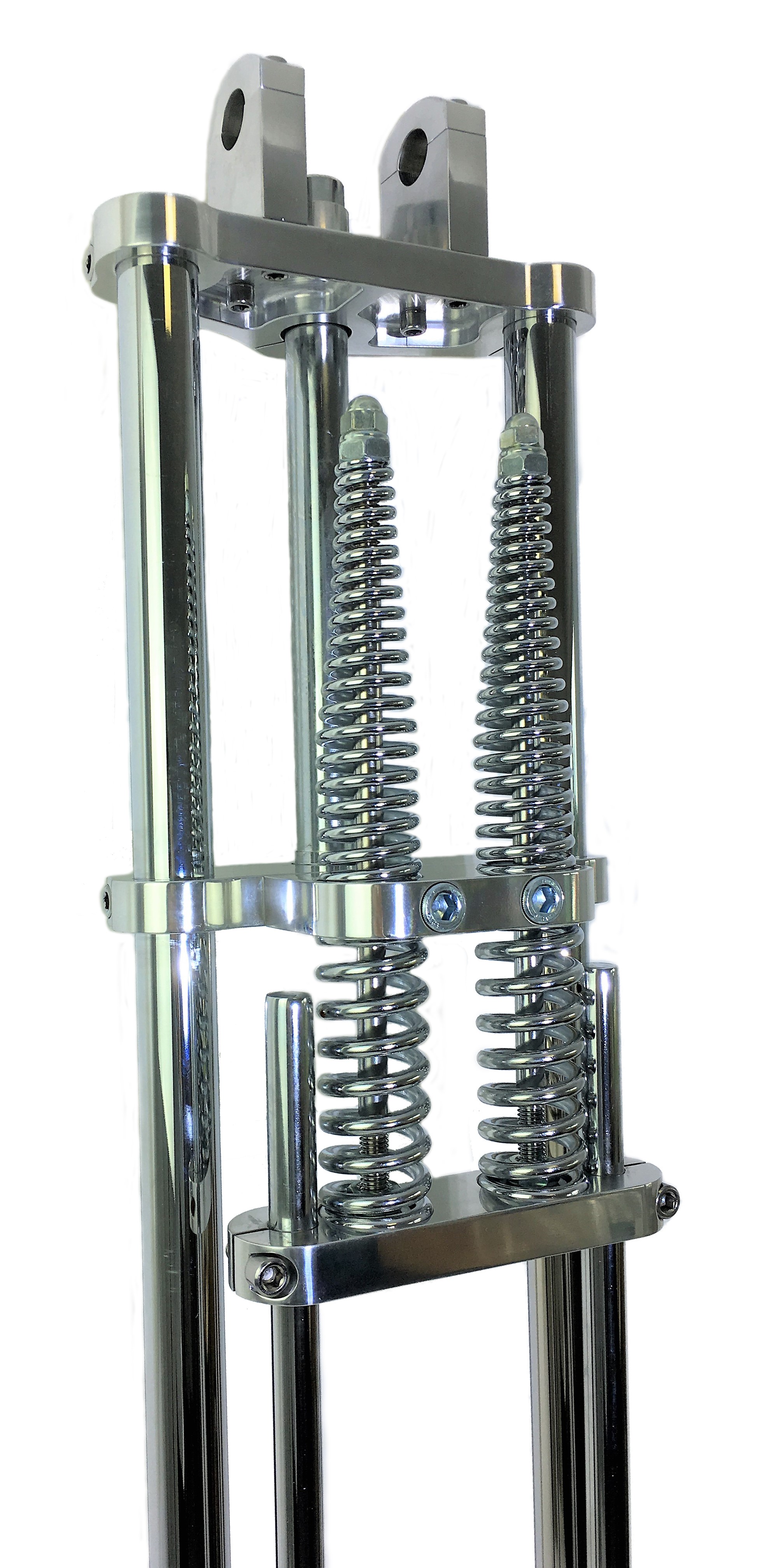

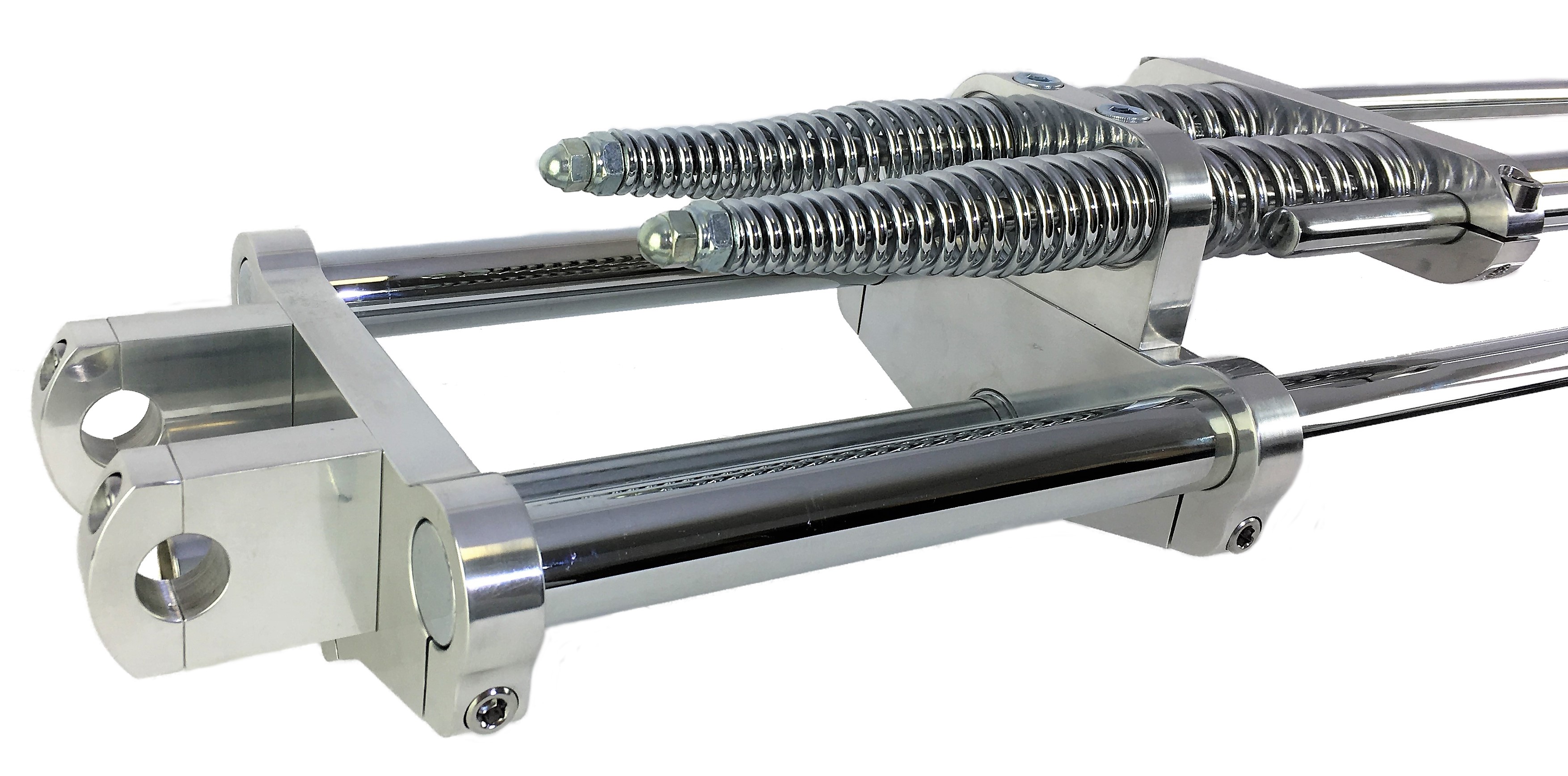

Classic Cycle Double Crown Chopper Springer Fork for Disc Brake 1 1/8 steerer
One of the most beautiful chopper springer forks you can get!
Chrome-plated, noble and supercool for 20-26 inch. wheels up to 3.00!
- CroMo Steel and Alu Bridges

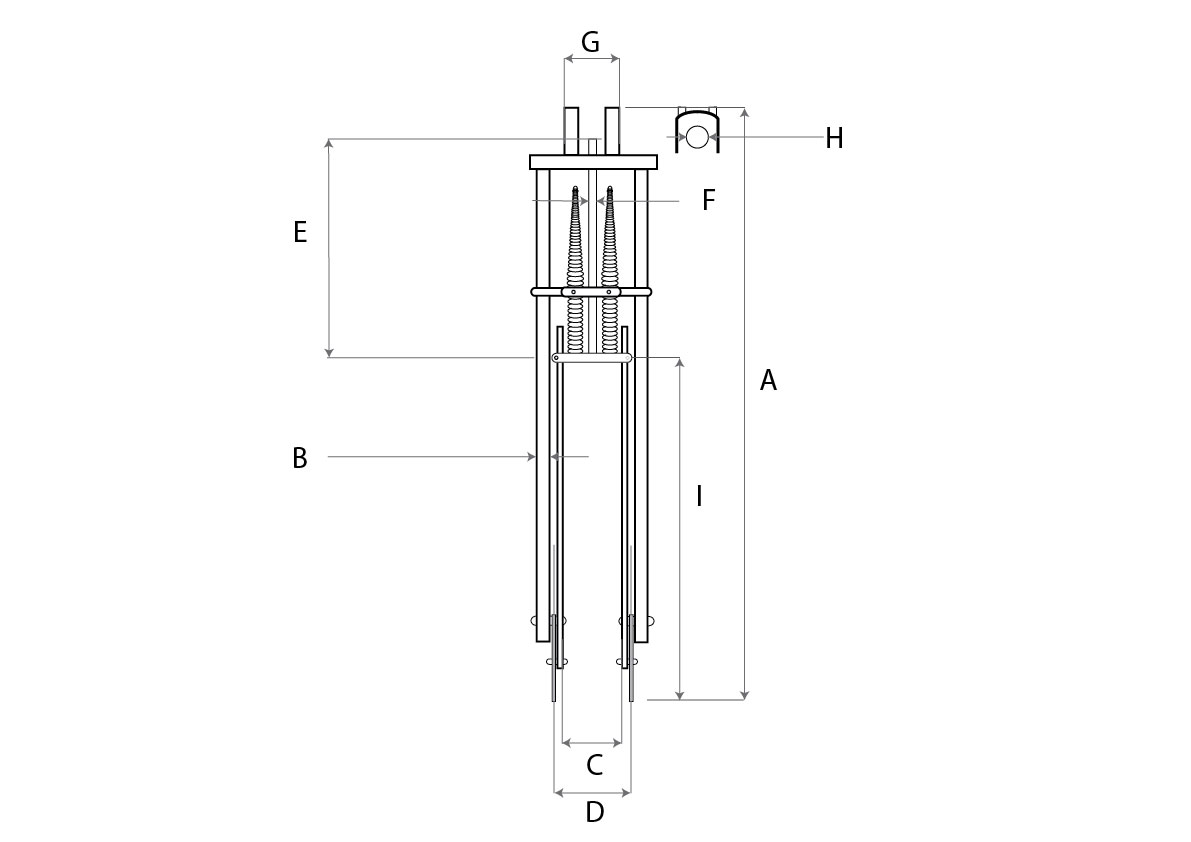

- A - Distance between axle and handlebar attachments: 1000 mm (~39,37 inches)
- B - Diameter of thicker fork tube: 29 mm (~1,14 inches)
- C - Distance between springer shafts: 108 mm (~4,25 inches)
- D - For hub width of: 100 mm (~3,94 inches)
- E - Steerer length: 270 mm (~10,63 inches)
- F - 1 1/8 inch steerer
- G - Minimum width (outer edge - outer edge of the lift): 77 mm (~3,03 inches)
- H - Handlebar mount 22.2 mm
- I - Distance between axle mount and lower bridge: 580 mm ( ~ 22,83 inches)
The shaft and the fork tubes can be shortened.

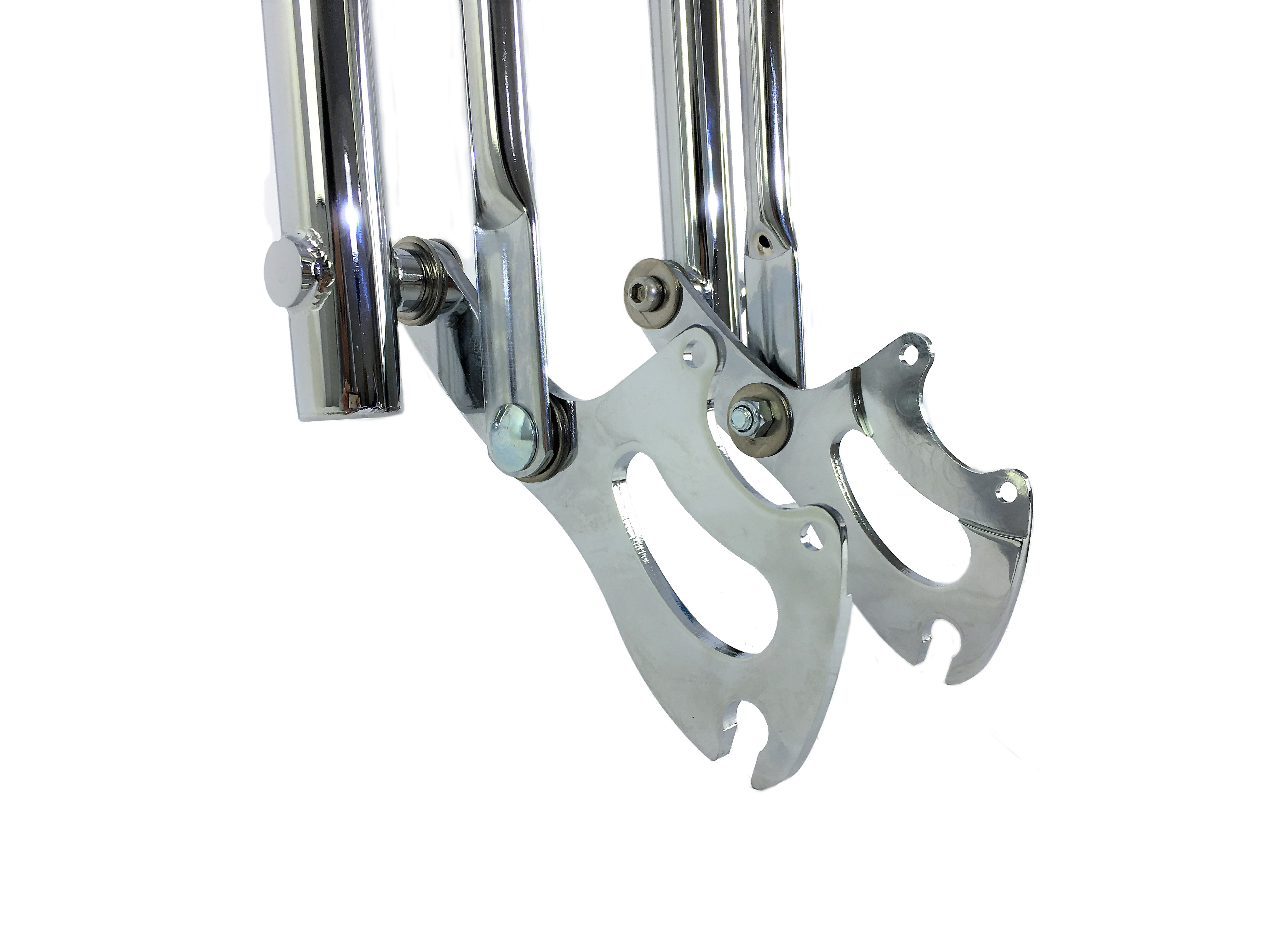

The fork is supplied with a mount for the disc brake (for brake discs without an adapter up to 160 mm / ~6,3 inches in diameter).
Weight: ~ 6,5 kg (~14,33 pounds)
