Wide Cruiser Handlebar 80
Steel chrome-plated
Width: ~ 80 cm / 31.5 inches
Stem mount: 2.54 cm / 1 inch
Raise: ~ 8 cm / 3.15 inches
Length of the grips: ~ 20 cm / 7.87 inches
Depth: ~ 28 cm / 11.02 inches (handles parallel to the road)
The diameter of the tube is 2.22 cm / 0.87 inches, as with all handlebars.
Wheel Cover 20 inch black
Cool hub caps made from black plastic.For fitting on both sides.
Centre hole diameter: ~56 mm (~2,21 inches)
Overall diameter: 385 mm (~15,16 inches)
2 pieces for one 20 inch rim.With valve hole on one side.
Large headlight for motorbike or e-bikeUNI MK headlightDetails:Asymmetrical 6 1/2 inch headlightHousing and lamp ring in glossy blackClear glass plastic lensH4 insert with parking light (without H4 bulb and its socket)M8 mounting holes on the sideThe parking light is connected via two open cable ends.This headlight was also fitted to the UNI MK bikes at Urban Drivestyle!Dimensions :Glass diameter: ~ 176 mm (6 1/2 inch)Outer diameter: ~ 190 mmTotal depth: ~ 150 mmDepth from mounting: ~ 90 mmDiameter between the fixing holes: ~ 170 mmCable length: ~ 10 cmWeight: ~ 740 gApproval:With E-approval.The headlight has an E4 approval mark and does not require any further documents.It can therefore be installed without further ado in accordance with the installation regulations.Please order accessories separately:LED lamp Art. No.: LED-BUL-12V or UD3597 Conversion to e-bike typical HIGO connections: HIG-POL-2ADR-FEM or HIG-POL-2ADR-MALNote:Many customers use the headlight in combination with a 12V starter battery for scooters or motorbikes.
140 hole flange adapter 120 mmWith the help of this adapter you can easily increase the number of spokes to 140!For mounting between hub and a 140-hole rimMaterial: stainless steelSupplied with stainless steel bolts and self-locking nuts (18 pieces each)Diameter: inner 75 mm, outer 120 mmBolt circle diameter = bolt circle diameter of the hub: ~ 82 mm To calculate the spoke length:Pitch circle of outer spoke holder: ~ 110 mm Pitch circle of inner spoke holder: ~ 101 mm
140 hole flange adapter 110 mmWith the help of this adapter you can easily increase the number of spokes to 140!For mounting between hub and a 140-hole rimMaterial: stainless steelSupplied with stainless steel bolts and self-locking nuts (18 pieces each)Diameter: inner 66 mm, outer 110 mmBolt circle diameter = bolt circle diameter of the hub: ~ 74 mm To calculate the spoke length:Pitch circle of outer spoke holder: ~ 100 mm Pitch circle of inner spoke holder: ~ 90 mm
144 hole flange adapter 134 mmWith the help of this adapter you can easily increase the number of spokes to 144!For mounting between hub and a 144-hole rimMaterial: stainless steelSupplied with stainless steel bolts and self-locking nuts (36 pieces each)Diameter: inner 81 mm, outer 134 mmBolt circle diameter = bolt circle diameter of the hub: ~ 90 mm Offset: 3 mmTo calculate the spoke length:Pitch circle of outer spoke holder: ~ 124 mm Pitch circle of inner spoke holder: ~ 120 mm
144 hole flange adapter 134 mmWith the help of this adapter you can easily increase the number of spokes to 144!For mounting between hub and a 144-hole rimMaterial: AluminiumSupplied with stainless steel bolts and self-locking nuts (12 pieces each)Diameter: inner 81 mm, outer 134 mmBolt circle diameter = bolt circle diameter of the hub: ~ 90 mm Offset: 3 mmTo calculate the spoke length:Pitch circle of outer spoke holder: ~ 124 mm Pitch circle of inner spoke holder: ~ 120 mm
Seatpost Layback with strut 25.4 mm, chrome-platedDiameter: 25.4 mmOverall length: ~ 360 mmOffset: approx. 12 cmThe bend corresponds to an angle of approx. 35°
UD splash guard, checker plate - Hardcore accessoryDrilled holes: 12 piecesMaterial: SteelAccessory for versions V1 and V2.Fitted as standard in V3 Length: 21 cmWidth: 10 cm
Round connecting sleeve / threaded sleeveLength: ~ 60 mmOuter width: ~ 10 mmThread: M6, on both sidesMaterial: CroMoThe exact dimensions can be found in the product images.
Round connecting sleeve / threaded sleeveLength: ~ 70 mmOuter width: ~ 15 mmThread: M10, on both sidesMaterial: CroMoThe exact dimensions can be found in the product images.

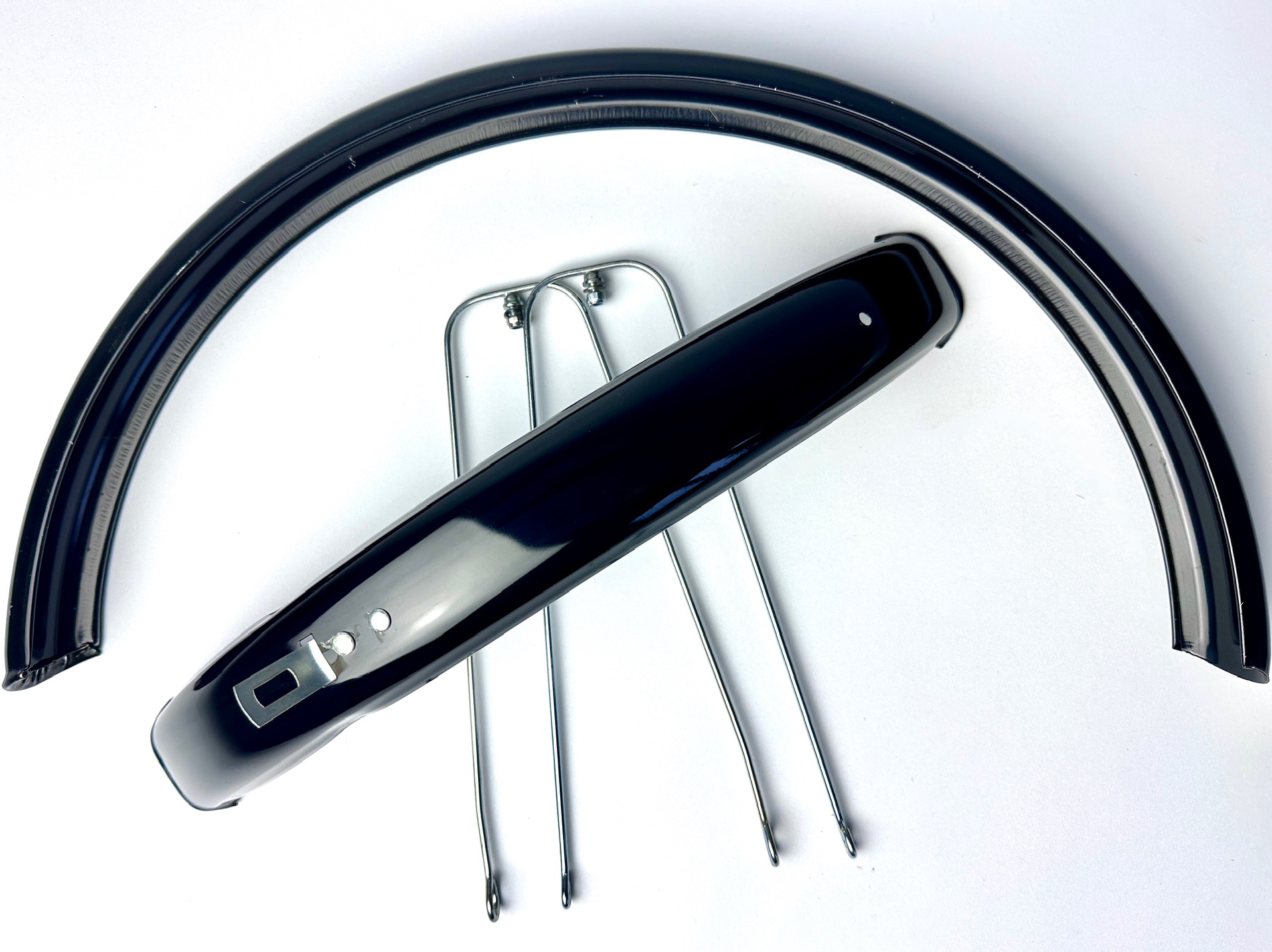

2nd Choice Greaser Fender Set 26 inch. long and Fender Stays 100 mm width
100 mm (~3,94 inches) wide, 26 inch.,glossy black and long
complete fender set for your Greaser E-Bike or similar bike types
Width: 100 mm (~3,94 inches)
Hight: 30 mm (~1,18 inches)
Inside diameter: approx. 690 mm (~27,16 inches)
Outside diameter: approx. 760 mm (~29,92 inches)
Rear lenght in circumference: ~126 cm (~49,61 inches)
Front length in circumference: ~ 77 cm (~30,31 inches)
Steel glossy black laqueredSlight scratches in 2 places from incorrect factory packaging on the rear mudguard - see pictures
Weight: ca. 1,65 kg (~3,64 pounds)
On chainside of the rear fender you will find a benting to give way to the chain.
comes with 2 speicial clips for front fork
DIY blank seat extension / pillion seat / seat cushion for UNI MK to cover yourself!Design the seat extension for your UNI MK according to your own ideas and cover it yourself!Whether plain, patterned or in your favourite colour - there are no limits to your imagination.The seat extension blank consists of foamed polyurethane foam on plywood.Make the extra-long seat of the UNI MK electric fatbike even longer than it already is and cruise around with your loved one!The luggage rack in combination with the seat section is the ultimate upgrade for your UNI MK e-bike and turns it into a cool retro two-seater!We also offer the long seat of the UNI MK as a blank to cover yourself in our range.Details:Dimensions: width ~15 cm, length ~23 cm, height ~11 cmContents: 1x seat cushion blankSpecially made for the Urban Drivestyle UNI MK e-bike (V2 & newer)Drive-in nuts with M8 thread on the undersideOriginal component from Urban Drivestyle Berlin!
UD long seat / saddle
for UNI MK
UNI MK's distinctive seat
is certainly one of the reasons why many people think of an old moped
when they see UNI MK for the first time! Simple, long and absolutely
comfortable are the best words to describe the seat - probably the
longest bike seat in the world!
The seat is made of
moulded polyurethane foam with a fabric-look seat cover. It is ideal
for smaller riders and for carrying children in the front seat area.
The seat can also be easily extended with the seat extension to
provide enough space for a passenger or for oversized
riders.
Bench features:Material: Moulded polyurethane foam
with fabric-look seat coverColour: BlackDimensions:
78cm x 15cm x 9cm (L x W x H)
Original spare part from Urban
Drivestyle Berlin!
DIY blank UD seat long / saddle for UNI MK to cover yourself!Design the striking UNI MK seat according to your own ideas and cover it yourself!Whether plain, patterned or in your favourite colour - there are no limits to your imagination.The bench blank is made of foamed polyurethane foam on plywood.The finished bench seat is ideal for smaller riders and for carrying children in the front seat area. The seat can also be easily extended with the seat extension to provide enough space for a passenger or for oversized riders. We also offer the seat extension as a blank to cover yourself in our range.Features of the uncovered seat:Material: ready-foamed seat blank made of polyurethane foam and plywoodDimensions: 78cm x 15cm x 9cm (L x W x H)Drive-in nuts with M8 thread on the undersideOriginal component from Urban Drivestyle Berlin!
BLIND
RIVET NUTS STEEL SPLINED DOME HEAD M 5 X 7 X 11.5
GESIPA
blind rivet nuts are joining elements which allow you to create
strong and durable threads for non-permanent connections. Blind rivet
nuts provide an internal thread. As with blind rivets, two or more
components can be riveted together using both joining elements. They
can be riveted “blindly” into the workpiece, meaning that only
one side can be accessed. It is this simplicity which makes the blind
rivet nut such a smart solution. Blind rivet nuts are available from
GESIPA in various models with different setting-head shapes and made
from various materials such as aluminium, steel or stainless steel.
Technical specification fastenersGrip range min.0,25 mmGrip range max.3,00 mmrivet nut body length11,5 mmHole diameter7,10 mmThread sizeM 5Head diameter10,00 mmrivet nut body diameter7 mmtightening torque8,00 NmmaterialSteel, zinc-platedThread length6,50 mmHead shapeDome headThread breaking force11500 N
BLIND
RIVET NUTS STEEL SPLINED DOME HEAD M 5 X 7 X 11.5, 500 pieces
GESIPA
blind rivet nuts are joining elements which allow you to create
strong and durable threads for non-permanent connections. Blind rivet
nuts provide an internal thread. As with blind rivets, two or more
components can be riveted together using both joining elements. They
can be riveted “blindly” into the workpiece, meaning that only
one side can be accessed. It is this simplicity which makes the blind
rivet nut such a smart solution. Blind rivet nuts are available from
GESIPA in various models with different setting-head shapes and made
from various materials such as aluminium, steel or stainless steel.
Technical specification fastenersGrip range min.0,25 mmGrip range max.3,00 mmrivet nut body length11,5 mmHole diameter7,10 mmThread sizeM 5Head diameter10,00 mmrivet nut body diameter7 mmtightening torque8,00 NmmaterialSteel, zinc-platedThread length6,50 mmHead shapeDome headThread breaking force11500 N
LDPE flat bag 1000 x 1200 x 0.05 mm Packaging for bicycle frames or similar Tear-resistant, transparent PE flat bags, also for sealing. - Material: polyethylene, food-safe - transparent, tear-resistant, environmentally friendly - Weldable For dust/dirt-tight packaging and order picking of packaged goods

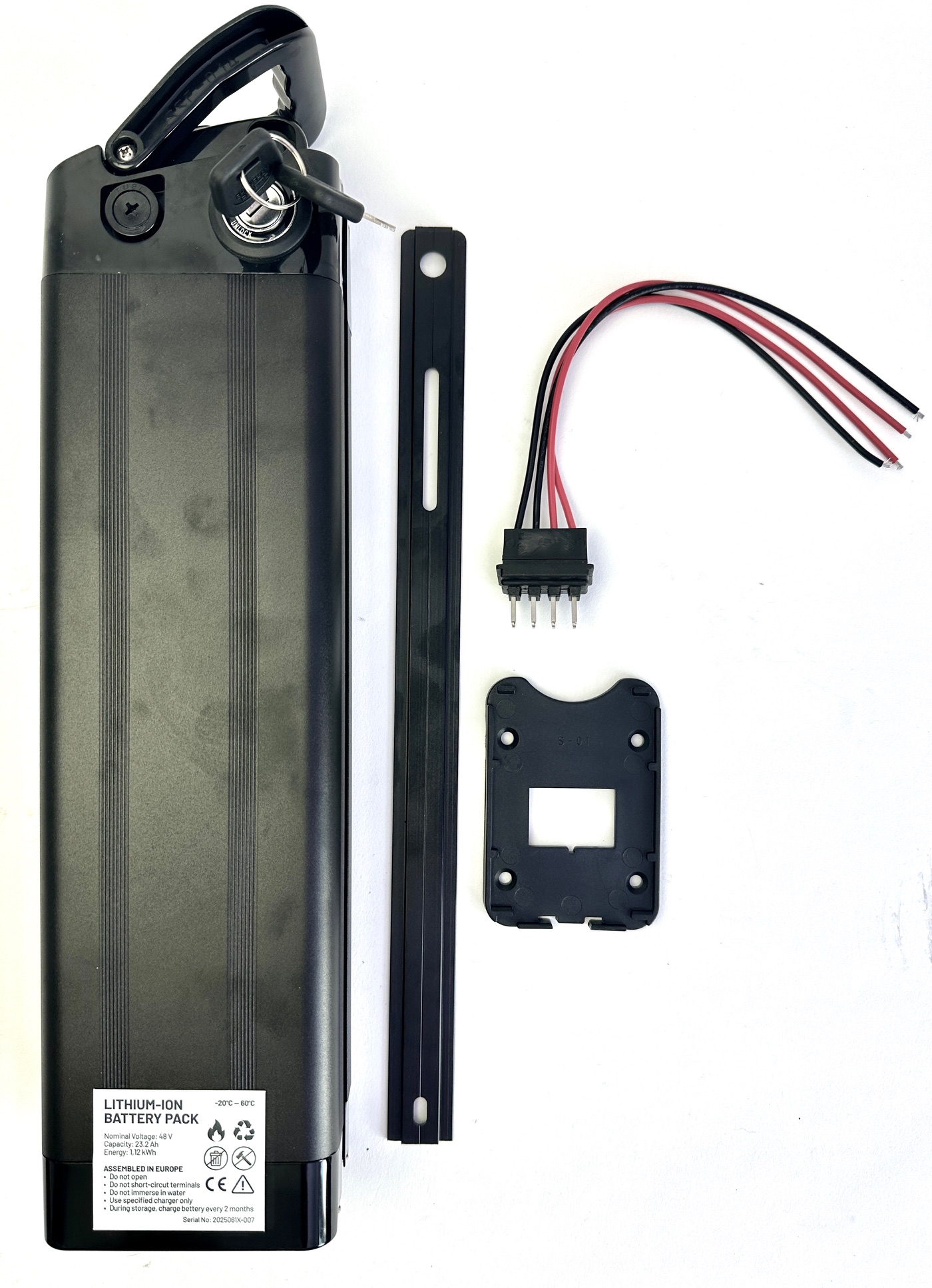

Hailong battery rail / battery holder, 5-pin for spare battery Do you want to carry a spare battery on your e-bike? This is easy and hassle-free thanks to an additional battery holder / battery rail, which can be mounted on the mounting points of the cup holder, for example. The battery holder offers space to integrate a controller. 5 contacts for battery holder Can be mounted at mounting points on the frame, e.g. on the cup holder Compatible with the Hailong battery from our range. Original component from Urban Drivestyle Berlin!
Translated with DeepL.com (free version)
UD double bridge fork for UNI MK and UNI Swing, matt black Special fork from Urban Drivestyle Berlin! Compatible with the UD bike types UNI MK Moke and UNI Swing! Details: For 20 x 4 inch wheels Stem length / diameter: 155 mm / 1 1/8 inch Distance between axle centre and lower bridge: ~ 365 mm Distance between axle mount and end of fork tubes: ~ 600 mm Distance between the steerer tubes at tyre height: ~ 128 mm Installation height: 370 mm
Installation width: 135 mm Inner diameter of the fork tubes: 25.4 mm Weight approx. 2.55 kg (incl. steerer tube) With disc brake mount. The fork has various M6 threaded holes for e.g. lamp holders and mudguard struts.Scope of delivery: 1 x double bridge fork 4 x M6 x 16 Allen screws and washers 1 x special 1 1/8 inch steerer tube Note: You can also find the matching pair of handlebars from Urban Drivestyle in our shop!
Build your custom vintage e-bike with the classic UNI
Swing e-bike frame in matte black.
The UNI Swing e-bike frame comes in the classic moped design with
the comfortable low step-in and can be equipped with all UNI Swing
seats and UD racks - just as you wish. It is 100% made of high
quality ChroMo steel in Germany.
Properties
Material: High
quality ChroMoly steelColor: Deep
blackSteering head
bearing: 44 mm diameter / 70° inclinationHandlebar: 22
mm diameterBottom bracket: 120
mm length / 1.37 inch x 24 TPI diameter & threadWheelbase: 1126
mmMax. Wheel size: 20
x 4 1/4 inchAxles: 10
mm front wheel / 14 mm rear wheel (12 mm flat for wheel mounting)Frame height (without
handlebars): 465 mmIncludes: Frame without forkWeight: ~ 9,1 kgVarious mounting points for e.g. batteries, controller....Original UNI Swing frame from Urban Drivestyle Berlin!
UNI MK Moke E-Bike Frame
Build your custom e-bike with the classic UNI MK
e-bike frame in matte black.
The UNI MK E-Bike frame comes in a classic moped design and can
also be equipped with UNI MK long seat and all UD racks - just as you
wish. It is 100% made of high quality ChroMo steel in Germany.
Properties
Material: High
quality ChroMoly steel
Color: Deep
black
Steering head
bearing: 44 mm diameter / 70° inclination
Bottom bracket: 120
mm length / 1.37 inch x 24 TPI diameter & thread
Wheelbase: 1126
mm
Max. Wheel size: 20
x 4 1/4 inch
Axles: 10
mm front wheel / 14 mm rear wheel (12 mm flat for wheel mounting)
Frame height (without
handlebars): 465 mm
Includes: Frame without fork
Weight: ~ 8,1 kg
Original Frame UD Moke series from Urban Drivestyle Berlin!

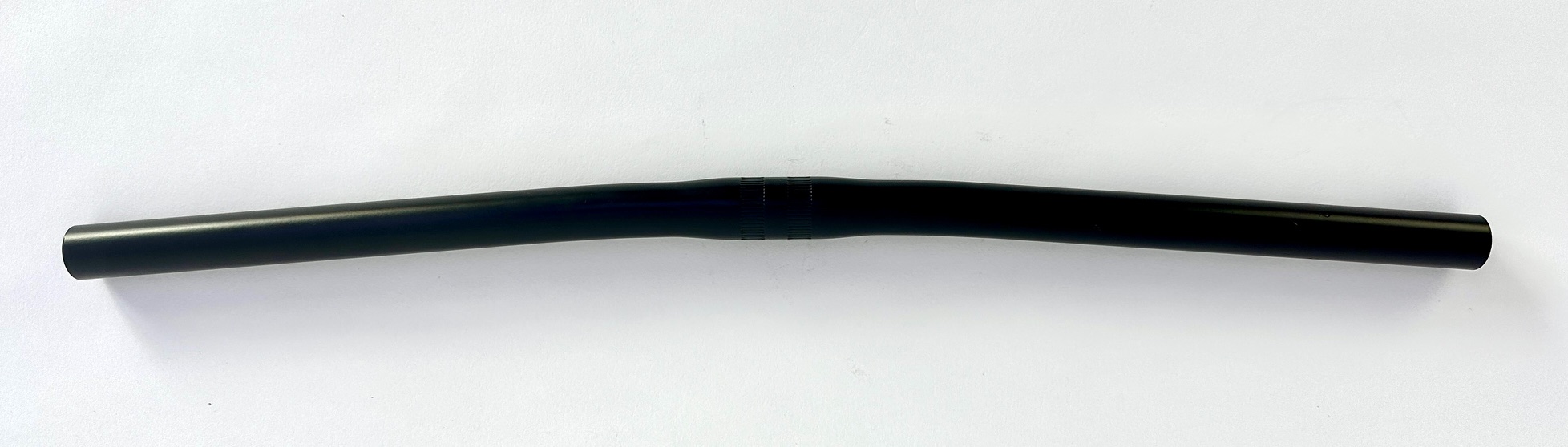

UD handle bars, UNI MK matt blackWidth: from bend to end of grip: ~ 270 mmRise: length to bend: ~ 375 mmCROMO steelDiameter for the fork: 25 mmDiameter handle end: 22 mmColour: matt black powder-coated Scope of delivery: 2 pieces, left and rightOriginal handlebars from the UD Moke and Swing Bike Series by Urban Drivestyle Berlin!HAN-BAR-UNI-BLK
UD display holder for the Moke or Swing handlebar pair, matt blackWidth: Centre-to-centre mount: ~ 158 mmHandlebar mount: ~ 26 mm diameterCROMO steel Colour: matt black powder-coated Scope of delivery: 1 piece with 2 x M6 x 16 Allen screws and washers Original handlebar display holder for the UD Moke and Swing Bike series from Urban Drivestyle Berlin! LCD-BRA-BAR-BLK
Silverfish battery 48V 19.2Ah 920Wh
Powerful e-bike batteries made in Germany in the standardized Silverfish battery case.
Our 48V lithium-ion Silverfish battery impresses with high quality workmanship and durability - made in Germany. It contains high quality LG cells and allows a range of up to 100km*.The battery has an internal BMS module for regulated charging and discharging, a CE/ROHS certificate and comes with a pair of battery keys.
The battery ignition lock has three positions: Unlock, Off, On - due to the design, the battery fits any UNI MK, Bobber, Swing e-bike and can be replaced in a flash.
Features of the battery
Manufacturer: LG cells in Silverfish housing
Voltage: 48V
Capacity: 920Wh = 48V x 19.2Ah
Charging: XLR-3
Dimensions: H 41cm x D 11cm x W 7,5 cm
Weight: ~ 4,5 kg
Compatibility Type / Design: UNI MK Classic/Swing/Bobber
BMS (= Battery Management System)
CE/ROHS certificate
Includes: Battery + Key
Made in Germany
Original replacement battery from Urban Drivestyle Berlin, with UD logo!
Note:From the V5 UNI Bike models (frame number starts with 05....) we only have 48V systems for 250W & Export versions!
* Range is approximate and can vary greatly (rider:in weight, terrain, tire pressure, temperature, etc.).
UD Hailong battery 48V, 17.25Ah, 828WhHigh-performance e-bike batteries made in Germany in a standardised Hailong housing.Our new and powerful 48V lithium-ion battery consists of 3400mAh Samsung cells, encased in a Hailong battery housing and has an integrated BMS, CE/ROHS certificate and a pair of keys. With the LED charge level indicator on the battery, you can see the remaining charge level at the touch of a button. The cylinder lock fixes your battery securely to the battery rail installed on the bike. Thanks to its design, it fits into every UNI Xoppa and UDX e-bike and can be replaced in a flash.Features of the battery:Manufacturer: Samsung cells in Hailong housingVoltage: 48VCapacity: 828 Wh = 48V x 17.25AhCompatibility: UNI Xoppa, UDXPlug: DC femaleDimensions: L 36.1cm x W 9.2cm x H 9/10.5cmWeight: ~ 3.75BMS (= Battery Management System)CE/ROHS certificateIncludes: Battery + keyMade in GermanyOriginal spare part from Urban Drivestyle Berlin!
Universal bench seat for bikes and e-bikes Seat bench in a great retro look for a customised finish for your bike! The length of 62 cm allows use as a double seat for you and your passenger. Adjustments to the frame may be necessary to fit the universal seat. Details: black PU leather with quilted surface Weight: ~ 1.5 kg Length: ~ 62 cm Width: ~ 17 cm Height: ~ 10 cm Fastening: 6x M6 mounting screws firmly embedded in the plastic on the underside Distance between the fixing points see photo (measured from centre hole to centre hole) Important: This is a universal part for which adjustments to the frame may be necessary and mounting options must be created.
Translated with DeepL.com (free version)

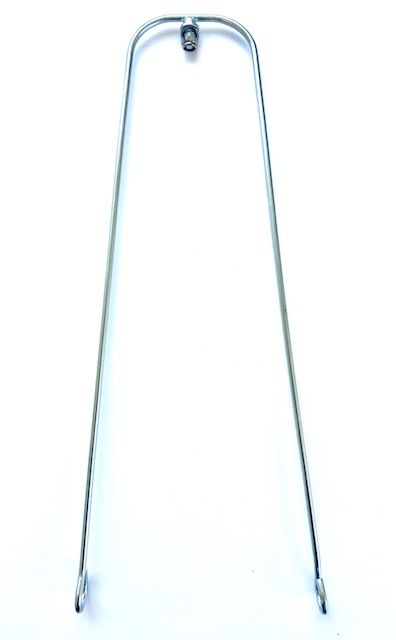

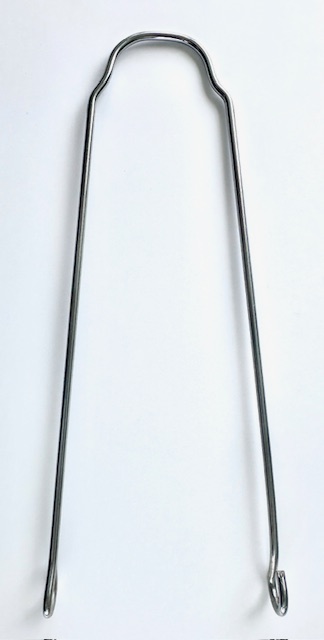

Fender Stays, 26 inch.
stainless steel one piece
for 80 mm (~3,15 inches) wide fenders
for axle mounting and 80 mm wide platesOverall length: approx. 370 mmmSlot for axle: ~15 x 10 mmMounting holes to mudguard: ~ 5 mm / slotted hole: ~ 20 x 5 mmDistance from axle mount centre to mounting hole to mudguard: ~ 355 mm
Spade Pedals
Black sand, silver Aluminium
9/16 inch thread, pair
Sealed bearing
CroMo Axle
Weight 390 g. /pair
Perfect Quality
For your information:
9/16 inch ~ 14.3 mm - for three-piece crank
Dished Sprocket, 10 mm (~0,39 inches) offset, 22 Teeth
1/2 x 1/8
22 Teeth
helps to bring the chain about 10 mm (~0,39 inches) out
Depth: ~ 15 mm (~0,59 inches)
