Classic Cycle Dual Springer Vintage Bicycle Fork
with Disc Brake mount
with 1 inch steerer
Abraham Linkage Monark Fork
The most beautyful springer ever produced
up to 26 inch., adjustable springs
black with chrome-plated springs
A - Distance between fork crown and axle dropout: 385 mm (~15,16 inches)
C - Width between Fork legs: 90 mm (~3,54 inches)
D - Axle mount width: 100 mm (~3,94 inches)
E - Steerer lengh: 215 mm (~8,46 inches)
F - 1 inch steerer = 25,4 mm
without thread for ahead headset
Weight: ~ 2,8 kg (~6,18 inches)
with mount for a brake arm and Disc brake (160 mm (~6,30 inches) max. rotor)
Original Classic Cycle Cruiser Springfork Model Monark
Springer Fork 20 inch. Chrome
20 inch., 1 inch steerer, steerer length 160 mm (~6,3 inches), 50 mm (~1,97 inches) thread
chrome-plated
the ultimate lowrider fork!
Width between dropouts: 100 mm (~3,94 inches)
width between the fork legs: ~ 70 mm
Springer Fork 26 inch. for Cantilevers/V-Brakes
26 inch., can be used also on cruisers, adjustable, chrome-plated
1 inch steerer, steerer lengh: 190 mm (~7,48 inches), 100 mm (~3,94 inches) thread
Width between dropouts: 100 mm (~3,94 inches)
width between the fork legs: ~ 70 mm
Springer Fork 26 inch. without Cantilevers
26 inch., can be used also on cruisers, adjustable, chrome-plated
1 inch steerer, steerer lengh: 190 mm (~7,48 inches), 100 mm (~3,94 inches) thread
Width between dropouts: 100 mm (~3,94 inches)
Total length: 61 cm (~2,40 inches)
Width between fork legs: 71 mm (~2,79 inches)
Classic Cycle Dual Springer Vintage Bicycle Fork
with Disc Brake mount
with 1 1/8 inch steerer
Abraham Linkage Monark Fork
The most beautyful springer ever produced
up to 26 inch., adjustable springs
black with chrome-plated springs
A - Distance between fork crown and axle dropout: 385 mm (~15,16 inches)
C - Width between Fork legs: 100 mm (~3,94 inches)
D- Axle mount width: 90 mm (~3,54 inches)
E - steerer lengh: 215 mm (~8,46 inches)
F - 1 1/8 inch steerer = 28,6 mm
without thread for ahead headset
Weight: ~ 2,8 kg (~6,18 inches)
with mount for a brake arm and Disc brake (160 mm (~6,30 inches) max. rotor)
Original Classic Cycle Cruiser Springfork Model Monark
Bent Springer Fork 26 inch.
26 inch., can be used also on cruisers, adjustable, chrome-plated
1 inch steerer, steerer lengh: 190 mm (~7,48 inches) 100 mm (~3,94 inches) thread
the ultimate lowrider fork
width between the fork legs: ~ 70 mm
NEW Classic Cycle Dual Springer Vintage Bicycle Fork for Fat Bikes
with Disc Brake mount
with 1 1/8 inch steerer
Abraham Linkage Monark Fork
The most beautyful springer ever produced now for 100 mm (~3,94 inches) rims suits Sand, Snow or Fat Bikes up to 26 x 4.5 Tires
up to 26 inch., adjustable springs
black with chrome-plated springs
1 1/8 inch steerer = 28,6 mm
total steerer lengh: 239 mm (~9,41 inches)
without thread for ahead headset
Width between Fork legs: 140 mm (~5,51 inches)
Axle mount width: 135 mm (~5,31 inches)
Distance between fork crown and axle dropout: 430 mm (~16,93 inches)
Weight: 3,27 kg (~7,21 pounds)
with mount for Disc brake (160 mm (~6,30 inches) max. rotor)
Original Classic Cycle Cruiser Springfork Model Monark
Springer Fork 26 inch. for Cantilevers/V-Brakes, black
26 inch., can be used also on cruisers, adjustable, black
1 inch steerer, steerer lengh: 190 mm (~7,48 inches), 100 mm (~3,94 inches) thread
thread length: 100 mm (~3,94 inches)
Width between drop outs: 100 mm (~3,94 inches)
width between the fork legs: ~ 70 mm
204 Suspension Fork RST Guide 20 Zoll TNL Fatbike 1 1/8 Ahead for Disk Brake
Turn & Lock-out A hydraulic cartridge damping system with compression adjustment to lockout function.
The RST Guide TNL is the Suspension Fork for 20" Fat Bikes / Urban E-Bikes
for 20 inch wide wheels with 135 mm hubs.
Lockout and Preload adjustable
1 1/8" steerer Ahead
Weight: ~. 3,37 kgs (with 200 mm long steerer)
For Disc brake Post Mount 6
comes with manual
Steerer length
260 mm
Steerer diameter / stem width:
28,6 mm
Steerer diameter at cone seat:
30 mm
Installation hight:
420 mm
For Hub width:
135 mm
Travel:
45 mm
Ssytem:
Coil in left stanchion
Damping:
Oil in right stanchion
GUIDE 20 MODEL TNL
STEERER: 28.6mm Steel
CROWN PITCH: 180 mm
CROWN: Aluminum Black Coating
STANCHION: 32mm Steel CP Finish
CASTING: Aluminum 9mm Open Dropout
ADJUSTMENT: L, P
FEATURES: Hydraulic Lock-Out
SYSTEM: Oil (Right), Coil (Left)
Coil TRAVEL (mm) 20": 45 mm
BRAKE TYPE: Disc Only (160mm without adapter)
WEIGHT (kgs) (w/ 200mm steerer) 3.37
Springer Fork 26 inch. without Cantilevers, black
26 inch., can be used also on cruisers, adjustable, black
1 inch steerer, steerer lengh: 190 mm (~7,48 inches), 100 mm (~3,94 inches) thread
width between fork 71 mm (~2,79 inches)
Width between drop outs: 100 mm (~3,94 inches)
Springer Fork 28 inch. without Cantilevers
28 inch., can be used also on cruisers, adjustable, chrome-plated
1 inch steerer, steerer lengh: 190 mm (~7,48 inches), 100 mm (~3,94 inches) thread
width between the fork legs: 71 mm (~2,79 inches)
Width between drop outs: 100 mm (~3,94 inches)
Weight: ~2,1 kg (~4,63 pounds)
UD 204 rigid fork for fatbike, matte black
For 20 inch wheels with hubs of 135 mm installation width.
1 1/8" shaft Ahead
Weight approx. 2 kg
For disc brake disc (160 mm without adapter)
Scope of delivery: 1 piece
Steerer length
220 mm
Steerer diameter / stem width:
28,6 mm
Steerer diameter at cone seat:
28,65 mm
Installation hight:
340 mm
For Hub width:
135 mm
Original fork from the UDX bike series from Urban Drivestyle Berlin!
Classic Cycle Double Crown Chopper Springer Fork for Disc Brake 1 1/8 steerer
One of the most beautiful chopper springer forks you can get!
Chrome-plated, noble and supercool for 20-26 inch. wheels up to 3.00!
CroMo Steel and Alu Bridges
A - Distance between axle and handlebar attachments: 1000 mm (~39,37 inches)
B - Diameter of thicker fork tube: 29 mm (~1,14 inches)
C - Distance between springer shafts: 108 mm (~4,25 inches)
D - For hub width of: 100 mm (~3,94 inches)
E - Steerer length: 270 mm (~10,63 inches)
F - 1 1/8 inch steerer
G - Minimum width (outer edge - outer edge of the lift): 77 mm (~3,03 inches)
H - Handlebar mount 22.2 mm
I - Distance between axle mount and lower bridge: 580 mm ( ~ 22,83 inches)
The shaft and the fork tubes can be shortened.
The fork is supplied with a mount for the disc brake (for brake discs without an adapter up to 160 mm / ~6,3 inches in diameter).
Weight: ~ 6,5 kg (~14,33 pounds)
NEW Classic Cycle Dual Springer Vintage Bicycle Fork for 28" x 82 mm (~3,23 inches) rims
with Disc Brake mount
with 1 inch steerer
Abraham Linkage Monark Fork
The most beautyful springer ever produced now for 80 mm (~3,15 inches) rims suits up to 28" Tires
up to 28 inch., adjustable springs
black with chrome-plated springs
1 inch steerer = 25,4 mm
steerer lengh: 215 mm (~8,46 inches)
without thread for ahead headset
Width between Fork legs: 95 mm (~3,74 inches)
Axle mount width: 100 mm (~3,94 inches)
Distance under lower fork crown till axle dropout: 455 mm (~17,91 inches)
Weight: 3,2 kg (~7,05 pounds)
with mount for Disc brake (160 mm (~6,30 inches) max. rotor)
Original Classic Cycle Cruiser Springfork Model Monark
Downhill Upside - Down Suspension Fork up to 26"
perfect for the cool look of a heavy motobike.
As ridden by Mountainbike Racing's team leader, the range-topping this downhill fork now offers 180 mm (~7,09 inches) of smooth travel from and MCU & spring dumper with rebound adjustment.
It needs a 20 mm (~0,8 inches) thru axle (110 mm (~4,3 inches) hub width) and offers
disc brake mount IS2000
Noble and supercool till 26 inch. wheels, 1 1/8 steerer
Size: 26" Downhill
Crown: alloy forged dimension: 150 mm (~5,9 inches) (middle to middle)
Preload: Rebound / Compression
Bridges / crowns: forged, T6 heated, 6061 Aluminium
Stanchion: butted, T8 heated, 6061 Aluminium
Tubes: hard-anodised, T9 heated, 6061 Aluminium
Dumper: MCU & Spring
Max. Travel: ~ 180 mm (~7,08 inches)
Width between tubes: ~ 103 mm (~4,06 inches)
Steerer length: ~230 mm (~9,06 inches)
width between axle mounts: 110 mm (~4,33 inches)
with 20 mm thru axle (~0,79 inches)
fork tube length: ~ 750 mm (~29,53 inches)
Distance between legs / slider: ~103 mm (~4,06 inches)
Diameter lower standpipe: ~ 45 mm - in the area of the bridges: ~ 47.5 mm
Slider tube diameter: ~ 37 mm
Distance between Axle and lower crown: ~ 510 mm (~20,08 inches) - is matter of how you assemble the crown
Weight: ~ 4,35 kg (~9,59 pounds)
Suitable Hub: Item: 326330
Springer Fork 26 inch. for Cantilevers/V-Brakes 1 1/8 Steerer
26 inch., can be used also on cruisers, adjustable, chrome-plated
1 1/8 inch steerer, steerer lengh: 190 mm (~7,48 inches), 100 mm (~3,94 inches) thread
Width between dropouts: 100 mm (~3,94 inches)
width between the fork legs: ~ 70 mm
Springer Fork 26 inch. for Cantilevers/V-Brakes, black 1 1/8 steerer
26 inch., can be used also on cruisers, adjustable, black
1 1/8 inch steerer, steerer lengh: 190 mm (~7,48 inches), 100 mm (~3,94 inches) thread
thread length: 100 mm (~3,94 inches)
Width between drop outs: 100 mm (~3,94 inches)
Bent Springer Fork 26 - 28 inch. 1 1/8 steerer
originally for 26 inch., can be used also on cruisers, adjustable, chrome-plated
1 1/8 inch steerer, steerer lengh: 190 mm (~7,48 inches) 100 mm (~3,94 inches) thread
the ultimate lowrider fork!
width between the fork legs: ~ 70 mm
UD 204 Double Crown Suspension Fork Fatbike air-suspension, matt black
For 20 inch wheels with hubs of 135 mm installation width.
Adjustable preload.
1 1/8" shaft Ahead
Distance between axle centre and shock tower: ~ 330 mm
Distance between upper edge of upright pipes to axle mount: ~ 600 mm
Weight approx. 2.7 kg (with 220 mm shaft)
For disc brake disc (160 mm without adapter) PostMount
Scope of delivery: 1 piece
Steerer length
220 mm
Steerer diameter / stem width:
28,6 mm
Steerer diameter at cone seat:
30 mm
Installation hight:
420 mm
For Hub width:
135 mm
Travel:
~ 100 mm
Suspension:
Air in left stanchion
Damping:
Oil in right stanchion
Distance between steerer tubes at tyre height:
~ 115 mm
Original fork of the bikes from Urban Drivestyle Berlin!
Bent Springer Fork 26 inch. for Cantilevers/V-Brakes
26 inch., can be used also on cruisers, adjustable, chrome-plated
1 1/8 inch steerer, steerer lengh: 190 mm (~7,48 inches), 100 mm (~3,94 inches) thread
Width between dropouts: 100 mm (~3,94 inches)
the ultimate lowrider fork!
width between the fork legs: ~ 70 mm
Springer Fork 26 inch. with 1 1/8 Steerer
26 inch., can be used also on cruisers, adjustable, chrome-plated
1 1/8 inch steerer, steerer lengh: 190 mm (~7,48 inches), 100 mm (~3,94 inches) thread
Width between dropouts: 100 mm (~3,94 inches)
Total length: 610 mm (~24,0 inches)
width between the fork legs: ~ 70 mm
Bent Springer Fork 26 inch. for Cantilevers/V-Brakes
26 inch., can be used also on cruisers, adjustable, chrome-plated
1 inch steerer, steerer lengh: 190 mm (~7,48 inches), 100 mm (~3,94 inches) thread
Width between dropouts: 100 mm (~3,94 inches)
the ultimate lowrider fork!
width between the fork legs: ~ 70 mm
Springer Fork 26 inch. without Cantilevers, black, 1 1/8 steerer
26 inch., can be used also on cruisers, adjustable, black
1 1/8 inch steerer, steerer lengh: 190 mm (~7,48 inches), 100 mm (~3,94 inches) thread
width between fork 71 mm (~2,79 inches)
Width between drop outs: 100 mm (~3,94 inches)
Classic Cycle Double Crown Chopper Springer Fork for Disc Brake
One of the most beautiful chopper springer forks you can get!
Chrome-plated, noble and supercool for 20-26 inch. wheels up to 3.00!
CroMo Steel and Alu Bridges
A - Distance between axle and handlebar attachments: 1000 mm (~39,37 inches)
B - Diameter of thicker fork tube: 29 mm (~1,14 inches)
C - Distance between springer shafts: 108 mm (~4,25 inches)
D - For hub width of: 100 mm (~3,94 inches)
E - Steerer length: 270 mm (~10,63 inches)
F - Shaft diameter: 1 inch / 25,4 mm
G - Minimum width (outer edge - outer edge of the risers): 77 mm
H - Handlebar mount: 22.2 mm (~0,9 inches)
I - Distance between axle mount and lower bridge: 580 mm ( ~ 22,83 inches)
The shaft and the fork tubes can be shortened.
The fork is supplied with a mount for the disc brake (for brake discs without an adapter up to 160 mm / ~6,3 inches in diameter).
Weight: ~ 6,5 kg (~14,33 pounds)
UD Moke steerer for double crown forkLength: 16,5 cm
Diameter: 28.6
Material: steel
With matching M10 Allen screw and Urban Drivestyle aluminum cap with gasket
Original shaft of the double bridge fork of the Moke Bikes from Urban Drivestyle Berlin!
Classic Cycle Dual Springer Vintage Bicycle Fork
with 1 inch steerer
Abraham Linkage Monark Fork
The most beautyful springer ever produced
up to 26 inch., adjustable springs
black with chrome-plated springs
1 inch steerer = 25,4 mm
steerer lengh: 215 mm (~8,46 inches)
without thread
Width between Fork legs: 73 mm (~2,87 inches)
Distance between fork crown and axle dropout: 385 mm (~15,16 inches)
Width between dropouts: 100 mm (~3,94 inches)
Weight: 2,74 kg ~6,04 pounds)
with attachment for a brake arm
Original Classic Cycle Cruiser Springfork Model Monark
NEW Classic Cycle Dual Springer Vintage Bicycle Fork for Fat Bikes
with Disc Brake mount
with 1 inch steerer
Abraham Linkage Monark Fork
The most beautyful springer ever produced now for 100 mm (~3,94 inches) rims suits Sand, Snow or Fat Bikes up to 26 x 4.5 Tires
up to 26 inch., adjustable springs
black with chrome-plated springs
1 inch steerer = 25,4 mm
total steerer lengh: 239 mm (~9,41 inches)
without thread for ahead headset
Width between Fork legs: 140 mm (~5,51 inches)
Axle mount width: 135 mm (~5,31 inches)
Distance between fork crown and axle dropout: 430 mm (~16,93 inches)
Weight: 3,27 kg (~7,21 pounds)
with mount for Disc brake (160 mm (~6,30 inches) max. rotor)
Original Classic Cycle Cruiser Springfork Model Monark
UD 204 Double Crown Suspension Fork Fatbike, matt black
For 20 inch wheels with hubs of 135 mm installation width.
1 1/8" shaft Ahead
Distance between axle centre and shock tower: ~ 325 mm
Distance between axle mount and end of uprights: ~ 600 mm
Weight approx. 2.7 kg (with 270 mm shaft)
For disc brake disc (160 mm without adapter) PostMount
Scope of delivery: 1 piece
Steerer length
270 mm
Steerer diameter / stem width:
28,6 mm
Steerer diameter at cone seat:
30 mm
Installation hight:
420 mm
For Hub width:
135 mm
Travel:
~ 100 mm
Suspension:
unidentified
Damping:
unidentified
Distance between steerer tubes at tyre height:
~ 120 mm
Original fork of the bikes from Urban Drivestyle Berlin!
UD double bridge fork for UNI MK and UNI Swing, matt black Special fork from Urban Drivestyle Berlin! Compatible with the UD bike types UNI MK Moke and UNI Swing! Details: For 20 x 4 inch wheels Stem length / diameter: 155 mm / 1 1/8 inch Distance between axle centre and lower bridge: ~ 365 mm Distance between axle mount and end of fork tubes: ~ 600 mm Distance between the steerer tubes at tyre height: ~ 128 mm Installation height: 370 mm
Installation width: 135 mm Inner diameter of the fork tubes: 25.4 mm Weight approx. 2.55 kg (incl. steerer tube) With disc brake mount. The fork has various M6 threaded holes for e.g. lamp holders and mudguard struts.Scope of delivery: 1 x double bridge fork 4 x M6 x 16 Allen screws and washers 1 x special 1 1/8 inch steerer tube Note: You can also find the matching pair of handlebars from Urban Drivestyle in our shop!
UD 204 Suspension fork for fatbike air suspension, matt black
For 20 inch wheels with hubs of 135 mm installation width.
Adjustable preload.
1 1/8" shaft Ahead
Distance between axle centre and shock tower: ~ 330 mm
Distance between axle mount and end of uprights: ~ 430 mm
Weight approx. 2.2 kg (with 220 mm shaft)
For disc brake disc (160 mm without adapter) PostMount
Scope of delivery: 1 piece
Steerer length
220 mm
Steerer diameter / stem width:
28,6 mm
Steerer diameter at cone seat:
30 mm
Installation hight:
465 mm
For Hub width:
135 mm
Travel:
~ 100 mm
Suspension:
Air in left stanchion
Damping:
Oil in right stanchion
Distance between steerer tubes at tyre height:
~ 115 mm
Original fork of the bikes from Urban Drivestyle Berlin!

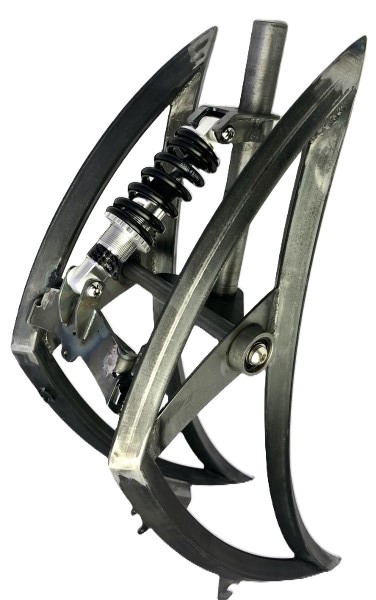

Spring Beast Raw
Unique Suspension Fork!
Exclusively available at Classic Cycle!
Extraordinary custom fork for a rims up to 102 mm width.
Stability meets extravagance!
The square tubes and the striking design will make your custom bike an absolute eye-catcher!
Details:
For 20 to 28 inch tires
up to 102 mm / 4,02 inches rim width
1 1/8 inch shaft
shaft length: 240 mm / 9,45 inces, for frame heads up to 210 mm / 8,27 inches
with disc brake mount
Total length: ~ 800 mm / 31,5 inches
Distance axle mount - lower edge lower bridge: ~ 400 mm / 15,75 inches
side length of fork tubes: 25 mm / 0,98 inches
width between fork tubes: 140 mm / 5,51 inches
Width in the axle mount / hub width: 110 mm / 4,33 inches
adjustable spring
Color: without, raw
Weight: approx. 6.35 kg / 14 lbs
The fork is easy to assemble using screws and assembly instructions included.
Made in Europe
Springer Fork 20 inch. Chrome
20 inch., 1 inch steerer, steerer length 160 mm (~6,3 inches), 50 mm (~1,97 inches) thread
chrome-plated
the ultimate lowrider fork!
Width between dropouts: 100 mm (~3,94 inches)
width between the fork legs: ~ 70 mm
Classic Cycle Dual Springer Vintage Bicycle Fork
with Disc Brake mount
with 1 inch stem
Abraham Linkage Monark Fork
The most beautyful springer ever produced
up to 26 inch., adjustable springs
black with chrome-plated springs
1 inch stem = 25,4 mm
stem lengh: 215 mm
without thread for ahead headset
Width between Fork legs: 73mm
Axle mount width: 100 mm
Distance between fork crown and axle dropout: 385 mm
Weight: 2,74 kg
with mount for a brake arm and Disc brake (160mm max. rotor)
Original Classic Cycle Cruiser Springfork Model Monark
Springer Fork 20 inch. black
20 inch., 1 inch steerer, steerer length 160 mm (~6,3 inches), 50 mm (~1,97 inches) thread
black anodized
the ultimate lowrider fork!
Width between dropouts: 100 mm (~3,94 inches)
width between the fork legs: ~ 70 mm
€75.95*
This website uses cookies to ensure the best experience possible. More information...
