204 Suspension Fork RST Guide 20 Zoll TNL Fatbike 1 1/8 Ahead for Disk Brake
Turn & Lock-out A hydraulic cartridge damping system with compression adjustment to lockout function.
The RST Guide TNL is the Suspension Fork for 20" Fat Bikes / Urban E-Bikes
for 20 inch wide wheels with 135 mm hubs.
Lockout and Preload adjustable
1 1/8" steerer Ahead
Weight: ~. 3,37 kgs (with 200 mm long steerer)
For Disc brake Post Mount 6
comes with manual
Steerer length
260 mm
Steerer diameter / stem width:
28,6 mm
Steerer diameter at cone seat:
30 mm
Installation hight:
420 mm
For Hub width:
135 mm
Travel:
45 mm
Ssytem:
Coil in left stanchion
Damping:
Oil in right stanchion
GUIDE 20 MODEL TNL
STEERER: 28.6mm Steel
CROWN PITCH: 180 mm
CROWN: Aluminum Black Coating
STANCHION: 32mm Steel CP Finish
CASTING: Aluminum 9mm Open Dropout
ADJUSTMENT: L, P
FEATURES: Hydraulic Lock-Out
SYSTEM: Oil (Right), Coil (Left)
Coil TRAVEL (mm) 20": 45 mm
BRAKE TYPE: Disc Only (160mm without adapter)
WEIGHT (kgs) (w/ 200mm steerer) 3.37
Downhill Upside - Down Suspension Fork up to 26"
perfect for the cool look of a heavy motobike.
As ridden by Mountainbike Racing's team leader, the range-topping this downhill fork now offers 180 mm (~7,09 inches) of smooth travel from and MCU & spring dumper with rebound adjustment.
It needs a 20 mm (~0,8 inches) thru axle (110 mm (~4,3 inches) hub width) and offers
disc brake mount IS2000
Noble and supercool till 26 inch. wheels, 1 1/8 steerer
Size: 26" Downhill
Crown: alloy forged dimension: 150 mm (~5,9 inches) (middle to middle)
Preload: Rebound / Compression
Bridges / crowns: forged, T6 heated, 6061 Aluminium
Stanchion: butted, T8 heated, 6061 Aluminium
Tubes: hard-anodised, T9 heated, 6061 Aluminium
Dumper: MCU & Spring
Max. Travel: ~ 180 mm (~7,08 inches)
Width between tubes: ~ 103 mm (~4,06 inches)
Steerer length: ~230 mm (~9,06 inches)
width between axle mounts: 110 mm (~4,33 inches)
with 20 mm thru axle (~0,79 inches)
fork tube length: ~ 750 mm (~29,53 inches)
Distance between legs / slider: ~103 mm (~4,06 inches)
Diameter lower standpipe: ~ 45 mm - in the area of the bridges: ~ 47.5 mm
Slider tube diameter: ~ 37 mm
Distance between Axle and lower crown: ~ 510 mm (~20,08 inches) - is matter of how you assemble the crown
Weight: ~ 4,35 kg (~9,59 pounds)
Suitable Hub: Item: 326330
UD 204 Double Crown Suspension Fork Fatbike air-suspension, matt black
For 20 inch wheels with hubs of 135 mm installation width.
Adjustable preload.
1 1/8" shaft Ahead
Distance between axle centre and shock tower: ~ 330 mm
Distance between upper edge of upright pipes to axle mount: ~ 600 mm
Weight approx. 2.7 kg (with 220 mm shaft)
For disc brake disc (160 mm without adapter) PostMount
Scope of delivery: 1 piece
Steerer length
220 mm
Steerer diameter / stem width:
28,6 mm
Steerer diameter at cone seat:
30 mm
Installation hight:
420 mm
For Hub width:
135 mm
Travel:
~ 100 mm
Suspension:
Air in left stanchion
Damping:
Oil in right stanchion
Distance between steerer tubes at tyre height:
~ 115 mm
Original fork of the bikes from Urban Drivestyle Berlin!
UD Moke steerer for double crown forkLength: 16,5 cm
Diameter: 28.6
Material: steel
With matching M10 Allen screw and Urban Drivestyle aluminum cap with gasket
Original shaft of the double bridge fork of the Moke Bikes from Urban Drivestyle Berlin!
Double - Blade - Fork
for 24 inch. frames (wheelsize: 26 inch. baloon or 28 inch. without fender)
black with goldlining, complete with headset, 1" steerer, 220 mm (~8,66 inches) including 30 mm (~2,75 inches) thread
replica of an english Humber front fork
distance from fork crown to front fork end: about 360 mm (~14,17 inches)
width under fork crown: about 53 mm (~2,09 inches)
Width between dropouts: 100 mm (~3,94 inches)
weight: about 1360 gr (~3 pounds)
Improved Quality
UD 204 Suspension fork for fatbike air suspension, matt black
For 20 inch wheels with hubs of 135 mm installation width.
Adjustable preload.
1 1/8" shaft Ahead
Distance between axle centre and shock tower: ~ 330 mm
Distance between axle mount and end of uprights: ~ 430 mm
Weight approx. 2.2 kg (with 220 mm shaft)
For disc brake disc (160 mm without adapter) PostMount
Scope of delivery: 1 piece
Steerer length
220 mm
Steerer diameter / stem width:
28,6 mm
Steerer diameter at cone seat:
30 mm
Installation hight:
465 mm
For Hub width:
135 mm
Travel:
~ 100 mm
Suspension:
Air in left stanchion
Damping:
Oil in right stanchion
Distance between steerer tubes at tyre height:
~ 115 mm
Original fork of the bikes from Urban Drivestyle Berlin!
UD 204 Double Crown Suspension Fork Fatbike, matt black
For 20 inch wheels with hubs of 135 mm installation width.
1 1/8" shaft Ahead
Distance between axle centre and shock tower: ~ 325 mm
Distance between axle mount and end of uprights: ~ 600 mm
Weight approx. 2.7 kg (with 270 mm shaft)
For disc brake disc (160 mm without adapter) PostMount
Scope of delivery: 1 piece
Steerer length
270 mm
Steerer diameter / stem width:
28,6 mm
Steerer diameter at cone seat:
30 mm
Installation hight:
420 mm
For Hub width:
135 mm
Travel:
~ 100 mm
Suspension:
unidentified
Damping:
unidentified
Distance between steerer tubes at tyre height:
~ 120 mm
Original fork of the bikes from Urban Drivestyle Berlin!

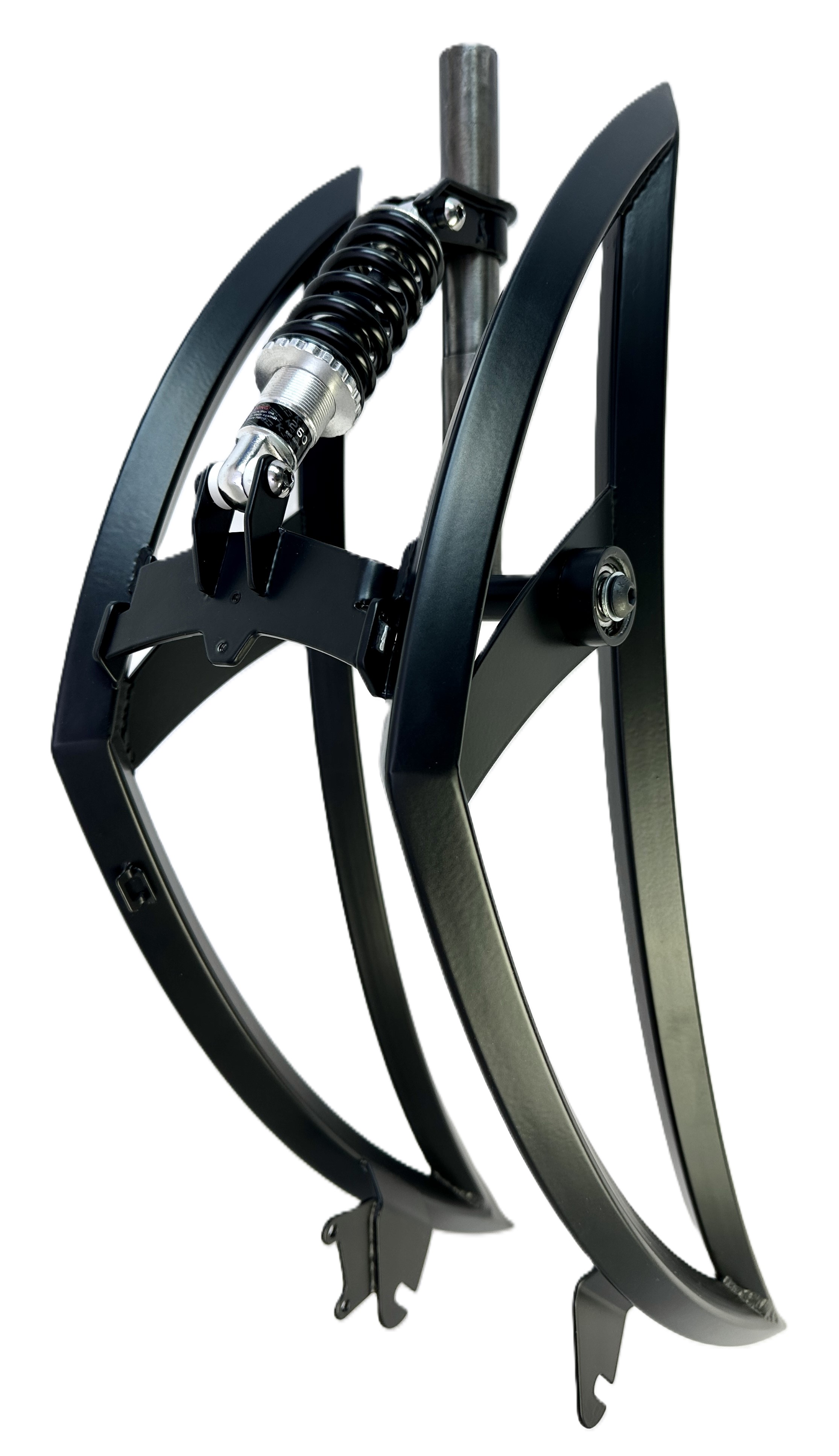

Spring Beast Black
Unique Suspension Fork!
Exclusively available at Classic Cycle!
Extraordinary custom fork for a rims up to 102 mm width.
Stability meets extravagance!
The square tubes and the striking design will make your custom bike an absolute eye-catcher!
Details:
For 20 to 28 inch tires
up to 102 mm / 4,02 inches rim width
1 1/8 inch shaft
shaft length: 240 mm / 9,45 inces, for frame heads up to 210 mm / 8,27 inches
with disc brake mount
Total length: ~ 800 mm / 31,5 inches
Distance axle mount - lower edge lower bridge: ~ 400 mm / 15,75 inches
side length of fork tubes: 25 mm / 0,98 inches
width between fork tubes: 140 mm / 5,51 inches
Width in the axle mount / hub width: 110 mm / 4,33 inches
adjustable spring
Color: black, powder coated
Weight: approx. 6.35 kg / 14 lbs
The fork is easy to assemble using screws and assembly instructions included.
Made in Europe
Raw Beast - Production sample
Unique combination of fork and handlebar!
Exclusively available at Classic Cycle!
Extraordinary custom fork for a rims up to 102 mm width.
Stability meets extravagance!
The square tubes and the striking design will make your custom bike an absolute eye-catcher!
Details:
Length of the round grip tubes: ~ 165 mm / 6,5 inches
Diameter of the round handle tubes: 22.2 mm / 0,87 inches
Handlebar width: ~ 740 mm / 29,13 inches
For 20 to 28 inch tires
up to 102 mm / 4,02 inches rim width
1 1/8 inch shaft
shaft length: 250 mm / 9,84 inces, for frame heads up to 210 mm / 8,27 inches
with disc brake mount
Total length: ~ 1000 mm / 39,37 inches
Distance axle mount - lower edge lower bridge: ~ 430 mm
side length of fork tubes: 25 mm / 0,98 inches
width between fork tubes: 140 mm / 5,51 inches
Width in the axle mount / hub width: 100 mm / 3,93 inches
Color: without, raw
Weight: approx. 6.15 kg / 13,56 lbs
The fork is easy to assemble using screws and assembly instructions included.
Made in Europe
Spring Beast Raw
Unique Suspension Fork!
Exclusively available at Classic Cycle!
Extraordinary custom fork for a rims up to 102 mm width.
Stability meets extravagance!
The square tubes and the striking design will make your custom bike an absolute eye-catcher!
Details:
For 20 to 28 inch tires
up to 102 mm / 4,02 inches rim width
1 1/8 inch shaft
shaft length: 240 mm / 9,45 inces, for frame heads up to 210 mm / 8,27 inches
with disc brake mount
Total length: ~ 800 mm / 31,5 inches
Distance axle mount - lower edge lower bridge: ~ 400 mm / 15,75 inches
side length of fork tubes: 25 mm / 0,98 inches
width between fork tubes: 140 mm / 5,51 inches
Width in the axle mount / hub width: 110 mm / 4,33 inches
adjustable spring
Color: without, raw
Weight: approx. 6.35 kg / 14 lbs
The fork is easy to assemble using screws and assembly instructions included.
Made in Europe
UD double bridge fork for UNI MK and UNI Swing, matt black Special fork from Urban Drivestyle Berlin! Compatible with the UD bike types UNI MK Moke and UNI Swing! Details: For 20 x 4 inch wheels Stem length / diameter: 155 mm / 1 1/8 inch Distance between axle centre and lower bridge: ~ 365 mm Distance between axle mount and end of fork tubes: ~ 600 mm Distance between the steerer tubes at tyre height: ~ 128 mm Installation height: 370 mm
Installation width: 135 mm Inner diameter of the fork tubes: 25.4 mm Weight approx. 2.55 kg (incl. steerer tube) With disc brake mount. The fork has various M6 threaded holes for e.g. lamp holders and mudguard struts.Scope of delivery: 1 x double bridge fork 4 x M6 x 16 Allen screws and washers 1 x special 1 1/8 inch steerer tube Note: You can also find the matching pair of handlebars from Urban Drivestyle in our shop!
Fork for Electra Townie, 20 inches, ivory20 inchSteel, ivory lacquered with Decor1 inch shaft, shaft length: 185 mm (~7,28 inches)
Thread length: 40 mm (~1,57 inches)With Pivot Brake AdaptersWidth between the fork blades = axle mounting: 105 mm (~4,13 inches)Weight: approx. 1,028 kg (~2,27 pounds)The fork may have slight storage marks.
Original Gazelle bicycle fork 28 inchFor 28 inch wheels with hubs of 100 mm installation width.Stem with external thread Ø 25.4 mmWeight approx. 760 gDrum brake mountBracket for a dynamoColour: blackScope of delivery: 1 piece
Shaft length
180 mm
Stem diameter stem clamp:
25,4 mm
Installation hight:
~ 415 mm
Installation width:
100 mm
An original fork from Gazelle, probably 2000 model year.The item may show slight signs of storage.
Reynolds 531 road bike fork with Campagnolo dropouts, 700CFor 700C wheels with hubs with an installation width of 100 mm.NOS from the 70-80sStem with external thread Ø 25.4 mmDropouts from CampagnoloWeight: ~ 760 gManufactured by Reynolds Limited Birmingham, England531 Reynolds Fork BladesColour: chrome-platedFor rim brakes.Scope of delivery: 1 pieceShaft length:150 mmShaft diameter24.5 mmInstallation height:380 mmInstallation width:100 mmOriginal fork by Reynolds Ltd. Birmingham!The item may show slight signs of storage.
Original Gazelle bicycle fork 28 inch ~ 80sFor 28 inch wheels with hubs of 100 mm installation width.Stem with external thread Ø 25.4 mmWeight approx. 1000 gfor rim brakeColour: wine redScope of delivery: 1 pieceShaft length:187 mmStem diameter, external thread:25.4 mmMounting height:~ 385 mmMounting width:100 mmAn original bicycle fork from Gazelle, probably from the 80s.The item may show slight signs of storage.
Gazelle 28 inch bicycle forkFor 28 inch wheels with hubs of 100 mm installation width.Shaft with external thread Ø 25mmweight approx. 1 kghave traces of storageBrake drum brakeBracket for dynamocolour: blackScope of delivery: 1 piece
Shaft length: 286 mmShaft diameter: 25.7 mmMounting height: 415 mmMounting width: 1 mm
Original fork from the UDX bike series from Urban Drivestyle Berlin!
UD 204 rigid fork for fatbike, matte black
For 20 inch wheels with hubs of 135 mm installation width.
1 1/8" shaft Ahead
Weight approx. 2 kg
For disc brake disc (160 mm without adapter)
Scope of delivery: 1 piece
shaft length: 220 mmShaft diameter: 25.2 mmMounting height: 415 mmMounting width: 150 mm
An original fork from Gazelle, probably 2000 year of manufacture.
Gazelle road bike fork 28 inch ~ 80sFor 28 inch wheels with hubs of 150 mm installation width.Shaft with external thread Ø 25.4mm.weight approx. 1 kghave traces of storageColour: gold / chromeFor rim brakesScope of delivery: 1 piece
Shaft length
180 mm
Shaft diameter
25,4 mm
Mounting height
380 mm
Installation hight:
150 mm
An original fork from Gazelle, probably from the 80s!
Gazelle 28 inch bicycle forkFor 28 inch wheels with hubs of 150 mm installation width.Shaft with external thread Ø 25.4mm.weight approx. 1 kghave traces of storageBrake Rim brakeBracket for dynamoColour gold/ chromeScope of delivery: 1 piece
Shaft length: 180 mmShaft diameter: 25,4 mmMounting height: 360 mmInstallation width:150 mm
An original fork from Gazelle, probably 2000 year of manufacture.
Road fork with Campagnolo dropouts 700c 70-80s shaft length: 230 mm sky blue.For 700C wheels with hubs of 95 mm installation width.Shaft with external thread Ø 25.4mm.Dropouts from CampagnoloWeight: ~ 600 gManufactured byTi Reynolds Limited Birmingham, England 531 Reynolds Fork BladesColour: Sky blue
For rim brakesScope of delivery: 1 piece
Shaft length
230 mm
Shaft diameter
25,4 mm
Mounting height
400 mm
Installation hight:
150 mm
Road fork with Campagnolo dropouts 700c 70-80s shaft length: 183 mm sky blue.For 700C wheels with hubs of 95 mm installation width.Shaft with external thread Ø 25.4 mm.Dropouts from CampagnoloWeight: ~ 604 gManufactured byTi Reynolds Limited Birmingham, England 531 Reynolds Fork BladesMay show slight signs of storageColour: Sky blueFor rim brakesScope of delivery: 1 piece
Shaft length
183 mm
Shaft diameter
25,2 mm
Mounting height
390 mm
Installation hight:
100 mm
Road fork with Campagnolo dropouts 700c 70-80s shaft length: 187 mm sky blue.For 700C wheels with hubs of 95 mm installation width.
Shaft with external thread Ø 25.2 mm.
Dropouts from CampagnoloWeight: ~ 590 gManufactured byTi Reynolds Limited Birmingham, England 531 Reynolds Fork BladesColour: Sky blueFor rim brakesScope of delivery: 1 piece
Shaft length
187 mm
Shaft diameter
25,2 mm
Mounting height
360 mm
Installation hight:
100 mm
Road fork with Campagnolo dropouts 700c 70-80s shaft length: 193 mm Signal blue.For 700C wheels with hubs of 100 mm installation width.Shaft with external thread Ø 25.5mm.Dropouts from CampagnoloWeight: ~ 611 gManufactured byTi Reynolds Limited Birmingham, England 531 Reynolds Fork BladesColour: gold / chromeFor rim brakesScope of delivery: 1 piece
Shaft length
192 mm
Shaft diameter
25,5 mm
Mounting height
380 mm
Installation hight:
150 mm
Road fork with Campagnolo dropouts 700c 70-80s shaft length: 193 mm pearl.For 700C wheels with hubs of 95 mm installation width.Shaft with external thread Ø 25.5mm.Dropouts from CampagnoloWeight: ~ 611 gManufactured byTi Reynolds Limited Birmingham, England 531 Reynolds Fork BladesColour: pearlFor rim brakesScope of delivery: 1 piece
Shaft length
180 mm
Shaft diameter
25,5 mm
Mounting height
395 mm
Installation hight:
95 mm
Road fork with Campagnolo dropouts 700c 70-80s shaft length: 223 mm pearl.For 700C wheels with hubs of 95 mm installation width.Shaft with external thread Ø 25.3 mm.Dropouts from CampagnoloWeight: ~ 760 gManufactured byTi Reynolds Limited Birmingham, England 531 Reynolds Fork BladesColour: pearlFor rim brakesScope of delivery: 1 piece
Shaft length
223 mm
Shaft diameter
25,3 mm
Mounting height
395 mm
Installation hight:
95 mm
Road fork with Campagnolo dropouts 700c 70-80s shaft length: 195 mm pearl.For 700C wheels with hubs of 95 mm installation width.Shaft with external thread Ø 25.4 mm.Dropouts from CampagnoloWeight: ~ 760 gManufactured byTi Reynolds Limited Birmingham, England 531 Reynolds Fork BladesColour: pearlFor rim brakesScope of delivery: 1 piece
Shaft length
195 mm
Shaft diameter
25,4 mm
Mounting height
395 mm
Installation hight:
95 mm
Gazelle 28 inch bicycle forkFor 28 inch wheels with hubs of 100 mm installation width.Shaft with external thread Ø 25.6mm.weight approx. 860 kghave traces of storageBrake Rim brakeBracket for dynamoColour mother-of-pearlScope of delivery: 1 piece
Shaft length: 200 mmShaft diameter: 25,6mmMounting height: 390 mmMounting width: 100 mm
An original fork from Gazelle, probably 2000 year of manufacture.
Road fork with Campagnolo dropouts 700c shaft length: 176 mm pearl.For 700C wheels with hubs of 95 mm installation width.Shaft with external thread Ø 25.4 mm.Dropouts from CampagnoloWeight: ~ 760 gManufactured byTi Reynolds Limited Birmingham, England 531 Reynolds Fork BladesColour: pearlFor rim brakesScope of delivery: 1 piece
Shaft length
176 mm
Shaft diameter
25,4 mm
Mounting height
380 mm
Installation hight:
95 mm
Road fork with Campagnolo dropouts 700c 70-80s shaft length: 223 mm chrome-plated.For 700C wheels with hubs of 95 mm installation width.Shaft with external thread Ø 25.4 mm.Dropouts from CampagnoloWeight: ~ 760 gManufactured byTi Reynolds Limited Birmingham, England 531 Reynolds Fork BladesColour: chrome-platedFor rim brakesScope of delivery: 1 piece
Shaft length
173 mm
Shaft diameter
25,4 mm
Mounting height
385 mm
Installation hight:
95 mm
Road fork with Campagnolo dropouts 700c 70-80s shaft length: 100 mm white / green.For 700C wheels with hubs of 100 mm installation width.Shaft with external thread Ø 25.4 mm.Dropouts from CampagnoloWeight: ~ 650 gManufactured byTi Reynolds Limited Birmingham, England 531 Reynolds Fork BladesColour: white / greenFor rim brakesScope of delivery: 1 piece
Shaft length
230 mm
Shaft diameter
25,4 mm
Mounting height
390 mm
Installation hight:
100 mm
Road fork with Campagnolo dropouts 700c 70-80s shaft length: 100 mm white / green.For 700C wheels with hubs of 100 mm installation width.Shaft with external thread Ø 25.4 mm.Dropouts from CampagnoloWeight: ~ 650 gManufactured byTi Reynolds Limited Birmingham, England 531 Reynolds Fork BladesColour: white greenFor rim brakesScope of delivery: 1 piece
Shaft length
210 mm
Shaft diameter
25,4 mm
Mounting height
400 mm
Installation hight:
100 mm
Gazelle 28 inch bicycle forkFor 28 inch wheels with hubs of 100 mm installation width.Shaft with external thread Ø 25.4 mm.weight approx. 890 kghave traces of storageBrake Rim brakeBracket for dynamoColour white greenScope of delivery: 1 piece
Shaft length: 197 mmShaft diameter: 25,4mmMounting height: 390 mmMounting width: 100 mm
An original fork from Gazelle, probably 2000 year of manufacture.
Gazelle 28 inch bicycle forkFor 28 inch wheels with hubs of 100 mm installation width.Shaft with external thread Ø 25.4 mm.weight approx. 890 kghave traces of storageBrake Rim brakeBracket for dynamoColour white greenScope of delivery: 1 piece
Shaft length: 155 mmShaft diameter: 25,4mmMounting height: 390 mmMounting width: 100 mm
An original fork from Gazelle, probably 2000 year of manufacture.
Gazelle 28 inch bicycle forkFor 28 inch wheels with hubs of 100 mm installation width.Shaft with external thread Ø 25.4 mm.weight approx. 890 kghave traces of storageBrake Rim brakeBracket for dynamoColour white greenScope of delivery: 1 piece
Shaft length: 185 mmShaft diameter: 25,4mmMounting height: 390 mmMounting width: 100 mm
An original fork from Gazelle, probably 2000 year of manufacture.
Road fork with Campagnolo dropouts 700c 70-80s shaft length: 100 mm chrome-plated.For 700C wheels with hubs of 100 mm installation width.Shaft with external thread Ø 25.4 mm.Dropouts from CampagnoloWeight: ~ 620 gManufactured byTi Reynolds Limited Birmingham, England 531 Reynolds Fork BladesColour: chrome-platedFor rim brakesScope of delivery: 1 piece
Shaft length
200 mm
Shaft diameter
25,4 mm
Mounting height
370 mm
Installation hight:
100 mm
Gazelle 28 inch bicycle forkFor 28 inch wheels with hubs of 100 mm installation width.Shaft with external thread Ø 25.4 mm.weight approx. 890 kghave traces of storageBrake Rim brakeBracket for dynamoColour light greyScope of delivery: 1 piece
Shaft length: 200 mmShaft diameter: 25,4mmMounting height: 390 mmMounting width: 100 mm
An original fork from Gazelle, probably 2000 year of manufacture.
Gazelle 28 inch bicycle forkFor 28 inch wheels with hubs of 100 mm installation width.Shaft with external thread Ø 25.4 mm.weight approx. 890 kghave traces of storageBrake Rim brakeColour light ivoryScope of delivery: 1 piece
Shaft length: 165 mmShaft diameter: 25,4 mmMounting height: 370 mmMounting width: 100 mm
An original fork from Gazelle, probably 2000 year of manufacture.
€99.95*
This website uses cookies to ensure the best experience possible. More information...
