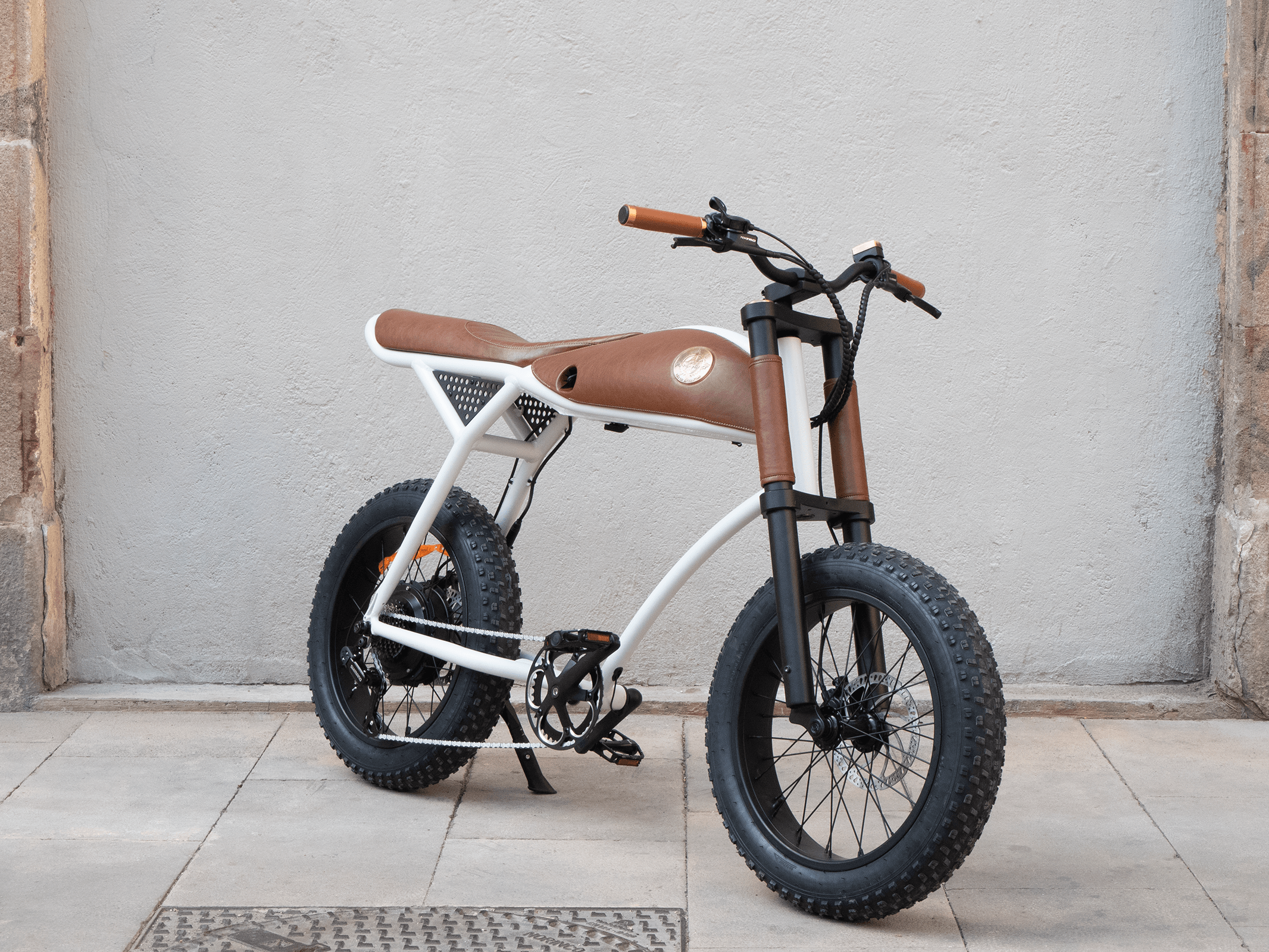

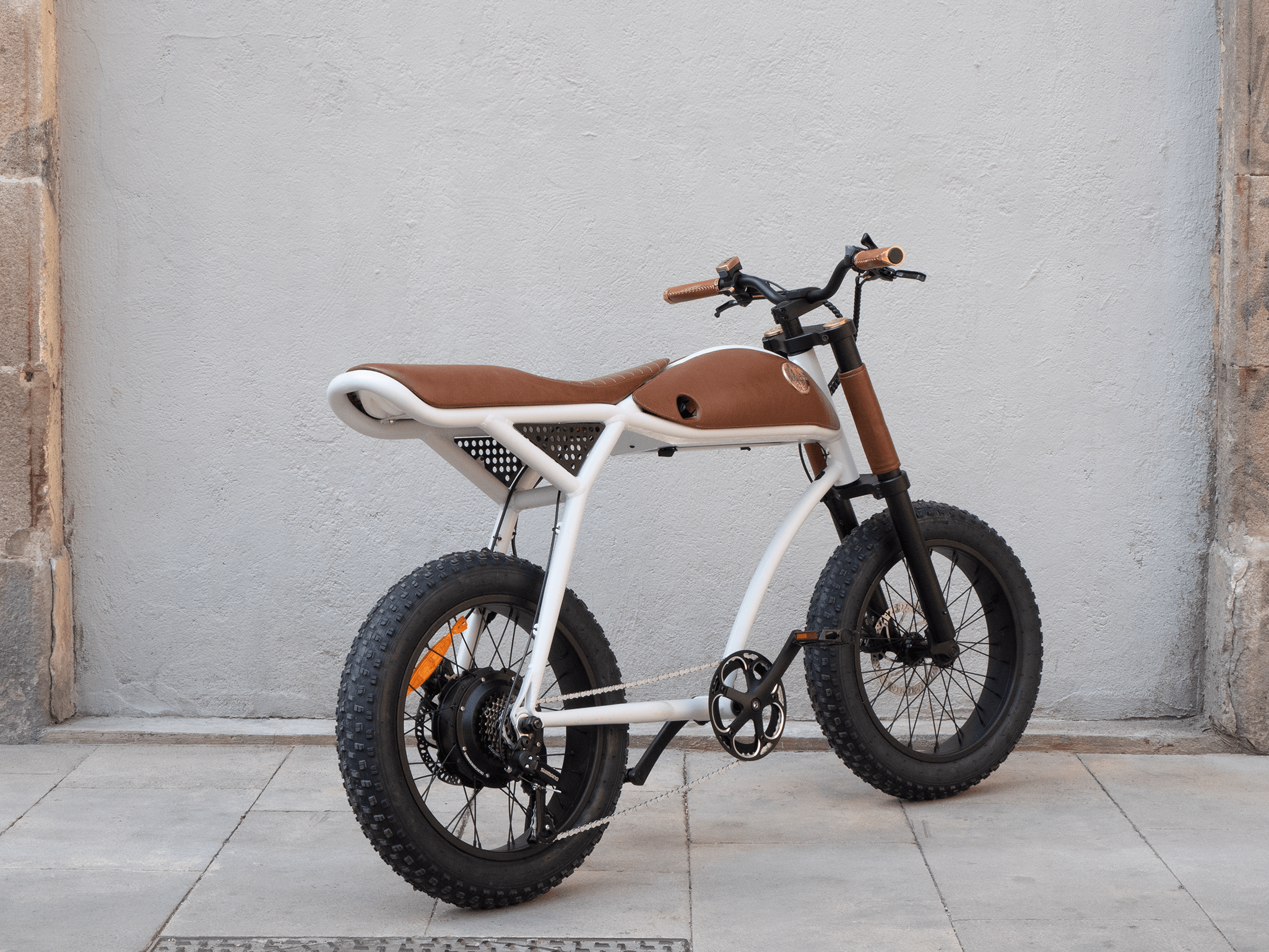

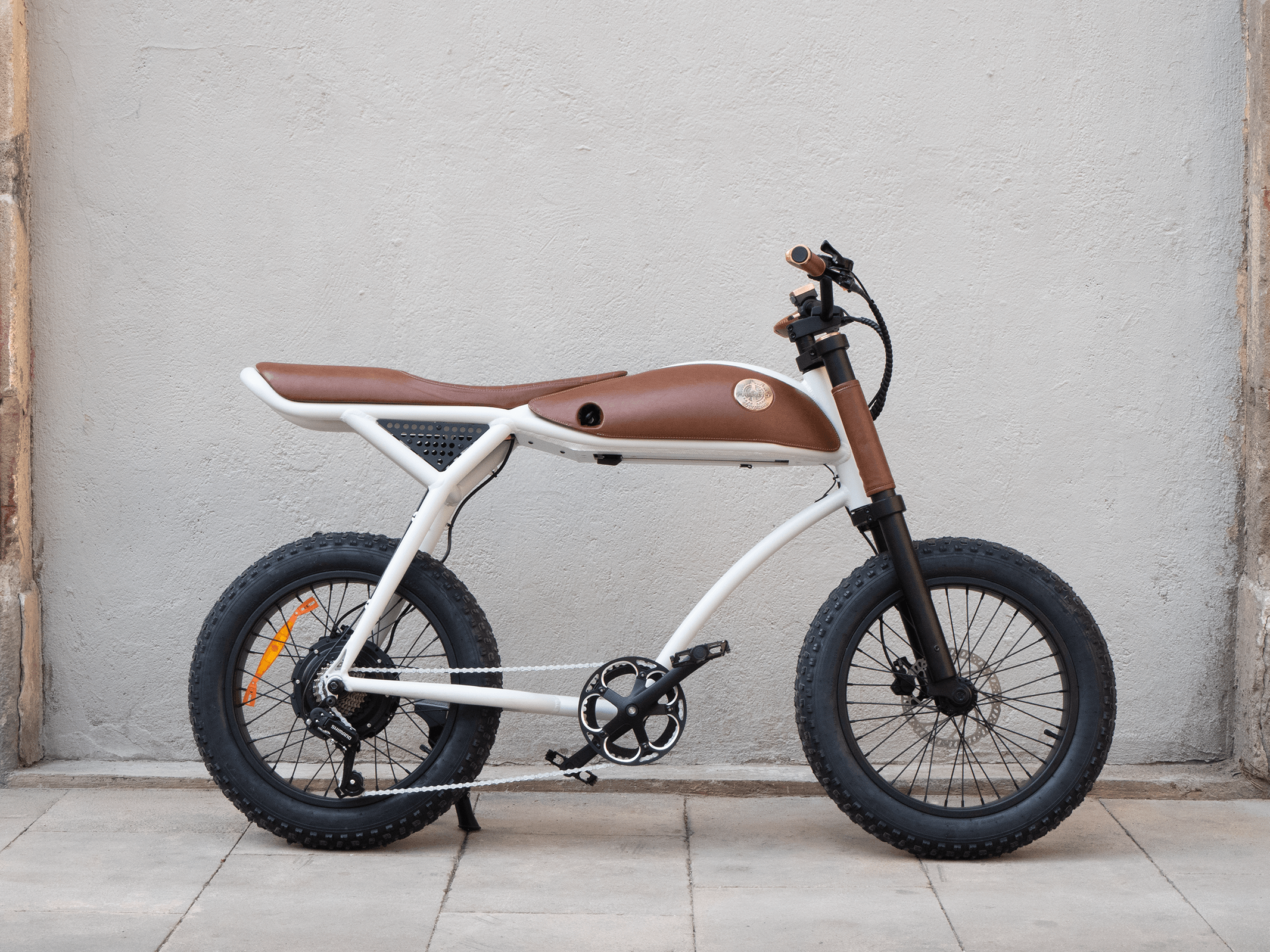

Rayvolt Ringo Smart++ EBike white
€2,449.00*
- 18.23 % €2,995.00*Product information "Rayvolt Ringo Smart++ EBike white"
Rayvolt Ringo - The Street Cowboy
Off-Road yet Urban. Compact but generous. Vintage yet modern.

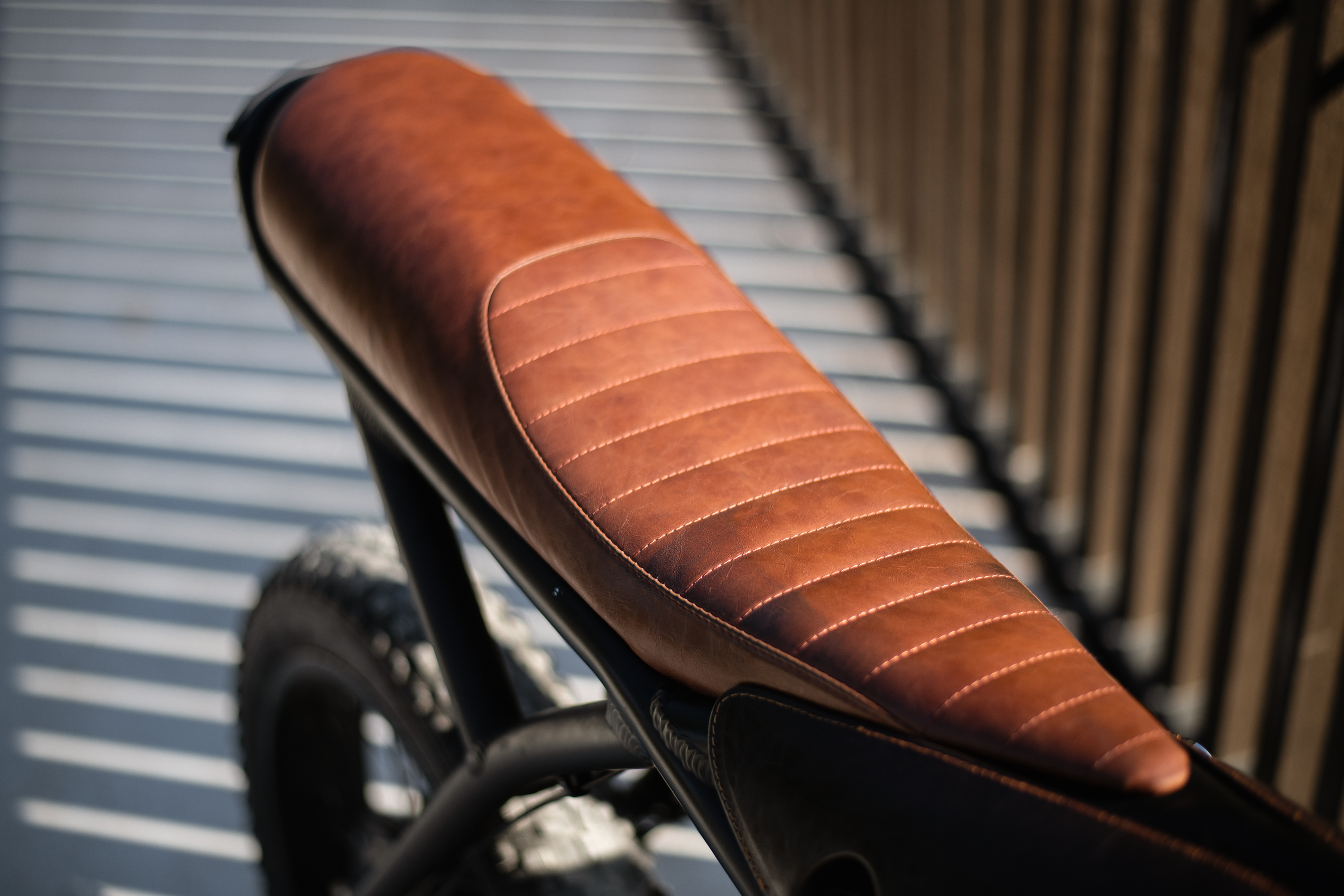

Ringo is a stylish post-apocalyptic looking compact bike, made for the city and the road with an all terrain versatility. This practical two-seater bike has a head-spinner look, that will let you be the eye-catcher of the road, while riding with someone on the back. This bike combines a great look, a comfortable position, and the features of all the latest Rayvolt smart technology.
Ringo has an intelligent regenerative brake system.

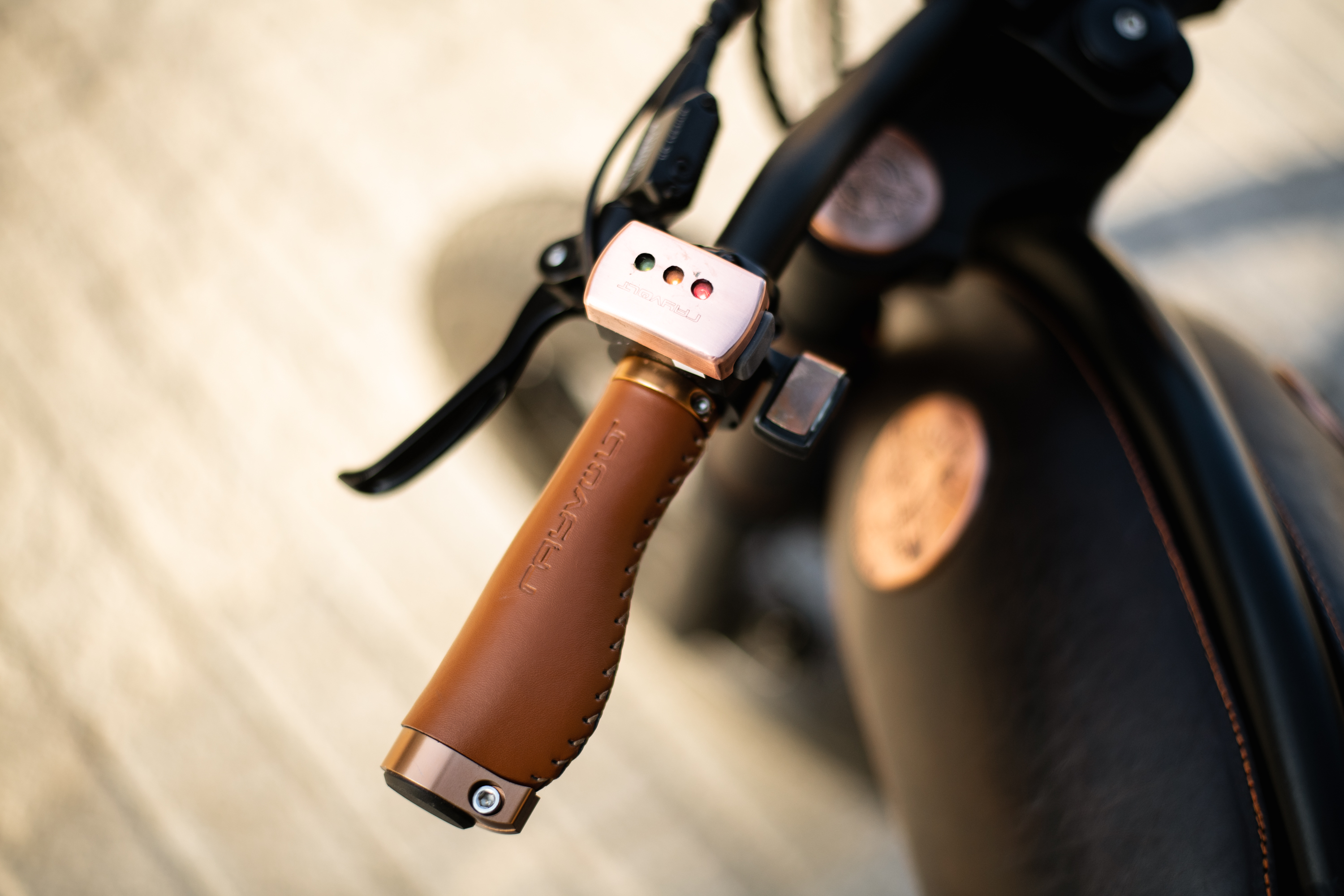

The electronic braking system, fitted into the brake levers, sends a data signal to the motor controller that provokes a reverse effect in the motor. This converts torque into resistance using the wheel inertia to generate electricity and recharge the batteries.
In simple words, the regenerative braking acts like an ultra powerful dynamo when the levers are pulled.
The Eiva2.0® is a Rayvolt's developed software to control, customize and monitor your Rayvolt bike.
An Eiva® computer can be purchased and secured mounted to the handlebars, ready to go whenever you are. The software can also be downloaded for use on an existing Android or iPhone.

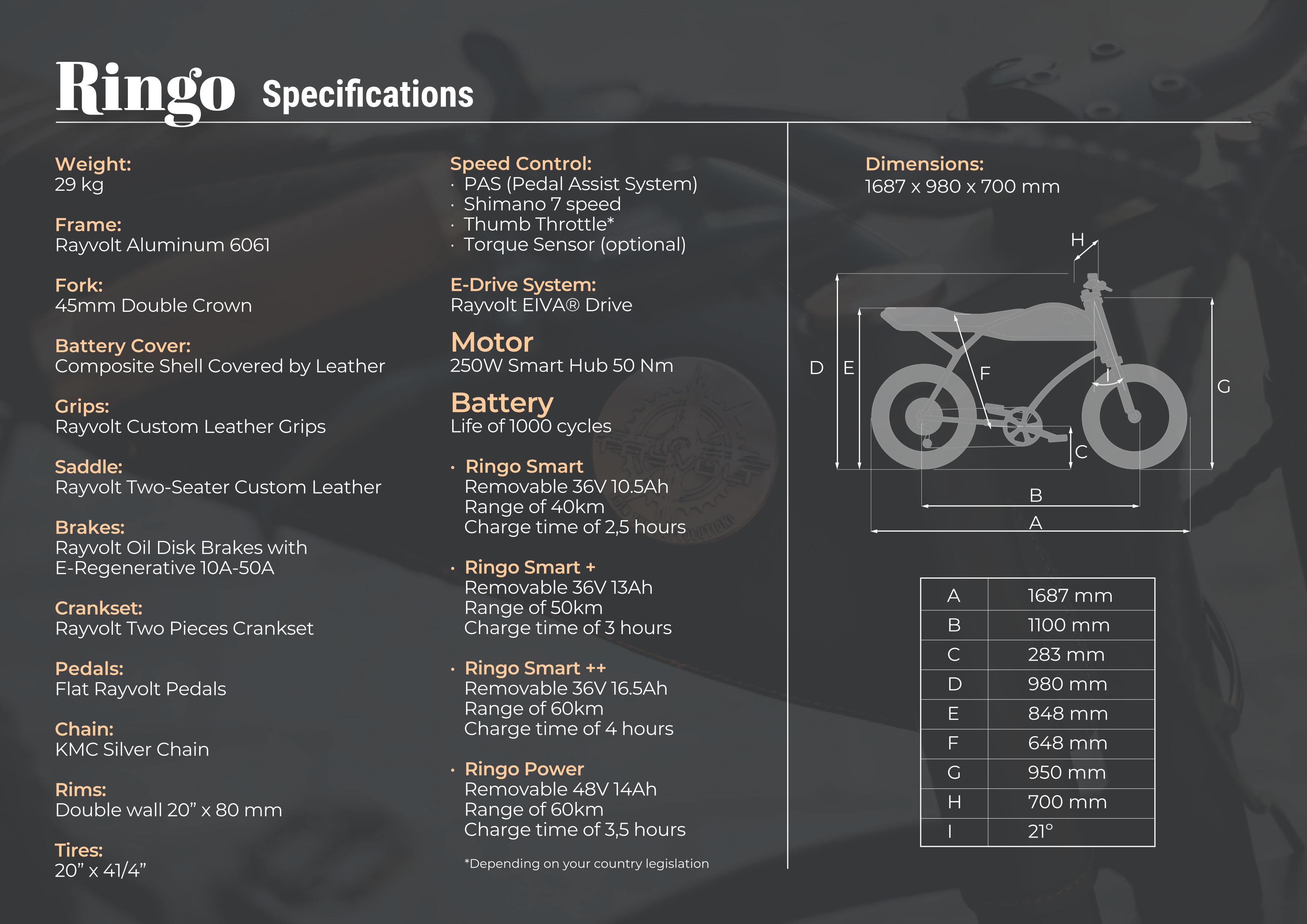

Technical Specifications:
|

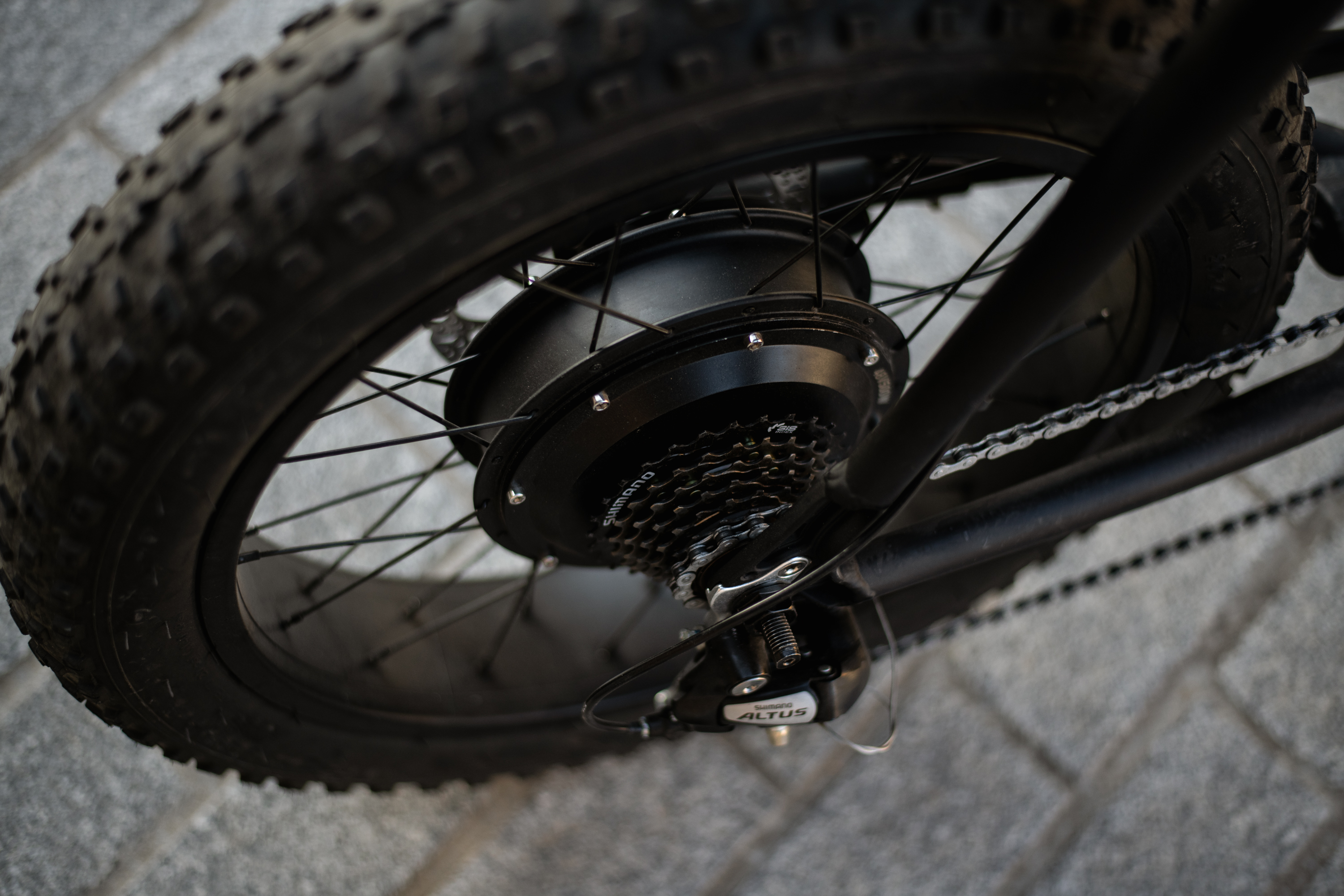

Motor: |
250 Watt Smart Hub 50 Nm |
|
Battery: |
36V, 16.5 Ah, removable |
|
Range: |
approx. 60 km / 37 miles per load (depending on incline, temperature and rider weight) |
|
Charging time: |
approx. 4 hours |
|
Speed: |
up to max 25 km/h (15,53 mph) |
|
Speed Contol: |
PAS (Pedal Assist System) |
|
E-Drive System: |
Rayvolt EIVA® Drive |
|
Walk assist: |
yes |
|
Certification: |
EN15194 |
|
Warranty: |
according to the legal german requirements |
|
Weight: |
~ 29 kg / ~ 64 lbs |
|
Dimensions: |
L 1687 x H 980 x B 700 mm / L 66,42 x H 38,58 x B 27,56 inch |
|
Frame: |
A6061 Aluminium |
|

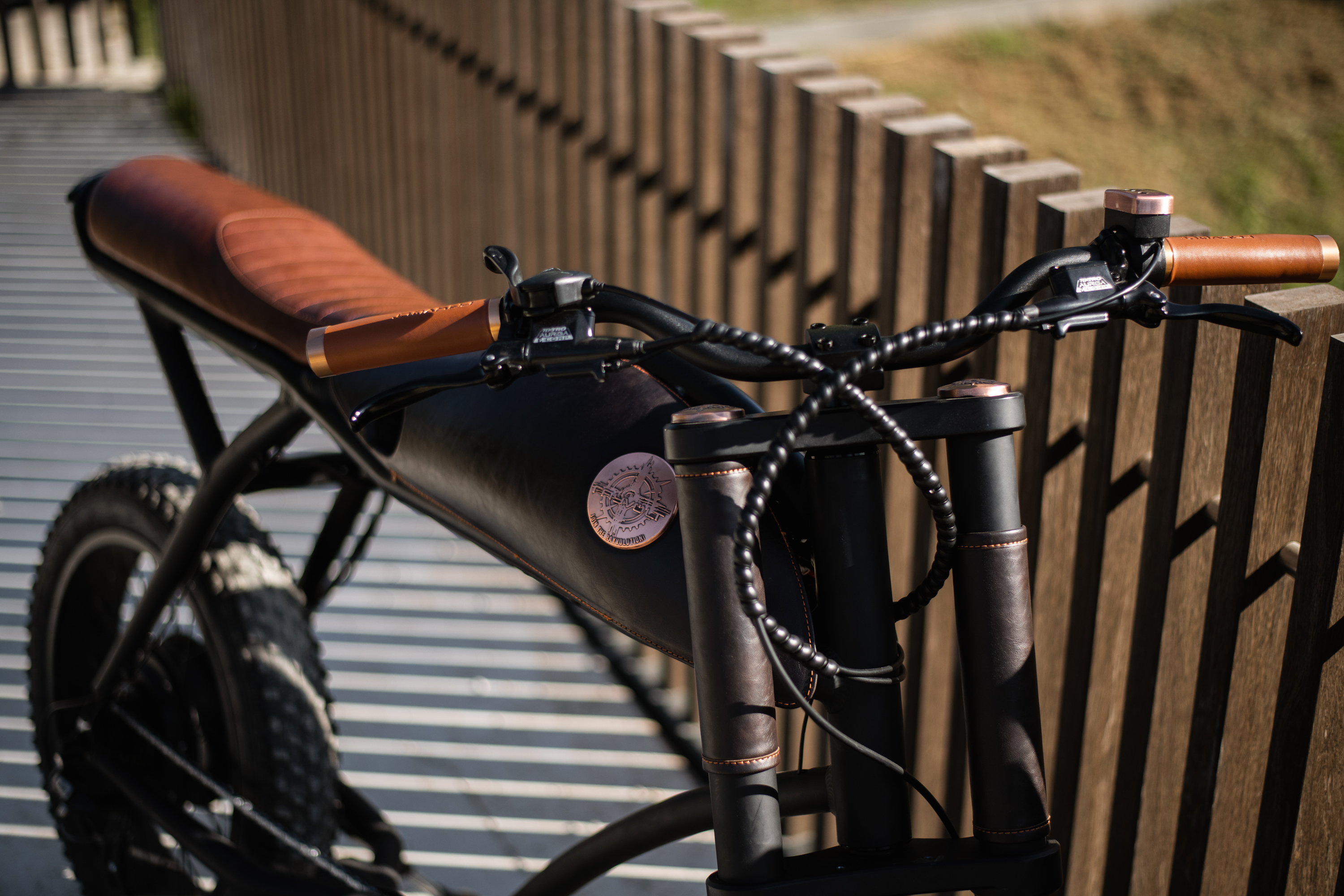

Fork: |
45 mm Double Crown |
|

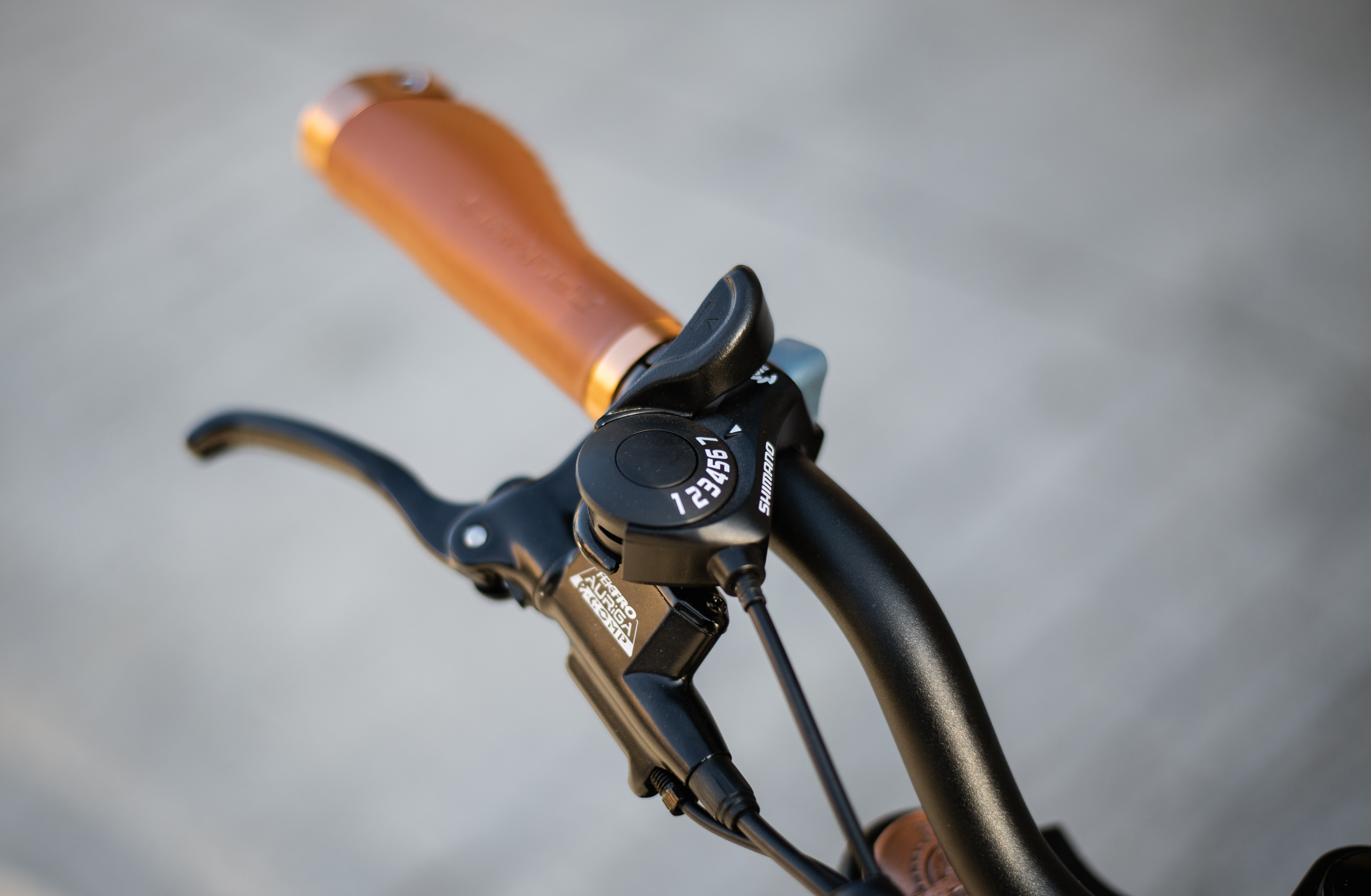

Gear: |
Shimano 7 gear |
|
Brake: |
Oil Disk Brakes with E-Regenerative 10A - 50A |
|
Rims: |
Double wall 20" x 80 mm |
|
Tires: |
20 x 4 1/4 |
|
Bike maximum load: |
~ 130 kg / ~ 270 lbs |
Factory setting: E-Bike is regulated by 25 kmh (15,53 mph) and doesn't need approval.
Please notice: The Pedelec doesn't come with light installation according to german StVZO and DIN97100. Please choose by yourself where to use the Pedelec.

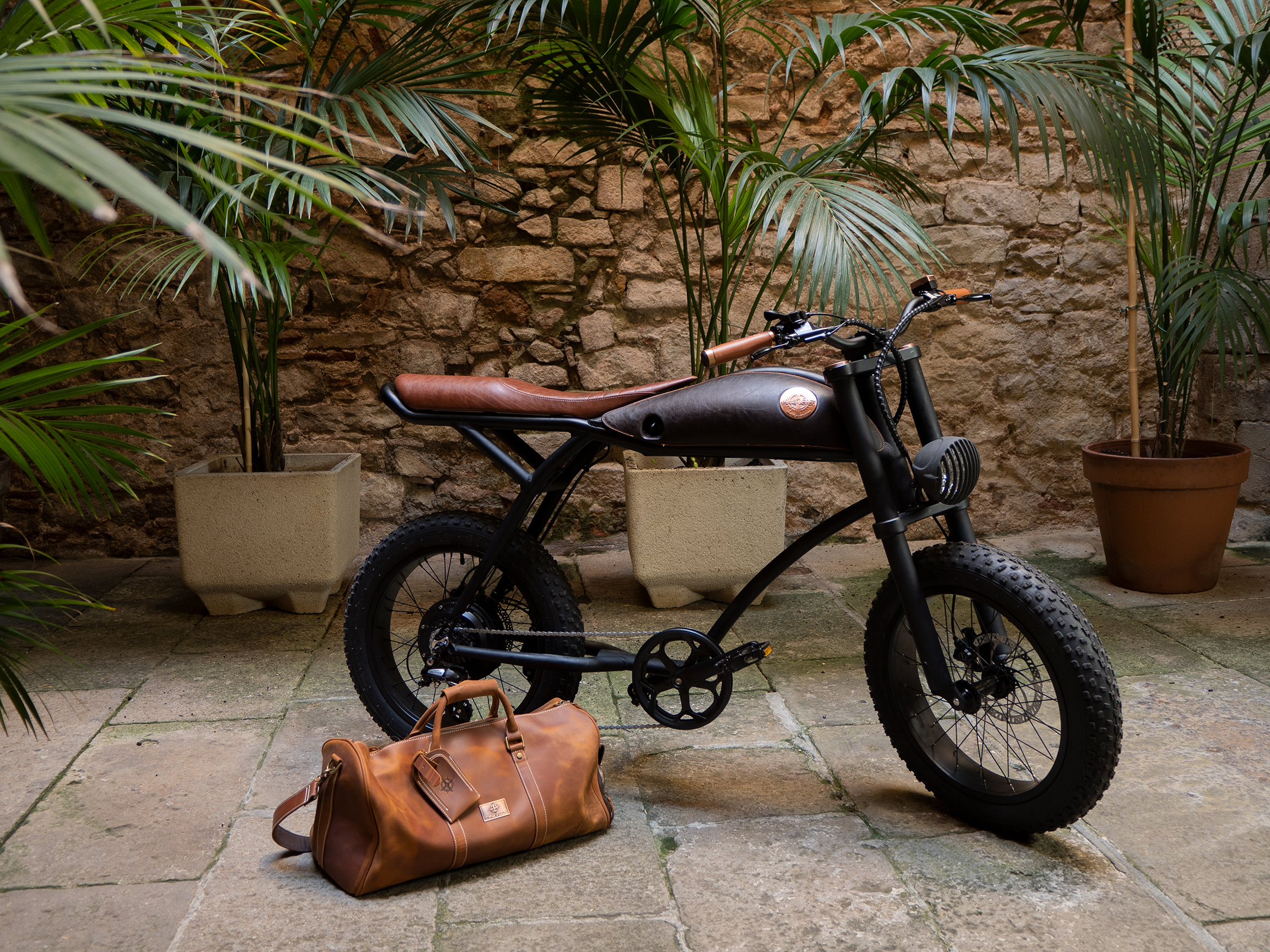

Important: The images may show special equipment, in this case front lamp and bag.
Manufacturer:
D-61479 Schloßborn / Taunus
Responsible person:
D-61479 Schloßborn / Taunus
