Thumb throttle for ebike or pedelec female

Wiring harness 1T4, Bafang compatible Technical data: Transmission of power and data between the controller and the brake sensors, thumb throttle and display. Compatible with Bafang hub motors Waterproof plugs / connectors Cable length: ~ 118 cm / 46,45 inches, incl. connector ~ 126 cm / 49,90 inches Connections: 1x male 3-PIN Julet connector yellow for throttle / thumb throttle. 1x male 5-PIN Jullet connector green for display 2x female 3-PIN Jullet connector yellow for shift / brake sensor 1x male 8-PIN Jullet connector black for controller General information: HIGO / Julet plugs are common on many e-bikes because they provide a firm and waterproof connection. There are different types, which differ in the number of pins and thus the area of use. A HIGO / Julet connector is generally quite firm because it is waterproof. It can be disconnected by pulling, NOT twisting. If twisted, the pins could be damaged. Please note the arrows on the outside - they help to align and fit the connectors. When the connections are properly plugged together, no coloured plastic should be visible.

Urban Drive Style Controller DMHC 48V DC Motor Controller Voltage: 48V off Voltage:  40 +/- 1V Electric current: 22A +/- 1 A Brakes Level: Low Torque Sensor Nine Speed  22" Original Item from Urban Drivestyle Berlin! Dimensions: 110 x 47 x 30 mm

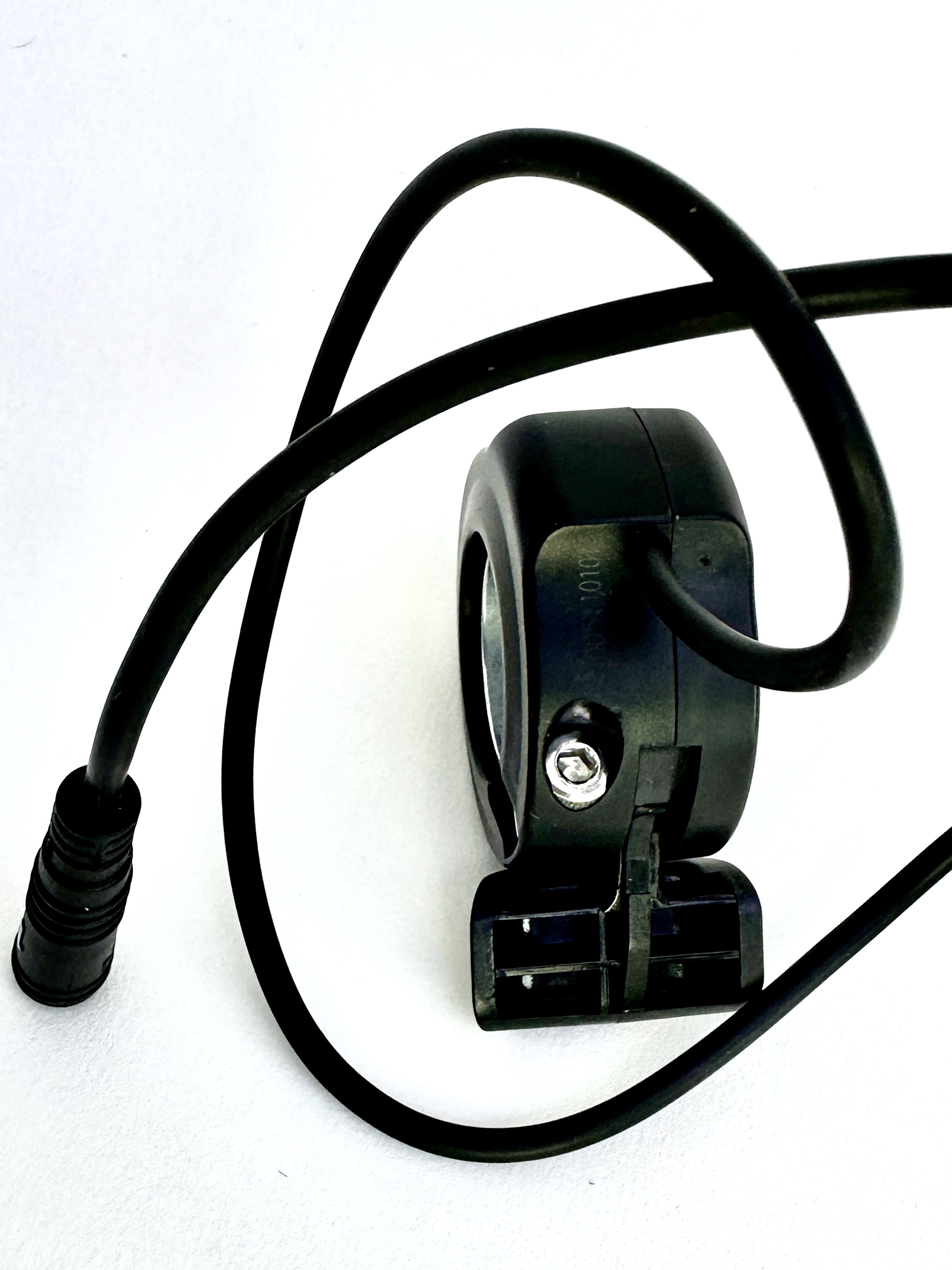

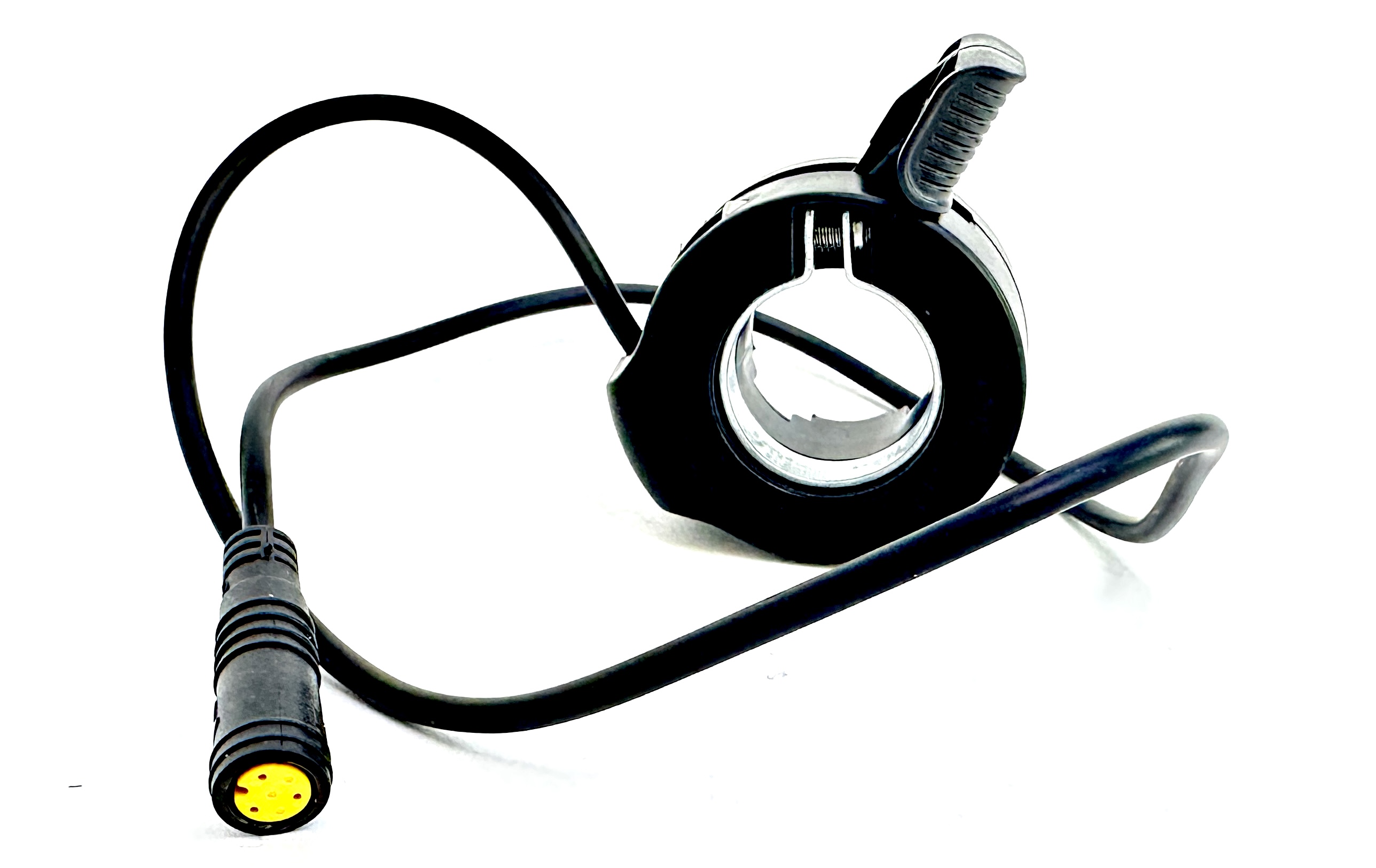

Thumb throttle for ebike or pedelec Control the power of your motor from the comfort of your handlebars! The thumb throttle is simply connected / connected to the wiring harness of your bike thanks to the 3 PIN male Jullet connector. Details: Connectors: 3 PIN male Jullet, yellow. Cable length: ~ 40 cm / 15,75 inches Mounting: handlebar with 22.2 mm diameter, left and right handlebar side possible compatible with Bafang motors Original thumb throttle from Urban Drivestyle Berlin!

Pre-assembled Bafang wiring harness 1T4 with 2PIN extension cable in cable protection hose. Technical data of Bafang wiring harness 1T4: Transmission of power and data between the controller and the brake sensors, thumb throttle and display. Compatible with Bafang hub motors Waterproof plugs / connectors Cable length: ~ 70 cm / 27,55 inches, incl. connector ~ 80 cm / 31,5 inches Connections: 1x male 3-PIN Julet connector yellow for throttle / thumb throttle. 1x male 5-PIN Jullet connector green for display 2x female 3-PIN Jullet connector yellow for shift / brake sensor 1x male 8-PIN Jullet connector black for controller Technical data of Extension cable for Ebike: Connector: 2-pin HIGO / Julet (1x male - 1x female) Water resistance: IP65 Cable length: 100 cm / 39,37 inches Plug connection: red Outer material: ABS plastic Technical data cable protection hose: Keeps cables tidy and protected! Diameter: ~ 20 mm Length: ~ 850 mm Fabric hose with practical Velcro fastener over the entire length General information: HIGO / Julet plugs are common on many e-bikes because they provide a firm and waterproof connection. There are different types, which differ in the number of pins and thus the area of use. A HIGO / Julet connector is generally quite firm because it is waterproof. It can be disconnected by pulling, NOT twisting. If twisted, the pins could be damaged. Please note the arrows on the outside - they help to align and fit the connectors. When the connections are properly plugged together, no coloured plastic should be visible.
