UD 204 Double Crown Suspension Fork Fatbike, matt black

Classic Cycle

€139.95*

% €169.95* (17.65% saved)

Prices incl. VAT plus shipping costs

Product number: PM-1001397

Product information "UD 204 Double Crown Suspension Fork Fatbike, matt black"

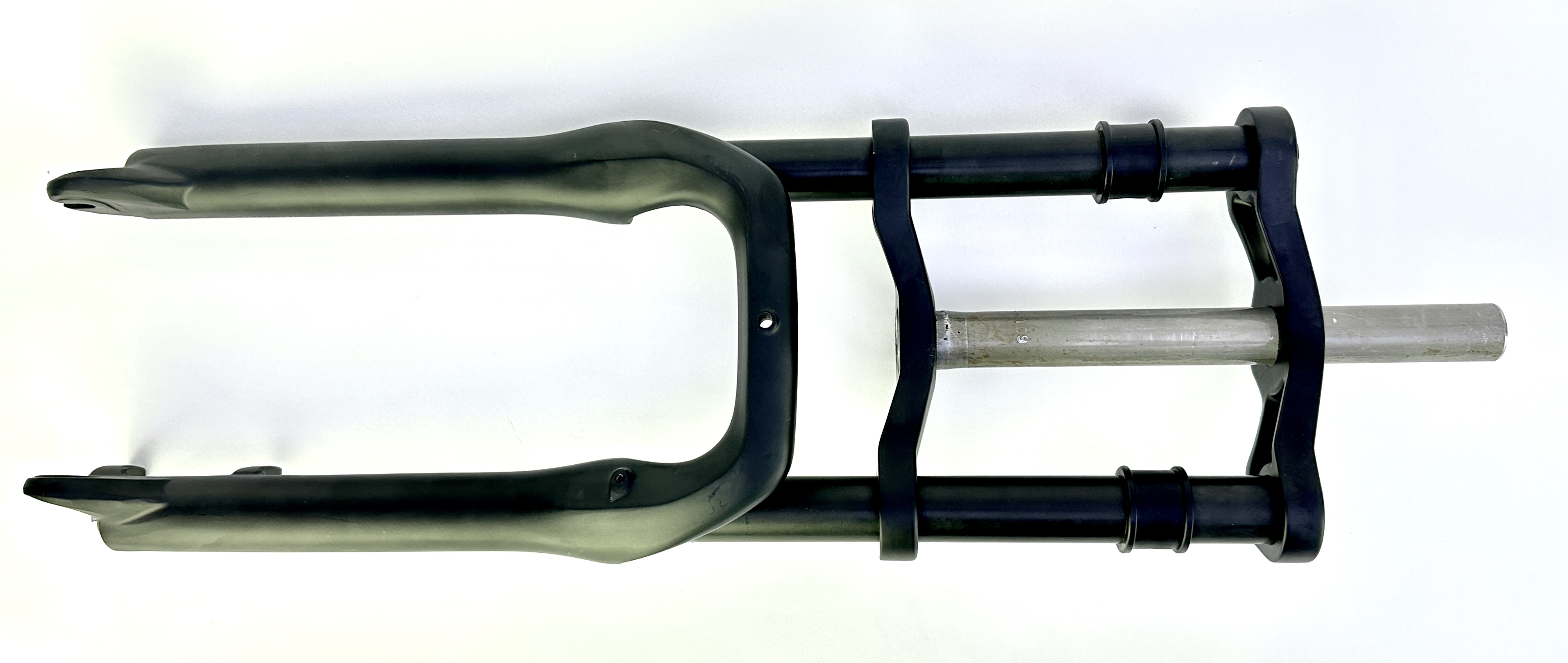

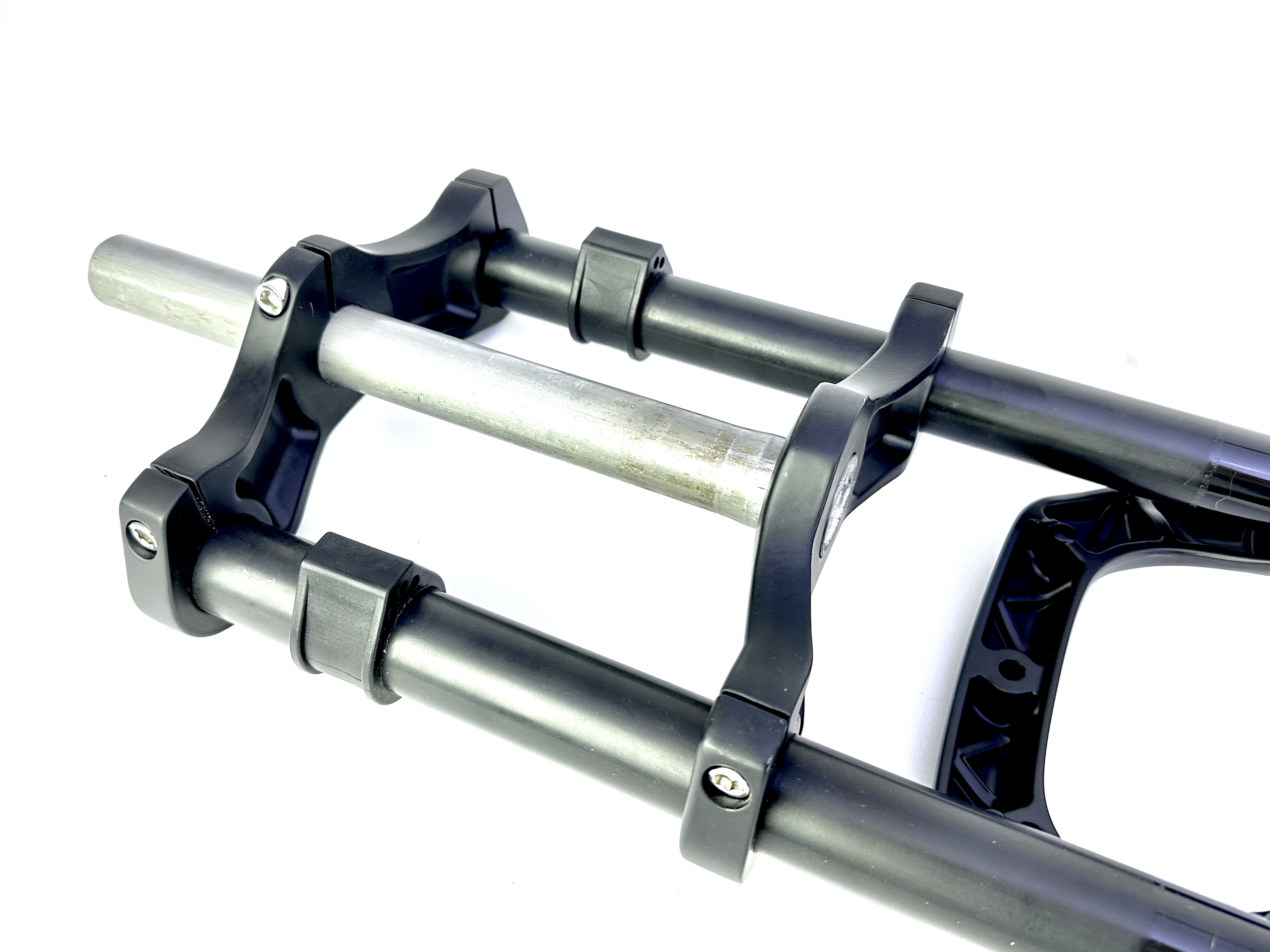

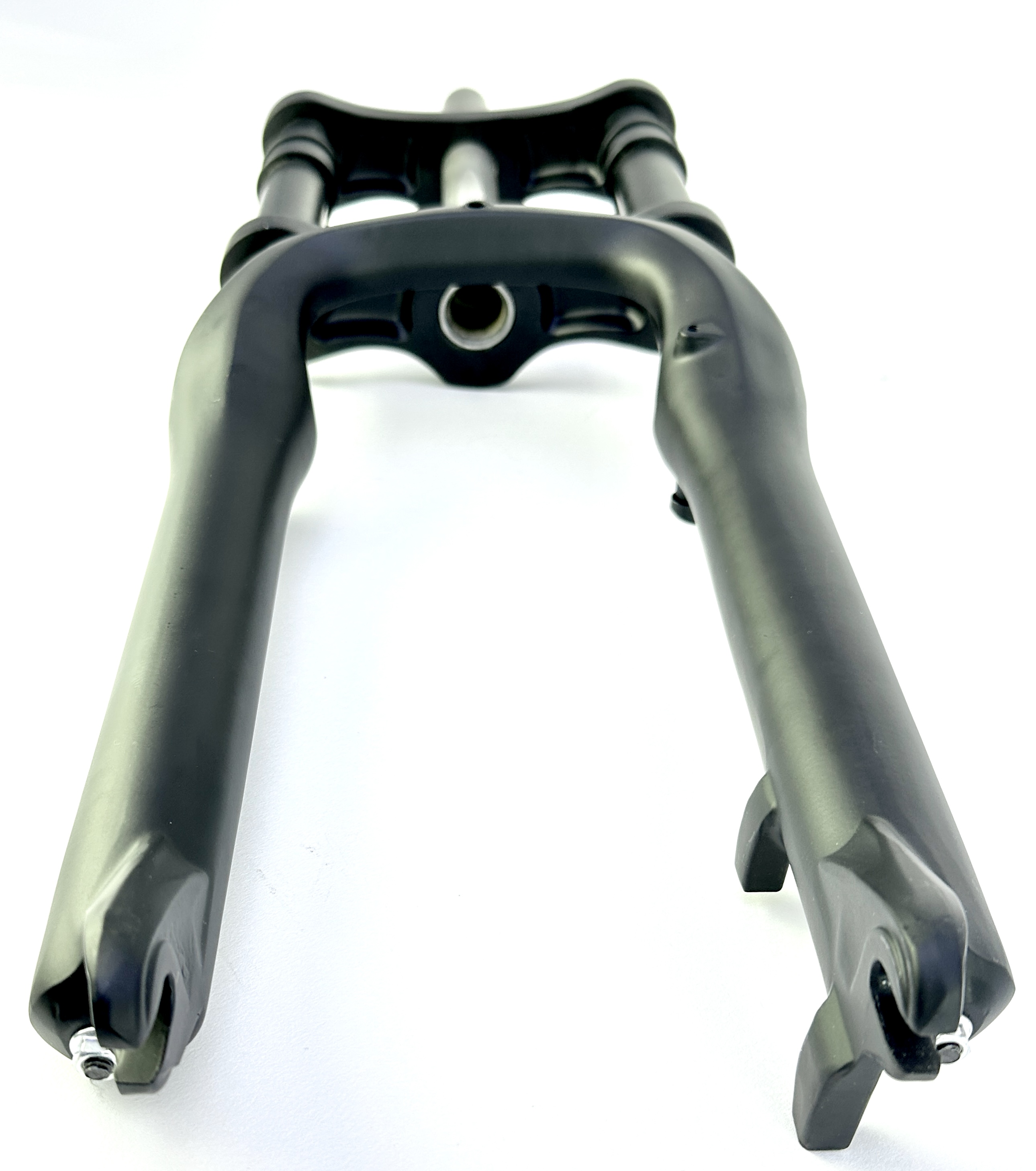

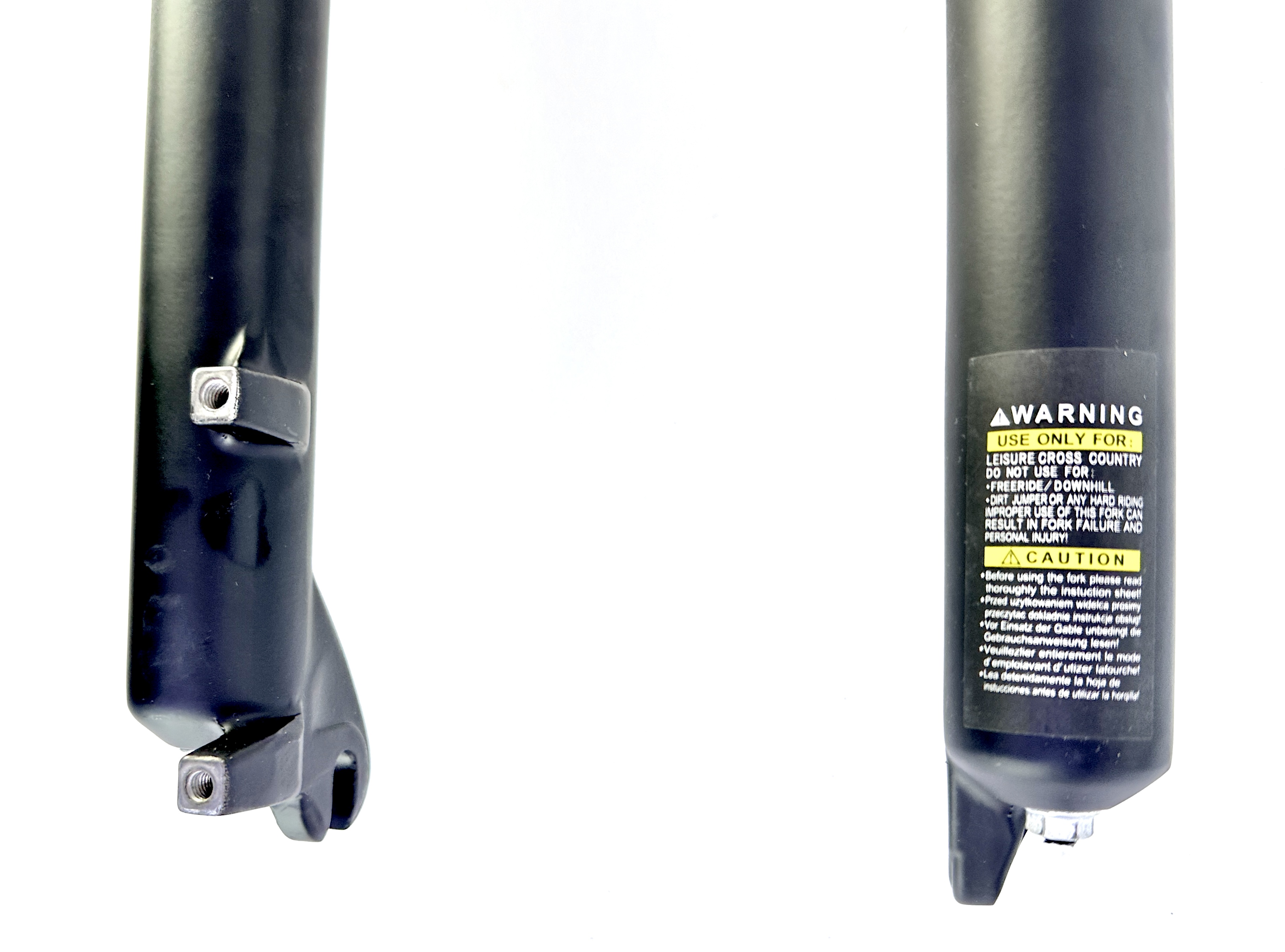

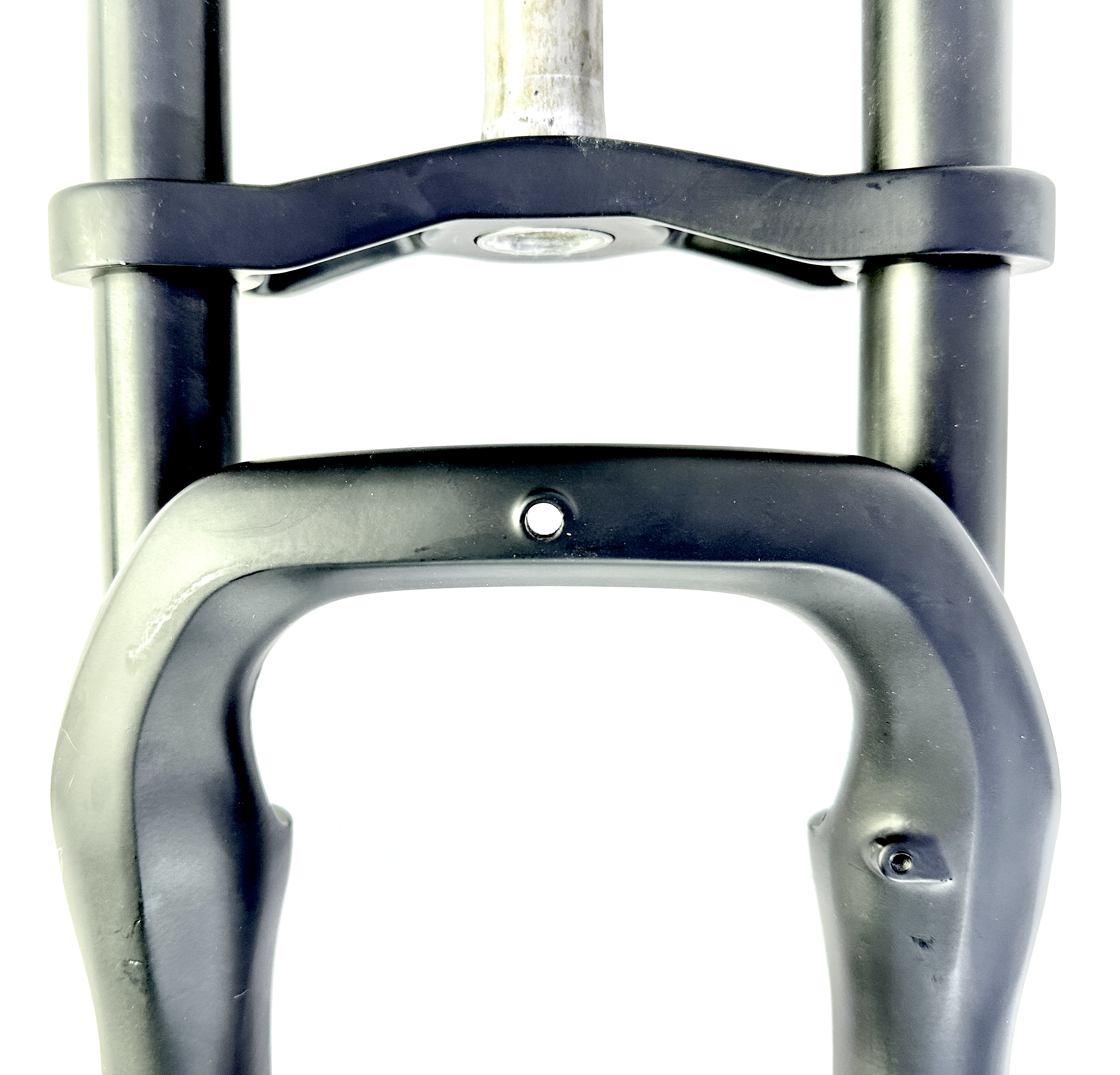

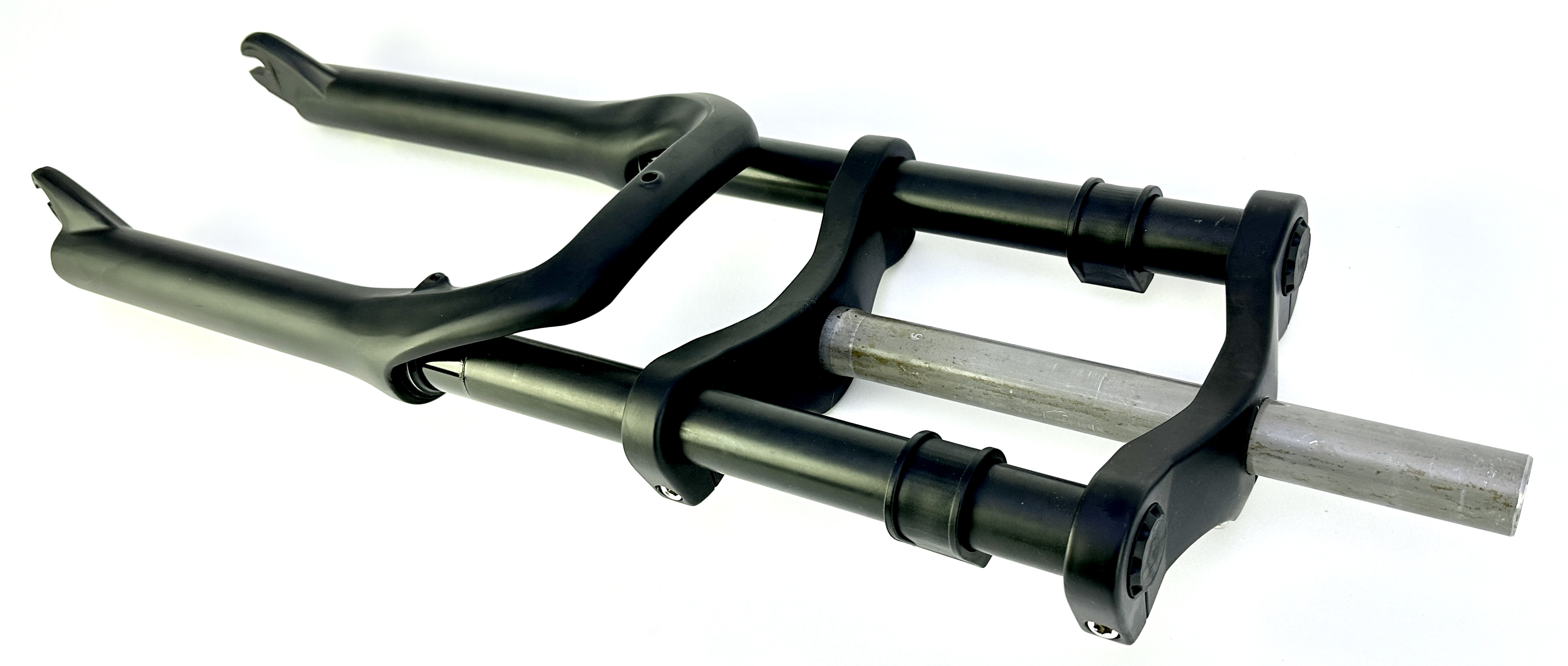

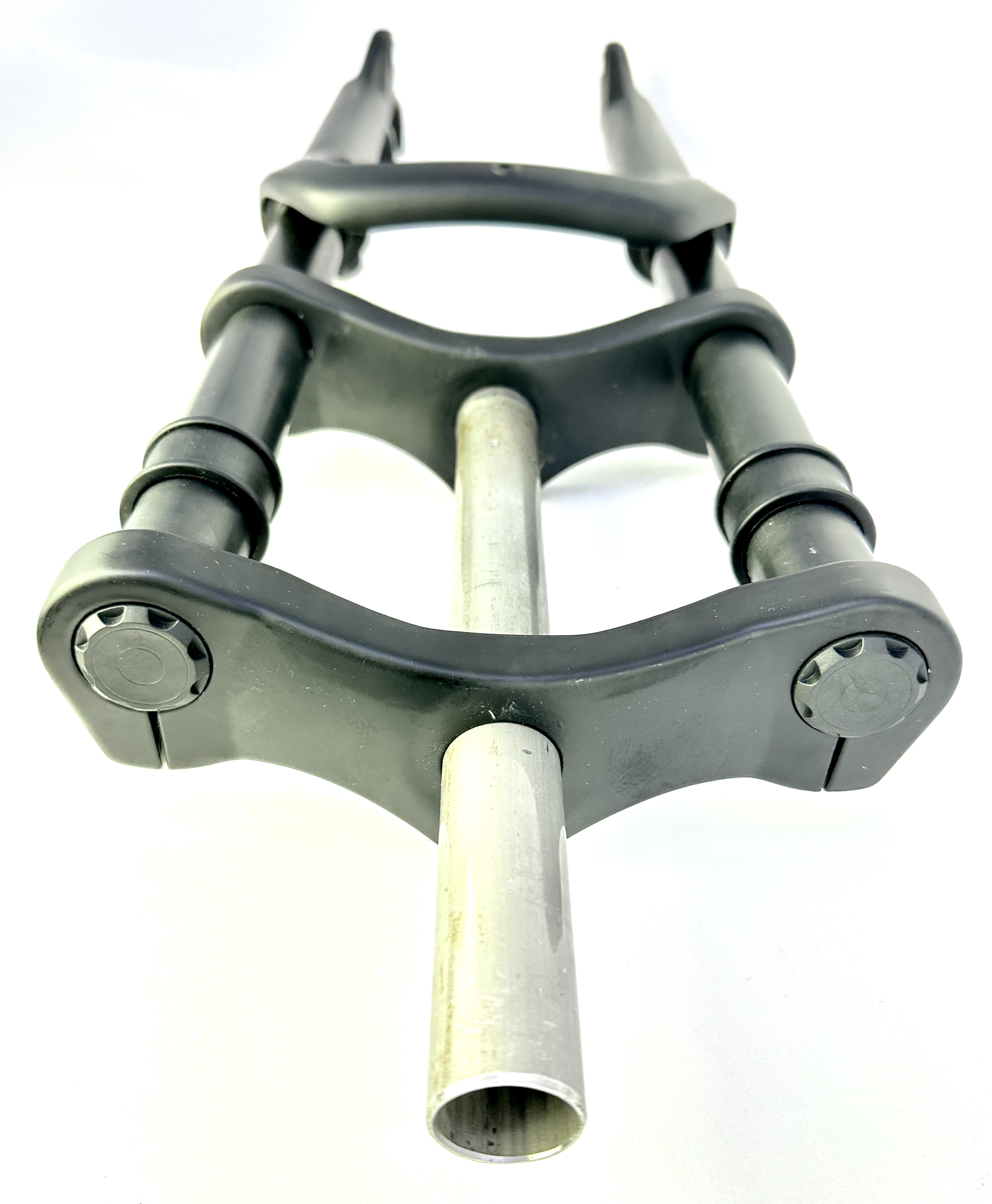

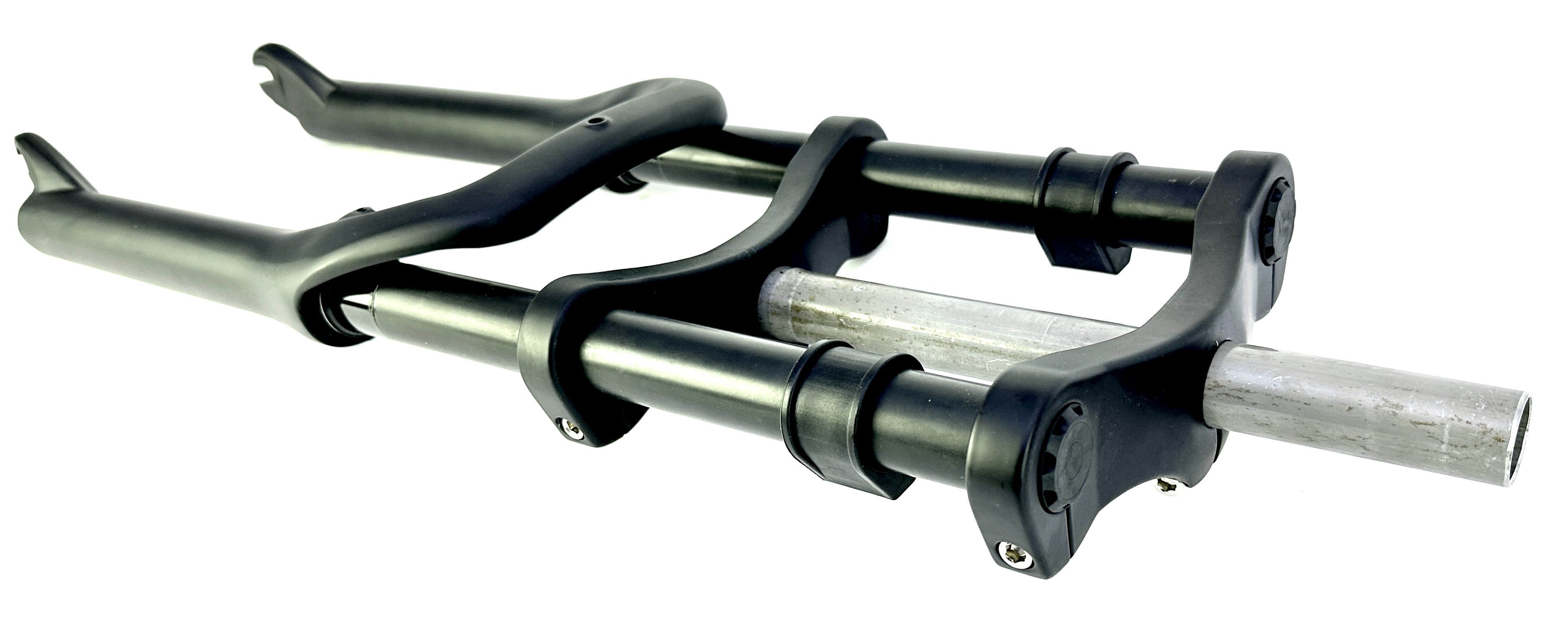

UD 204 Double Crown Suspension Fork Fatbike, matt black

For 20 inch wheels with hubs of 135 mm installation width.

1 1/8" shaft Ahead

Distance between axle centre and shock tower: ~ 325 mm

Distance between axle mount and end of uprights: ~ 600 mm

Weight approx. 2.7 kg (with 270 mm shaft)

For disc brake disc (160 mm without adapter) PostMount

Scope of delivery: 1 piece

Steerer length	270 mm
Steerer diameter / stem width:	28,6 mm
Steerer diameter at cone seat:	30 mm
Installation hight:	420 mm
For Hub width:	135 mm
Travel:	~ 100 mm
Suspension:	unidentified
Damping:	unidentified
Distance between steerer tubes at tyre height:	~ 120 mm

Original fork of the bikes from Urban Drivestyle Berlin!
