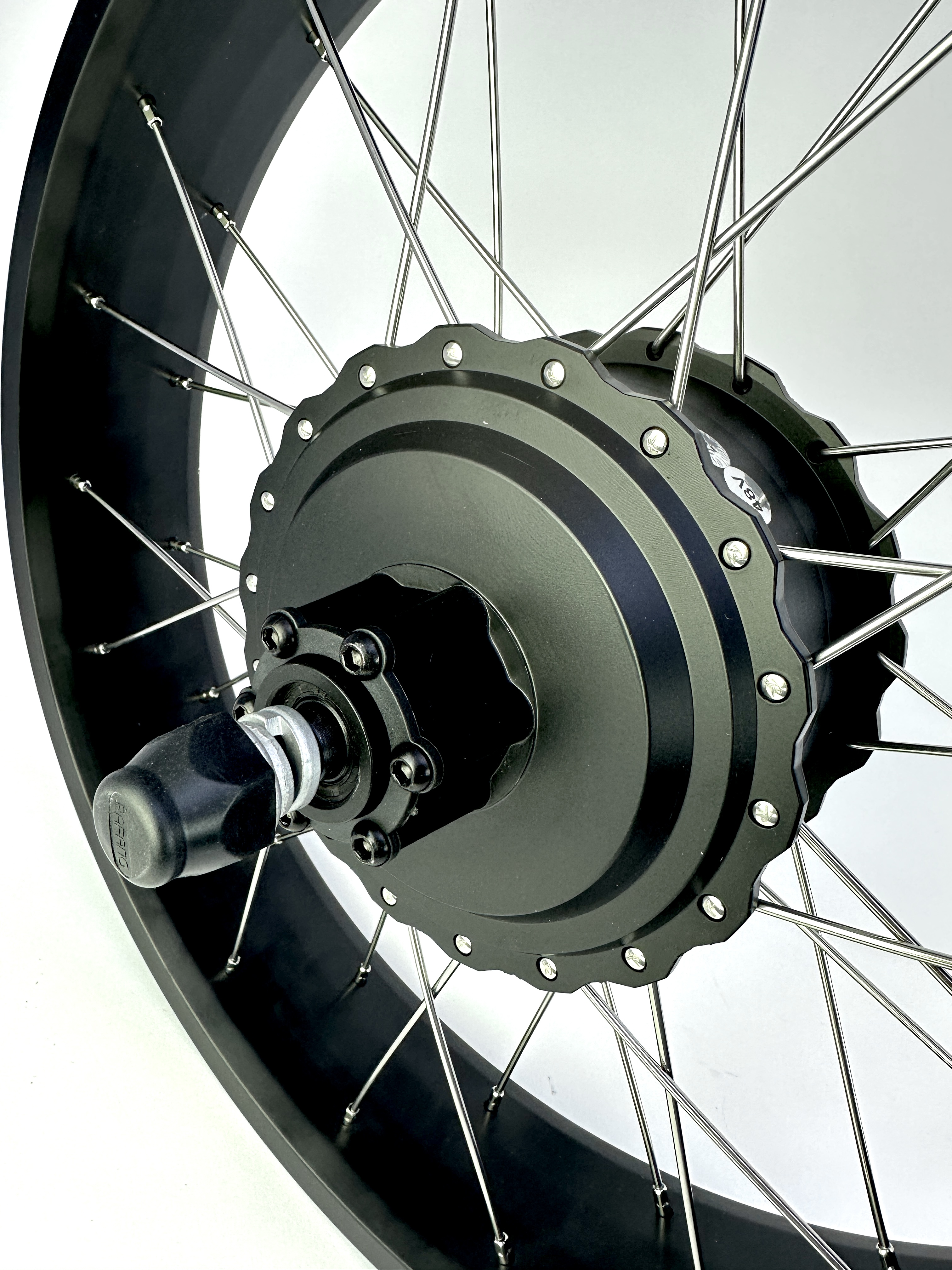

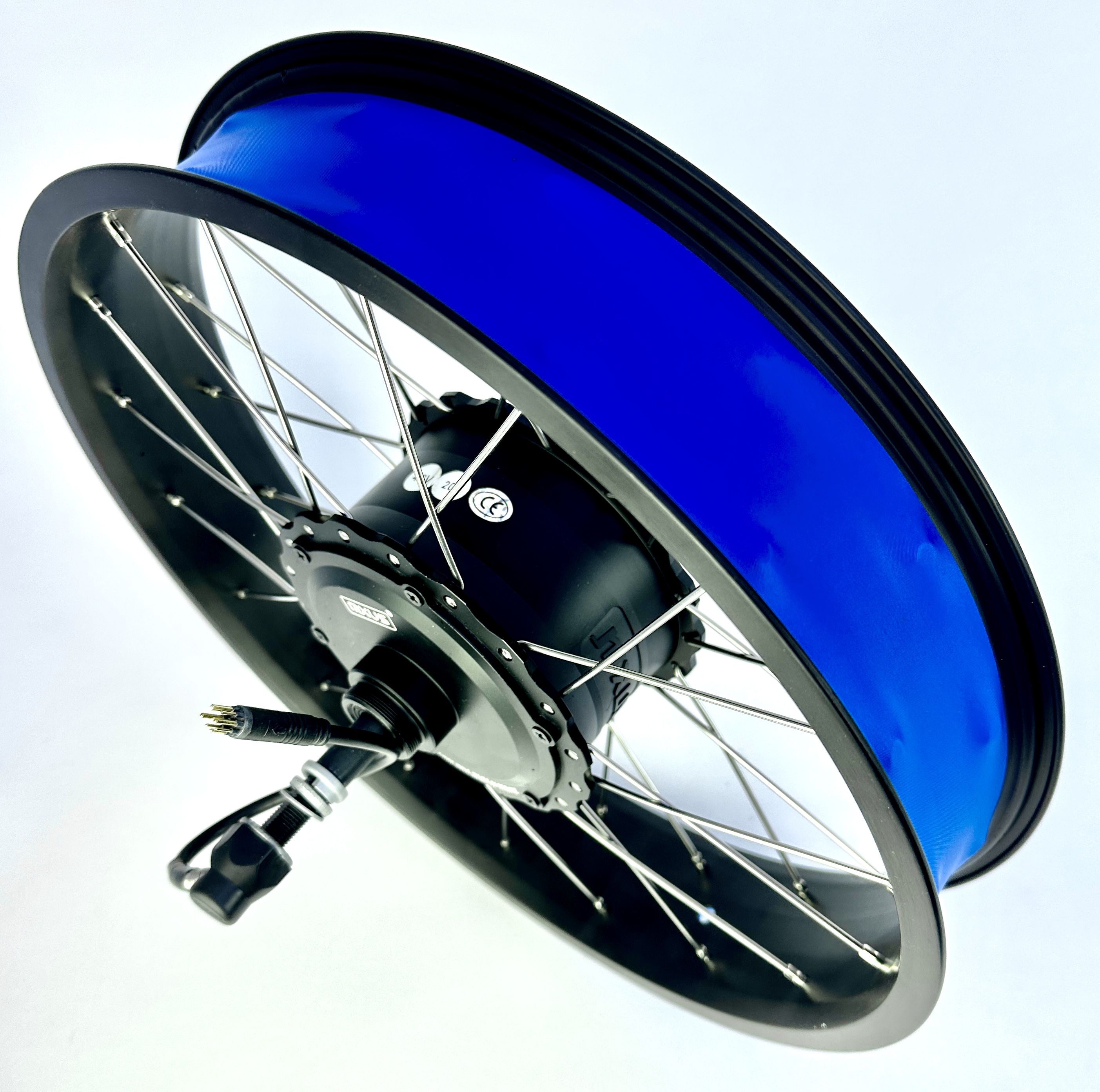

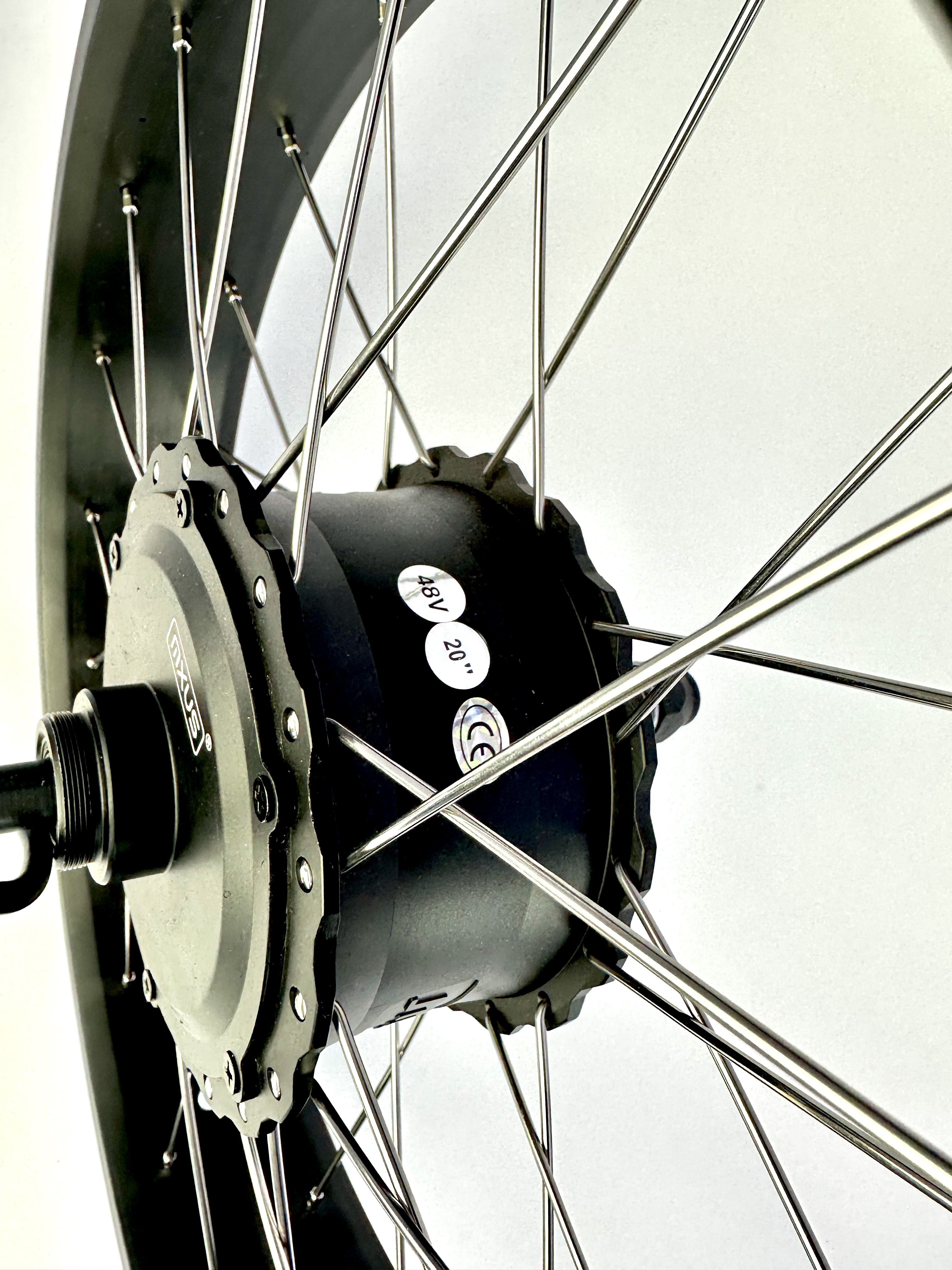

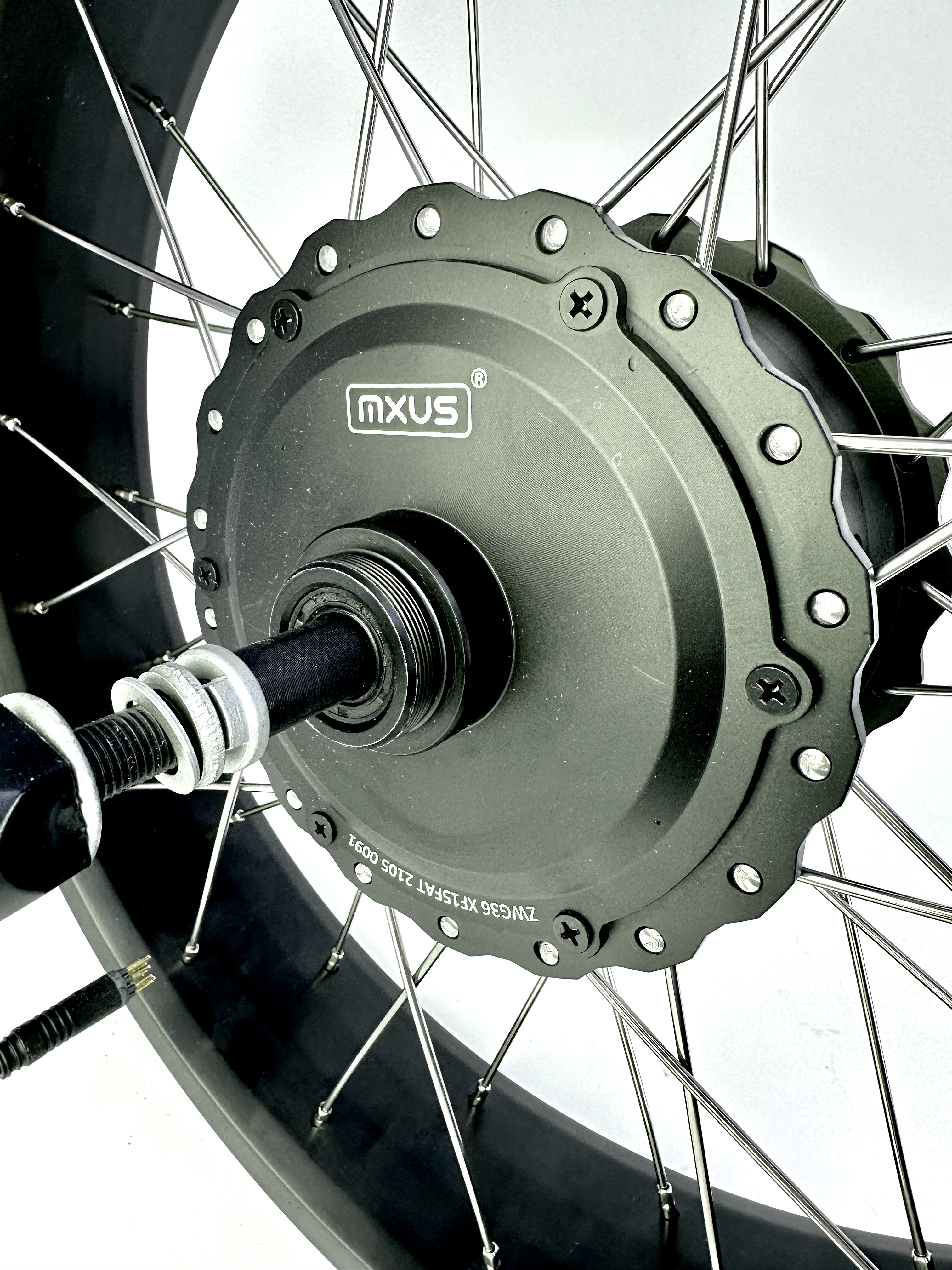

204 MXUS Motor 500W Rear wheel 20 x 4 - 80 mm wide
Product information "204 MXUS Motor 500W Rear wheel 20 x 4 - 80 mm wide"
204 MXUS Motor 500W Rear wheel 20 x 4 - 80 mm wide
- 20 inch rear wheel
- matt black coated aluminium rim ~ 80 mm / 3,15 inches wide
- 36 spokes 2,6 mm / 0,1 inches
- disc brake mount ~44 mm / 1,73 inches 6 hole
- Hub installation dimension approx.: ~ 190 mm / 7,5 inches
- aluminium hub with industrial bearings
- 500W
- 48V
- Fixed axle: ~ 12 mm / 0,47 inches diameter
- Axle length: ~ 265 mm
- Mounting for cassette
- Rim width: ~ 80 mm / 3,15 inches
- With rim tape
- Weight: ~ 4800 g / 10,58 lbs
Specification Motor:
| Model number | GDR-15FAT-1 | ||
| Position | Rear | ||
| Construction | Gear | ||
| Rated voltage(V) | 48 | ||
| Rated Power(W) | 500 | ||
| Weight(kg) | 4.15 | ||
| Reduction Ratio | 1:5 | ||
| Wheel Diameter(inch) | 20 | ||
| Rated speed(km/h) | 25-40 | ||
| Magnet Poles(2P) | 10 | ||
| Dropout(mm) | 190 | ||
| Brake Type | Disk brake | ||
| Operating Temperature © | -20 - +45 | ||
| Efficiency(%) | ≧78% | ||
| Color | Black | ||
| Cabling Route | Shaft center right | ||
| Noise Grade(dB) | ≤55 | ||
| IP Grade | IP54 | ||
| Salt Spary Test Standard(h) | 24/96 | ||
