Original UD Uni Micro frame, black matt

Classic Cycle

€299.95*

% €399.95* (25% saved)

Prices incl. VAT plus shipping costs

Product number: UD-UNI-MICRO-FRAME

Product information "Original UD Uni Micro frame, black matt"

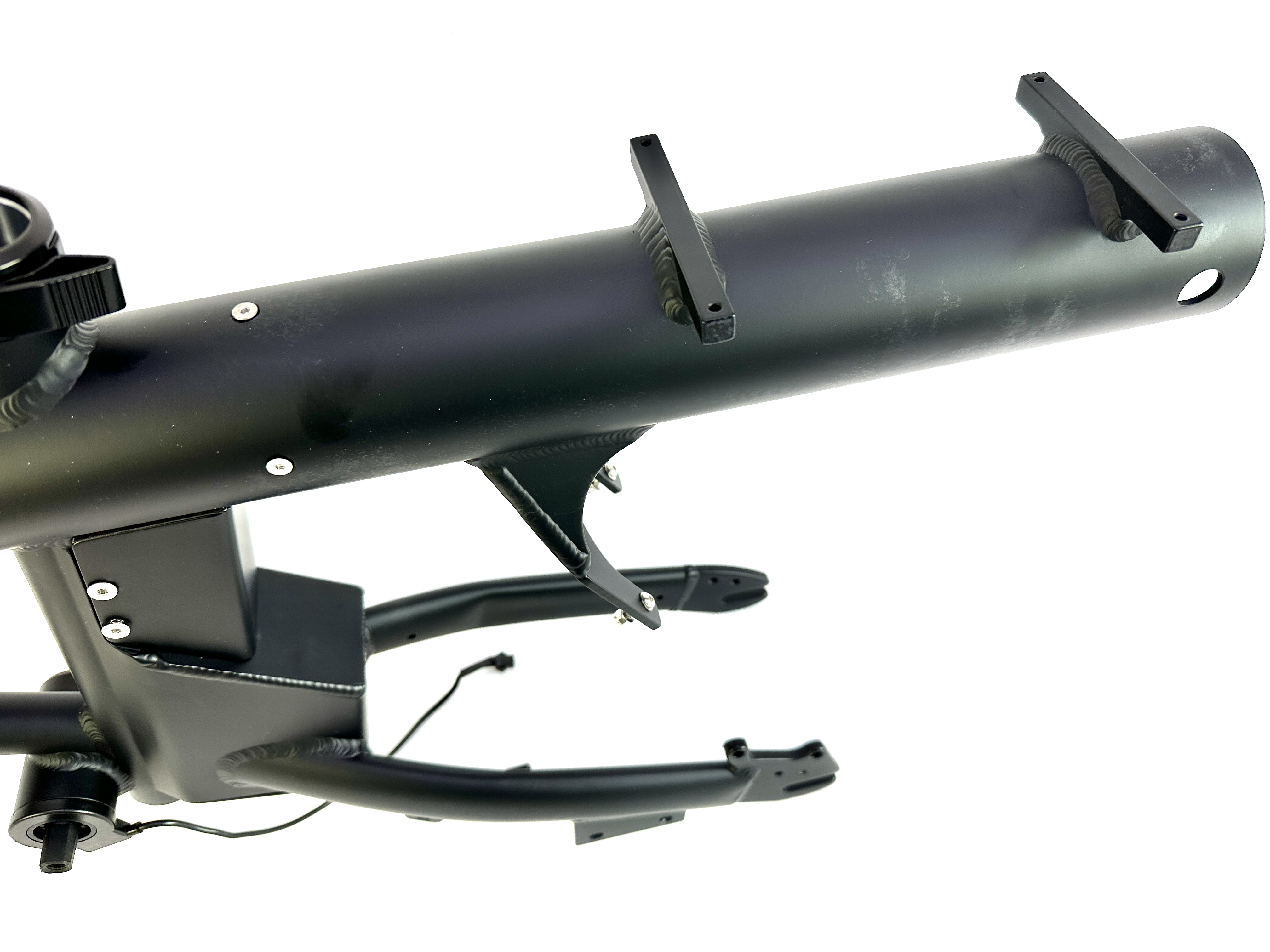

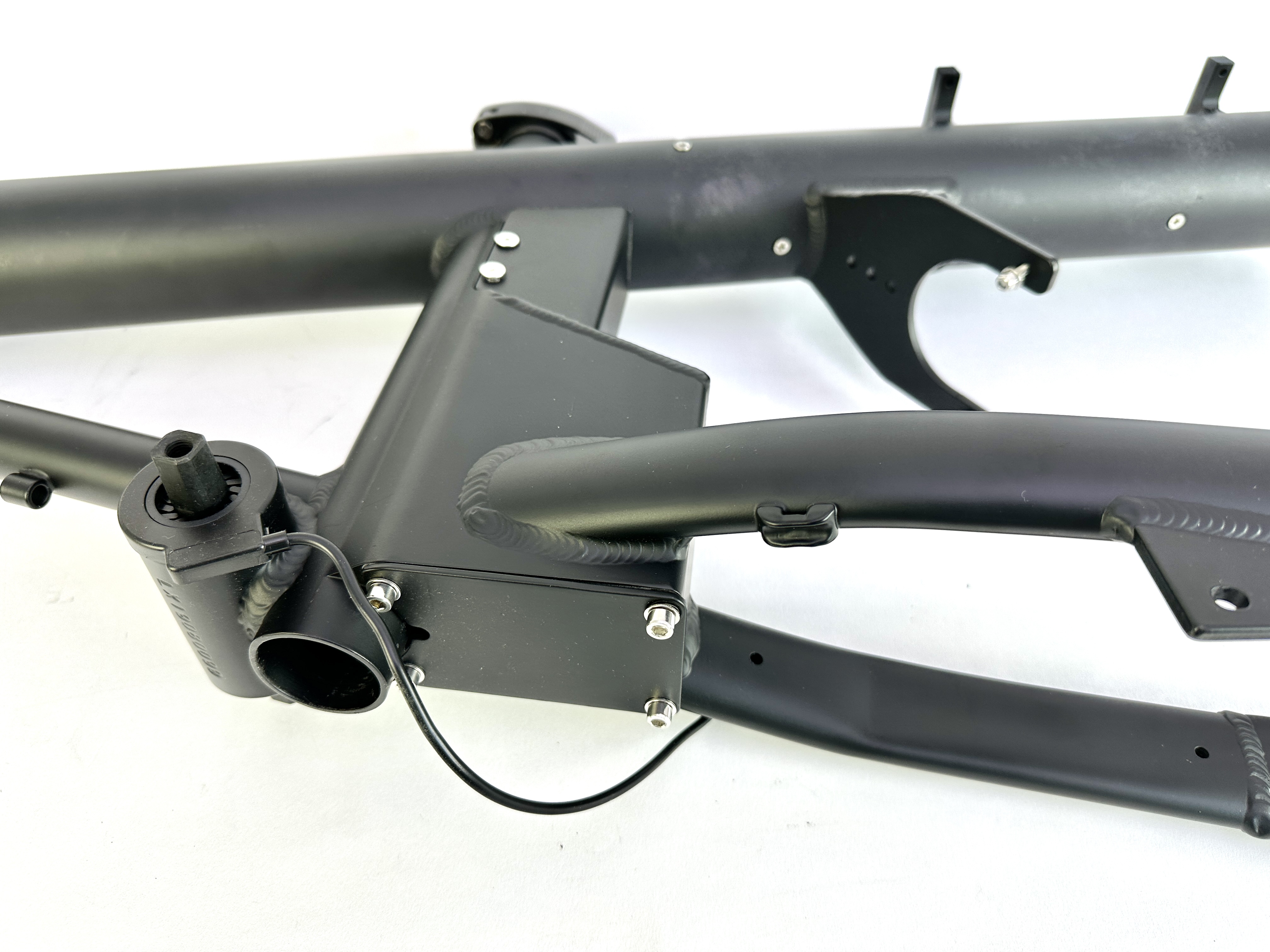

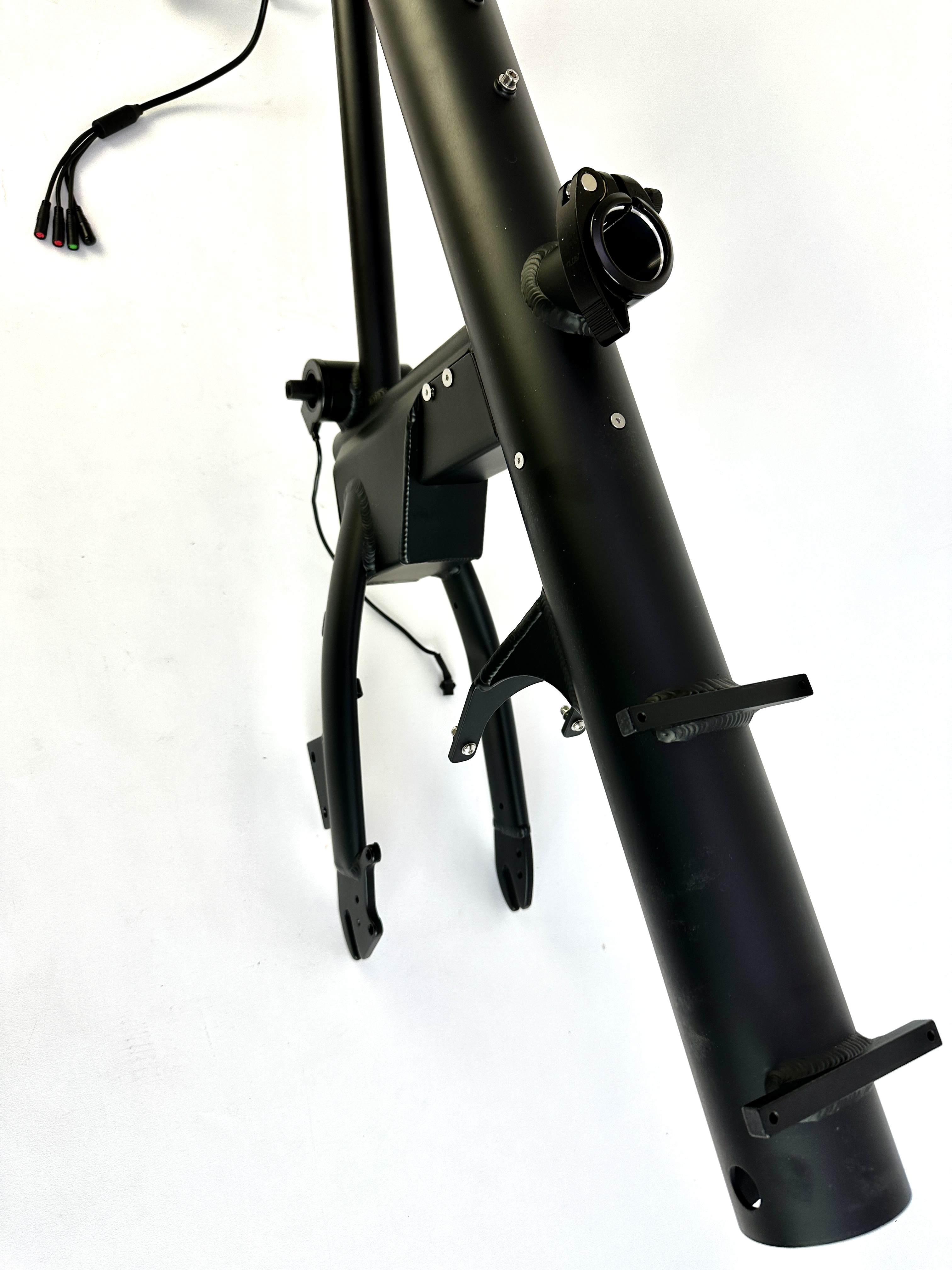

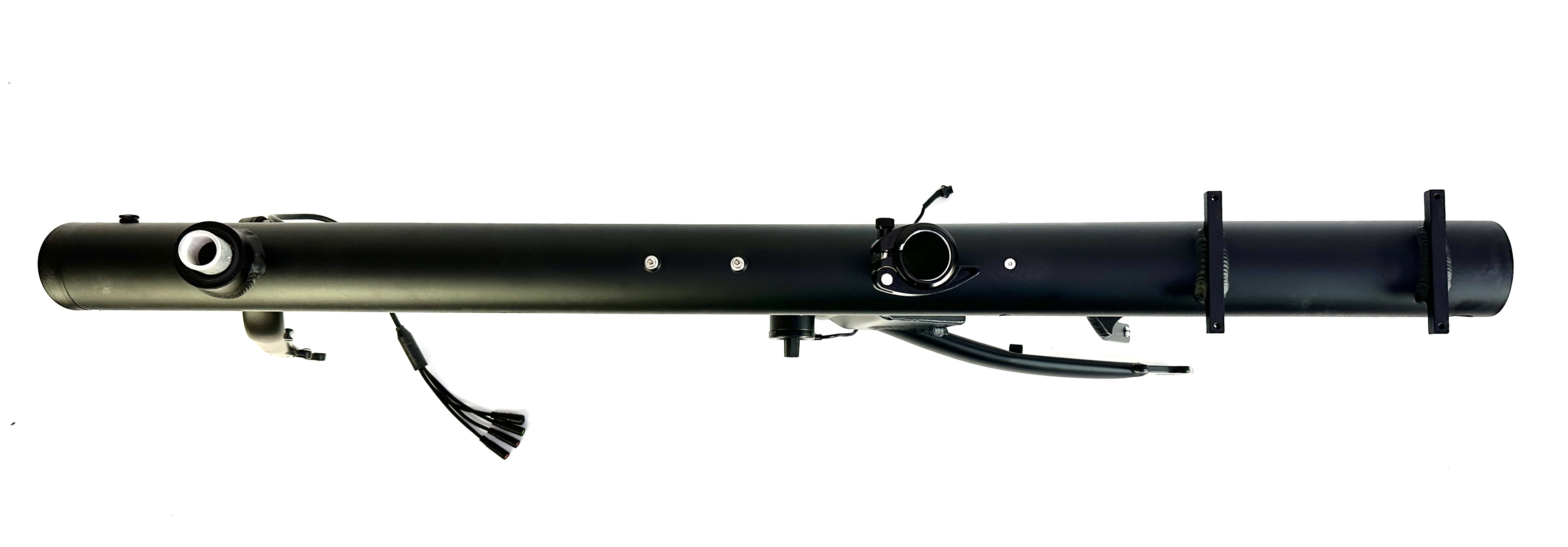

Original frame for UNI Micro by Urban Drivestyle Berlin, black matt

Build your own Micro Ebike with foldable elements!

Included in delivery is:

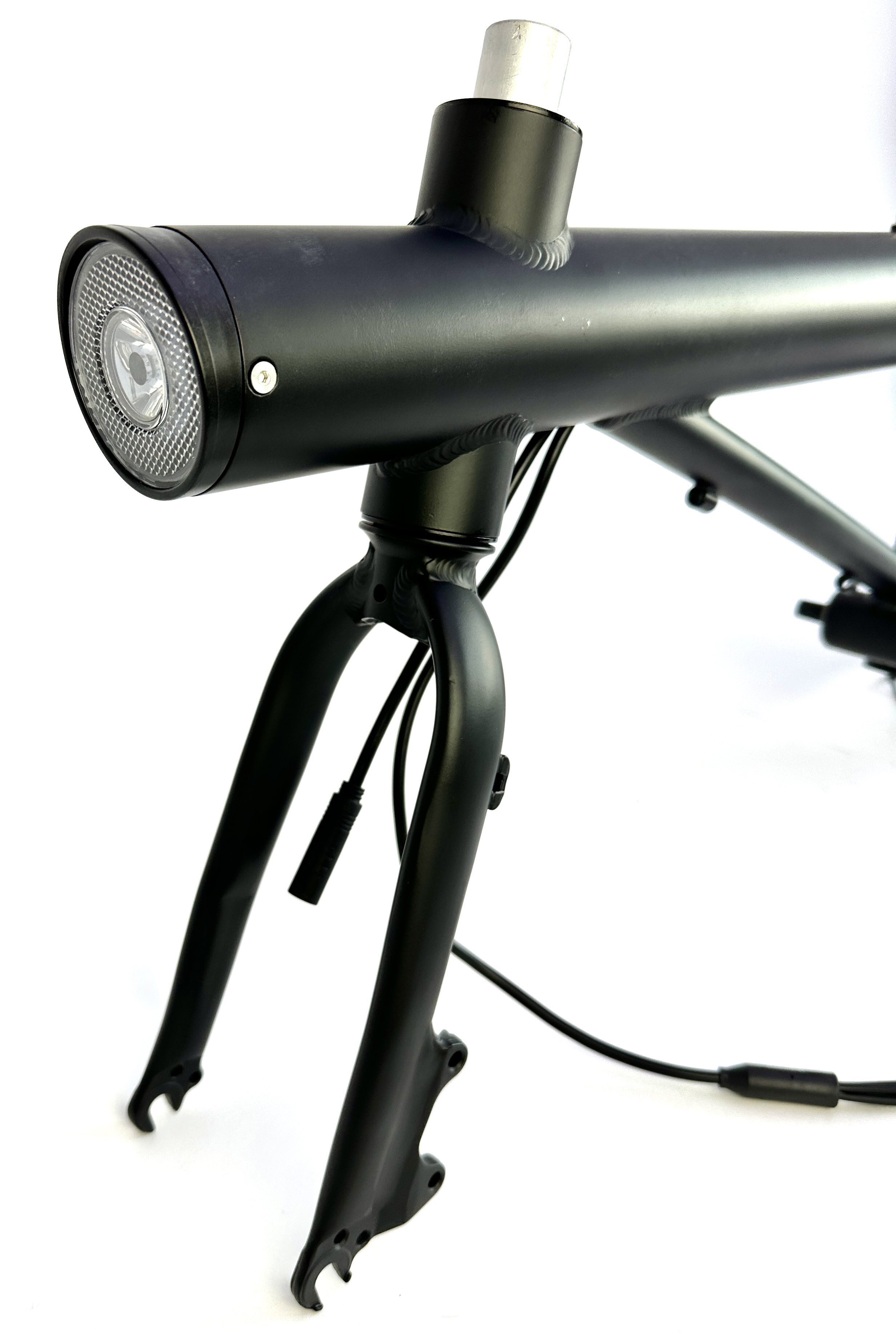

frame with fork
front light

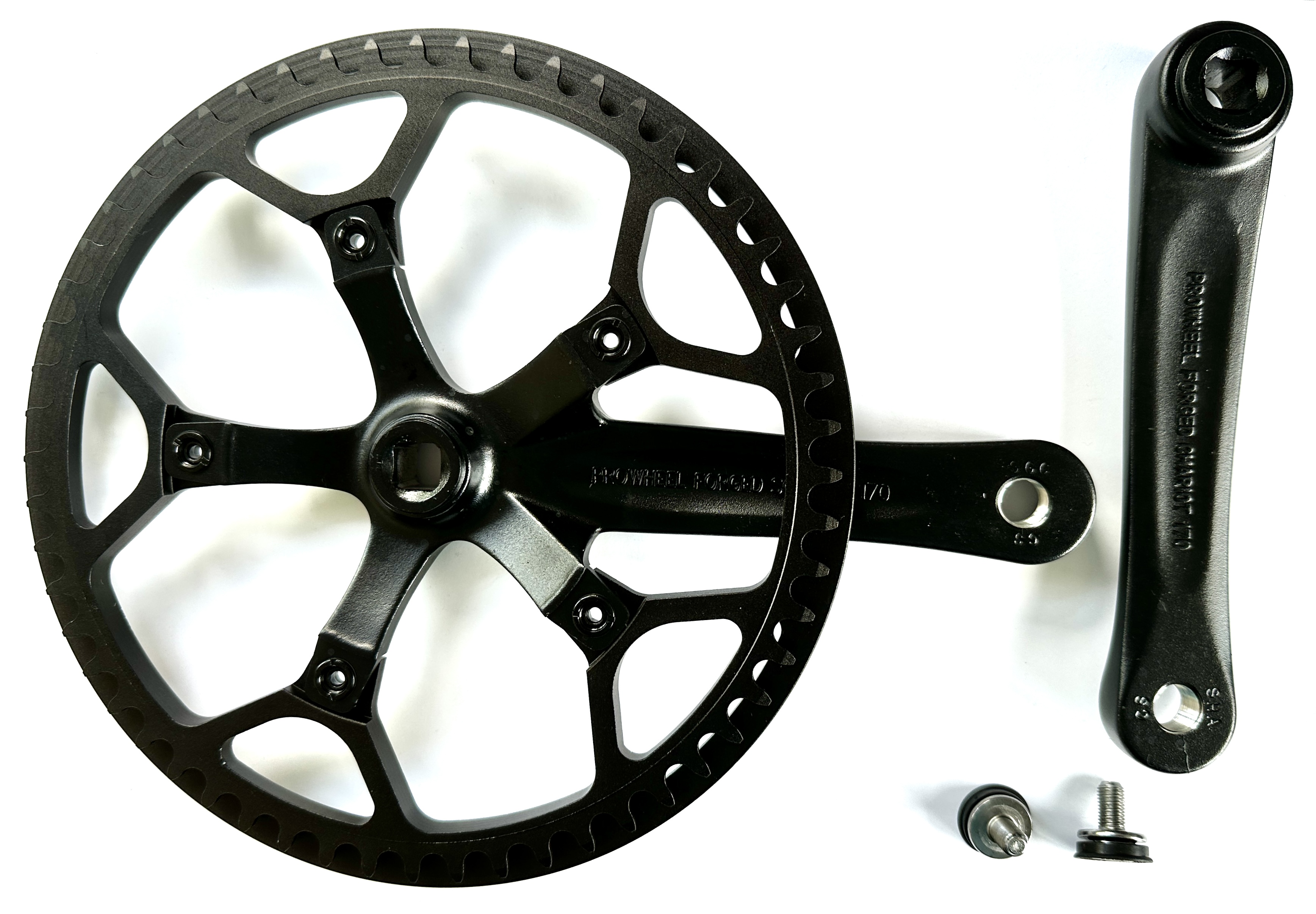

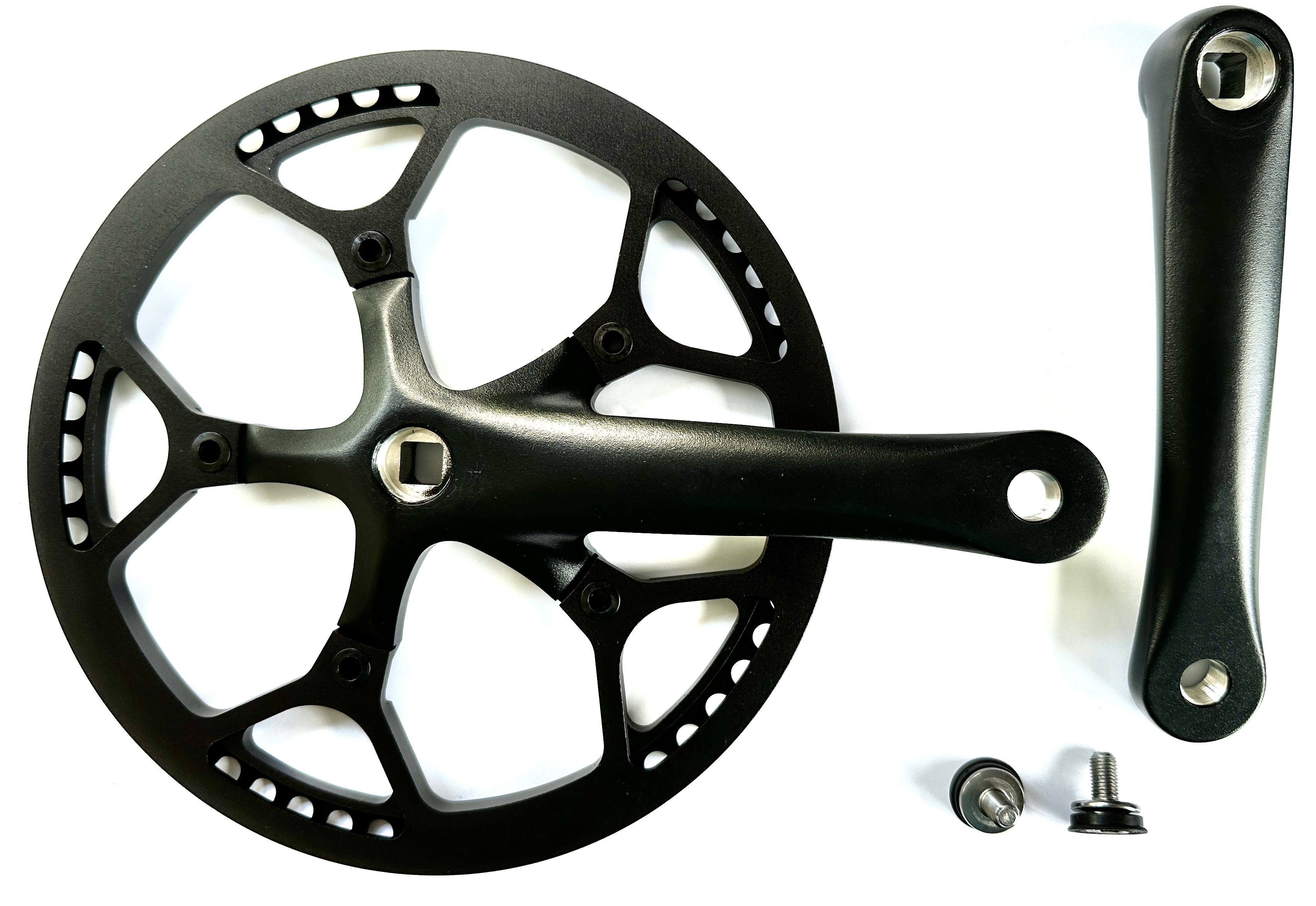

crankset / crank set for 9/16 inch pedals

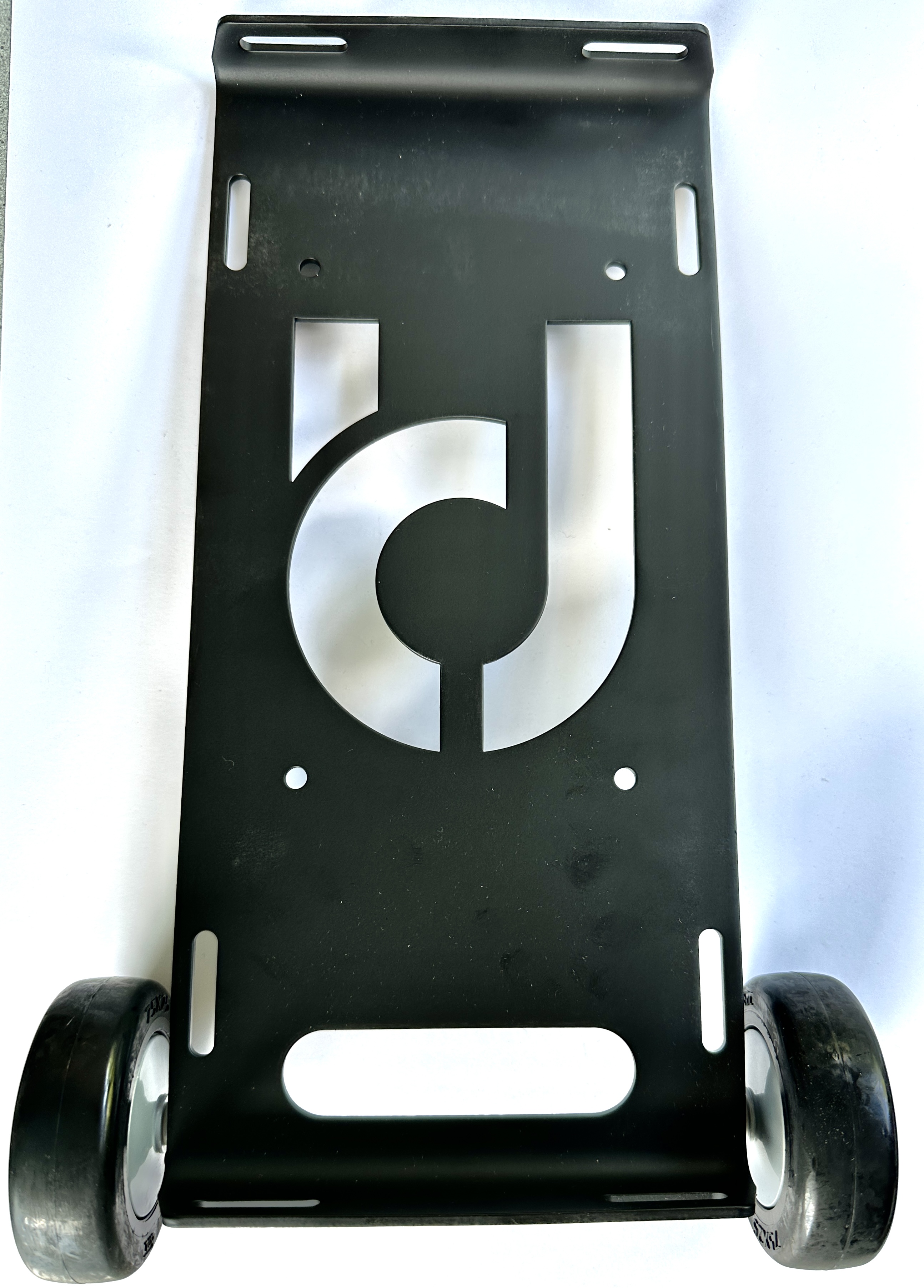

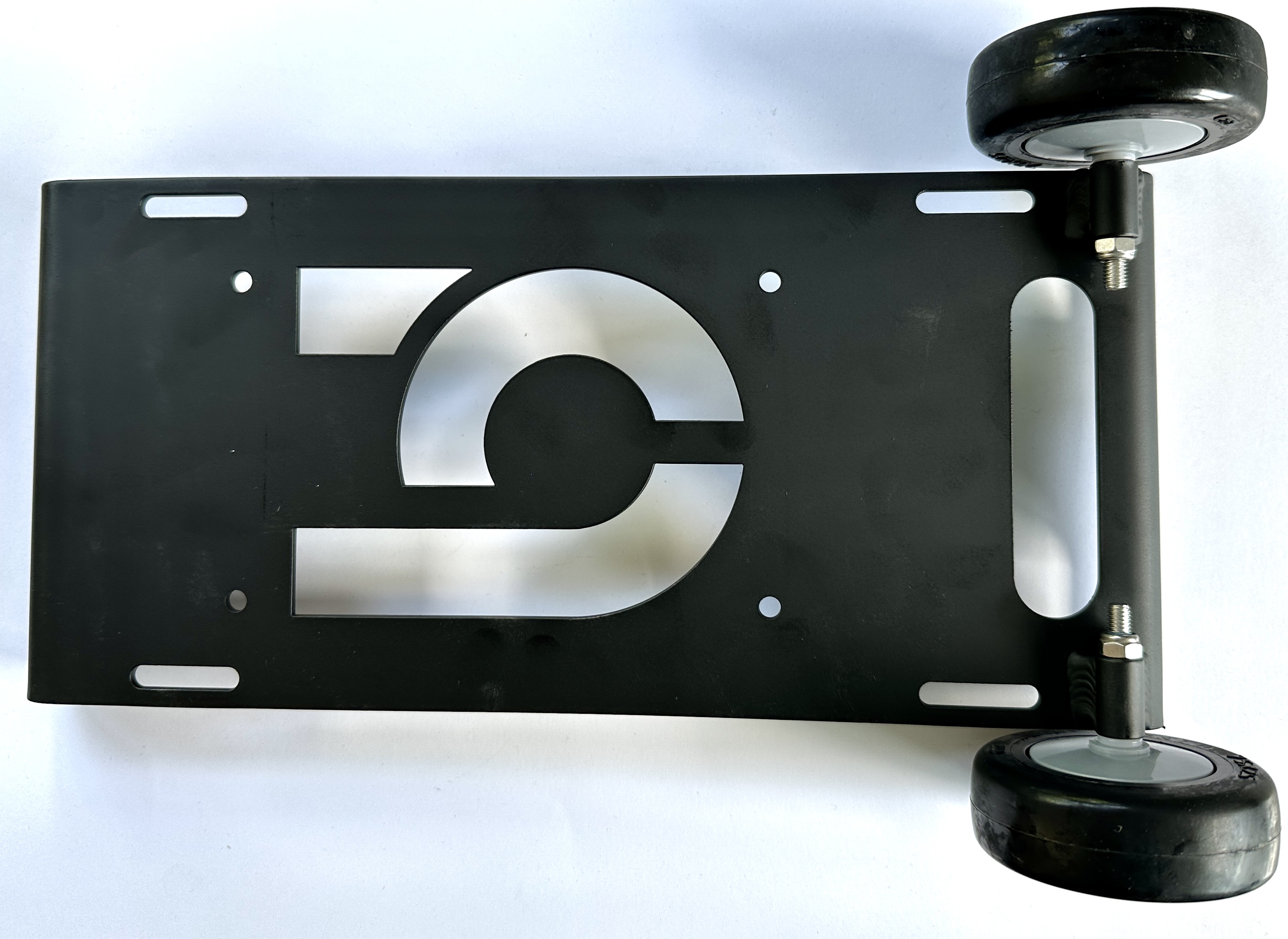

rear rack with transport wheels
pre-assembled cables and connectors

Only the frame with the parts described above is offered, not the entire bike!

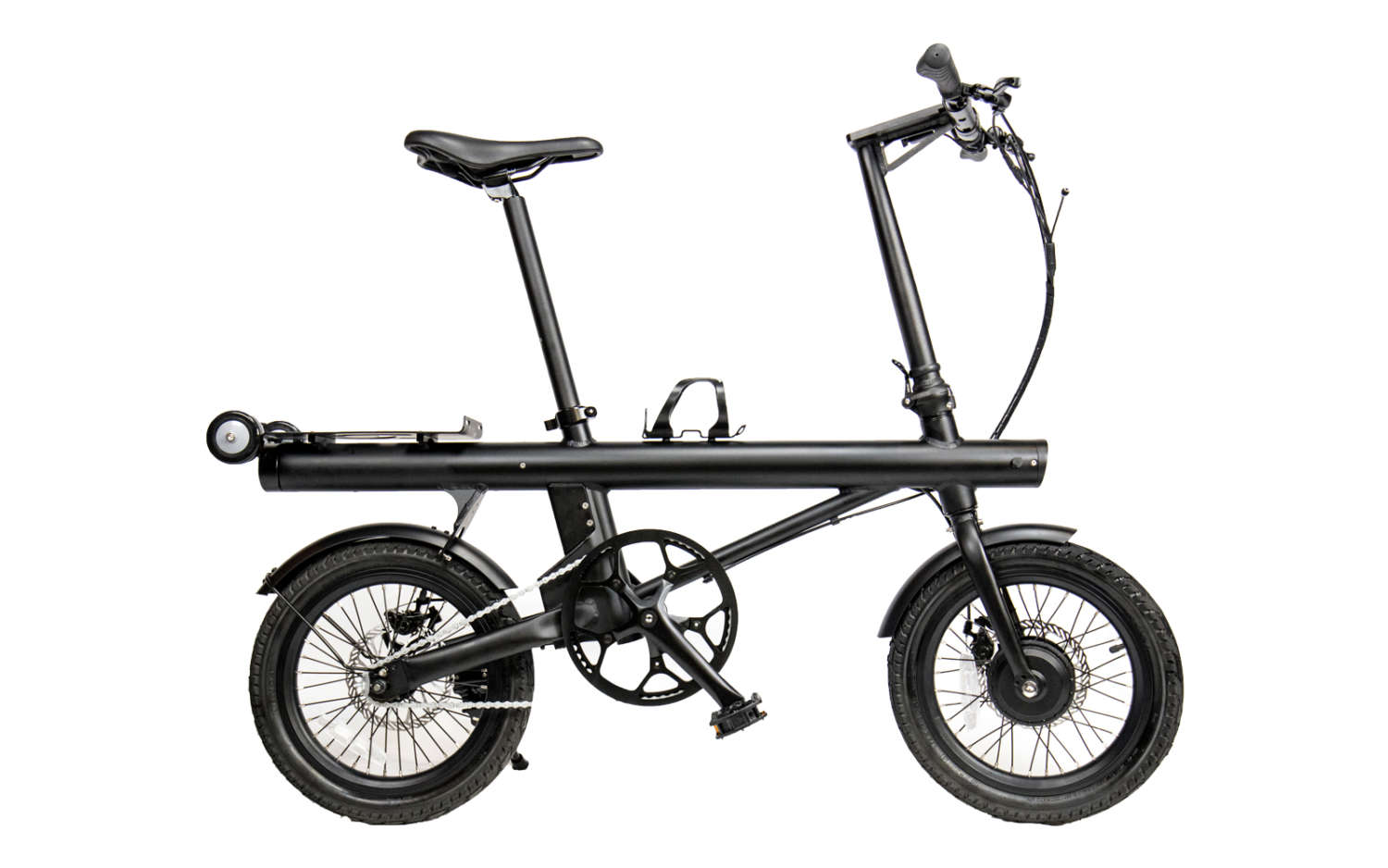

The pictures of the complete bike are for information only.

******************************************************************************************************************************************

For information:

The bike, which is not offered here, was described by Urban Drivestyle as follows:

UNI MICRO - ELECTRIC FOLDING BIKE.

The UNI Micro is a highly affordable, smart electric folding bike packed with features!

SMALL, SMART AND ROBUST!

Our aim was to create a small, smart and robust electric folding bike that can be parked in the tightest of spaces and has all the benefits of a folding bike without sacrificing comfort, safety and looks!

Unique and simple folding mechanism

UNI Micro's specially designed folding mechanism lets you fold it in seconds in just three easy steps:
Fold the handlebar, then the handlebar stem and slide the seat all the way down, DONE!

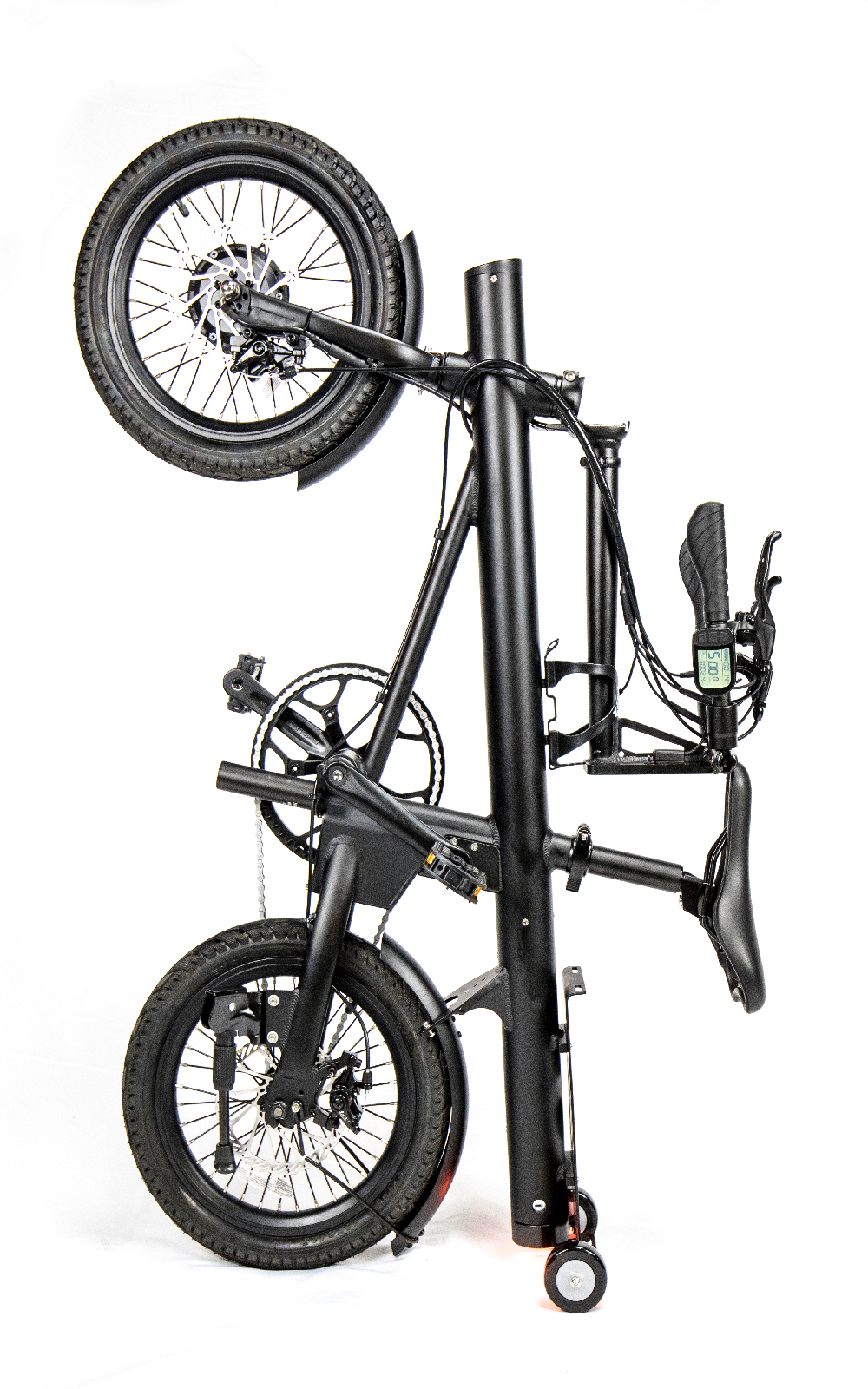

UNI Micro not only folds up in seconds, but can also be parked on end thanks to its built-in wheels on the luggage rack.

FEATURES

Electric Pedal Assist Cycle (EPAC)
Max. permitted speed: 25km/h (Germany / EU-wide)
Range: 50km
Brakes: High performance Bowden cable disc brakes
Material: Aircraft aluminium frame - TIG/WIG welded
Tyres: Extra thick 16 inch balloon tyres
Attached accessories: Integrated bottle cage, LED lights front & rear, rear rack with transport wheels, phone holder & USB port (no lock included - pictures may differ from actual delivery!)

ELECTRONIC COMPONENTS

Motor: MXUS 250W front hub motor

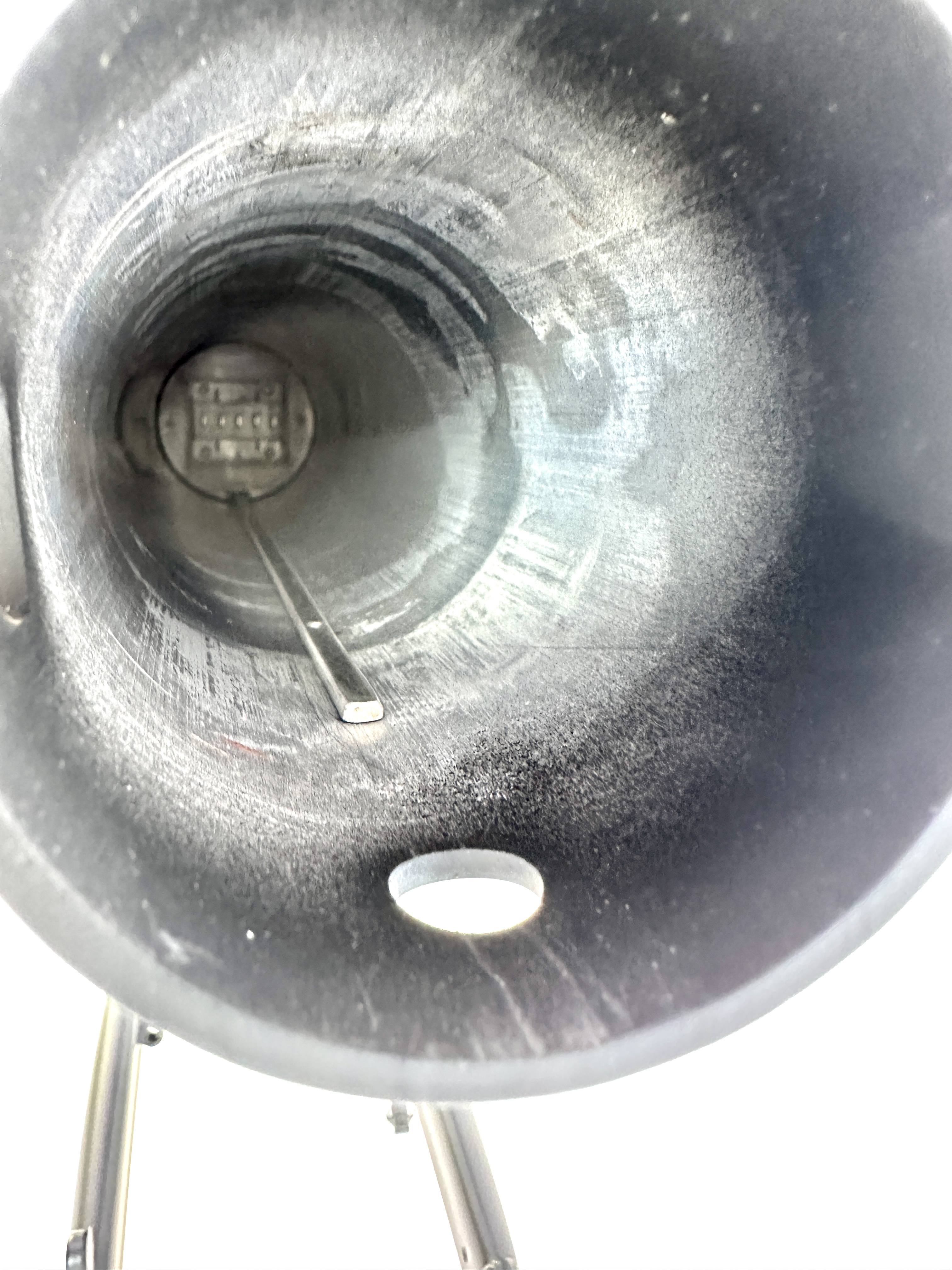

Battery: 7.6Ah 273.6Wh removable battery with Samsung cells
Light: integrated LED front & rear light

DIMENSIONS & WEIGHT

Saddle height: 94cm to 116cm
Frame: L 131cm x W 62cm x H 102cm
Max. Load capacity: Up to 110kg
Folding dimensions: 131cm x 26cm x 82cm
Adjusted for riders up to 190cm
Weight: 17kg

0 of 0 reviews

Leave a review!

Share your experiences with other customers.

Login

Your email address

Your password

No reviews found. Share your insights with others.

Accessory Items

Foldable pedals for folding bike 9/16 inch black UD13426

Foldable / collapsible pedals with 9/16 inch thread and reflectors. For space-saving storage or transport! Details: Thread: 9/16 inch Design: Platform pedal Material: Stable pedal body made of durable thermoplastic Axle: Boron steel Colour: black Weight: ~ 290 g Platform dimensions: 90 x 75 x 25 mm With StVZO approved reflectors 1 pair of pedals Original accessories for bikes from Urban Drivestyle Berlin!

€14.95*

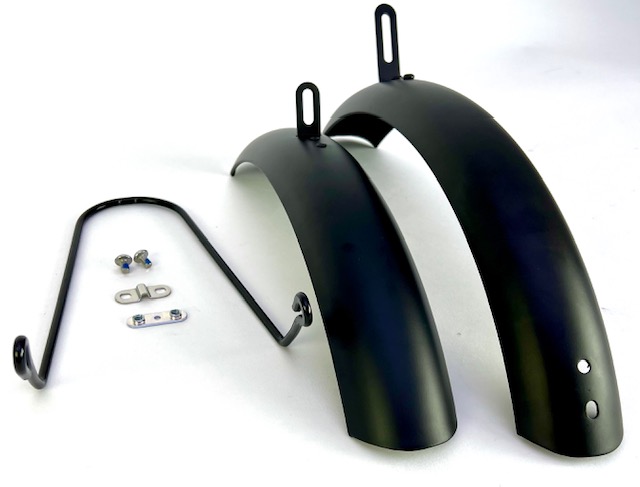

Mudguard set for Urban Drivestyle Uni Micro 16 inch matt black UD-184

One original mudguard set from UD Uni Micro for 16 inch black mattFront and rear mudguard in matt black59 mm wide Colour: matt blackOriginal mudguard from UD Uni MicroFits also very well on the frame https://classic-cycle.de/alle/4007/original-ud-uni-micro-rahmen-schwarz-matt?c=440Scope of delivery: front and rear mudguard, brace for mounting and bracket.

€29.95*

16 inch wheelset aluminium rim with 250W MXUS front wheel motor, 16 x 2.125 UD-30

16 inch wheelset aluminium rim with 250W MXUS front wheel motor, 16 x 2.125Technical specifications front wheel with motor MXUS XF11F : Position: Front wheel motorWheel diameter (inch): 16Construction: Geared motorRated voltage: 36VRated power: 250WMax torque: 32 NmColour: Black Weight: ~ 3.2 gOperating temperature: -20 - 45℃Volume: <50 Front wheel installation parameters:Brake: disc brake mount, 44 mm 6 hole disc brake 160 mm.Spokes: 2.34 mm blackMounting width: 110 mm16 inch - at tyre seat: 305 mm with bicycle diameter tyres: 57-305 = 16 x 2.125Cable connection: shaft, left sideCable length: ~ 10 mmConnection: 9 pin Jullet, male Technical specifications rear wheel: Position:Rear wheelWheel diameter (inch): 16Colour: blackSpokes: 2.34 mm blackFreewheel sprocket 14 teethRear wheel mounting pattern:Installation width: 135 mmRim diameter: 16 inch 305 Brake: Disc brake mount, 44 mm 6 hole, disc 160 mm Tests & certification: IP code: IP X5Certification: ROHS / CESalt Spray Test Standard(h): 96Special features: incl. mounting material according to illustrationWeight front and rear wheel: ~ 5.25 kg

€249.95*

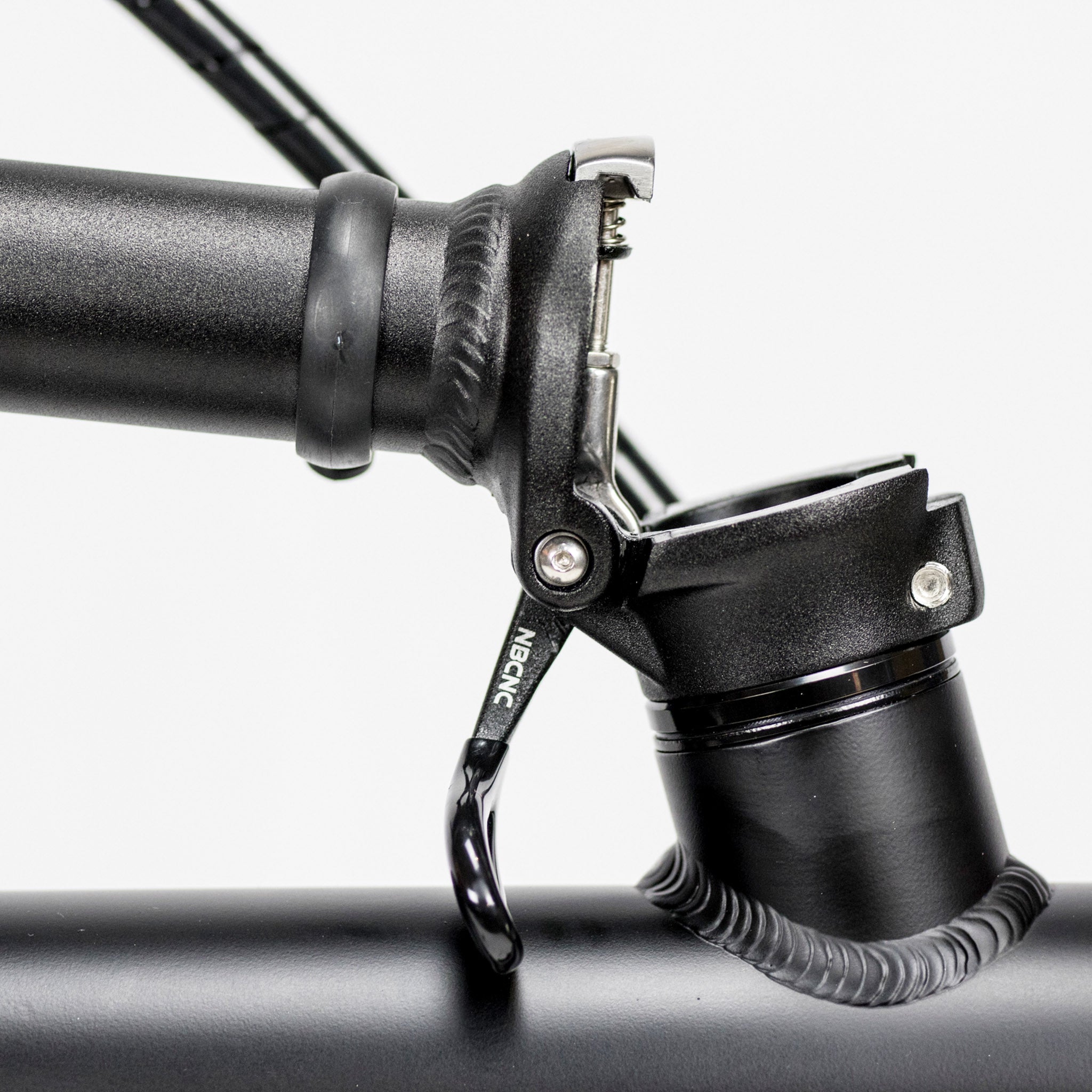

Foldable handlebar / folding handlebar for folding bike matt black UD13429

Foldable handlebar with foldable stem Stable handlebar/stem combination! For transport or storage, the handlebar ends as well as the stem / handlebar shaft can be folded to save space. Details: Width folded handlebar: ~ 200 mm Width of unfolded handlebars: ~ 585 mm total length: ~ 420 mm Elevation: ~ 0 mm Alu steerer tube mount: 28.6 mm Colour: matt black powder coated Storage space for a mobile phone (4x holes with thread on the back) The handlebar-stem combination was originally installed on the Uni Micro folding bike by Urban Drivestyle Berlin!

€89.95*
