DC converter / voltage transformer with HIGO / Julet connections
Input: 7 - 60 VDC
Connector: 1x 2-pin HIGO / Julet female, red
Output: 12V / 1000 mA
Connector: 2x 2-pin HIGO / Julet male, red
Total length incl. plug: ~ 30 cm
Converter size: 43 x 21 x 10 mm
General information:
HIGO / Julet plugs are common on many e-bikes because they provide a firm and waterproof connection. There are different types, which differ in the number of pins and thus the area of use.
A HIGO / Julet connector is generally quite firm because it is waterproof. It can be disconnected by pulling, NOT twisting. If twisted, the pins could be damaged.
Please note the arrows on the outside - they help to align and fit the connectors. When the connections are properly plugged together, no coloured plastic should be visible.
Extension cable for Ebike
Technical data:
Connector: 2-pin HIGO / Julet (1x male - 1x female)
Water resistance: IP65
Cable length: 100 cm / 39,37 inches
Plug connection: red
Outer material: ABS plastic
General information:
HIGO / Julet plugs are common on many e-bikes because they provide a firm and waterproof connection. There are different types, which differ in the number of pins and thus the area of use.
A HIGO / Julet connector is generally quite firm because it is waterproof. It can be disconnected by pulling, NOT twisting. If twisted, the pins could be damaged.
Please note the arrows on the outside - they help to align and fit the connectors. When the connections are properly plugged together, no coloured plastic should be visible.

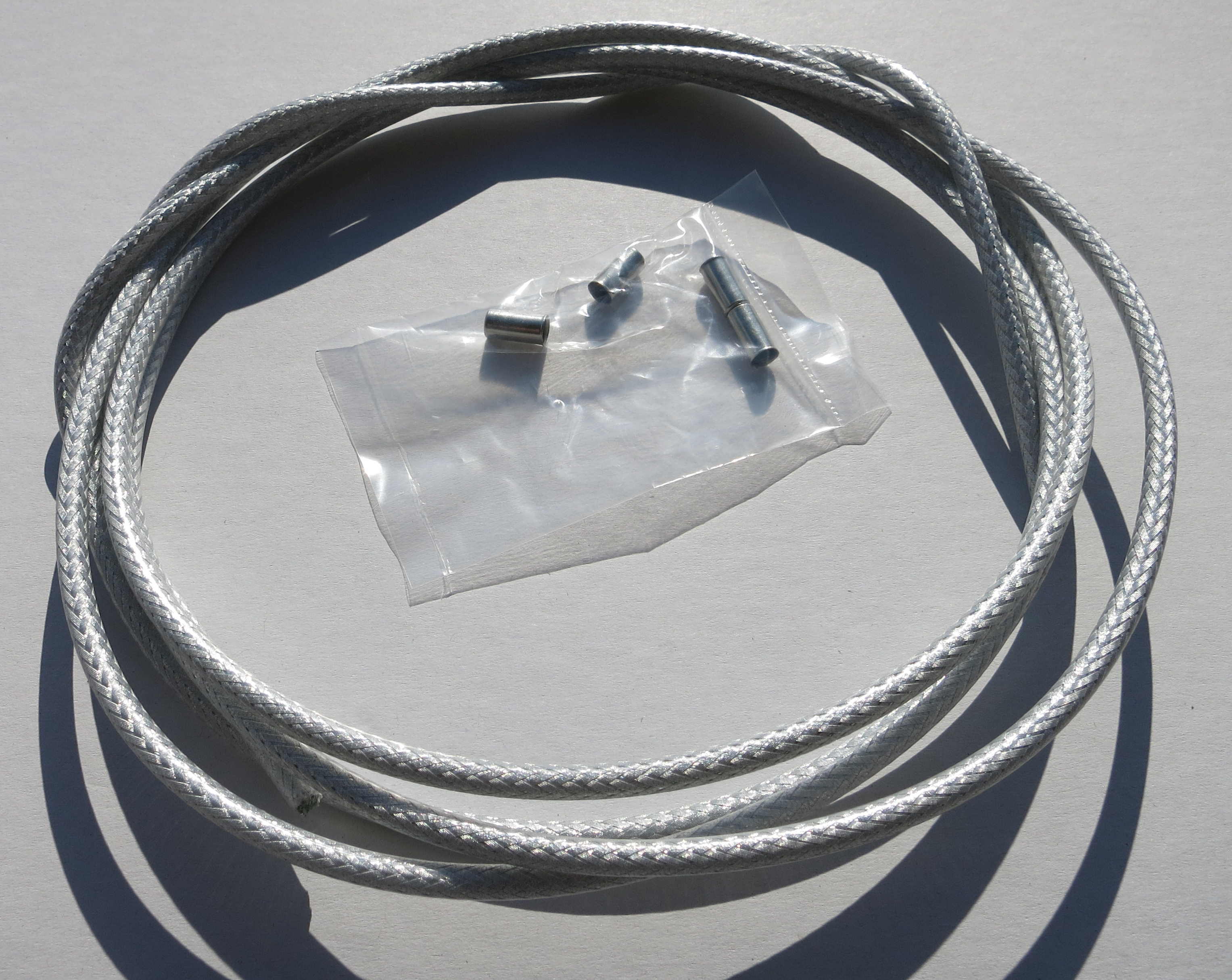

Brake cable for rear, pre-assembled
Outer cover:
~ 150 cm long
with end caps
Inner cable:
~ 166 cm long
diameter: ~ 1,5mm
with cylinder nipple ~ 7 x 6 mm
1 piece
Bafang LCD Display DP C15.U 1.1
Technical specifications
Type of display: LCD
Display: Matrix Display
Rated Voltage(DCV): 36/43/48
Support Modes: 0-5
Operating Temperature: -20 - 45℃
Weight: ~ 45g
Installation parameter
Bus system: UART
Dimensions 65 x 46 x 44 mm
Handlebar diameter: Ø 22.2 mm
Cable Length: ~ 470 mm
Connector Type: Jullet 5 PIN, female, green
Display indications
Current speed (km/h)
Maximum speed (km/h)
Average speed (km/h)
Duration of single trip
Distance of single trip
Total Distance
Reset single trip Duration
Reset single trip Distance
Capacity
Error code display
Walk Boost
Backlight
Tests & Certification
IP code: IP X5
certifications: CE / EN 15194 / REACH / ROHS
Dimensions:
Dimension A 65 mmDimension B 46 mmDimension C 44 mmDimension D Ø 22.2 mmDimension E 28 mmDimension F 16 mmDimension G 1.2''
€54.95*
