Extra wide and fat Double Crown Fork, 700 mm, 50mm, black, up to 28"

Classic Cycle

€299.95*

Prices incl. VAT plus shipping costs

Product number: 6088

Community Bilder

Product information "Extra wide and fat Double Crown Fork, 700 mm, 50mm, black, up to 28""

Extra wide and fat Double Crown Fork, 700 mm (~27,56 inches), 50 mm (~1,97 inches), black, up to 28"

50 mm (~1,97 inches) tubes! Superfat!

noble and supercool, for up to 28 inch. wheels, 1 inch steerer

Alloy triple trees and chrome-plated steel fork tubes for discbrakes.

The ultimate fork for custom chopper and cruiser freaks!

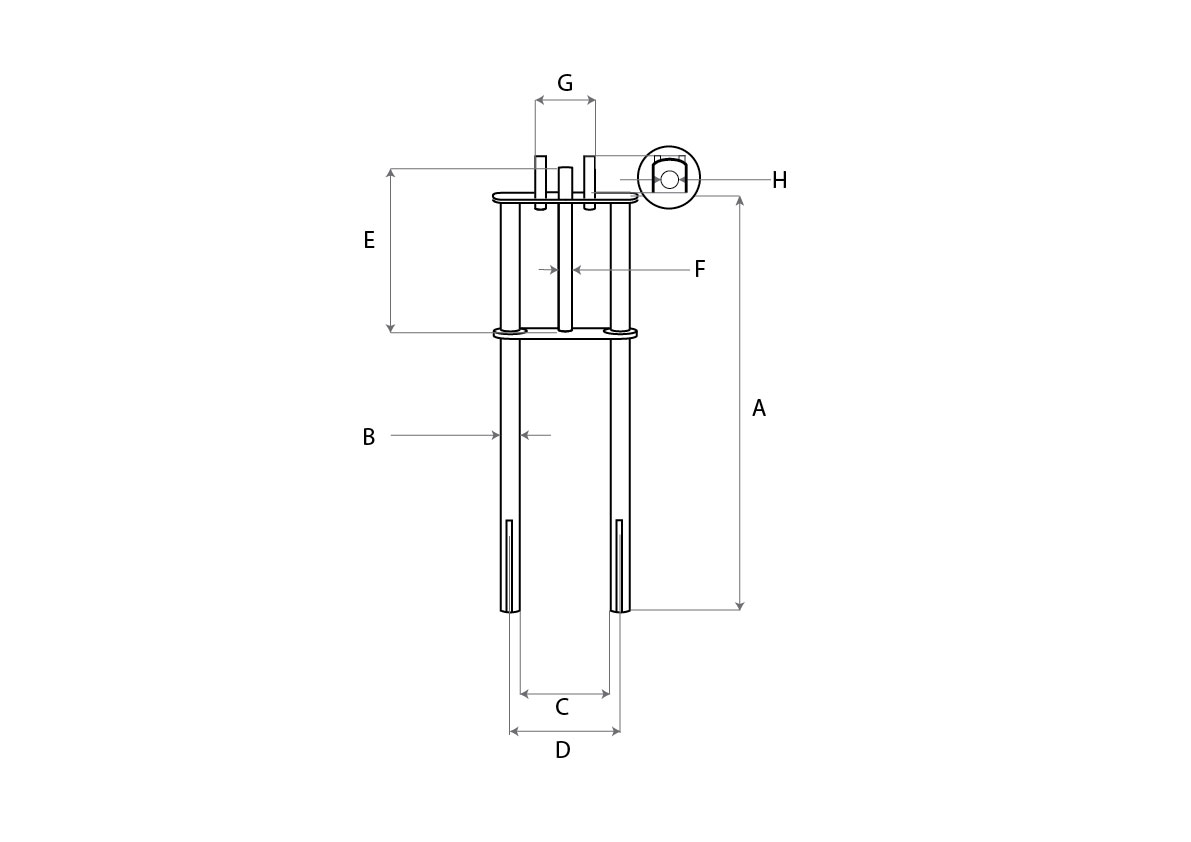

A - Fork tube length: about 700 mm (~27,56 inches)
B - Fork tube diameter: 50.8 mm (~2 inches)
C - Fork tube inner width: 125 mm (~4,92 inches)
D - Width between axle mounts: 150 mm (~5,90 inches)
E - Steerer length: 300 mm (~11,81 inches)
F - Steerer diameter: 1 inch
G -Distance outside edges of the risers: 95 mm (~3.74 inches)
H - Handlebar mount: 22.22 mm
weight: 3,95 kg (~8,71 pounds)
You can shorten the tubes and stem.
These fork is developed for 100 mm (~3,94 inches) rims.
