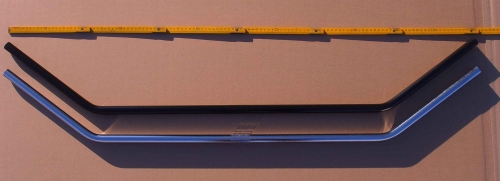

Dragbar 90, black
900 mm (~35,43 inches) wide
black CroMo steel
for 22,2 mm (~0,87 inches) stems
Length of the straight tube to the angled handle pieces approx. 475 mm (~18,7 inches)
Aluminium Alloy Rim 24 inch., 82 mm (~3,23 inches) wide
ETRTO: 507
double wall 82
the ultimate ultra fat custom chopper wheel
82 mm (~3,23 inches) wide, inner size: 75 mm (~2,95 inches), 36 holes
colour: raw
Rim diameter for calculating the spoke length: 485 mm (~19,09 inches)
Weight: 1280 g (~2,82 pounds)
Head Set Adapter kit 1 - 1 1/8 inch.
2 pieces, alloy
to install into head of the frame to reduce head tube for using head set with smaller diameter
to reduce 1 1/8" to 1"
outer diameter: 34,0 mm (~1,34 inches)
inner diameter: 30,2 mm (~1,19 inches)
Street Hog III Monster Tire 24 x 4 1/4 pure black
for custom and chopper bikes
Inflate to 30 P.S.I.
Overall diameter on a 100 mm (~3,94 inches) rim: ~ 655 mm (~25,79 inches)
Overall diameter on a 80 mm (~3,15 inches) rim: ~ 665 mm (~25,79 inches)
On a 100 mm (~3,94 inches) rim the tire is about 103 mm (~4,05 inches) wide.
On a 80 mm (~3,15 inches) rim the tire is about 93 mm (~3,63 inches) wide.
Overall diameter, depending on rim width and air pressure about: 66 cm (~25,98 inches) + / - 2 cm (~0,79 inches).
ETRTO:108 - 507
Weight: 1,95 kg ( ~4,30 pounds)
This tire fits on all 24" Classic Cycle rims wider than 50 mm till 132 mm rims. But please check frame/fork for clearance!
If you assemble the tire on wide rims not to put more pressure than 30 PSI. It could blast.
