Special drum brake hub for heavy e-bikes/e-mopeds for the front wheel
€69.95*
Product number:
3636
Product information "Special drum brake hub for heavy e-bikes/e-mopeds for the front wheel "

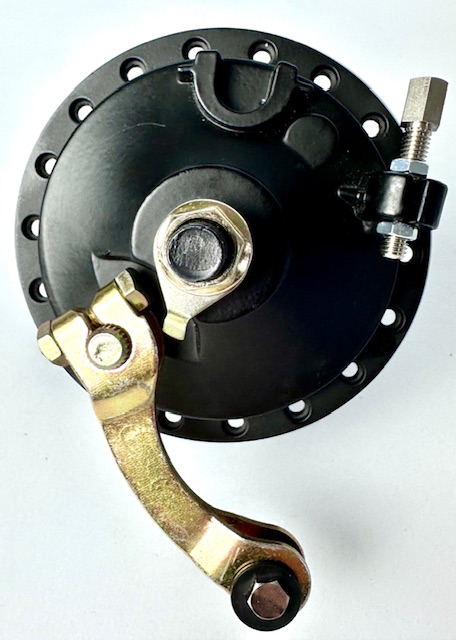

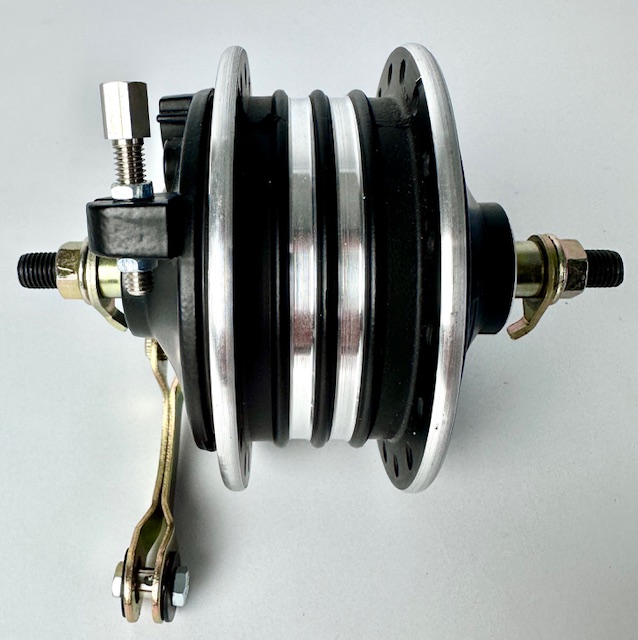

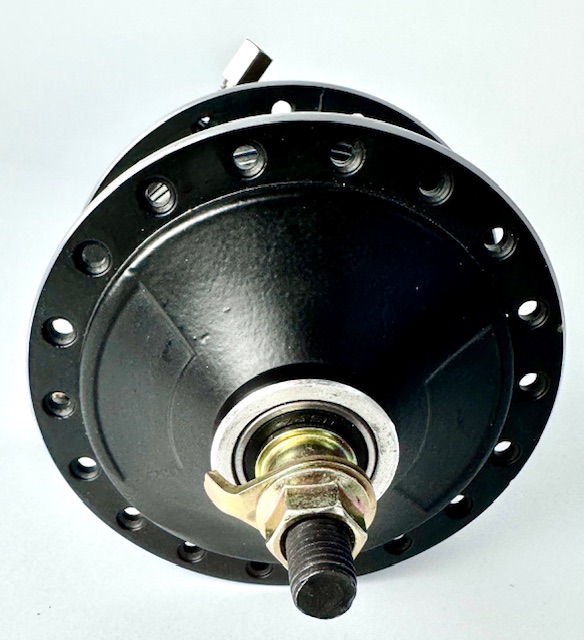

Special drum brake hub for heavy e-bikes/e-mopeds Front wheel Aluminum black
With mount for a counter bearing that must be welded to the fork.
Aluminum drum brake
Spoke holes: 36 Hole diameter 4 mm for 3 mm spokes
Axle: 155 mm
Installation dimension: 110 mm
Important:
The hub does not have its own brake arm, but it does have an indentation on the brake plate. The abutment for this and for the drum brake must be present on the fork.
If the fork does not have this abutment installed at the factory, it is possible to use a cantilever mount for welding: (Product number: CNRF)
Specs:
- Model # China
- Hub Shell Material: Aluminum
- Bearing Type: Sealed Cartridge
- Axle Diameter: 9,5 mm
- Axle Length: 155 mm
- Over Locknut Dimension: 100.0mm
- Spoke Holes: 36
- Pitch Circle Diameter: 196 mm
- Flange Width 41 mm
- Center to Flange: Right 20,5 mm Left 20,5 mm
- Offset: 0
- Spoke Compatibility: 10g or 11g ( 3 mm Spokes)
- Finish: black qnd silver
- Weight: 835 g
