UNI Swing E-Bike Frame from Urban Drivestyle Berlin

€399.95*

Product number: UNI-FRA-SWI-BLA

Product information "UNI Swing E-Bike Frame from Urban Drivestyle Berlin"

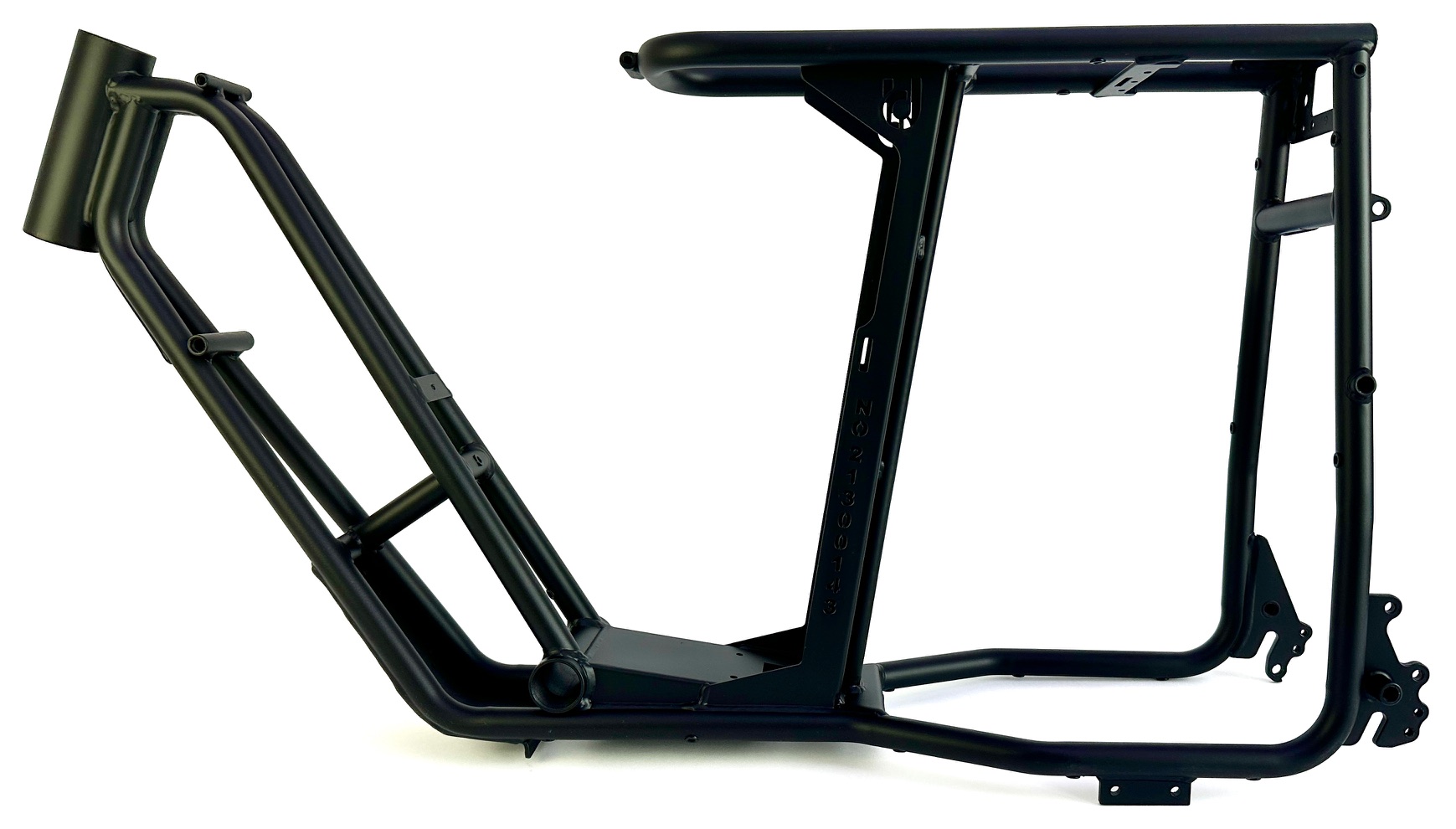

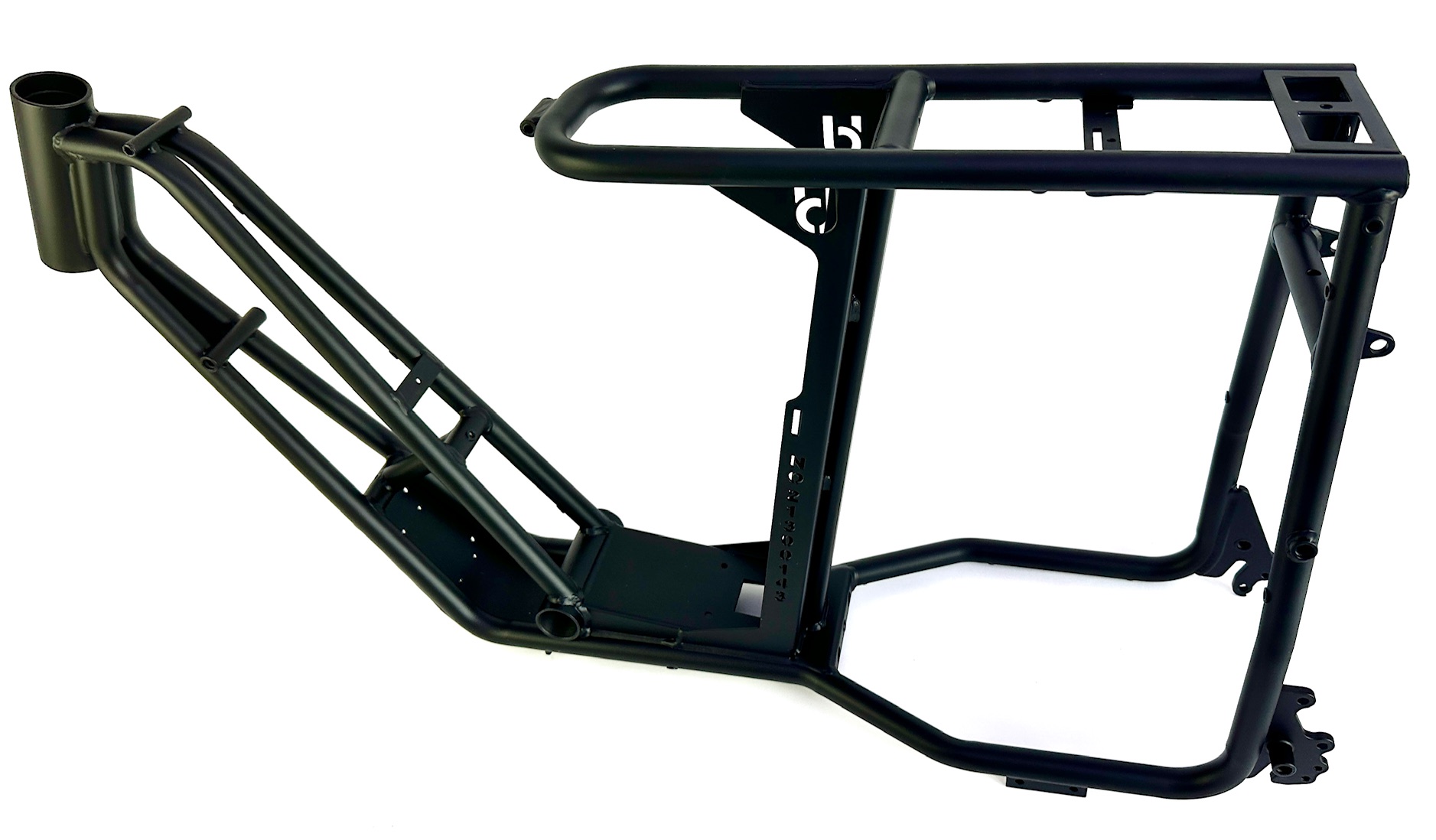

Build your custom vintage e-bike with the classic UNI Swing e-bike frame in matte black.

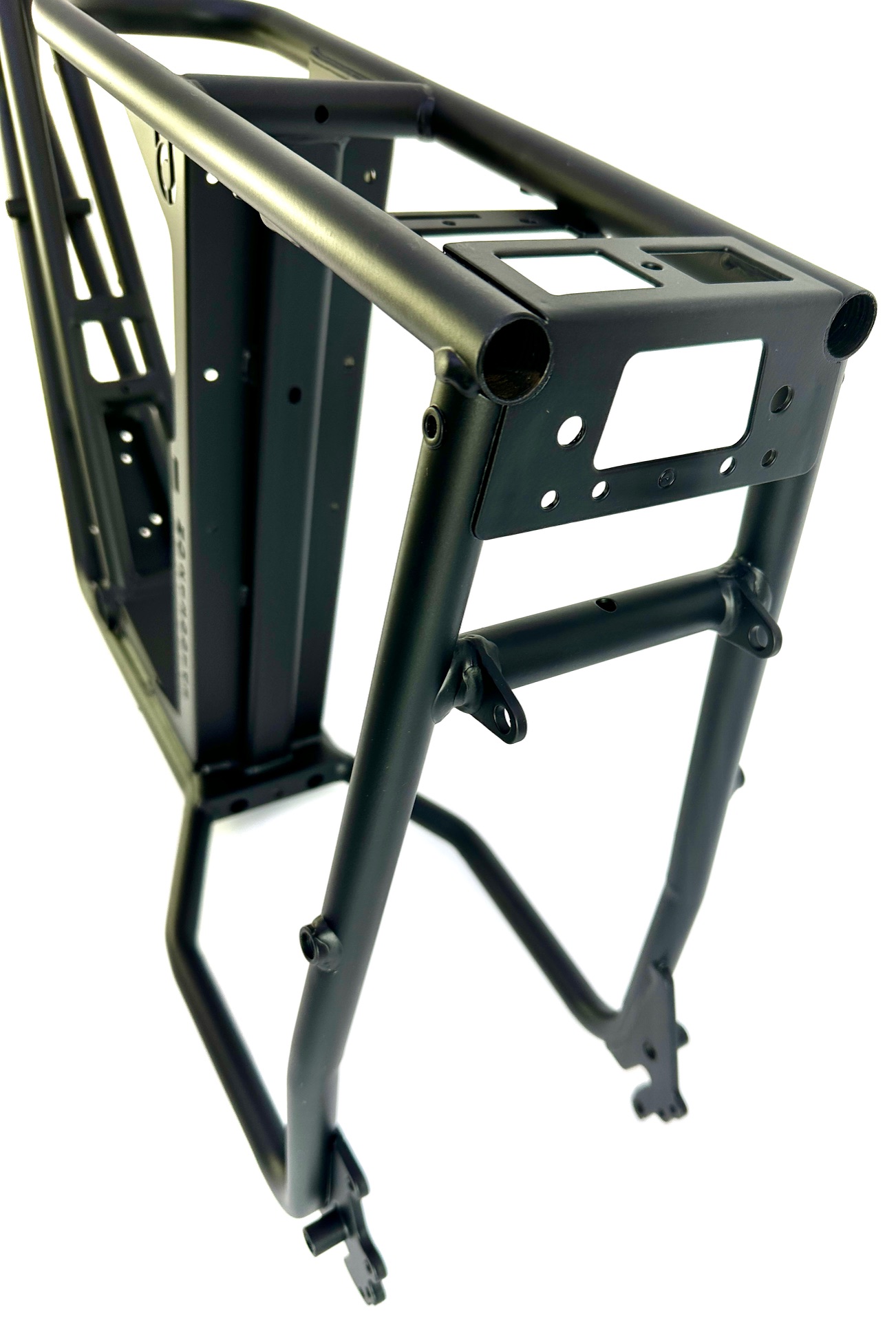

The UNI Swing e-bike frame comes in the classic moped design with the comfortable low step-in and can be equipped with all UNI Swing seats and UD racks - just as you wish. It is 100% made of high quality ChroMo steel in Germany.

Properties

Material: High quality ChroMoly steel
Color: Deep black

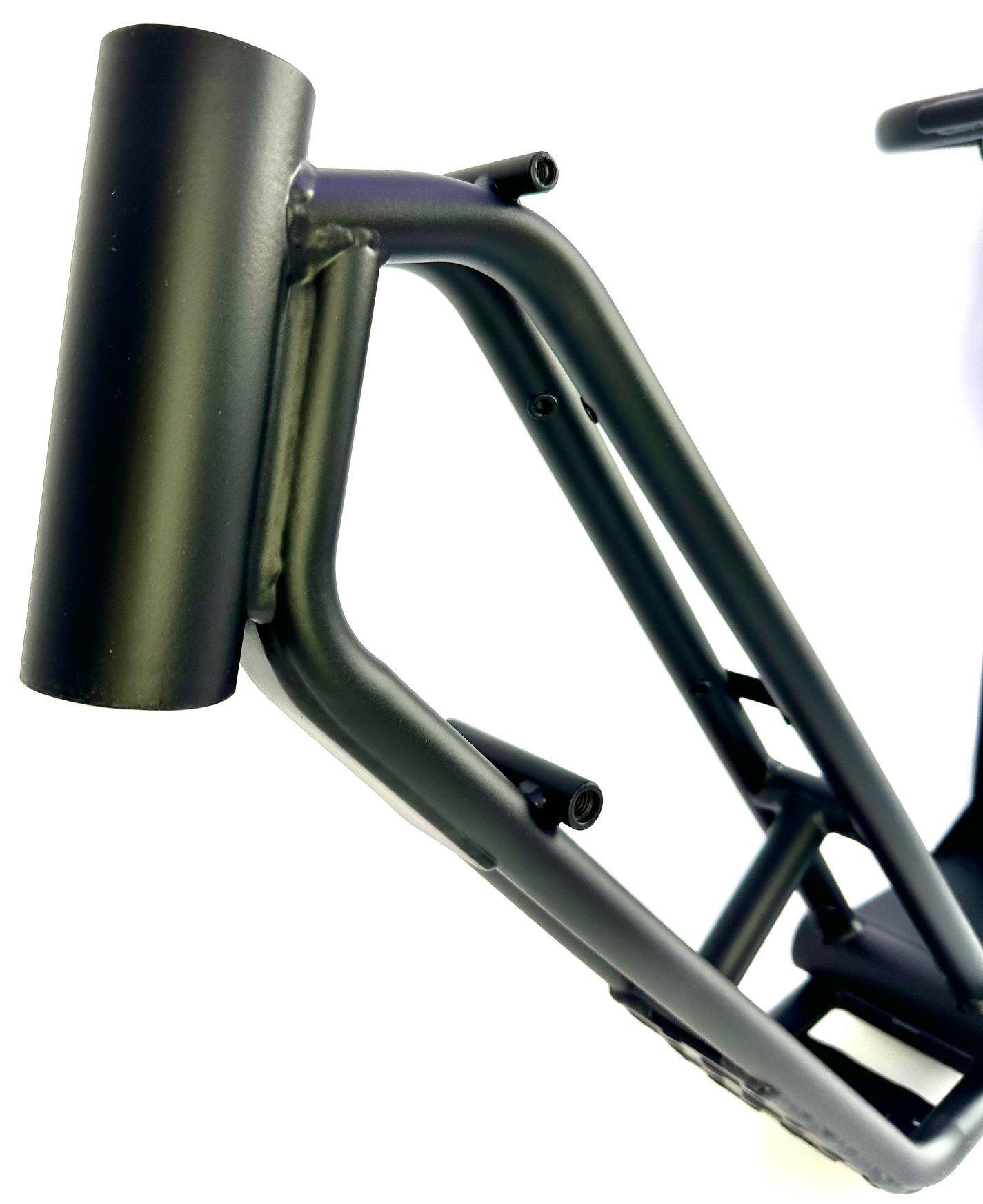

Steering head bearing: 44 mm diameter / 70° inclination
Handlebar: 22 mm diameter

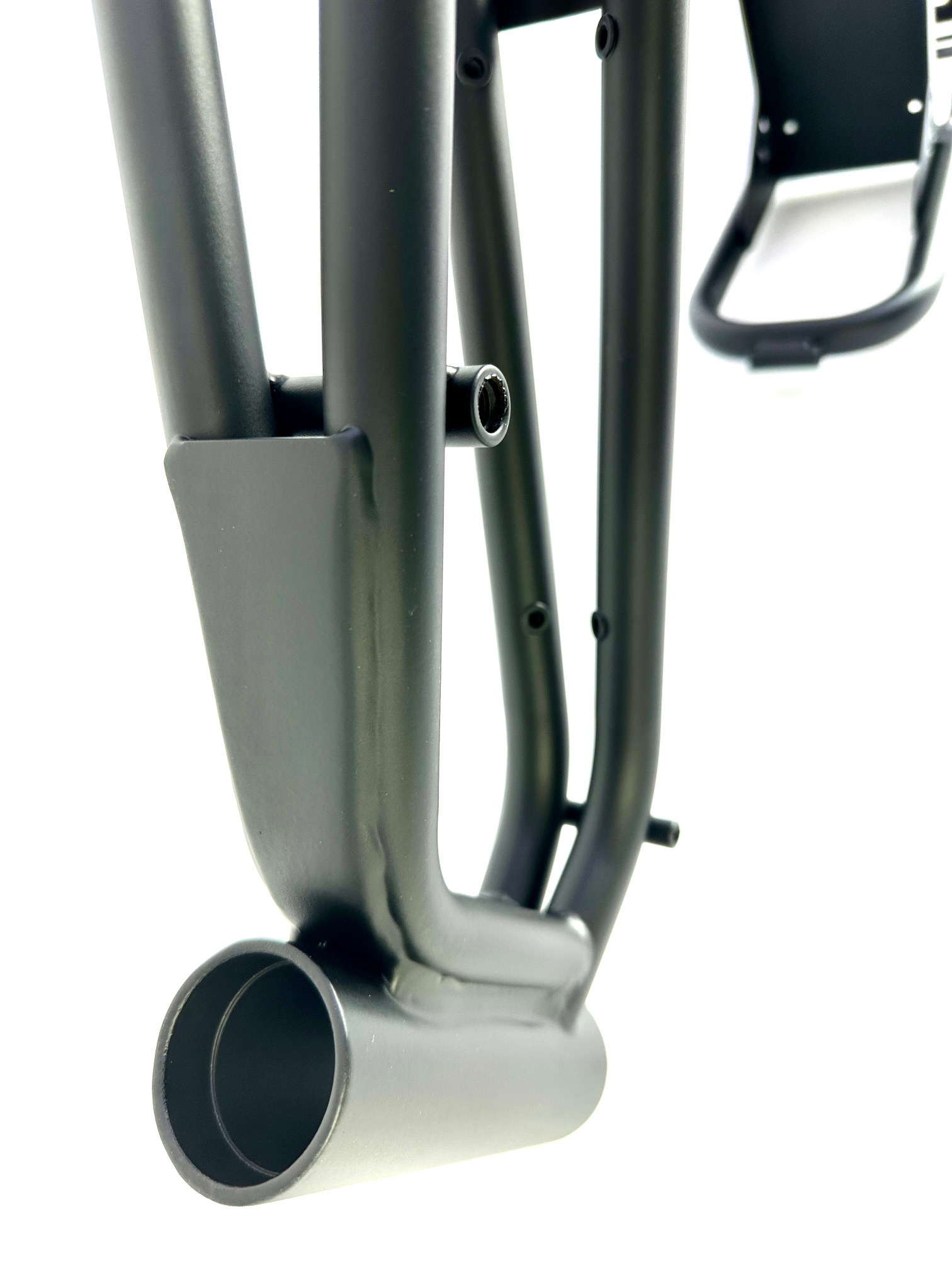

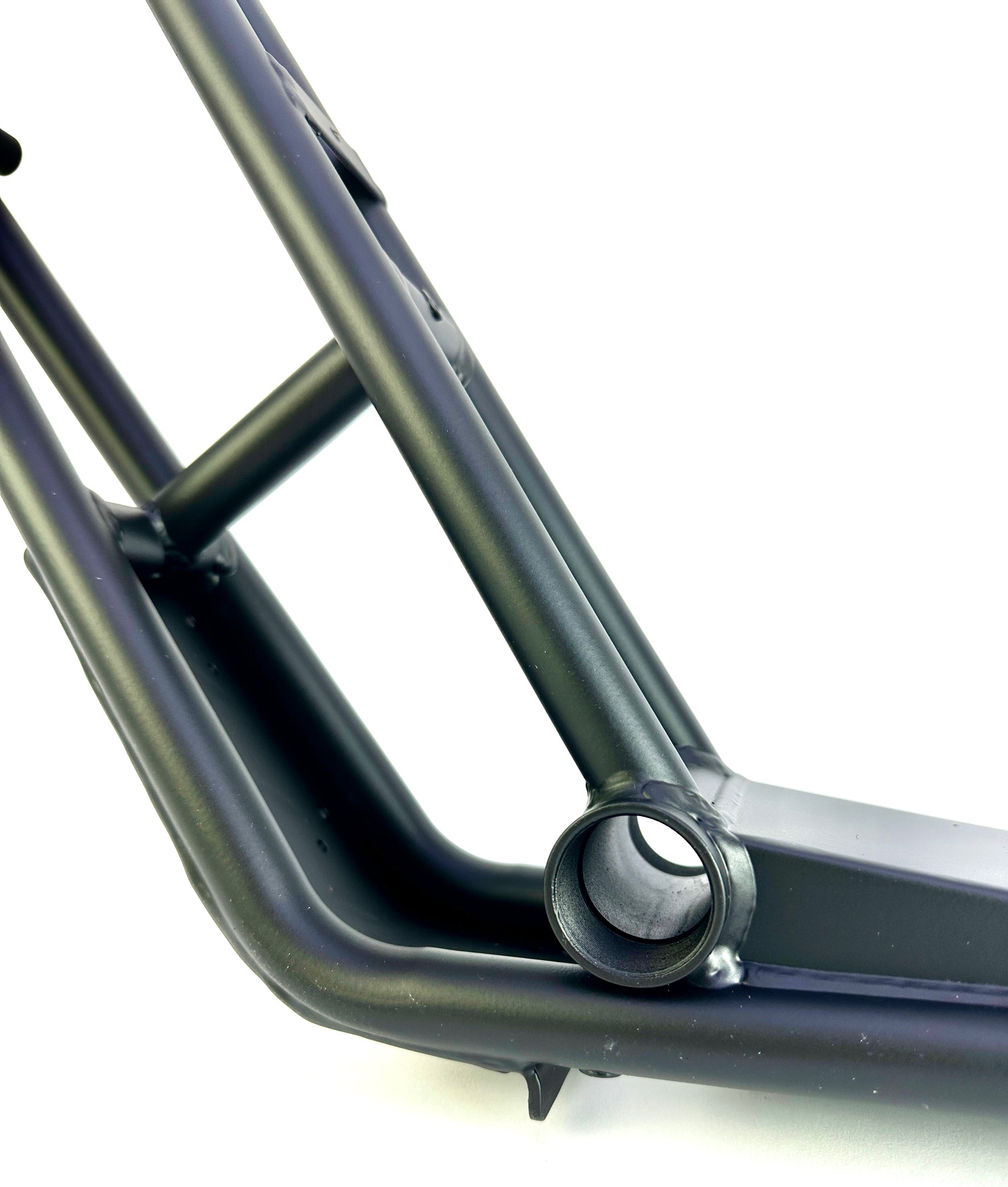

Bottom bracket: 120 mm length / 1.37 inch x 24 TPI diameter & thread
Wheelbase: 1126 mm
Max. Wheel size: 20 x 4 1/4 inch

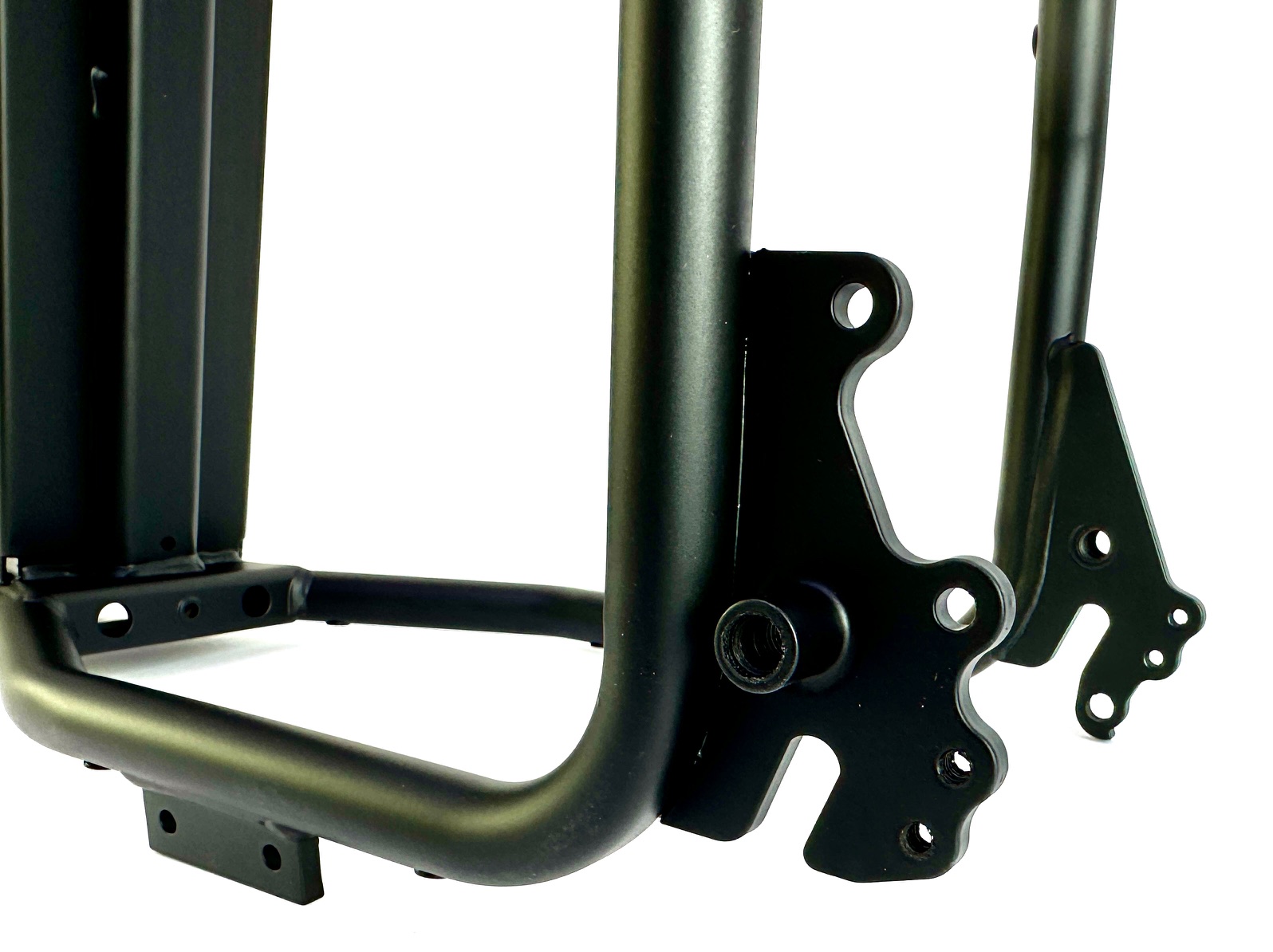

Axles: 10 mm front wheel / 14 mm rear wheel (12 mm flat for wheel mounting)
Frame height (without handlebars): 465 mm
Includes: Frame without fork
Weight: ~ 9,1 kg

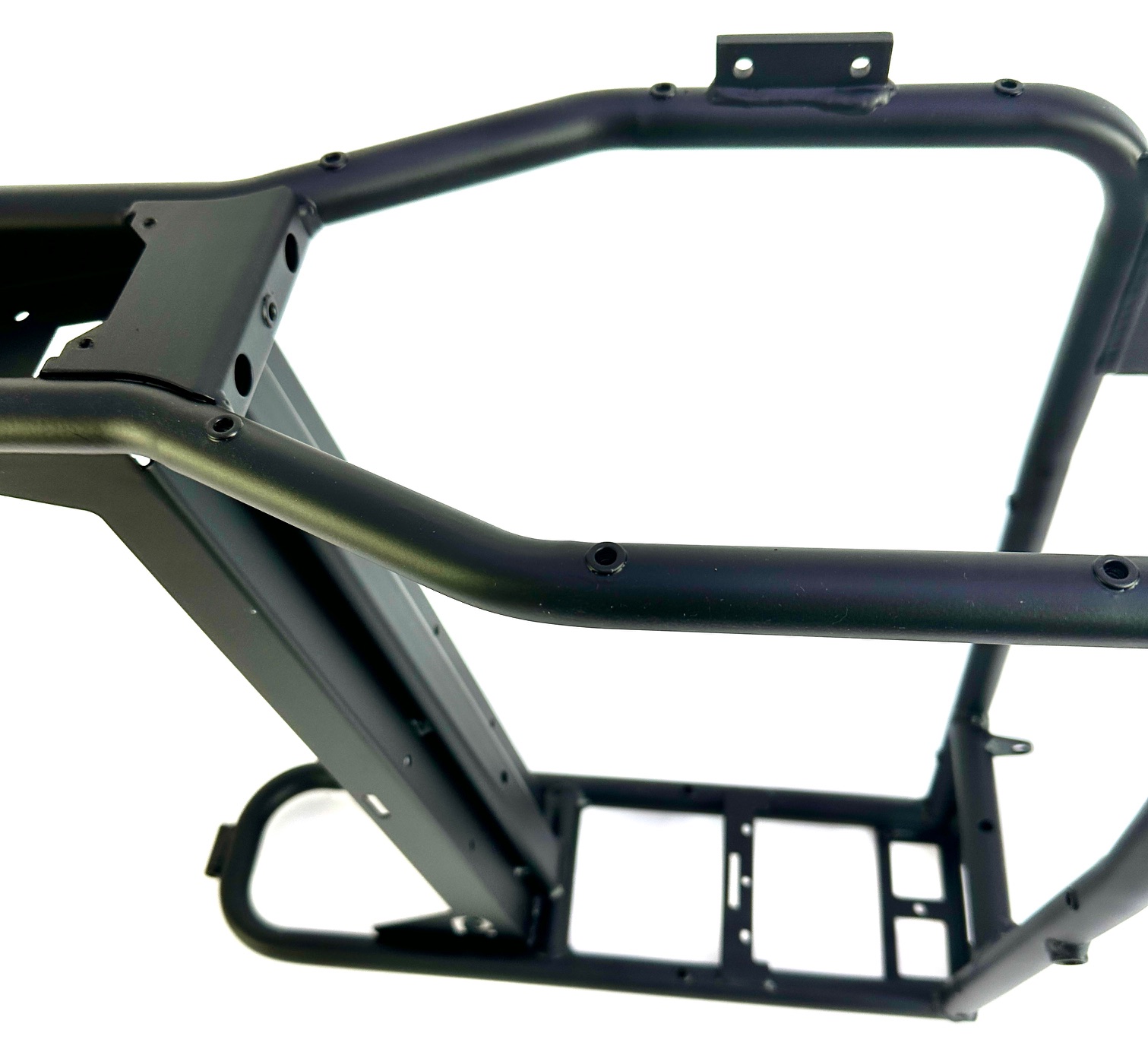

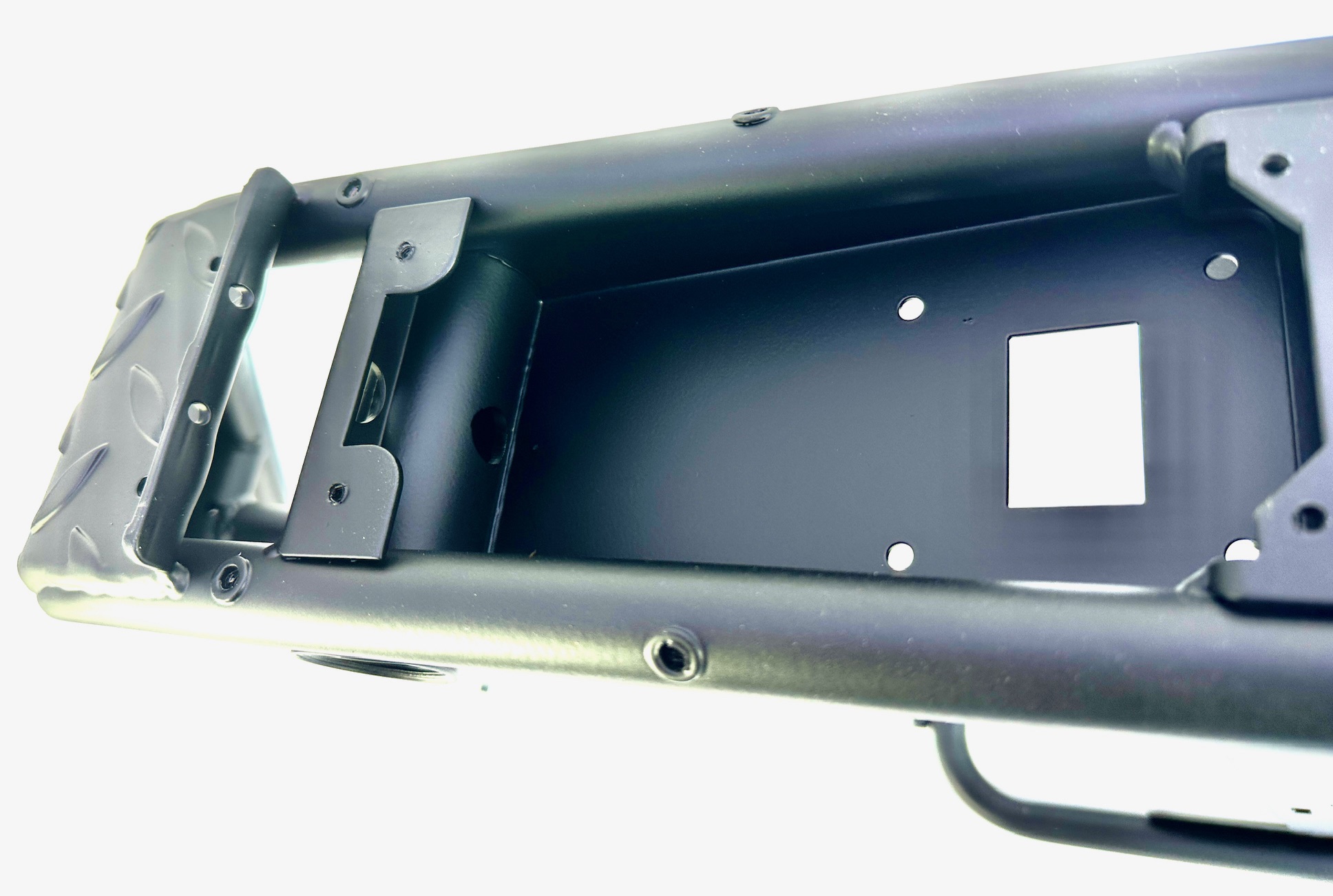

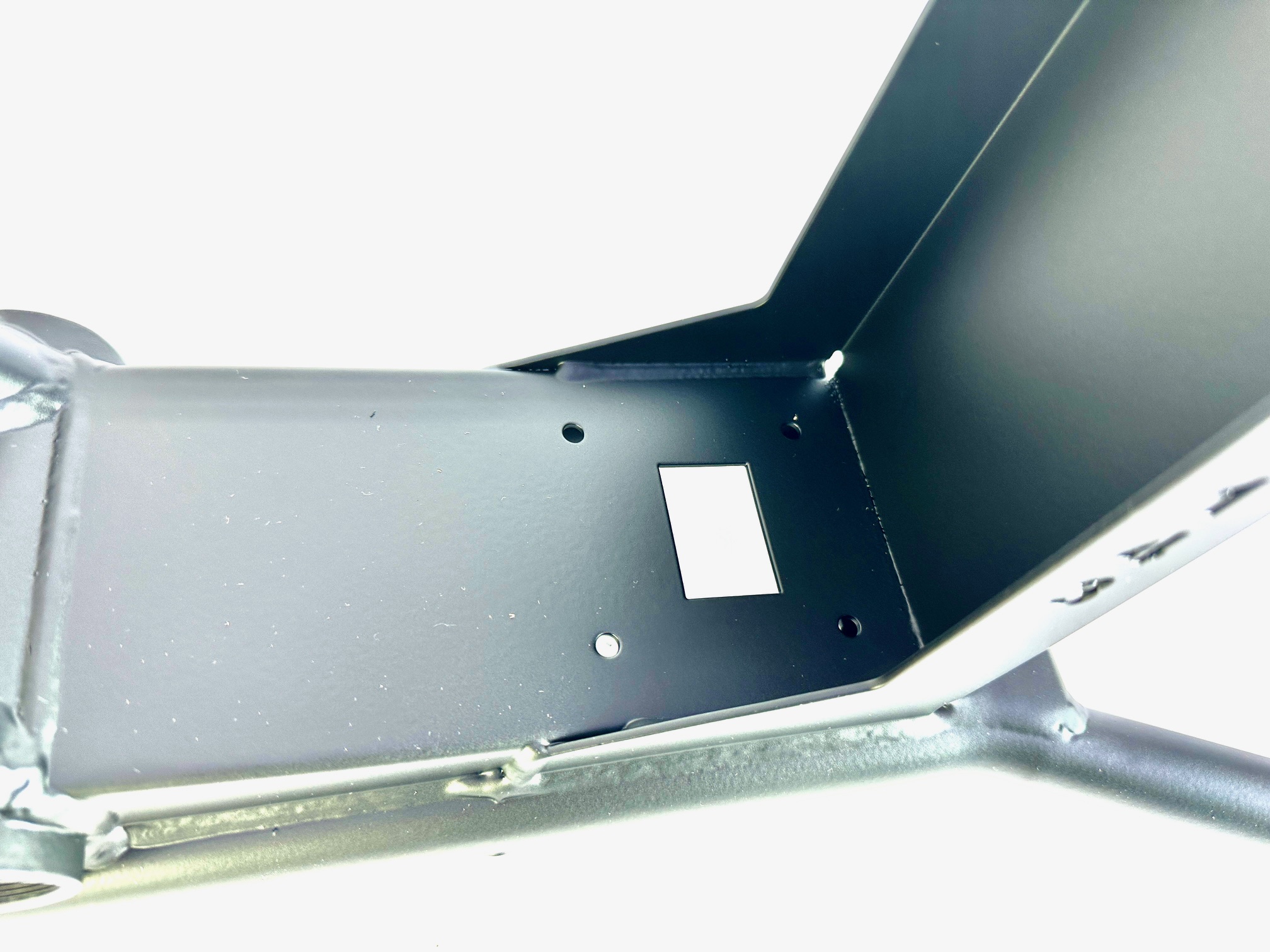

Various mounting points for e.g. batteries, controller....

Original UNI Swing frame from Urban Drivestyle Berlin!

0 of 0 reviews

Leave a review!

Share your experiences with other customers.

Login

Your email address

Your password

No reviews found. Share your insights with others.

Accessory Items

New

UD handle bars, UNI MK matt black UD-HAN-BAR-UNI

UD handle bars, UNI MK matt blackWidth: from bend to end of grip: ~ 270 mmRise: length to bend: ~ 375 mmCROMO steelDiameter for the fork: 25 mmDiameter handle end: 22 mmColour: matt black powder-coated Scope of delivery: 2 pieces, left and rightOriginal handlebars from the UD Moke and Swing Bike Series by Urban Drivestyle Berlin!HAN-BAR-UNI-BLK

€59.95*

New

UD display holder for the Moke or Swing handlebar pair, matt black UD-LCD-BRA-BAR

UD display holder for the Moke or Swing handlebar pair, matt blackWidth: Centre-to-centre mount: ~ 158 mmHandlebar mount: ~ 26 mm diameterCROMO steel Colour: matt black powder-coated Scope of delivery: 1 piece with 2 x M6 x 16 Allen screws and washers Original handlebar display holder for the UD Moke and Swing Bike series from Urban Drivestyle Berlin! LCD-BRA-BAR-BLK

€24.95*

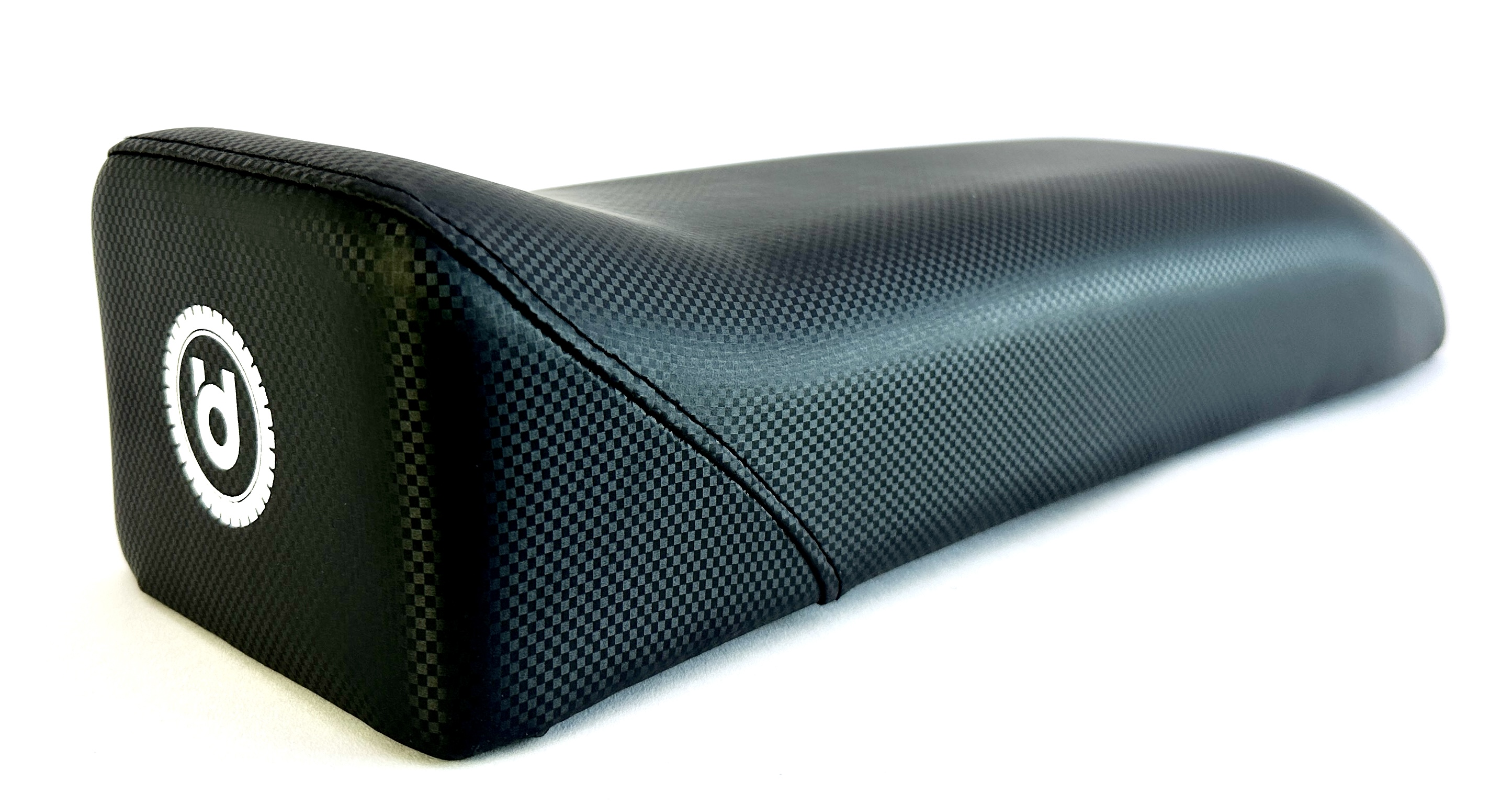

Seat for UNI Swing, MK or Bobber UNI-SHO-SEA
