Extra wide and fat Double Crown Fork, 700 mm, 50mm, black, up to 28", 1 1/8 steerer

€299.95*

Product number: 1186088
Product information "Extra wide and fat Double Crown Fork, 700 mm, 50mm, black, up to 28", 1 1/8 steerer"

Extra wide and fat Double Crown Fork, 700 mm (~27,56 inches), 50 mm (~1,97 inches), black, up to 28"

50 mm (~1,97 inches) tubes! Superfat!

noble and supercool, for up to 28 inch. wheels, 1 1 /8 inch steerer,

Alloy triple trees and chrome-plated steel fork tubes for discbrakes.

  • The ultimate fork for custom chopper and cruiser freaks!

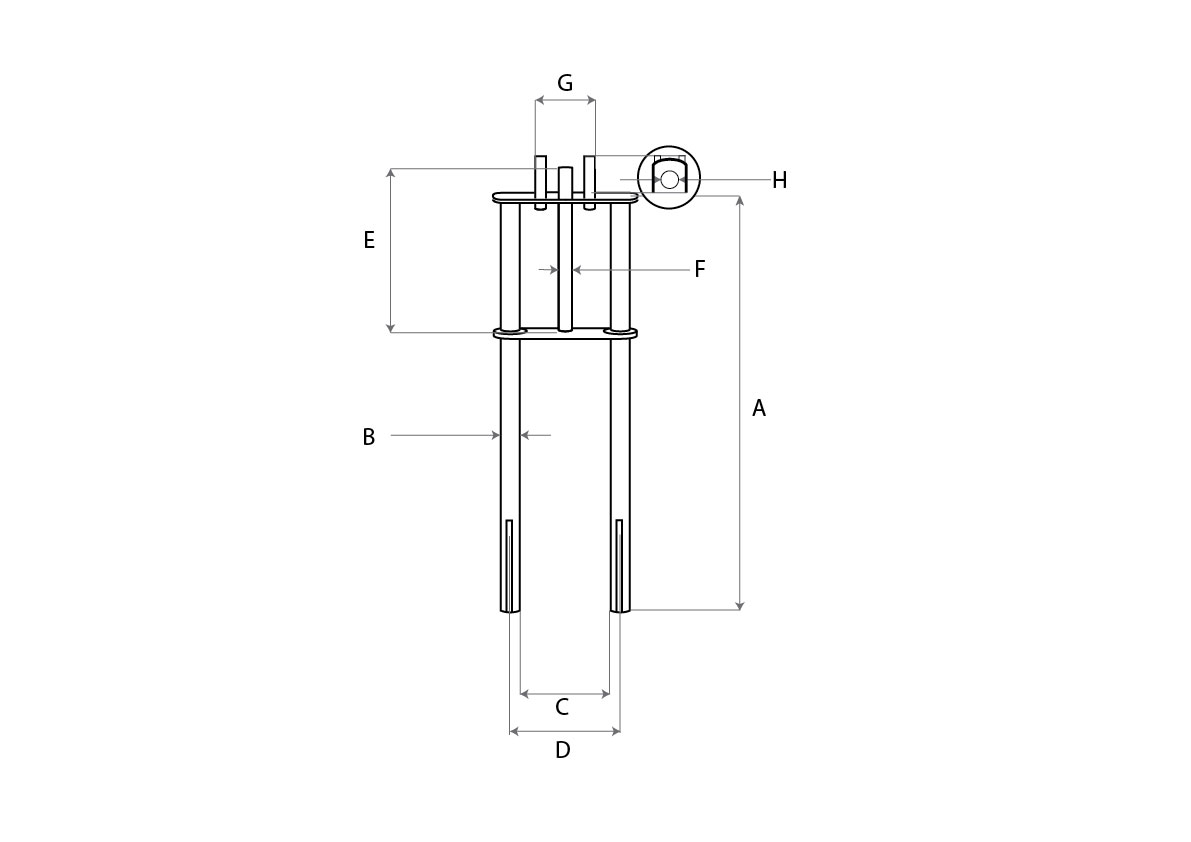

  • A - fork tube length: about 700 mm (~27,56 inches)
  • B - Fork tube diameter: 50.8 mm (~2 inches)
  • C - Fork tube inner width: 125 mm (~4,92 inches)
  • D - Width between axle mounts: 150 mm (~5,90 inches)
  • E - Steerer length: 300 mm (~11,81 inches)
  • F -  Steerer diameter: 1 1/8 inch - 30 mm
  • G -Distance outside edges of the risers: 95 mm (~3.74 inches)
  • H - Handlebar mount: 22.22 mm
  •  weight: 3,95 kg (~8,71 pounds)

You can shorten the tubes and stem.
These fork is developed for 100 mm (~3,94 inches) rims.
