Bafang wiring harness 1T4, waterproof, 70 cm / 27,55 inches

€22.95*

Product number: CAB-TRE-1T4-MK-070

Product information "Bafang wiring harness 1T4, waterproof, 70 cm / 27,55 inches"

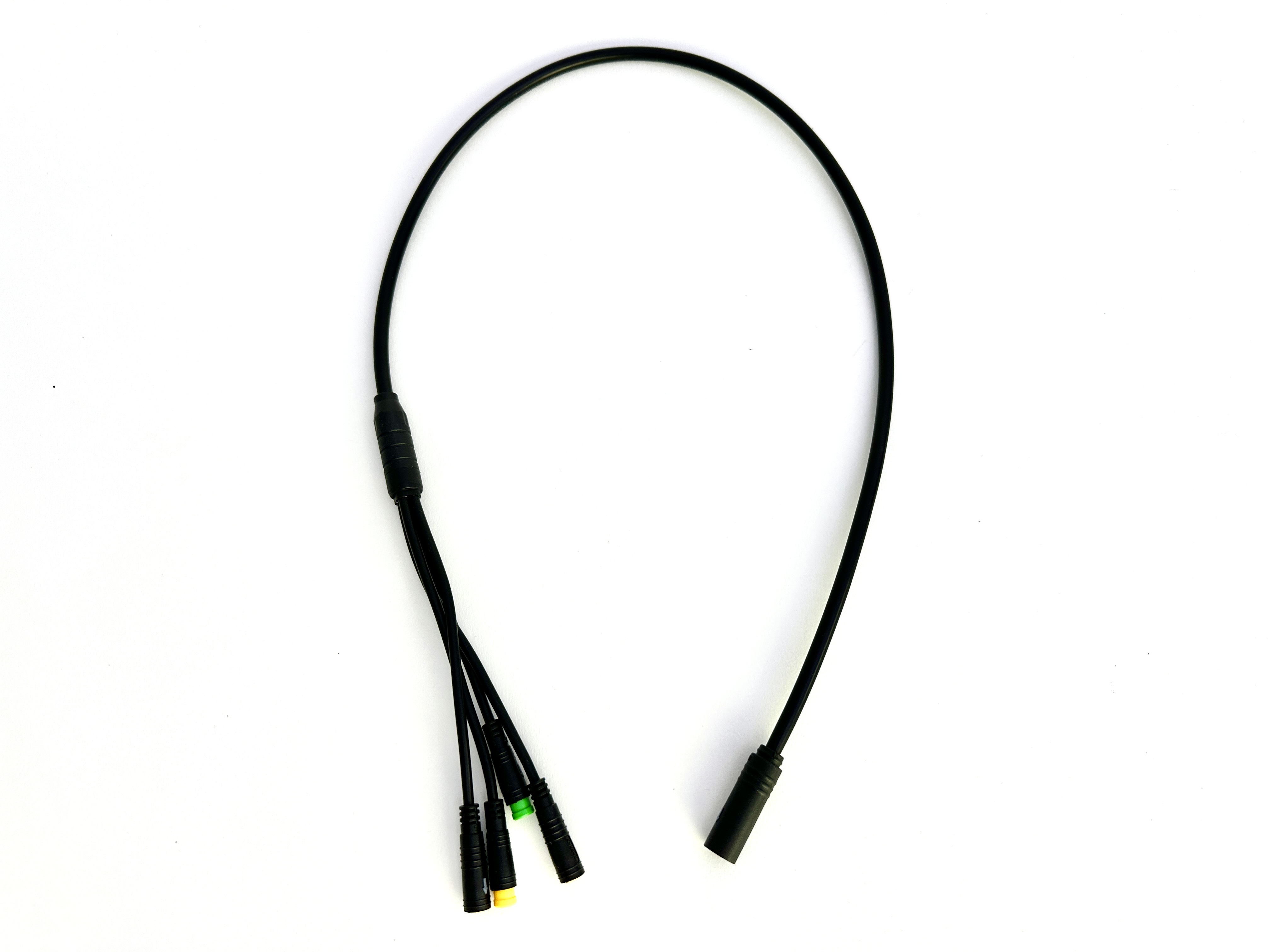

Bafang wiring harness 1T4

Technical data:

Transmission of power and data between the controller and the brake sensors, thumb throttle and display.
Compatible with Bafang hub motors
Waterproof plugs / connectors
Cable length: ~ 70 cm / 27,55 inches, incl. connector ~ 80 cm / 31,5 inches

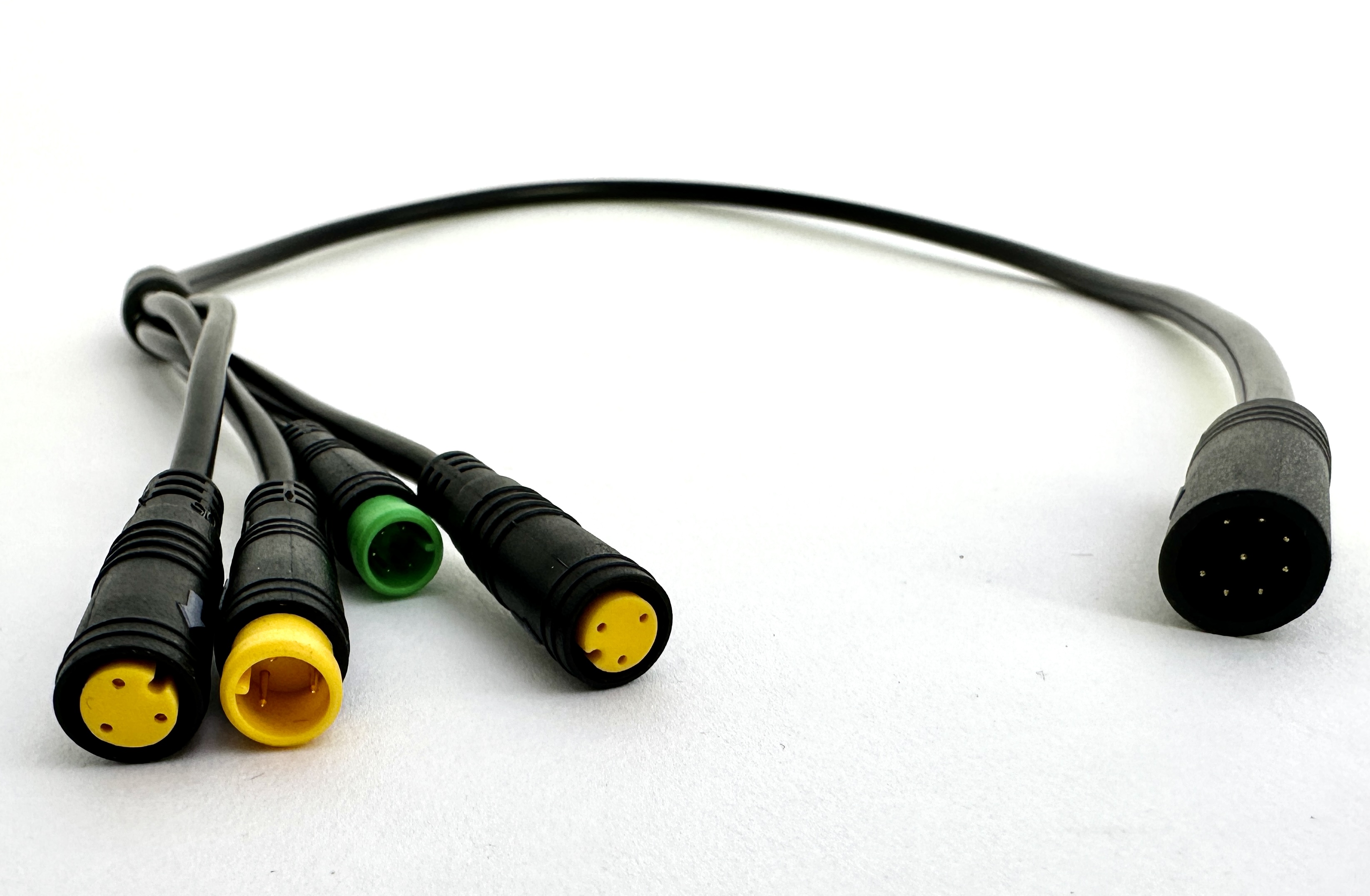

Connections:
- 1x male 3-PIN Julet connector yellow for throttle / thumb throttle.
- 1x male 5-PIN Jullet connector green for display
- 2x female 3-PIN Jullet connector yellow for shift / brake sensor
- 1x male 8-PIN Jullet connector black for controller

General information:

HIGO / Julet plugs are common on many e-bikes because they provide a firm and waterproof connection. There are different types, which differ in the number of pins and thus the area of use.

A HIGO / Julet connector is generally quite firm because it is waterproof. It can be disconnected by pulling, NOT twisting. If twisted, the pins could be damaged.

Please note the arrows on the outside - they help to align and fit the connectors. When the connections are properly plugged together, no coloured plastic should be visible.
