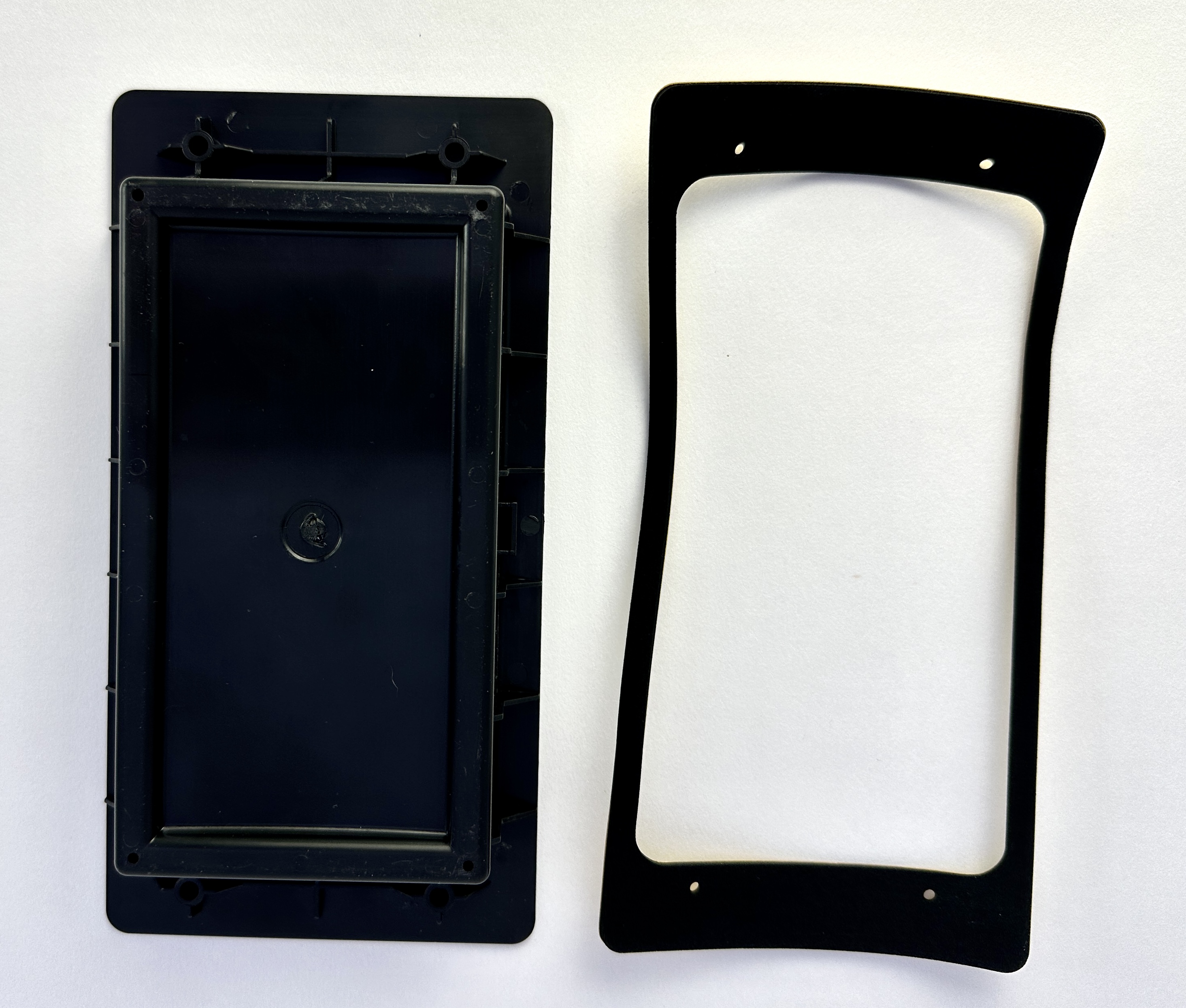

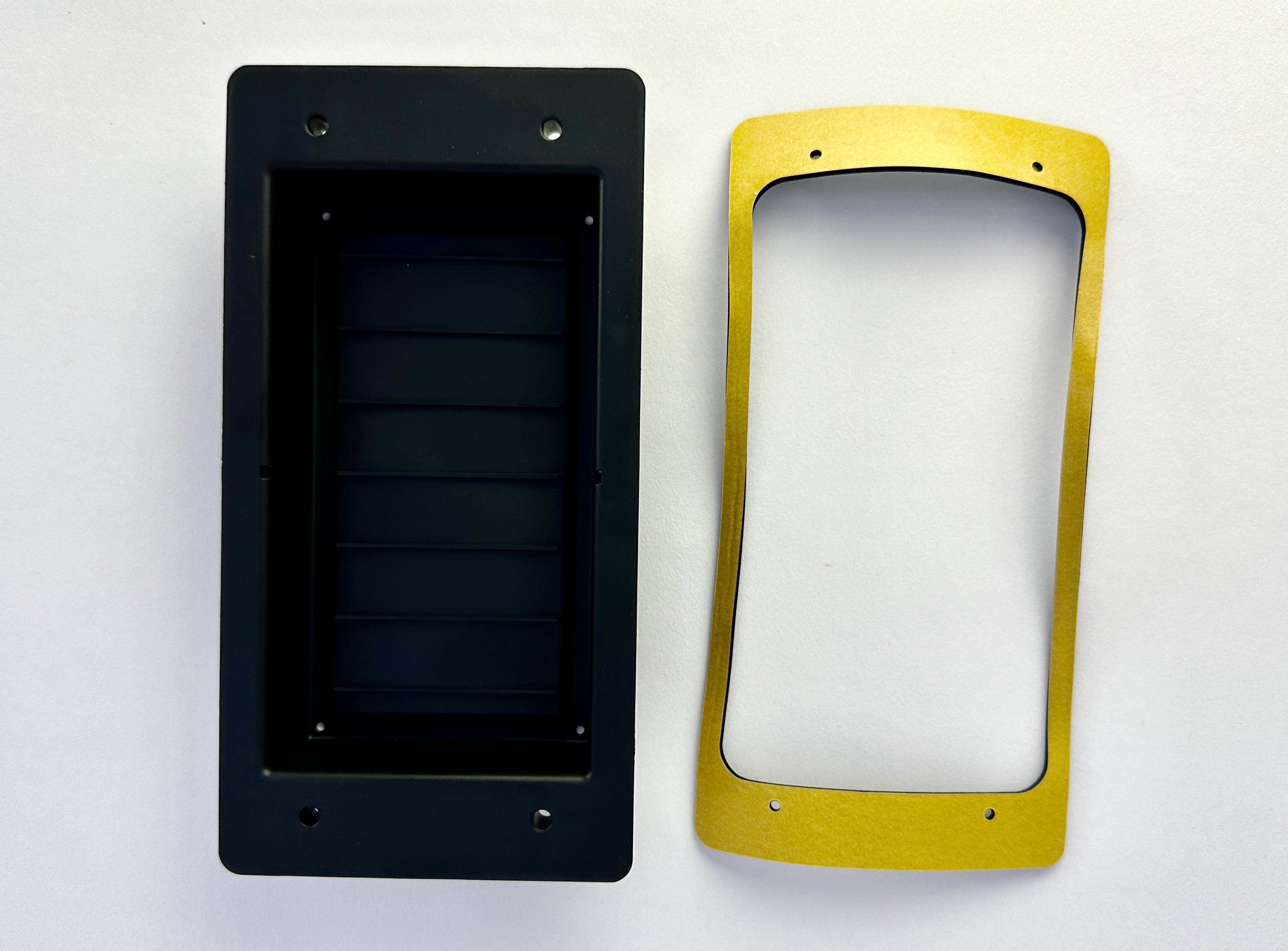

Controller box, electronics box with seal for e-bike

  SHIMANO 7-Speed MTB Cassette Sprocket CS-HG41-7   SHIMANO - 7-Speed - HYPERGLIDE - MTB Cassette Sprocket The HG41-7 offers SHIMANO's HYPERGLIDE shifting across its 7-speed range. It is compatible with both IG and HG chains. FEATURES HYPERGLIDE technology Gear combination: 11-28T PRODUCT SPECIFICATIONS MODEL NO CS-HG41-7 SERIES ACERA M3020 Series Type HG Rear speeds 7 Compatible chain IG, HG 8/7/6-speed Combination name (Group name) 11-28T (ac) Combination * Titanium gear|1 11-13-15-18-21-24-28T (ac) HG spline (MTB 7-speed) ✔ Titanium gear|QTY (pcs) 0 Aluminum gear|QTY (pcs) 0 Steel gear|QTY (pcs) 7   Urban Drivestyle Berlin had used these parts on their bikes

SHIMANO Right Shift Lever 7-speed SL-M315-7R SHIMANO - RAPIDFIRE PLUS - Right Shift Lever - Clamp Band - 7-speed For reliable mountain bike shifting, SHIMANO's SL-M315 RAPIDFIRE shift lever is suited to quick shifting, giving riders the ability to downshift three gears in one stroke.                 FEATURES Light shifting operation, wider compatibility, and suitable for internal cable routing Slim main lever body RAPIDFIRE PLUS Streamlined cockpit experience Gear display positioned below the handlebar Numbered gear display indicates gear position at a glance OPTICAL GEAR DISPLAY       FEATURES Light shifting operation, wider compatibility, and suitable for internal cable routing Slim main lever body RAPIDFIRE PLUS Streamlined cockpit experience Gear display positioned below the handlebar Numbered gear display indicates gear position at a glance OPTICAL GEAR DISPLAY

UD black crankset LASCO 155 mm, square, 52 teeth black steel chainring with 52 teethblack aluminum crankspedal arm length 155 mm for pedals with 9/16 threadblack aluminium chain guardThe crankset is suitable for a square axle!With 2 pieces of axle - end bolts

Pre-assembled Bafang wiring harness 1T4 with 2PIN extension cable in cable protection hose. Technical data of Bafang wiring harness 1T4: Transmission of power and data between the controller and the brake sensors, thumb throttle and display. Compatible with Bafang hub motors Waterproof plugs / connectors Cable length: ~ 70 cm / 27,55 inches, incl. connector ~ 80 cm / 31,5 inches Connections: 1x male 3-PIN Julet connector yellow for throttle / thumb throttle. 1x male 5-PIN Jullet connector green for display 2x female 3-PIN Jullet connector yellow for shift / brake sensor 1x male 8-PIN Jullet connector black for controller Technical data of Extension cable for Ebike: Connector: 2-pin HIGO / Julet (1x male - 1x female) Water resistance: IP65 Cable length: 100 cm / 39,37 inches Plug connection: red Outer material: ABS plastic Technical data cable protection hose: Keeps cables tidy and protected! Diameter: ~ 20 mm Length: ~ 850 mm Fabric hose with practical Velcro fastener over the entire length General information: HIGO / Julet plugs are common on many e-bikes because they provide a firm and waterproof connection. There are different types, which differ in the number of pins and thus the area of use. A HIGO / Julet connector is generally quite firm because it is waterproof. It can be disconnected by pulling, NOT twisting. If twisted, the pins could be damaged. Please note the arrows on the outside - they help to align and fit the connectors. When the connections are properly plugged together, no coloured plastic should be visible.

UD special headset Ahead 1 1/8 inch black durable and high quality 1 1/8" headset Ahead for 1 1/8 inch shaft diameter color: black  sealed roller bearings Outer diameter bearing shell: 44 mm Original headset for the UDX from Urban Drivestyle in Berlin Not suitable for forks with threaded shaft!

204 Kenda Krusade Extra Wide Tire 20 x 4  Diameter: 406 98 - 406 Ideal for the 20 inch fat e-bikes! This tire fits on all 20" Classic Cycle rims wider than 67 mm (~2,64 inches) ! But please check frame/fork for clearance! On a 82 mm (~3,22 inches) rim the tire is about 95 mm (~3,74 inches) wide and it will 79 mm (~3,11 inches) protrude over the rim. Diameter over all on this rim: 580 mm (22,83 inches) 60 TPI 5-30 PSI  /   0,4 -2.1 bar  /  40 - 210 KPA Weight: ~ 990 g (~ 2,18258 pounds) If you assemble the tire on wide rims not to put more pressure than 30 PSI. It could blast. This offer includes 1 piece only
