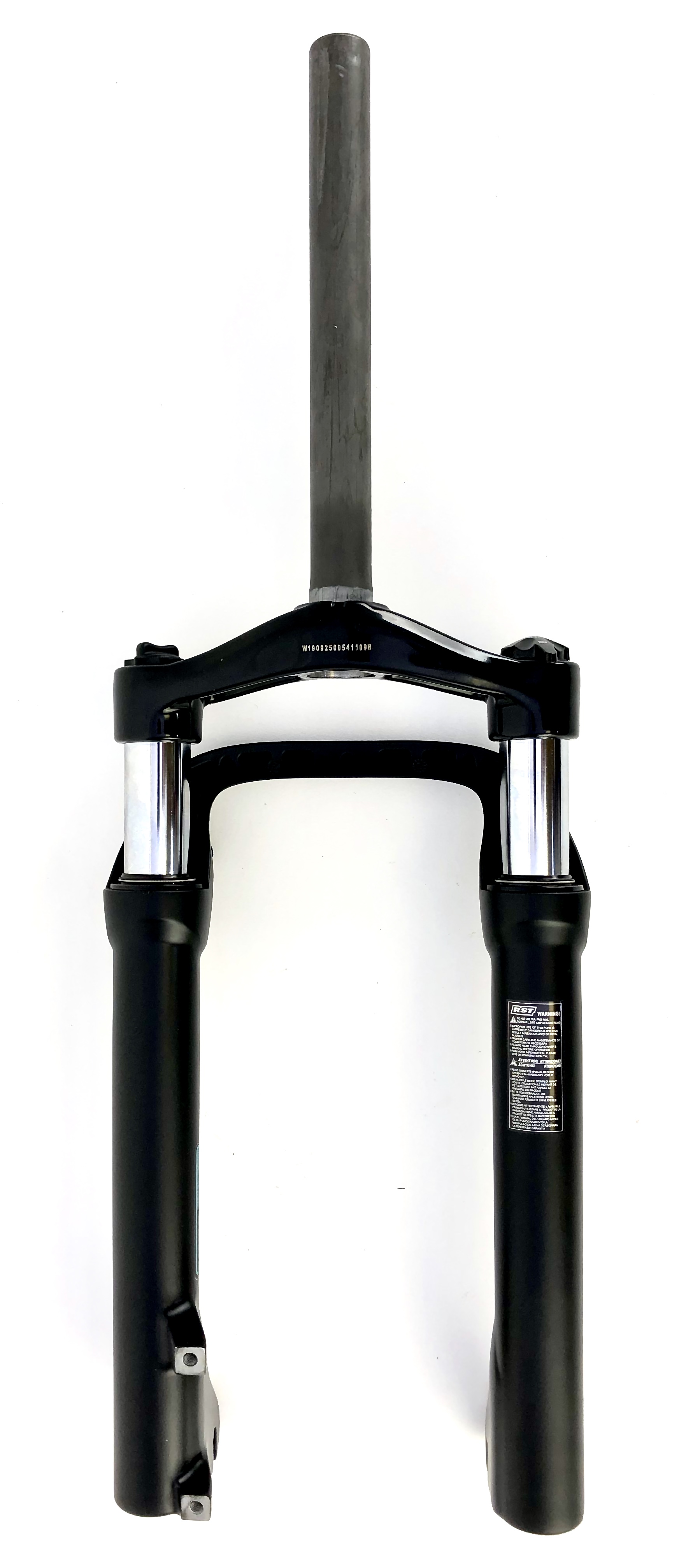

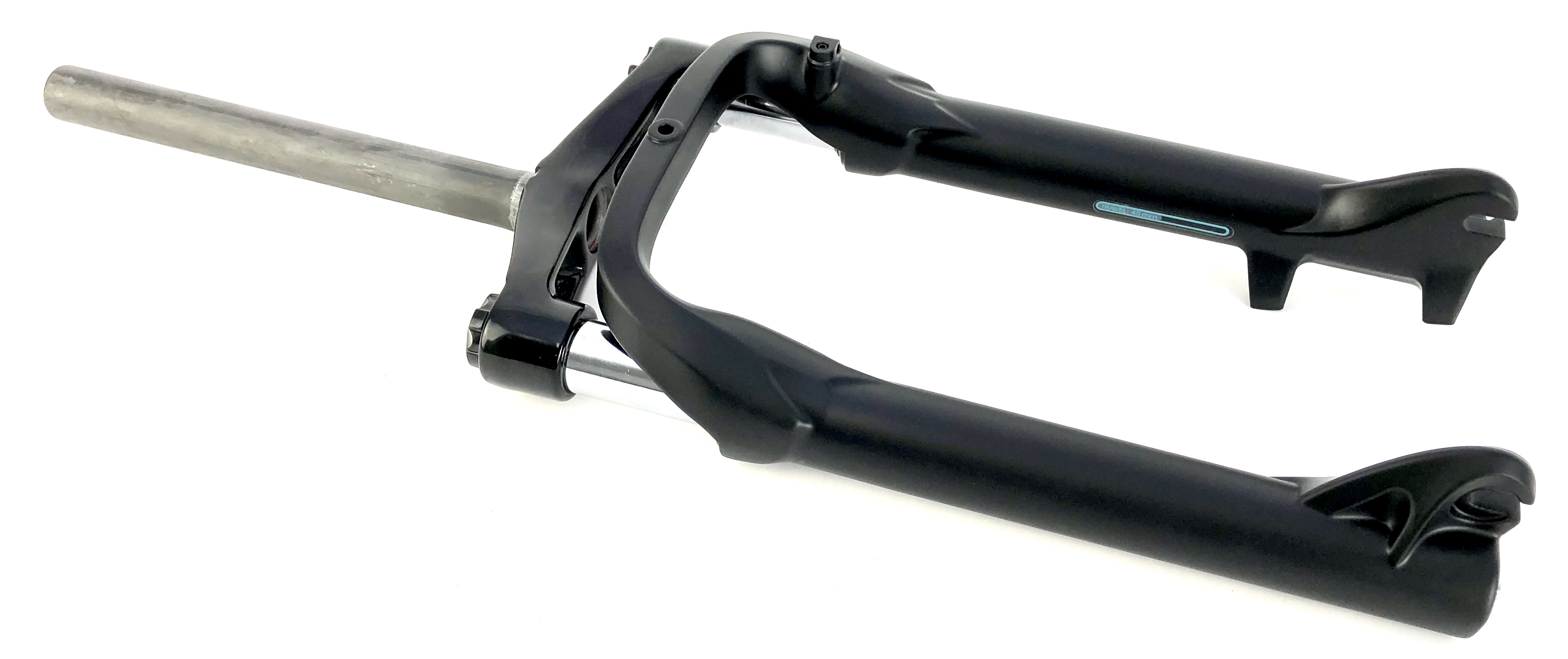

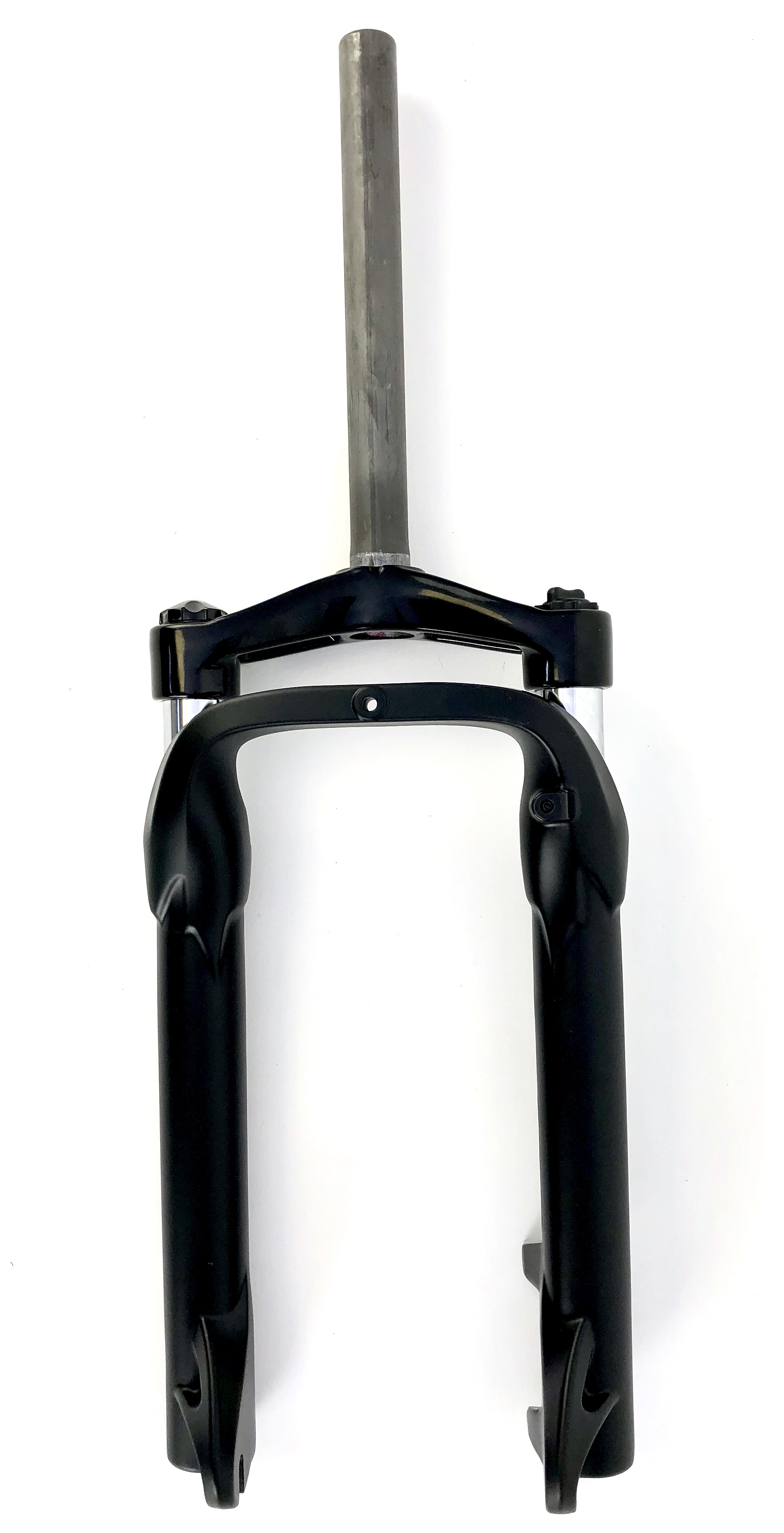

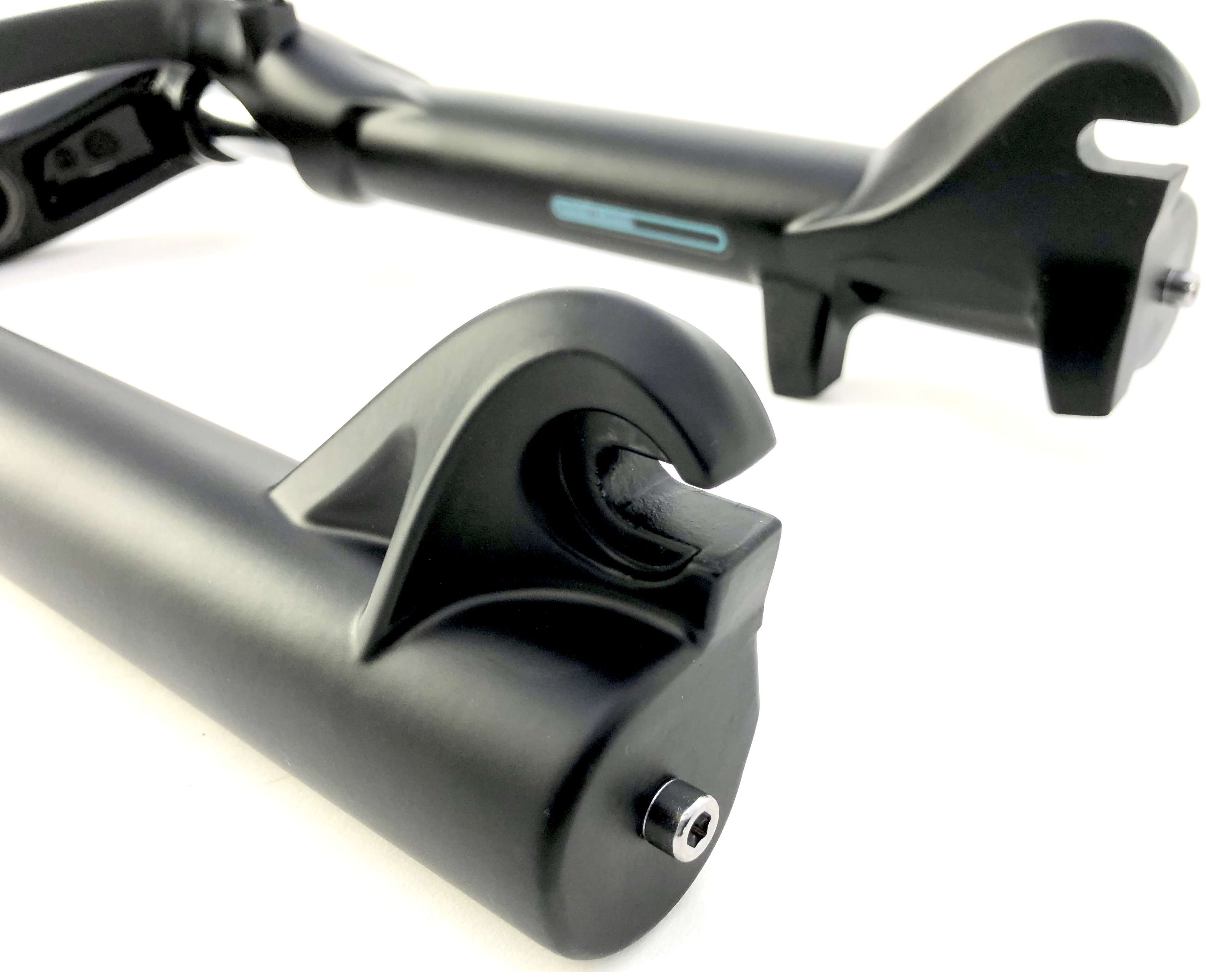

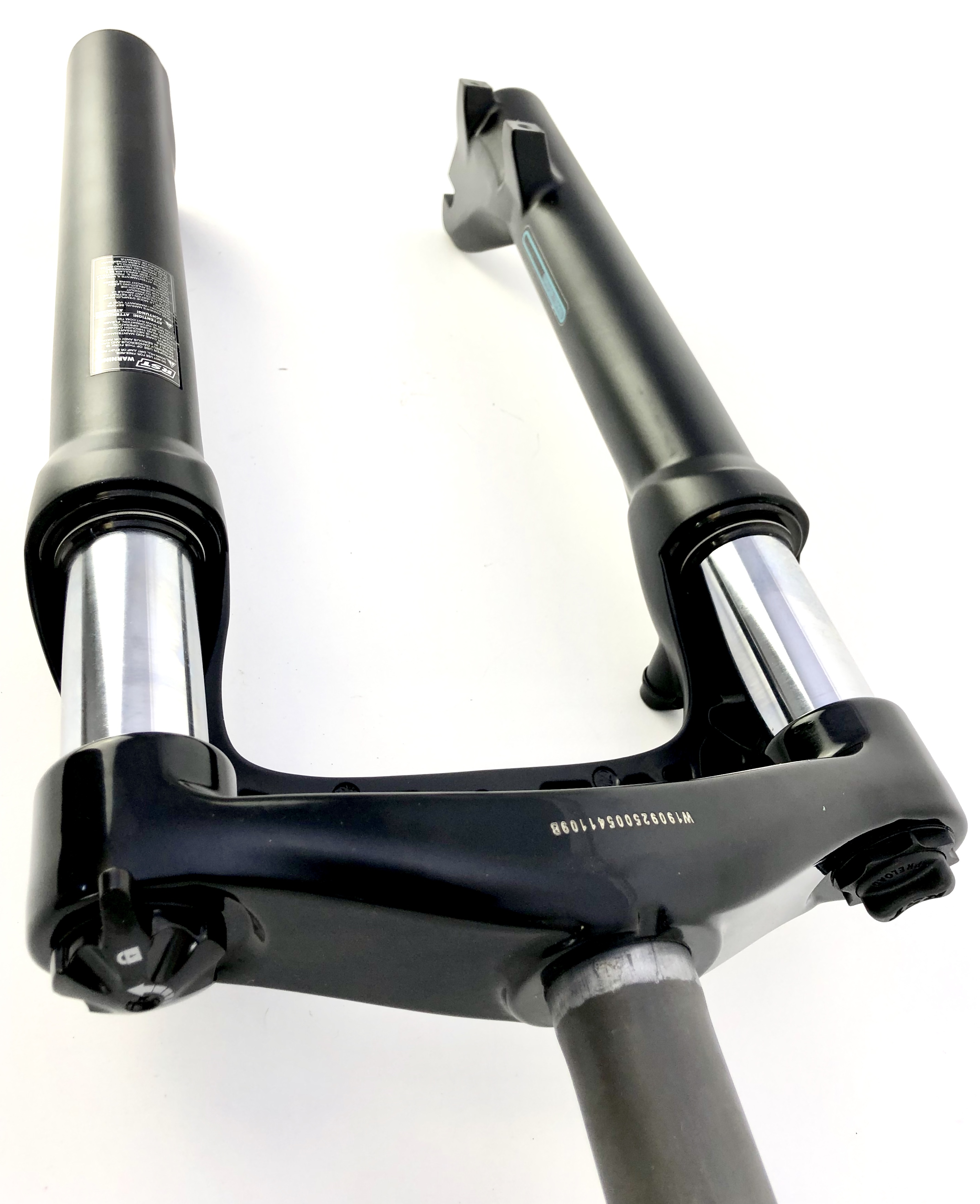

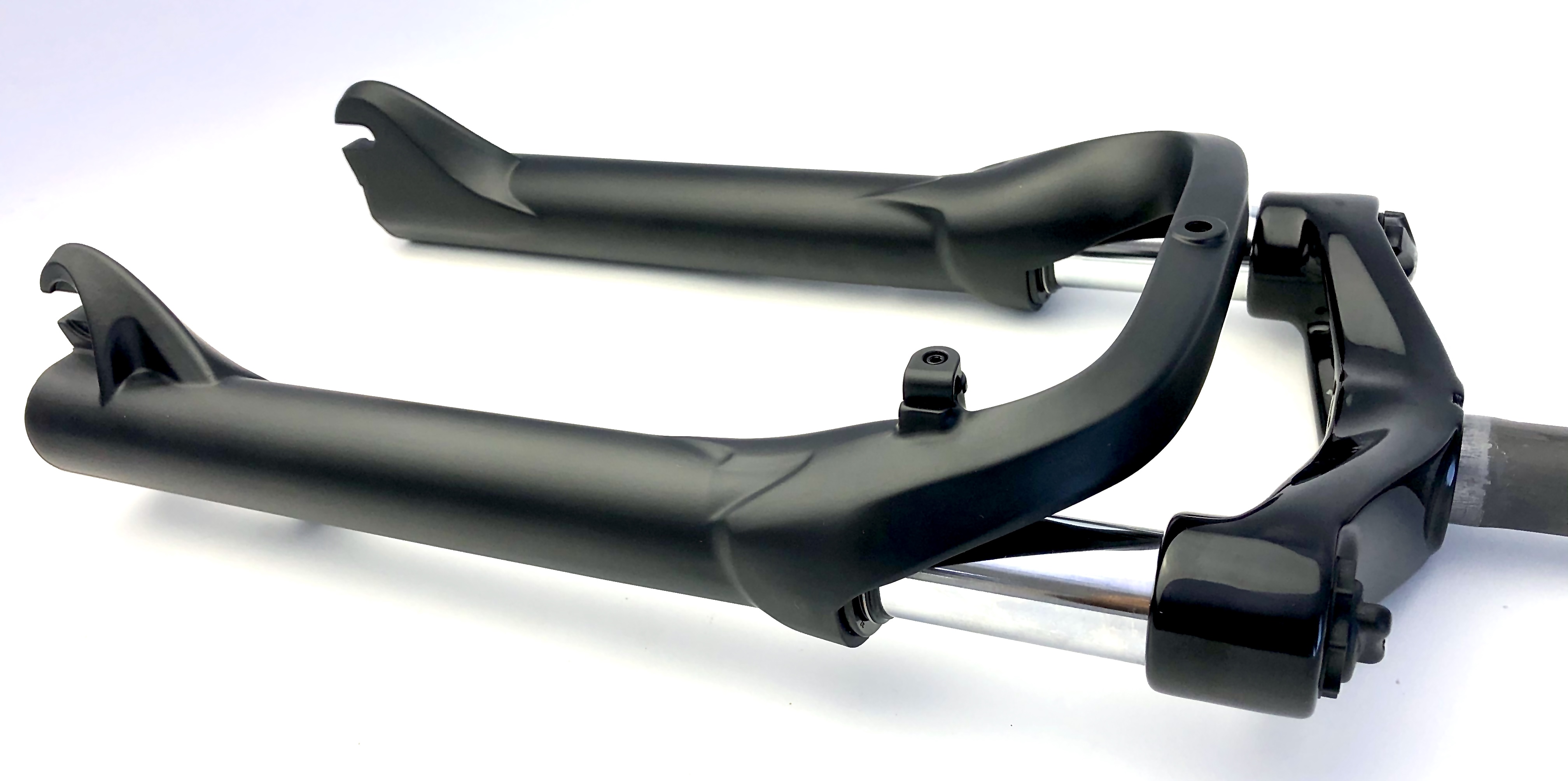

204 Suspension Fork RST Guide 20 Zoll TNL Fatbike 1 1/8 Ahead for Disc Brake

€179.95*

Product number: 204RST20
Product information "204 Suspension Fork RST Guide 20 Zoll TNL Fatbike 1 1/8 Ahead for Disc Brake"

204 Suspension Fork RST Guide 20 Zoll TNL Fatbike 1 1/8 Ahead for Disk Brake

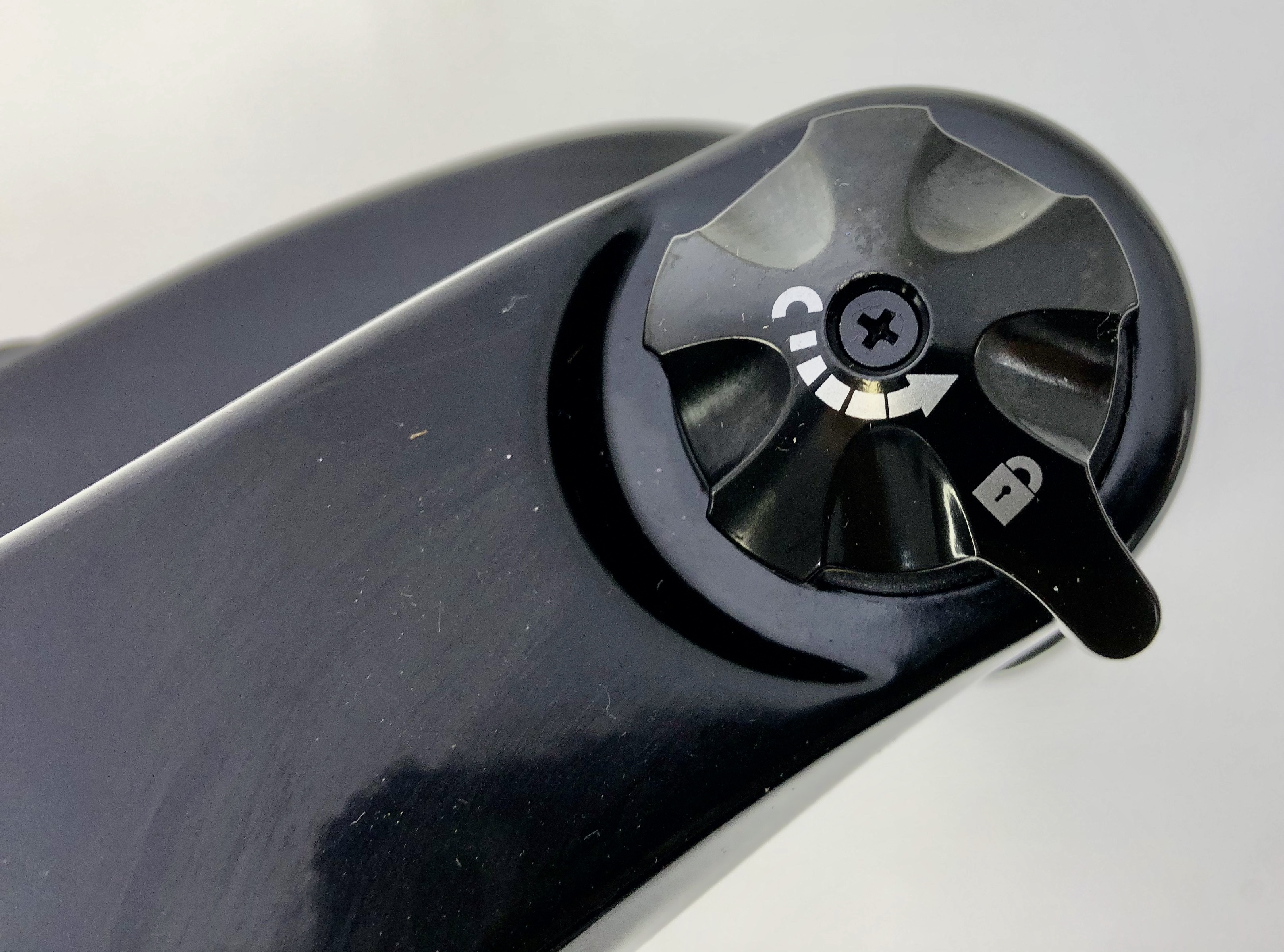

Turn & Lock-out    A hydraulic cartridge damping system with compression adjustment to lockout function.

The RST Guide TNL is the Suspension Fork for 20" Fat Bikes / Urban E-Bikes

for 20 inch wide wheels with 135 mm hubs.

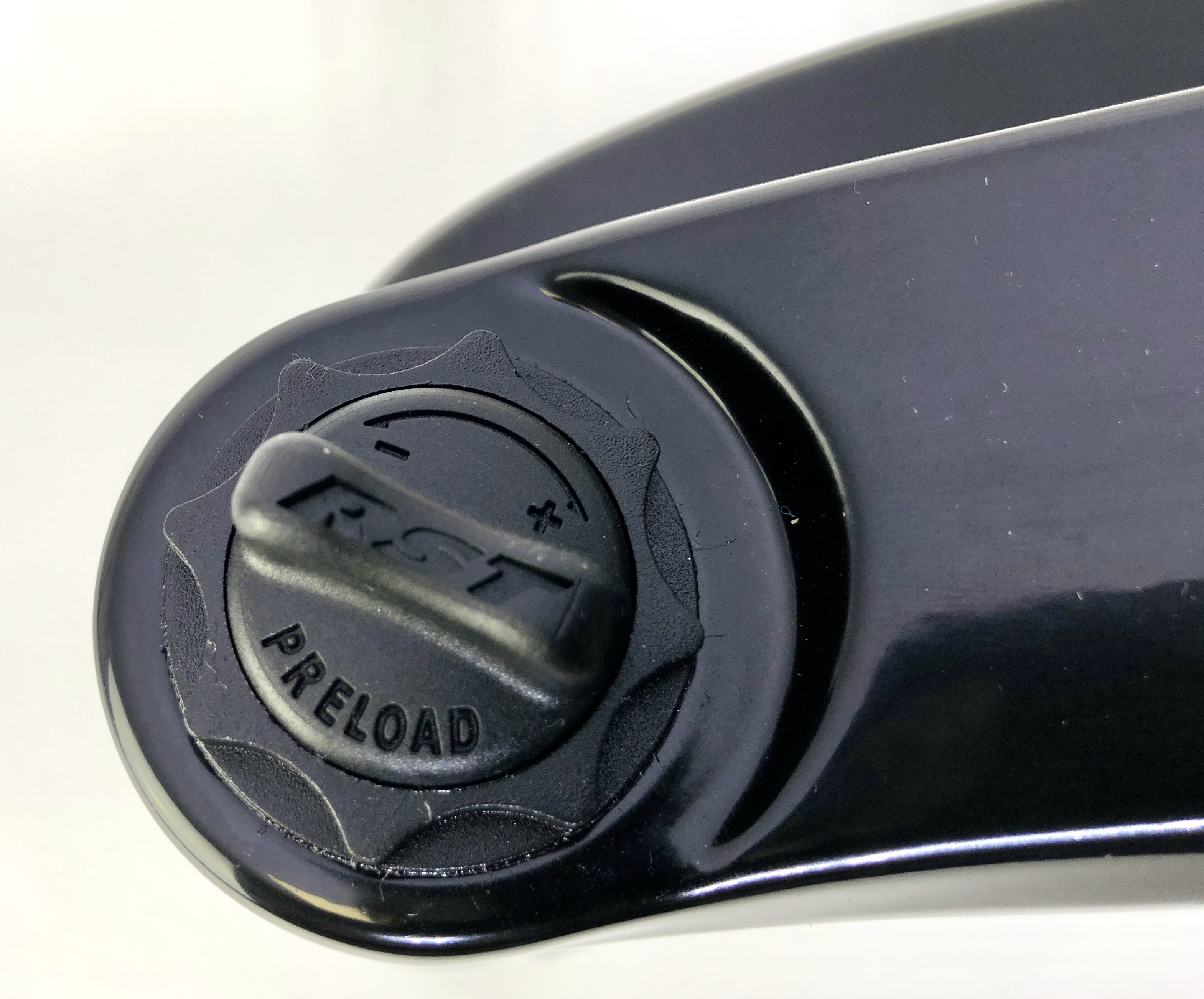

Lockout and Preload adjustable

1 1/8" steerer Ahead

Weight: ~. 3,37 kgs (with 200 mm long steerer)

For Disc brake Post Mount 6

comes with manual

Steerer length

260 mm

Steerer diameter / stem width:

28,6 mm

Steerer diameter at cone seat:

30 mm

Installation hight:

420 mm

For Hub width:

135 mm

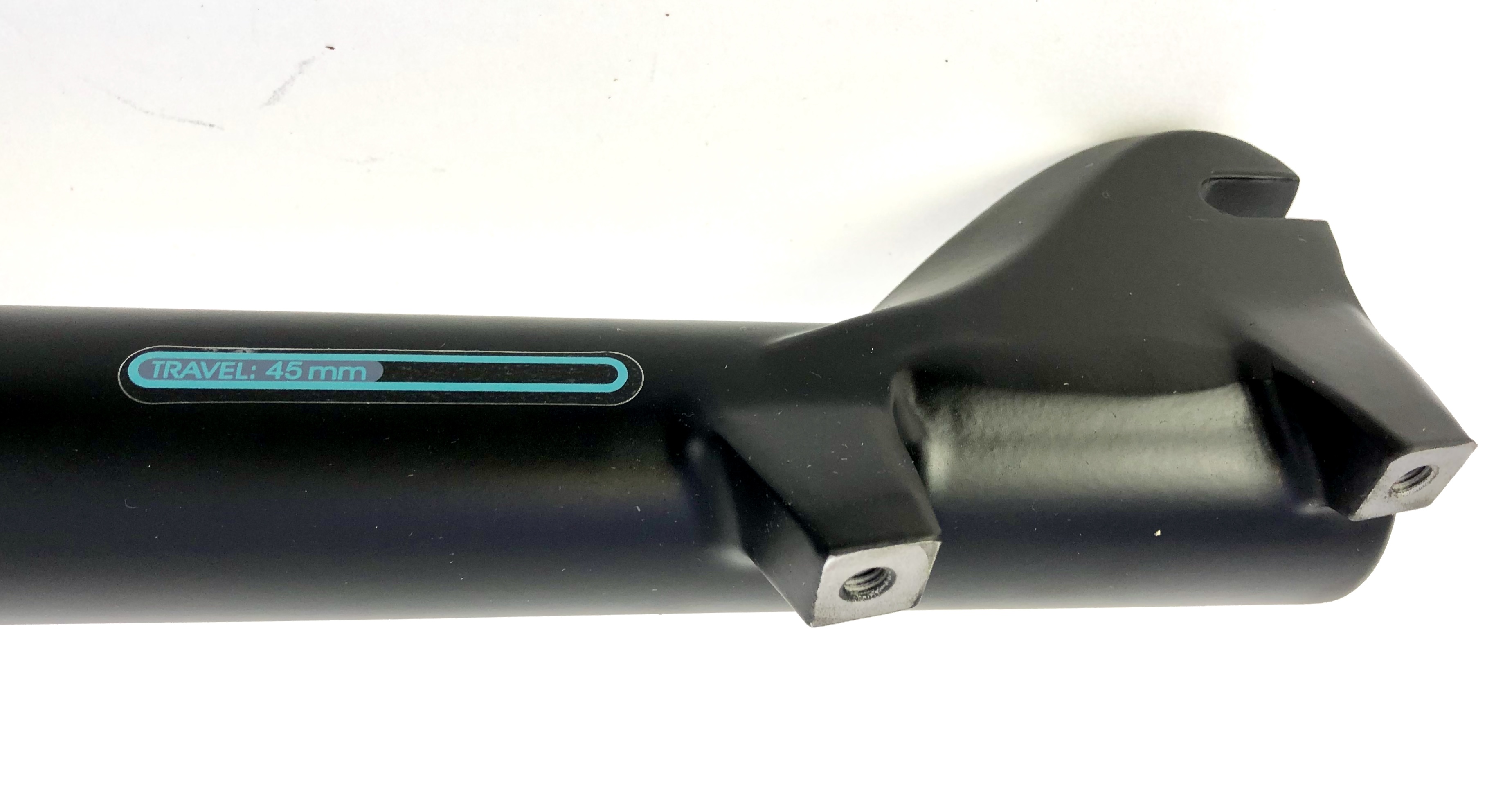

Travel:

45 mm

Ssytem:

Coil in left stanchion

Damping:

Oil in right stanchion





GUIDE 20 MODEL TNL

STEERER: 28.6mm Steel

CROWN PITCH: 180 mm

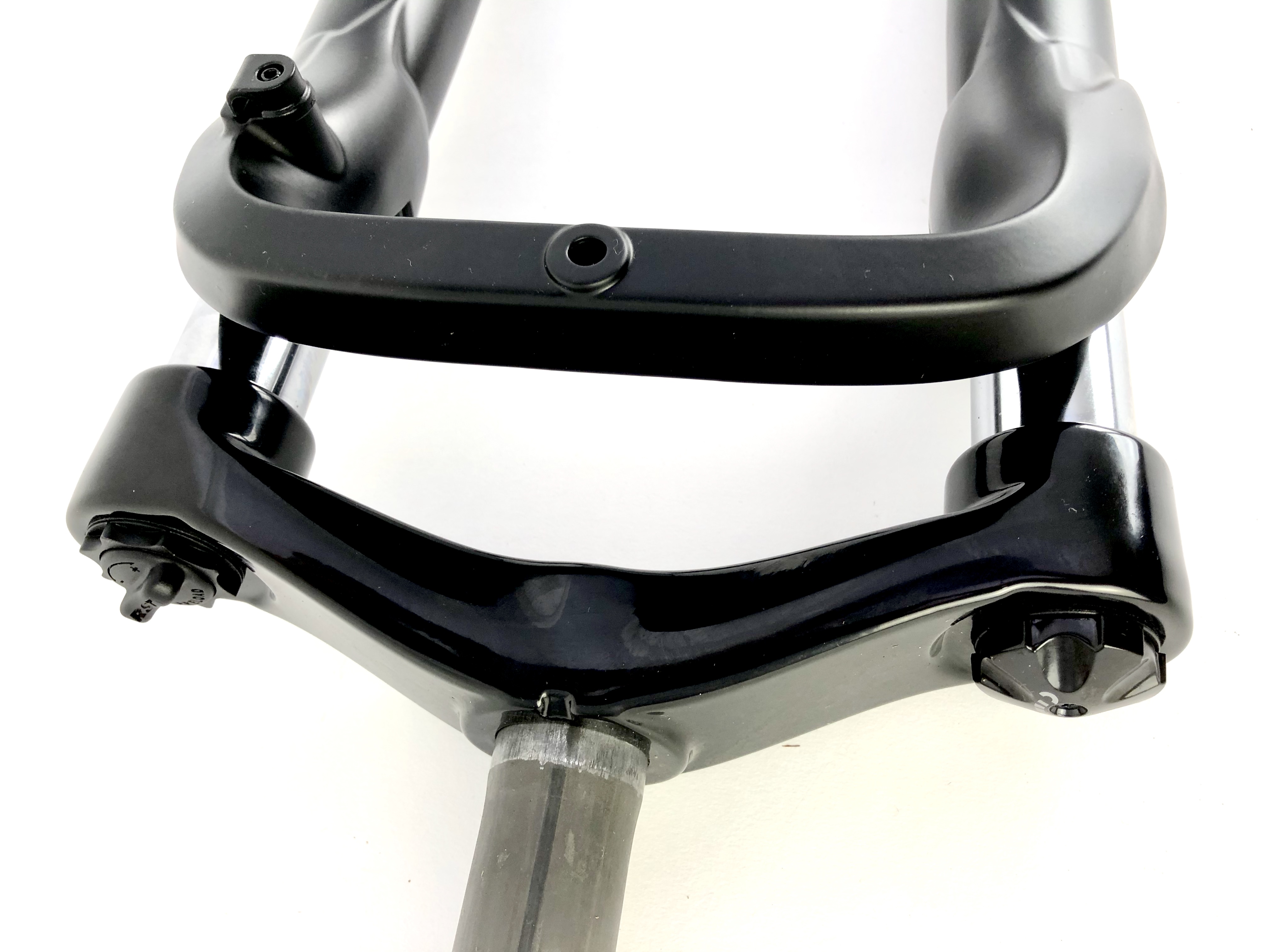

CROWN: Aluminum Black Coating

STANCHION: 32mm Steel CP Finish

CASTING: Aluminum 9mm Open Dropout

ADJUSTMENT: L, P

FEATURES: Hydraulic Lock-Out

SYSTEM: Oil (Right), Coil (Left)

Coil TRAVEL (mm) 20": 45 mm

BRAKE TYPE: Disc Only (160mm without adapter)

WEIGHT (kgs) (w/ 200mm steerer) 3.37
