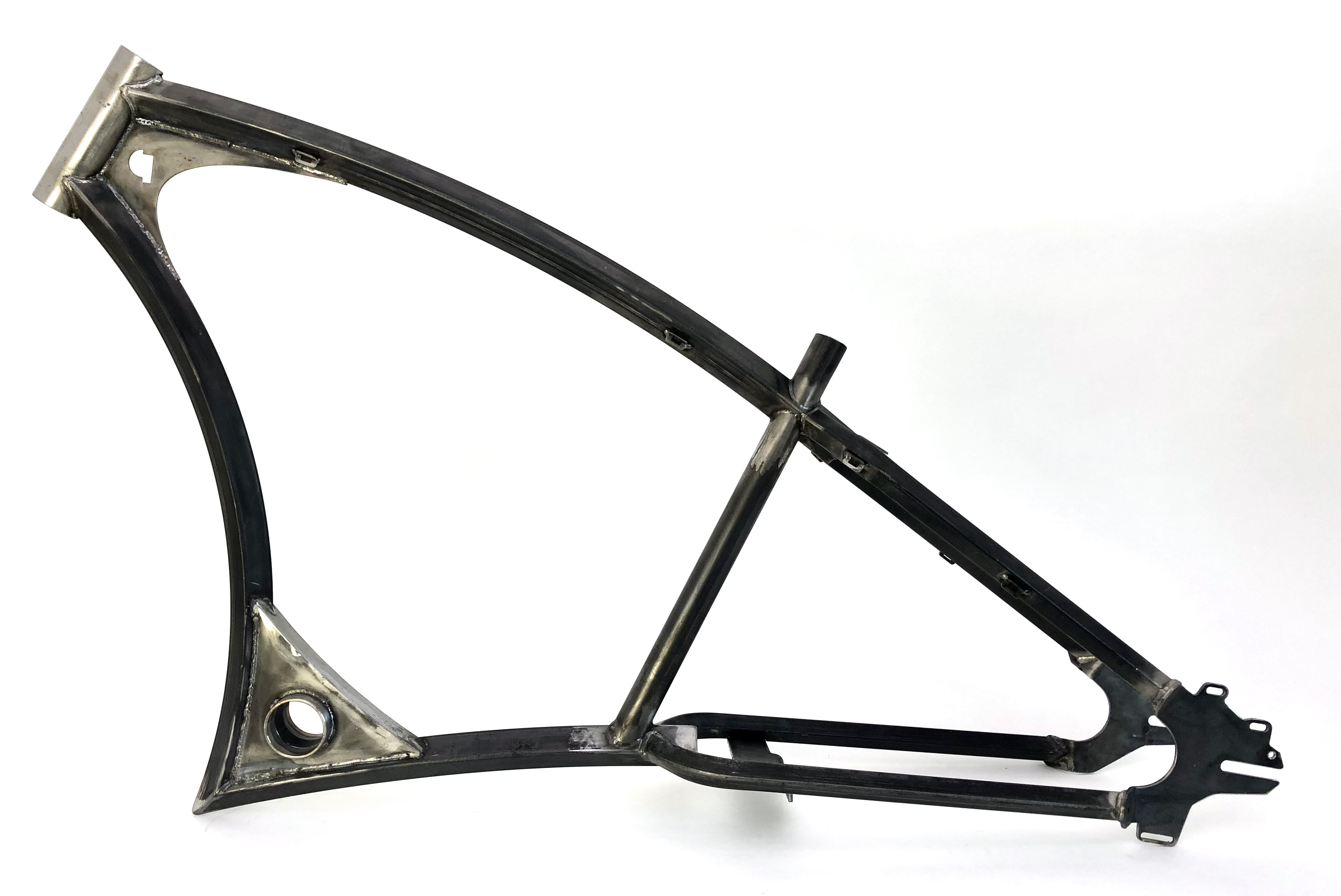

Custom Frame Parkroad, raw

Classic Cycle

€349.95*

Prices incl. VAT plus shipping costs

Product number: F301

Community Bilder

Product information "Custom Frame Parkroad, raw"

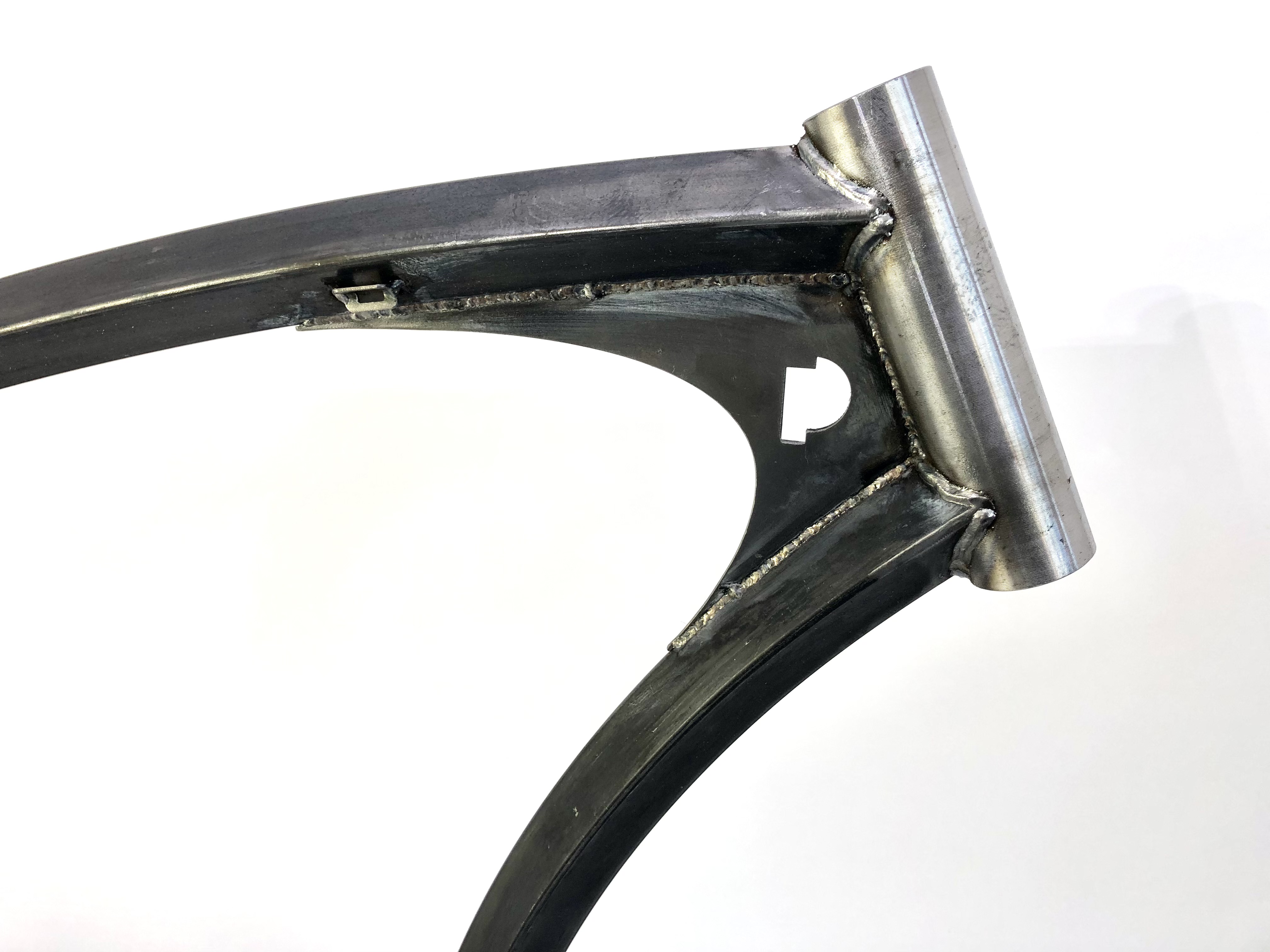

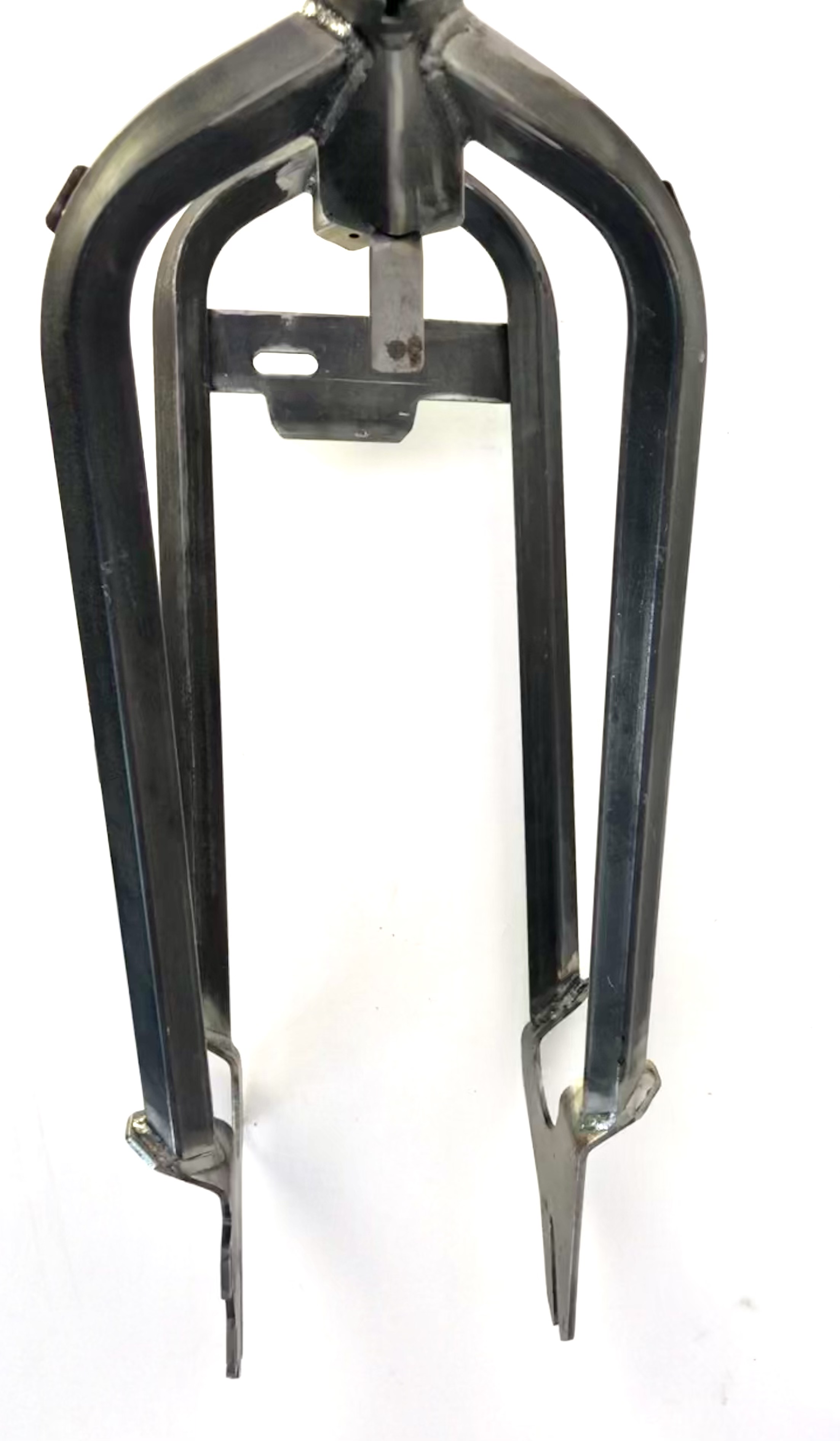

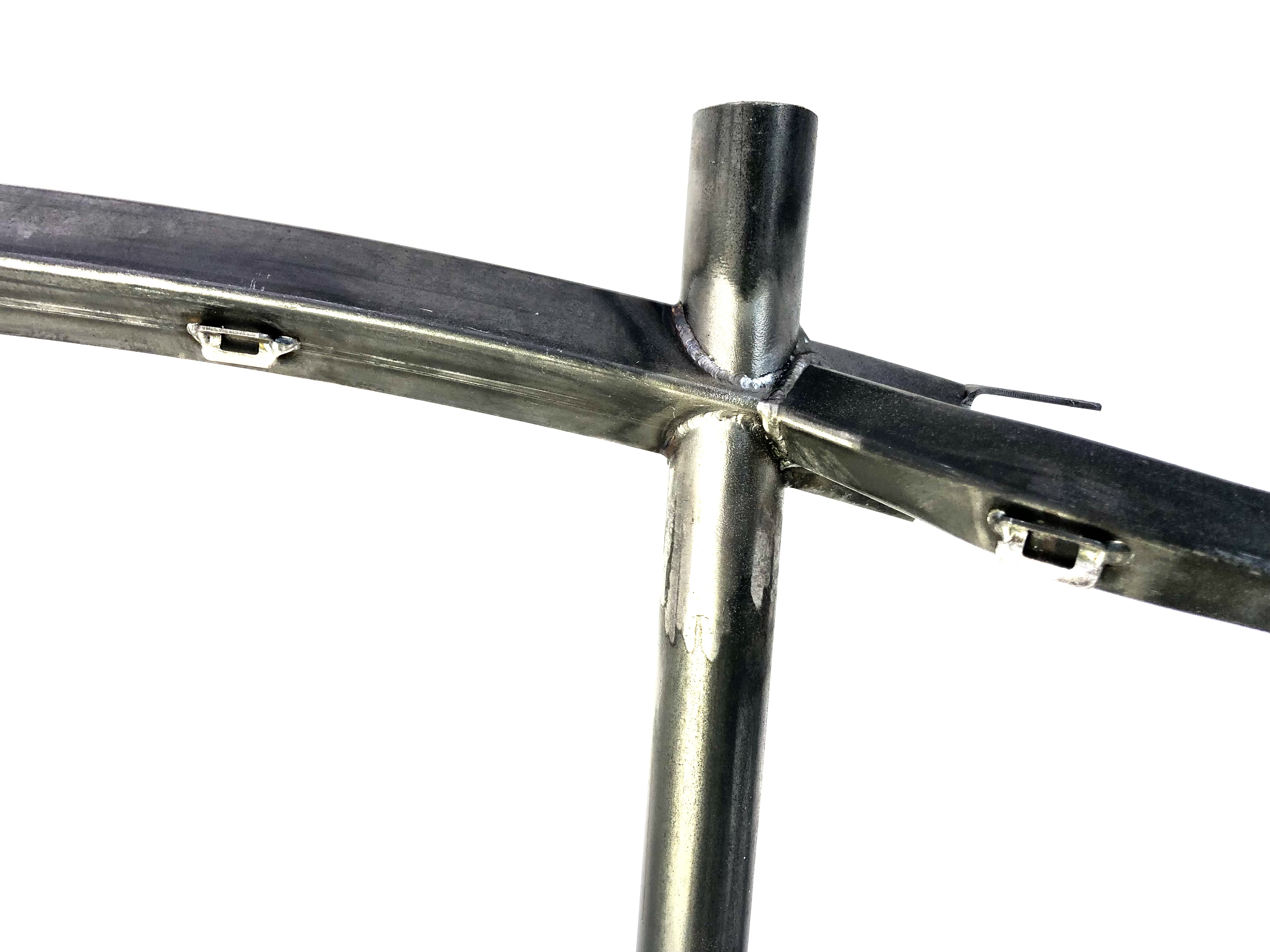

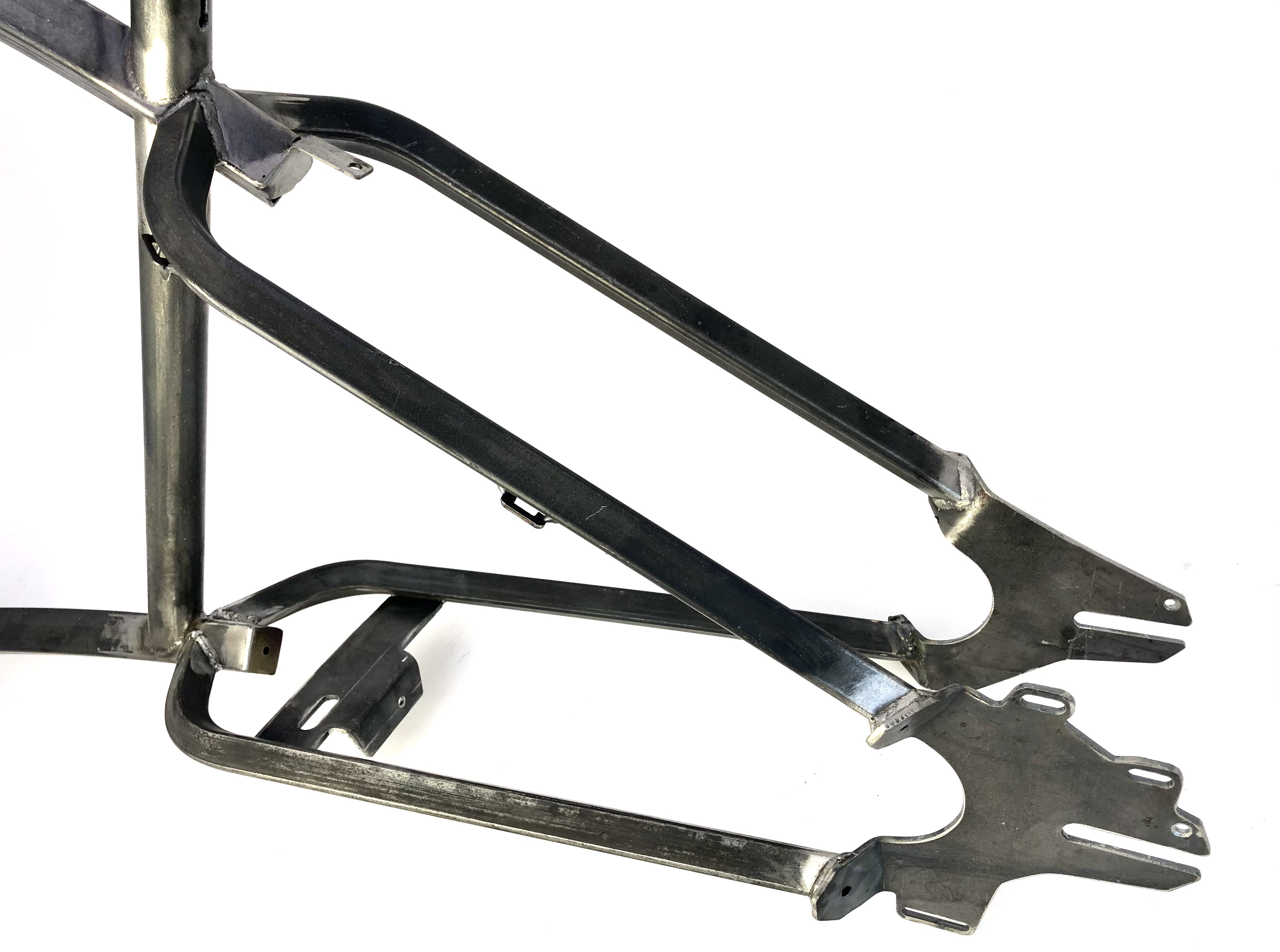

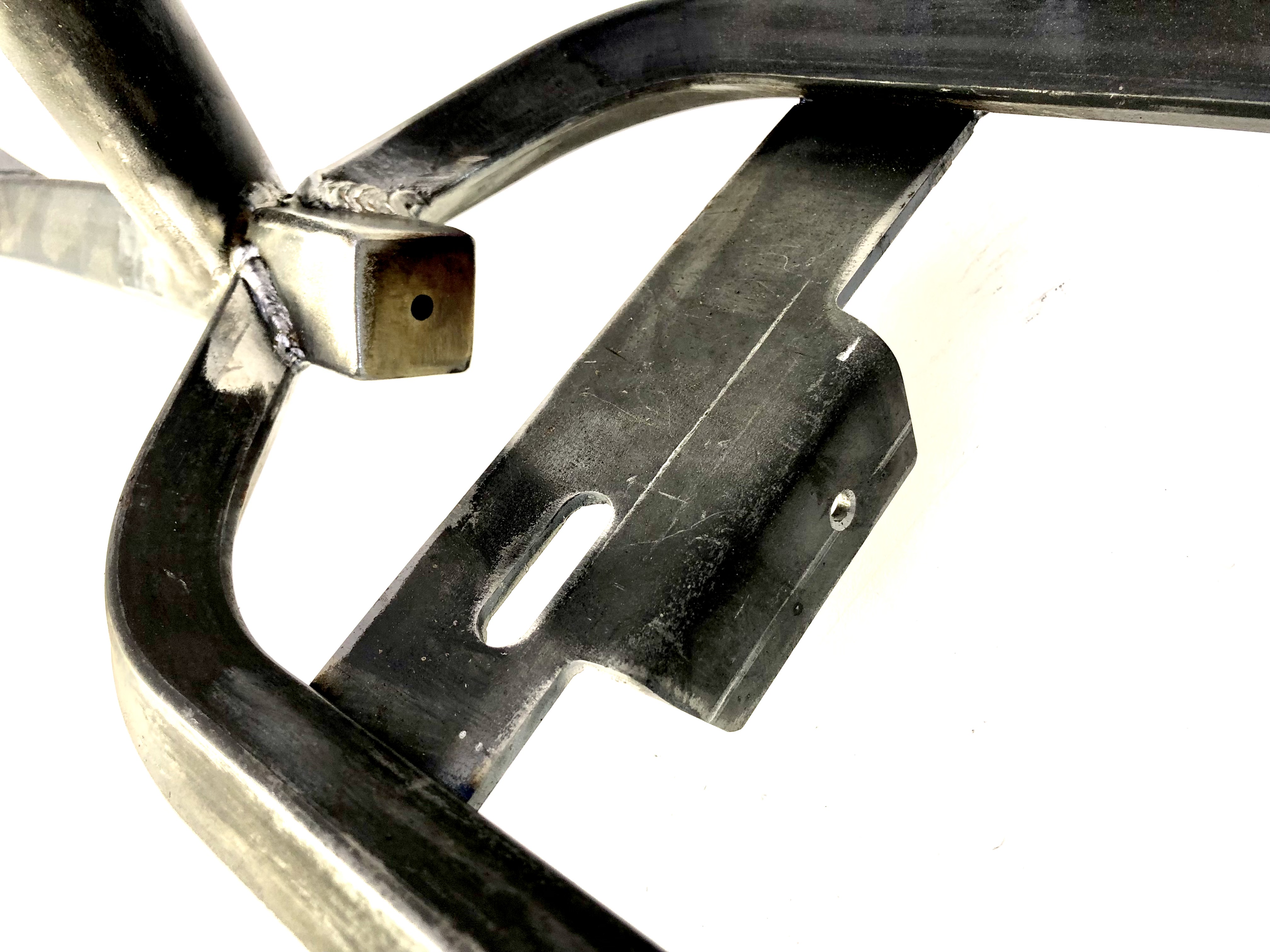

Custom Frame Parkroad, raw

Made in Europe!

Colour: uncoloured / raw
Steel
possible rim and tire sizes:
- 28" rims up to 82 mm width / 3,23 inches, maximum tire size 28 x 3.0
- 26" rims up to 102 mm width / 4,02 inches, maximum tire size 26 x 4.8
- 24" rims up to 102 mm width / 4,02 inches, maximum tire size 24 x 4.8

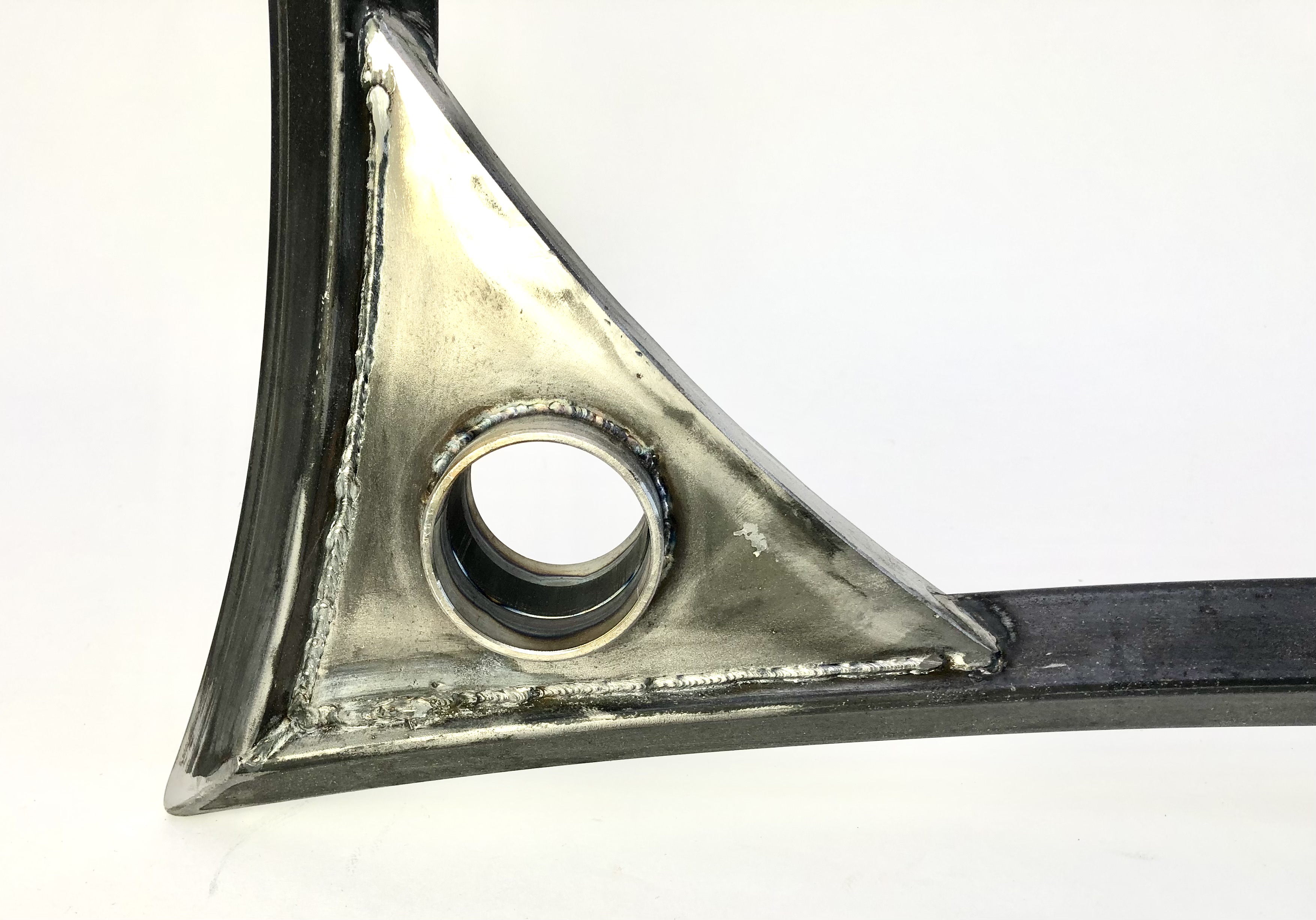

bottom bracket size: BMX (US) one piece crank
head tube: 1 1/8"
For Seat posts of 28,6 mm / 1,13 inches
disc brake mounting possible:yes!
coaster brake mounting possible: yes!
bike rider heights: from 1,55 m to 1,85 m / 61 - 73 inches
head tube length: 155 mm / 6,102 inches
width of chain stays: ~135 mm / 5,315 inches
dimensions:
- seat -> head tube: ~675 mm / 26,57 inches
- seat -> bottom bracket: ~615 mm / 24,21 inches
- seat tube: ~420 mm straight messured / 16,54 inches
weight: about 7,4 kg / 16,31 lbs

0 of 0 reviews

Leave a review!

Share your experiences with other customers.

Login

Your email address

Your password

No reviews found. Share your insights with others.

Accessory Items

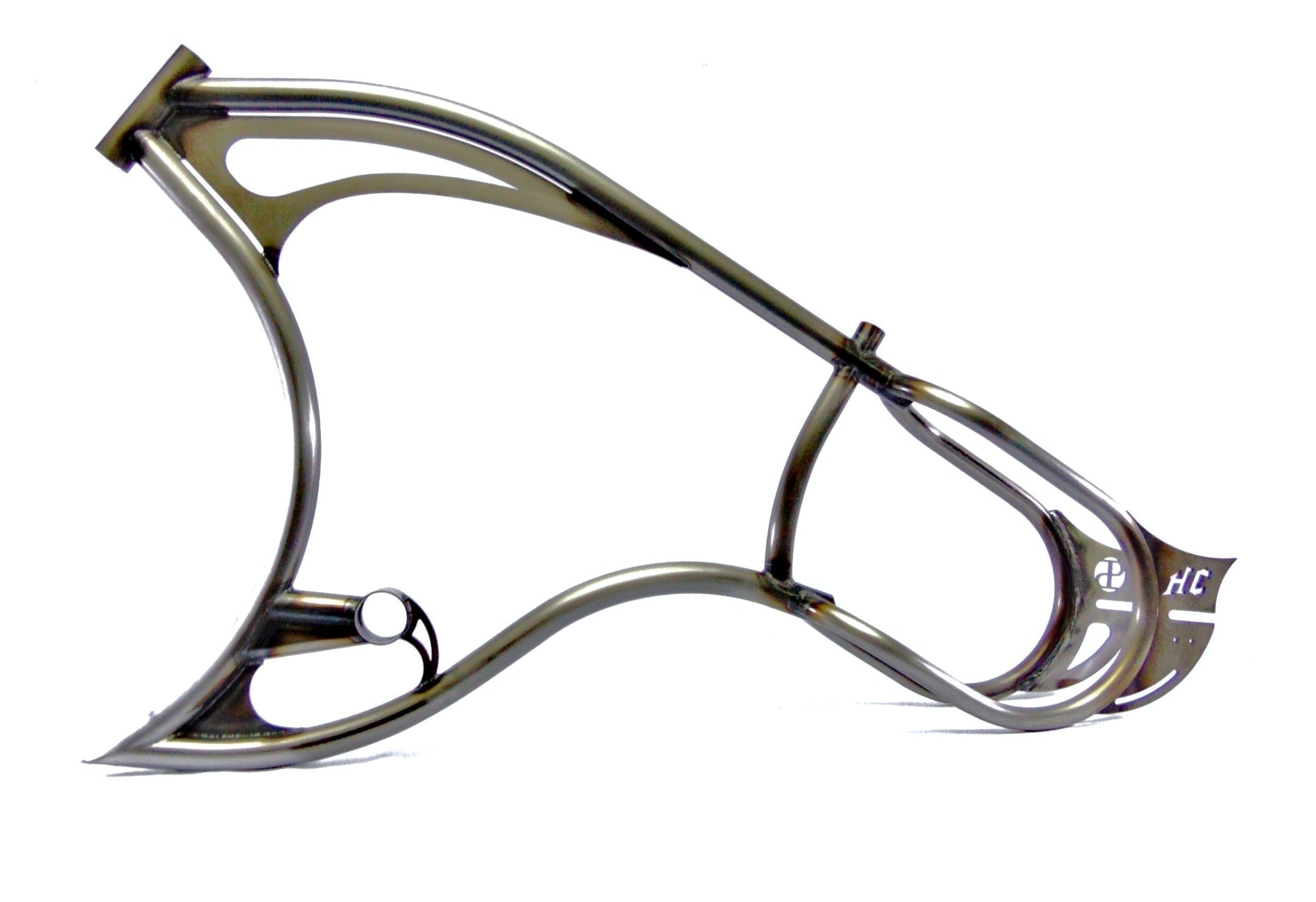

TSP Custom Frame Wave HC 130mm + Demon Fork HC FTSPHC13
