Suspension Fork Spring Beast Black

Classic Cycle

€329.95*

% €379.95* (13.16% saved)

Prices incl. VAT plus shipping costs

Product number: F305

Product information "Suspension Fork Spring Beast Black"

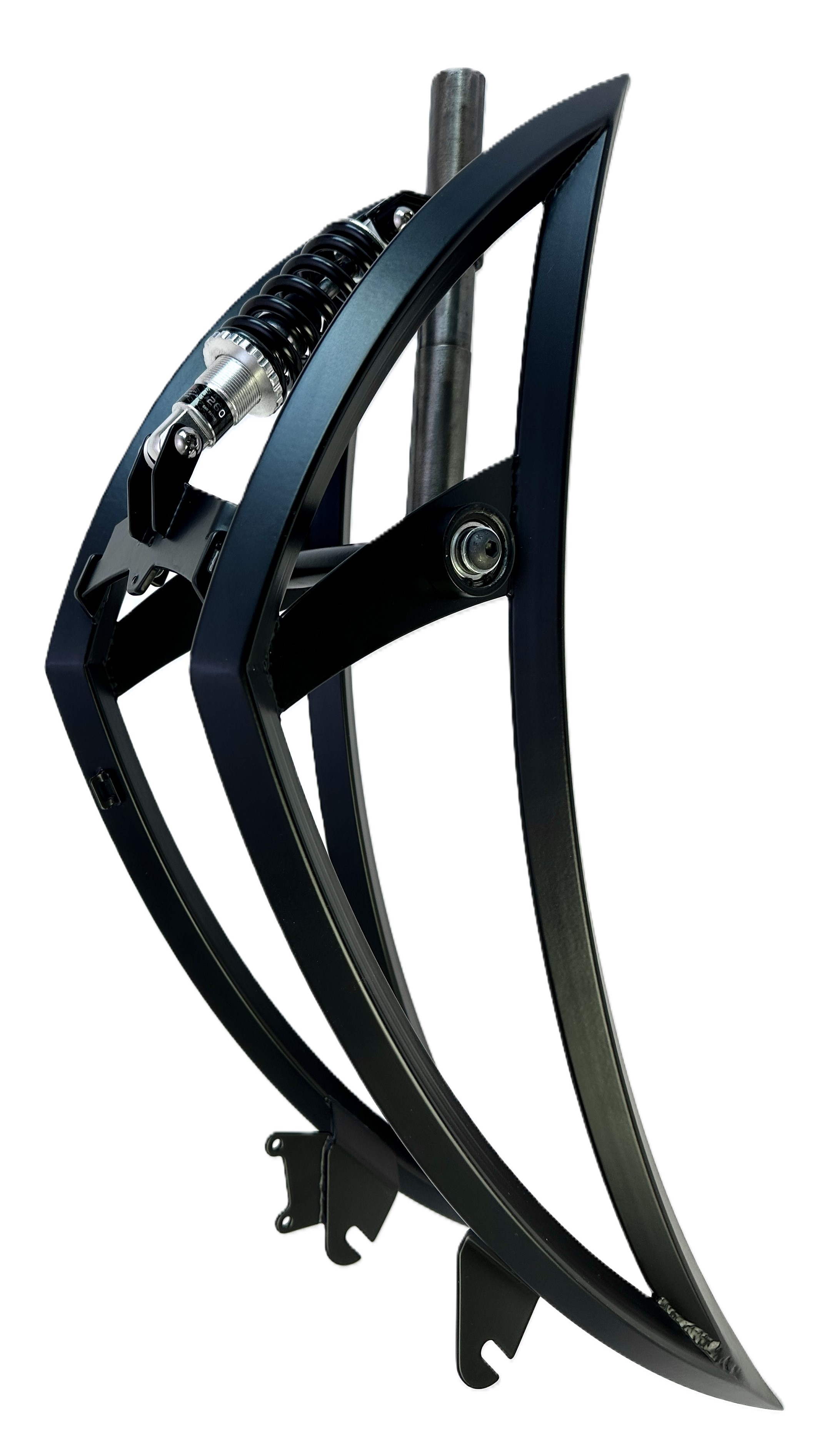

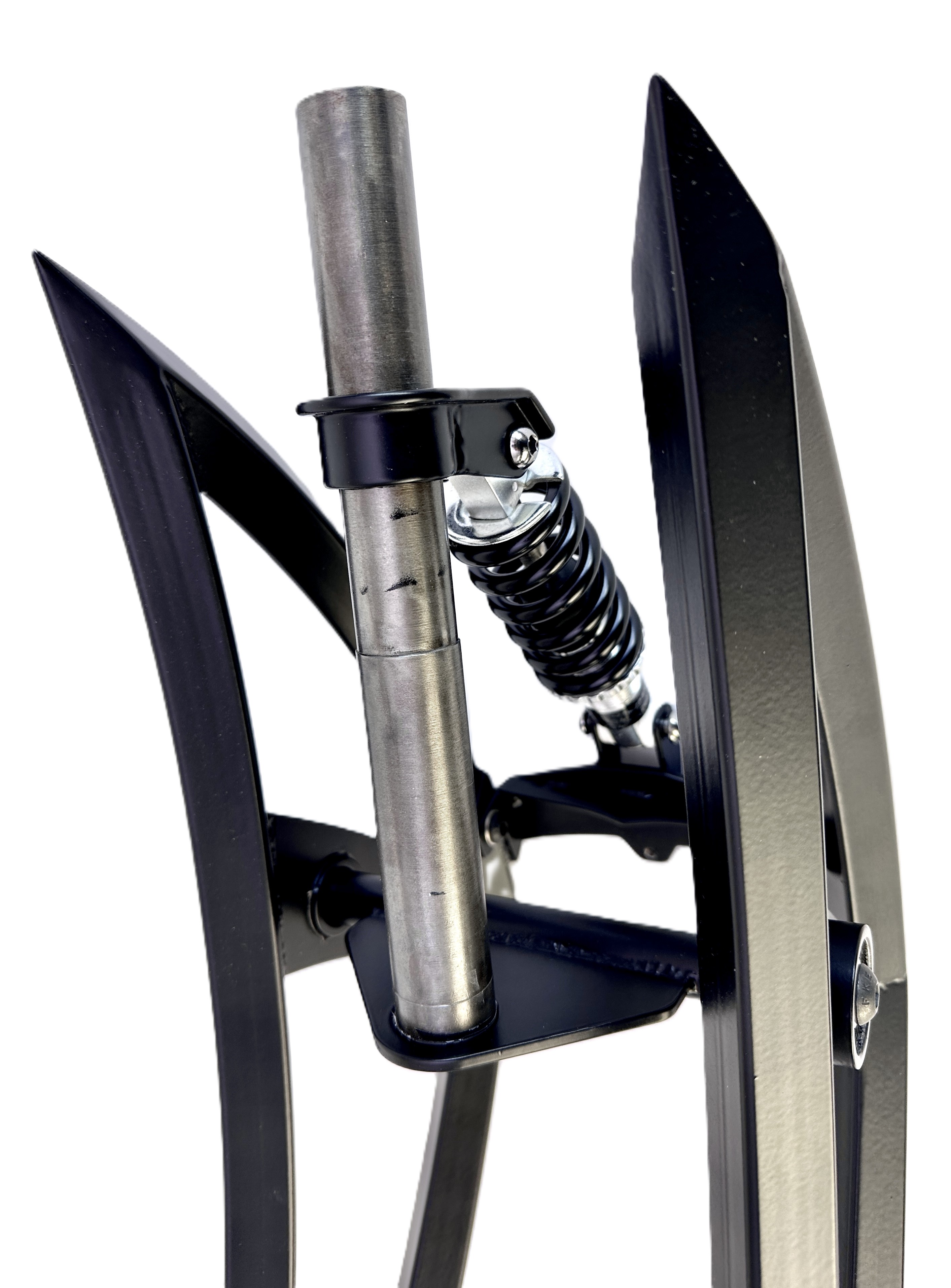

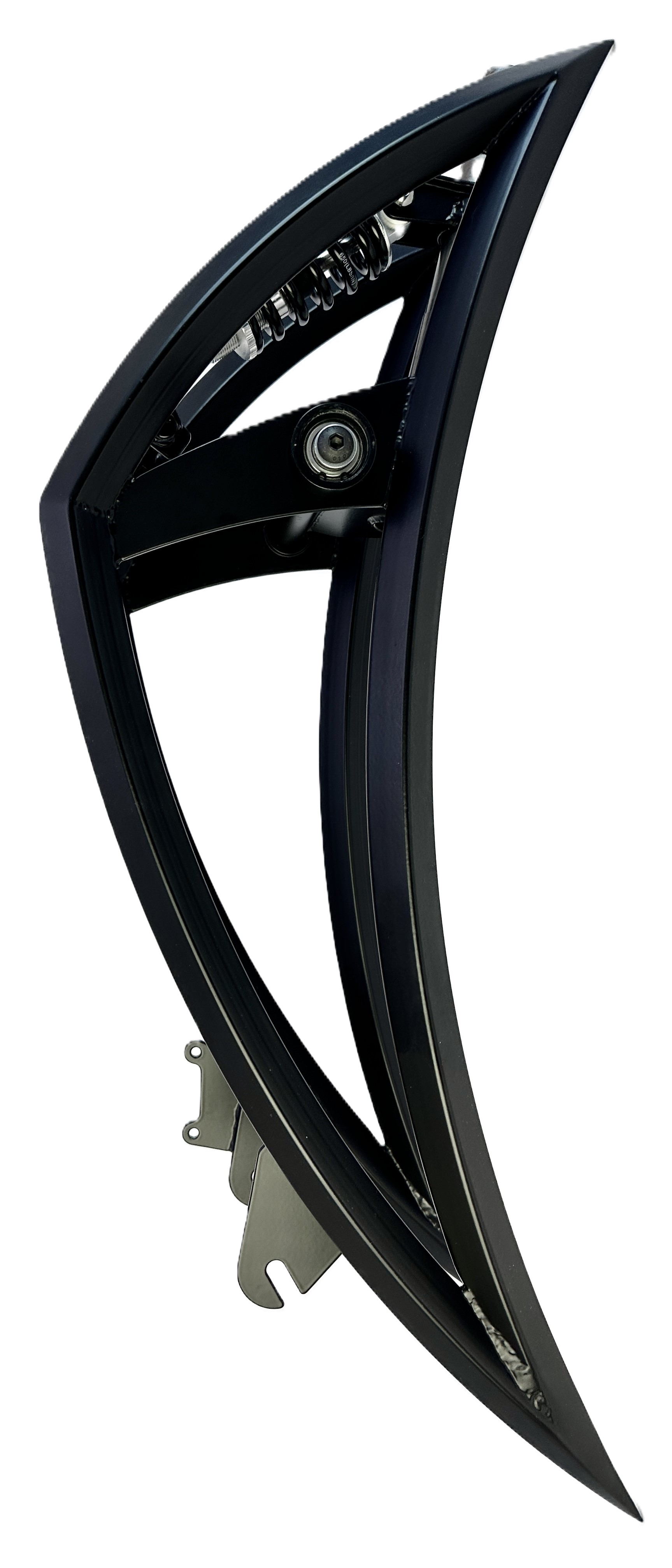

Spring Beast Black

Unique Suspension Fork!

Exclusively available at Classic Cycle!

Extraordinary custom fork for a rims up to 102 mm width.

Stability meets extravagance!

The square tubes and the striking design will make your custom bike an absolute eye-catcher!

Details:

For 20 to 28 inch tires
up to 102 mm / 4,02 inches rim width
1 1/8 inch shaft
shaft length: 240 mm / 9,45 inces, for frame heads up to 210 mm / 8,27 inches
with disc brake mount
Total length: ~ 800 mm / 31,5 inches
Distance axle mount - lower edge lower bridge: ~ 400 mm / 15,75 inches
side length of fork tubes: 25 mm / 0,98 inches
width between fork tubes: 140 mm / 5,51 inches
Width in the axle mount / hub width: 110 mm / 4,33 inches

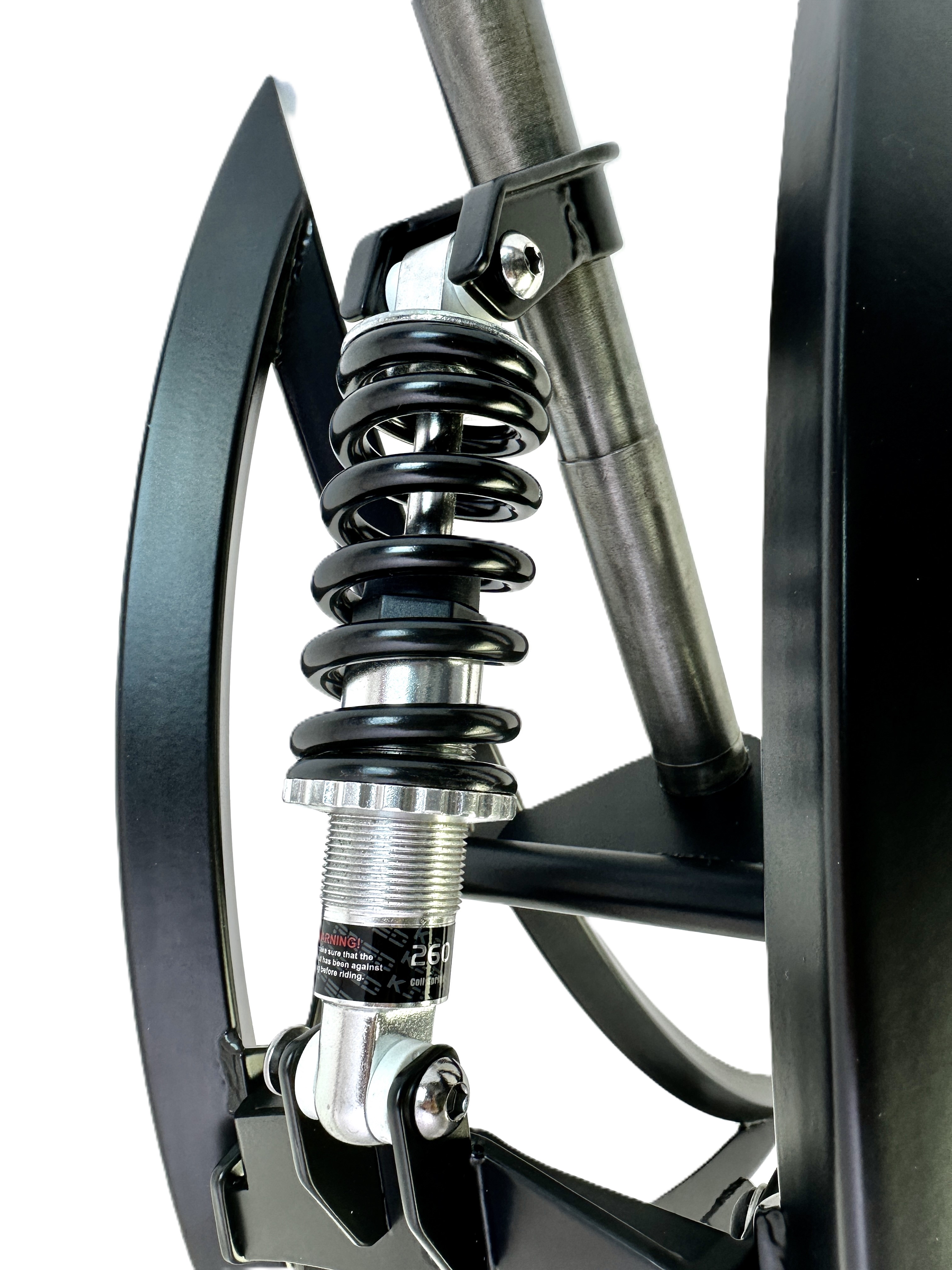

adjustable spring
Color: black, powder coated
Weight: approx. 6.35 kg / 14 lbs
The fork is easy to assemble using screws and assembly instructions included.
Made in Europe

Montageanleitung / Manual Spring Beast Raw 1/2 Montageanleitung / Manual Spring Beast Raw 2/2
