UD BAFANG Controller motor 48V
Product information "UD BAFANG Controller motor 48V"

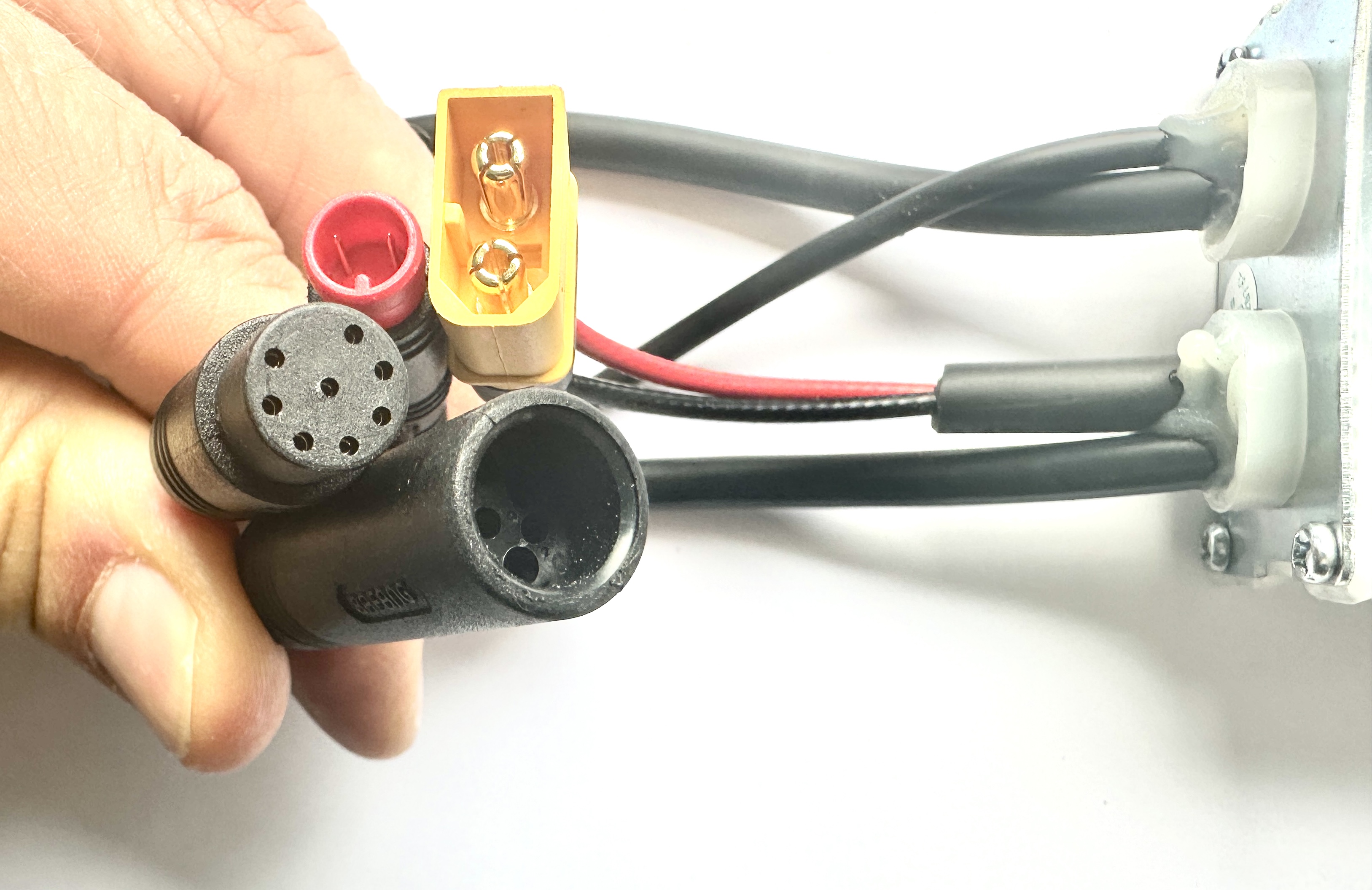

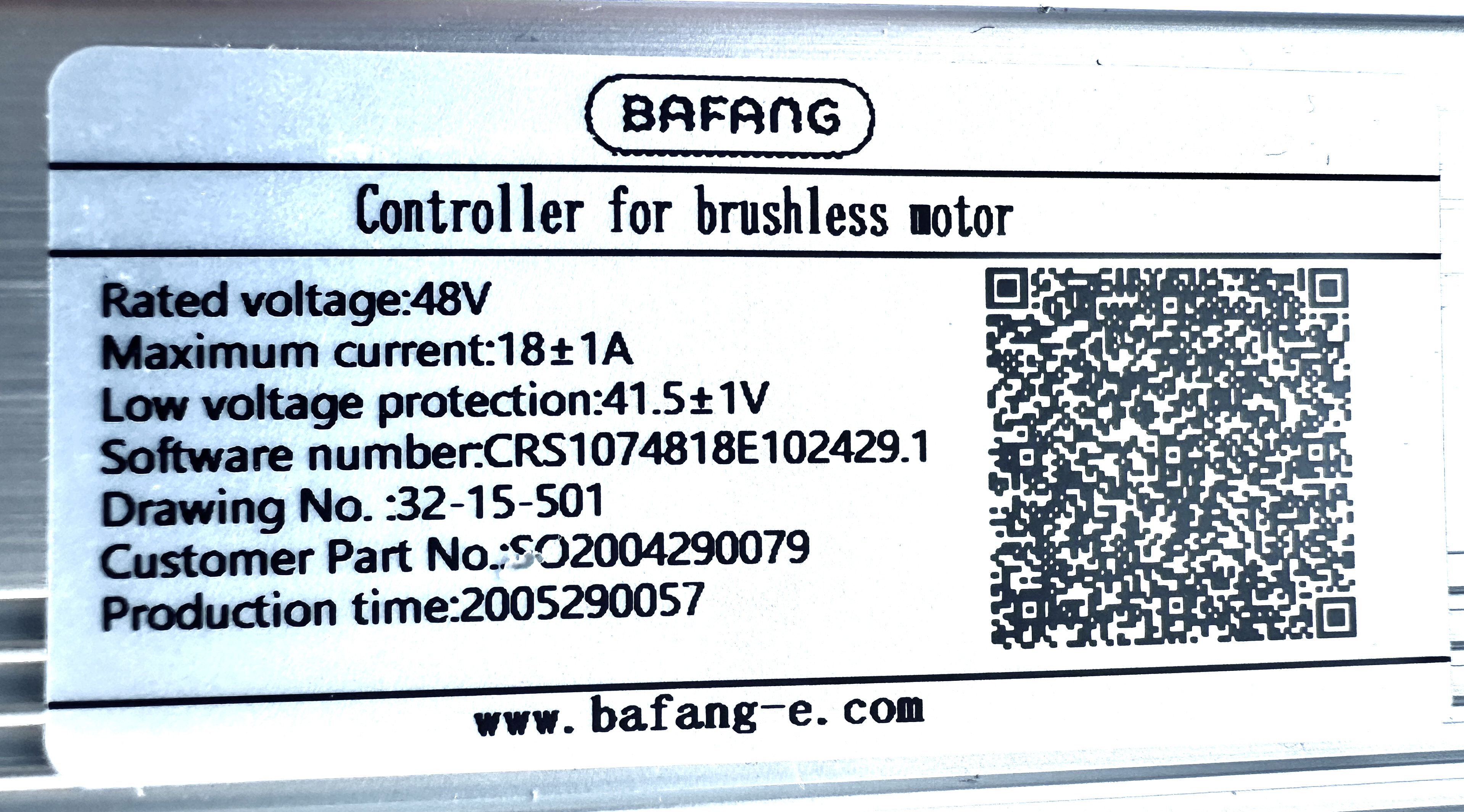

BAFANG Urban Drive Style Controller 48V
- Rated voltage: 48V
- off Voltage: 41,5 +/- 1V:
- Electric current: 18A +/- 1 A
Original Item from Urban Drivestyle Berlin!
The controller was installed on the UNI Boost with a setting of 20x4 and a maximum speed of 20 km/h.
