Front headlight for motorbike or e-bike 6 1/2 inch glossy black

Classic Cycle

€69.95*

Prices incl. VAT plus shipping costs

Product number: 223-078-GS

Product information "Front headlight for motorbike or e-bike 6 1/2 inch glossy black"

Large headlight for motorbike or e-bike

UNI MK headlight

Details:

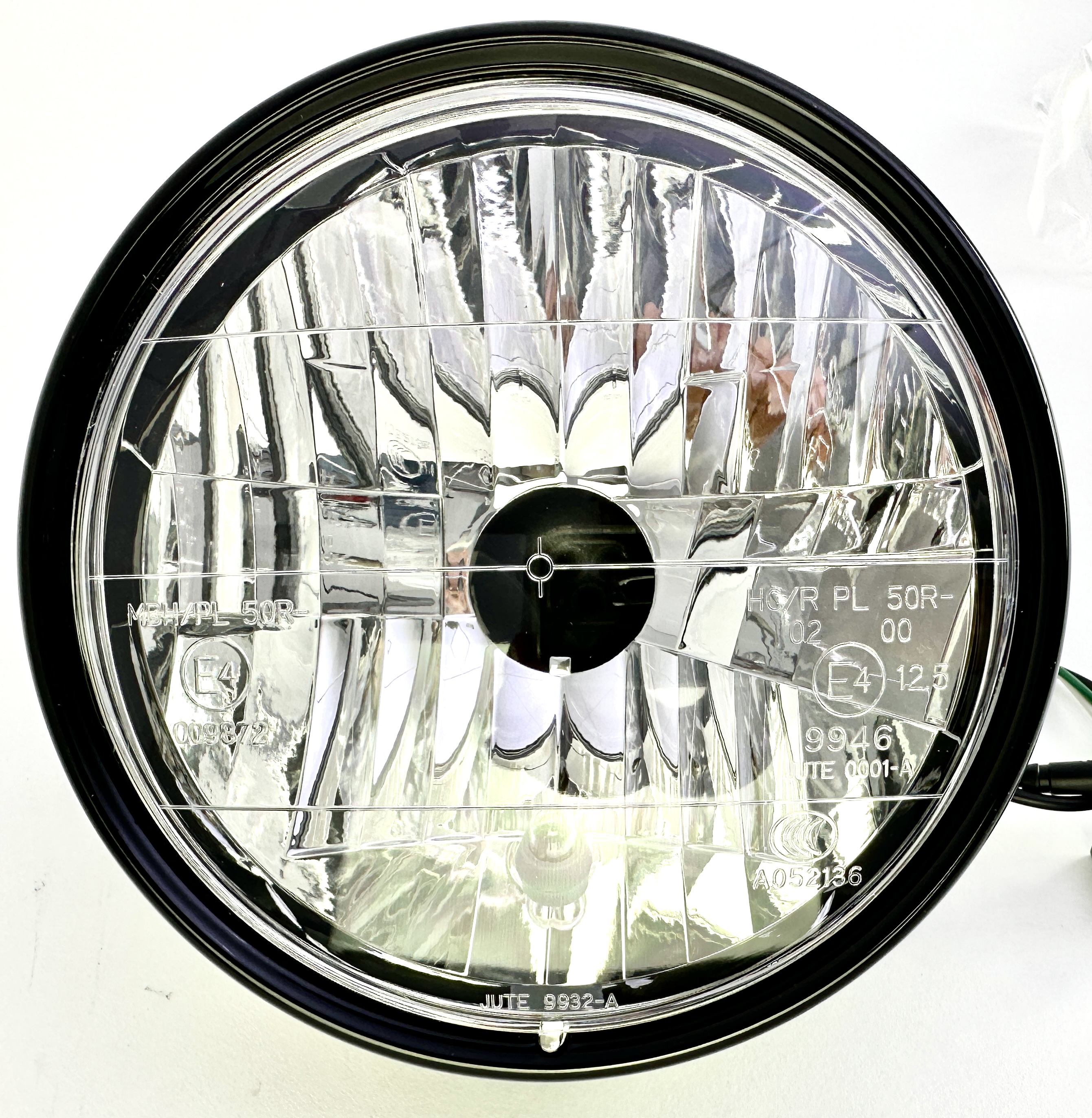

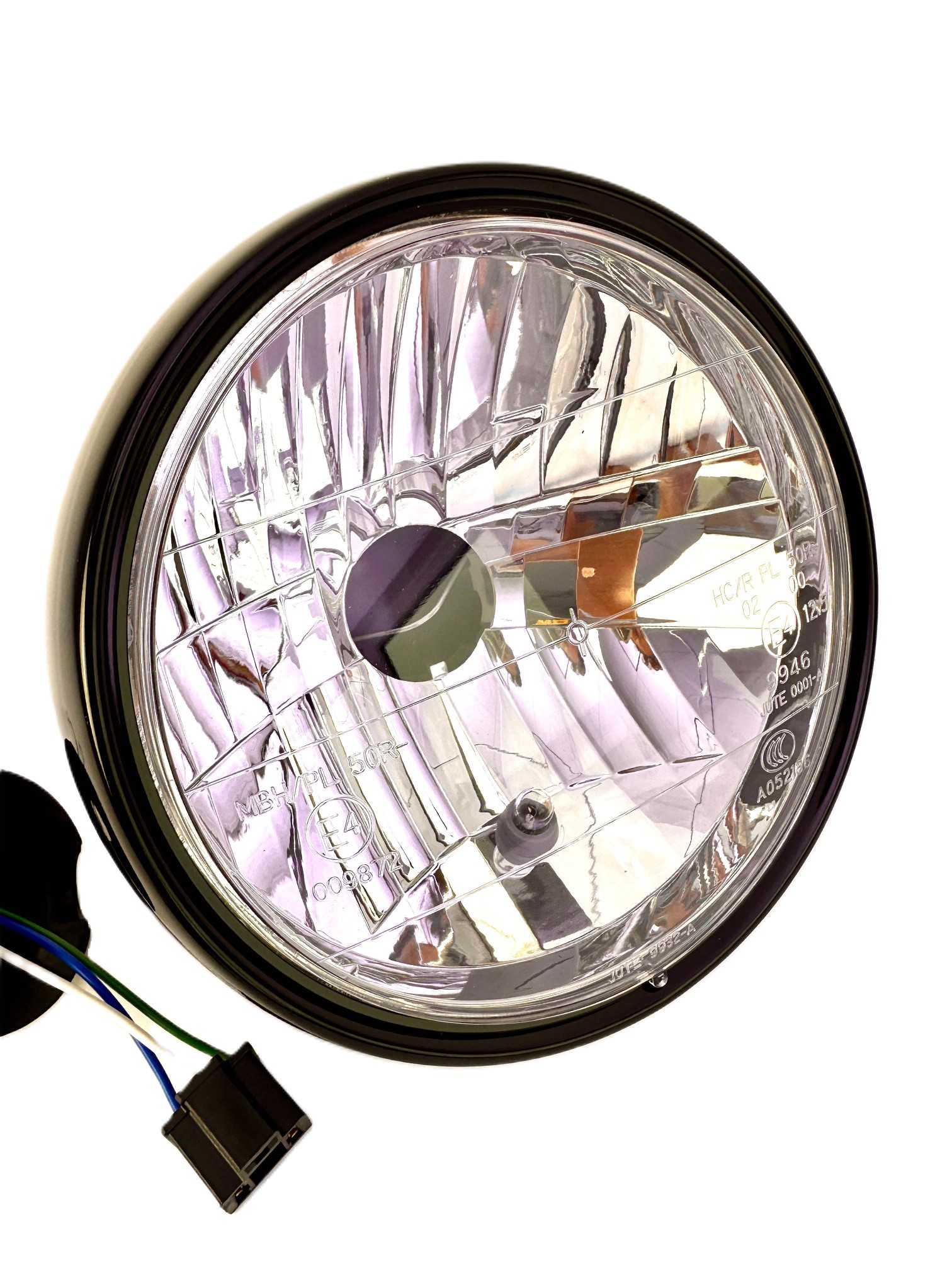

Asymmetrical 6 1/2 inch headlight

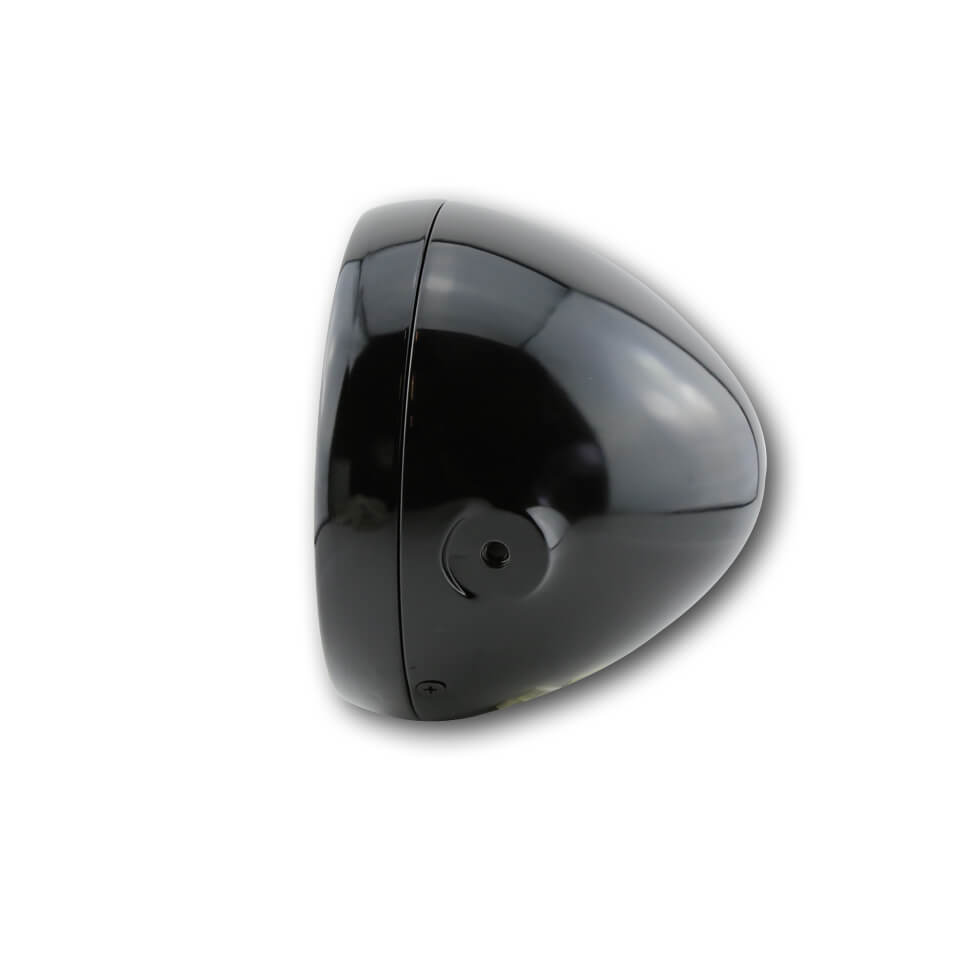

Housing and lamp ring in glossy black
Clear glass plastic lens

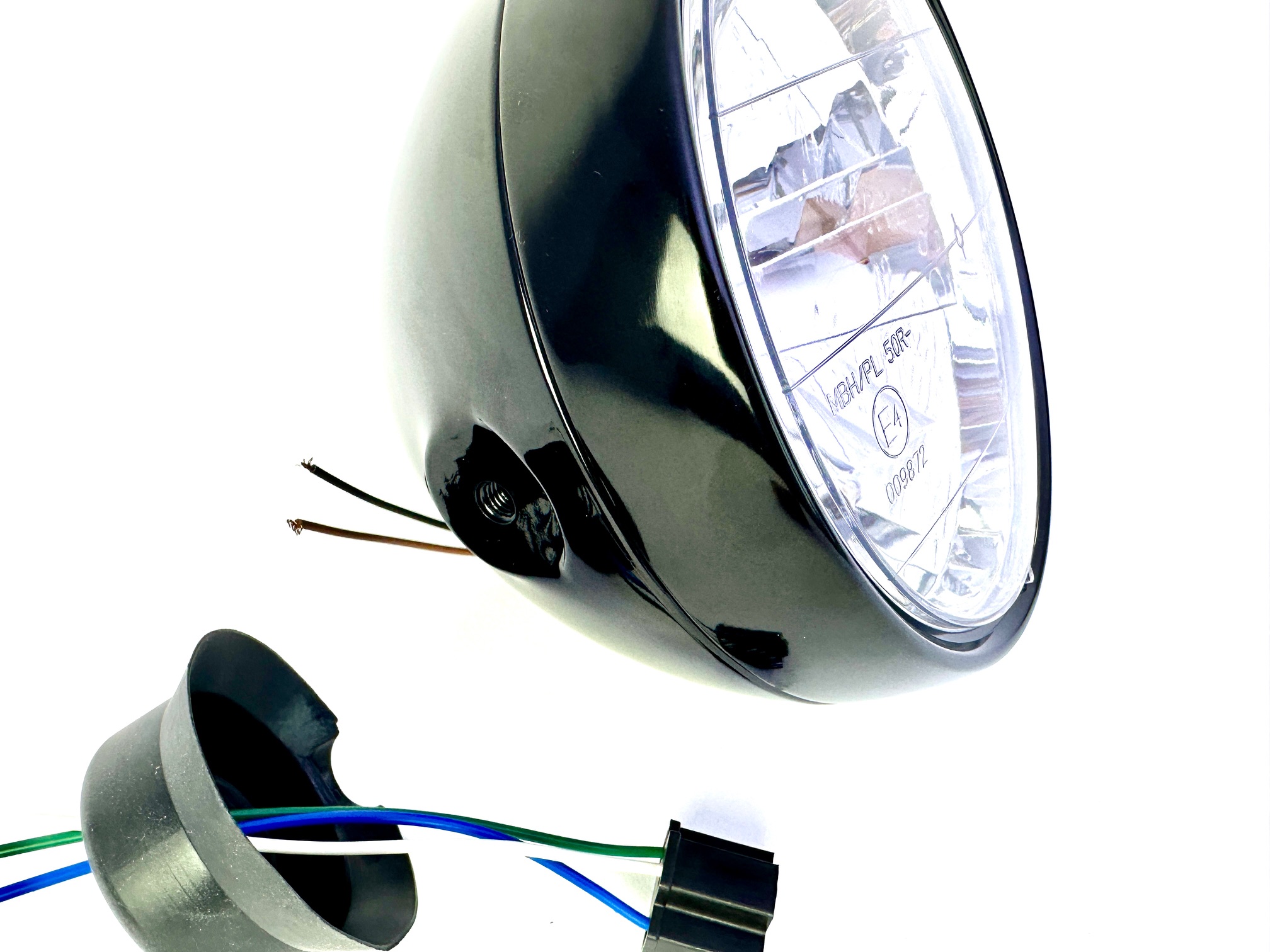

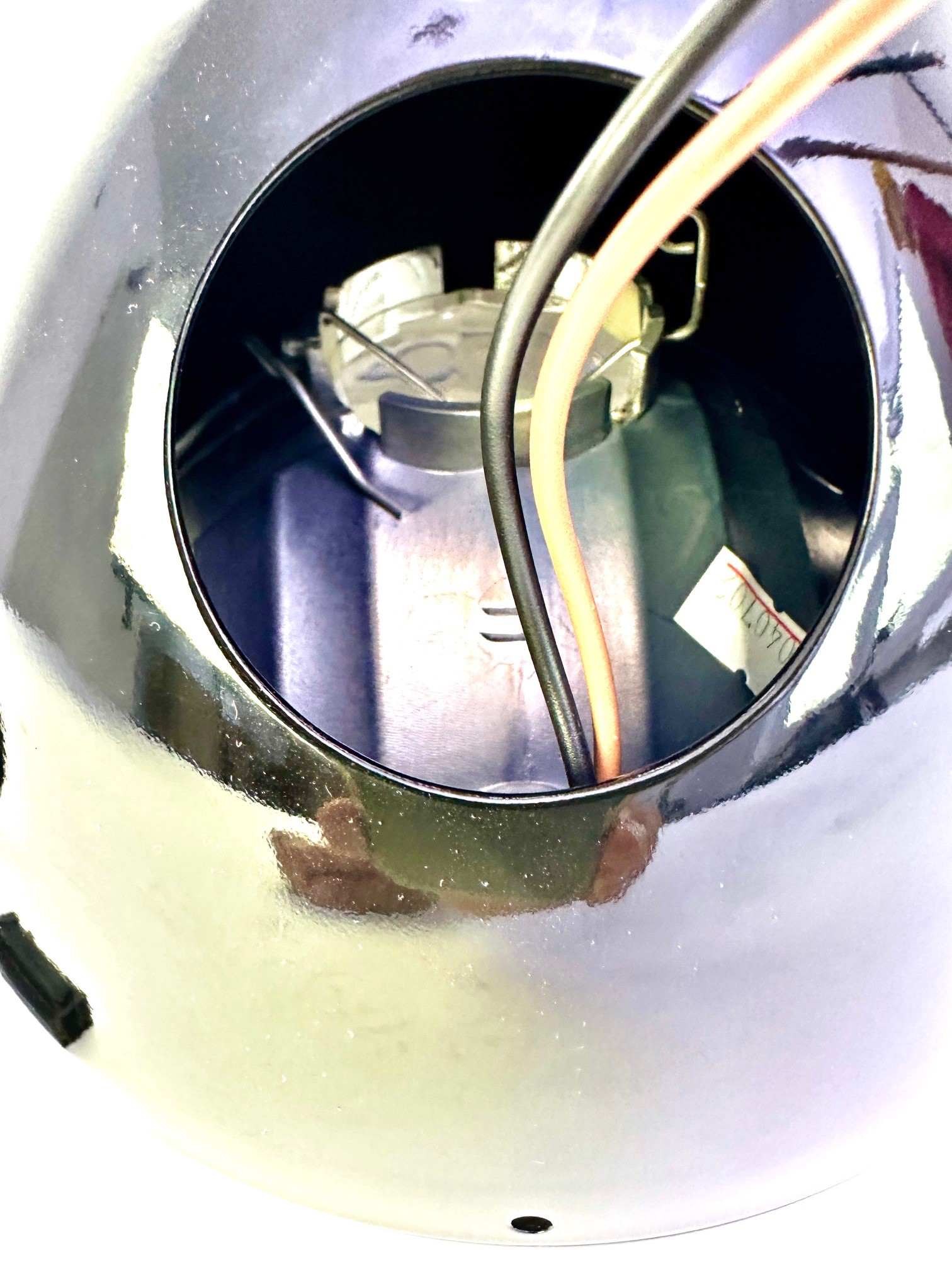

H4 insert with parking light (without H4 bulb and its socket)
M8 mounting holes on the side
The parking light is connected via two open cable ends.

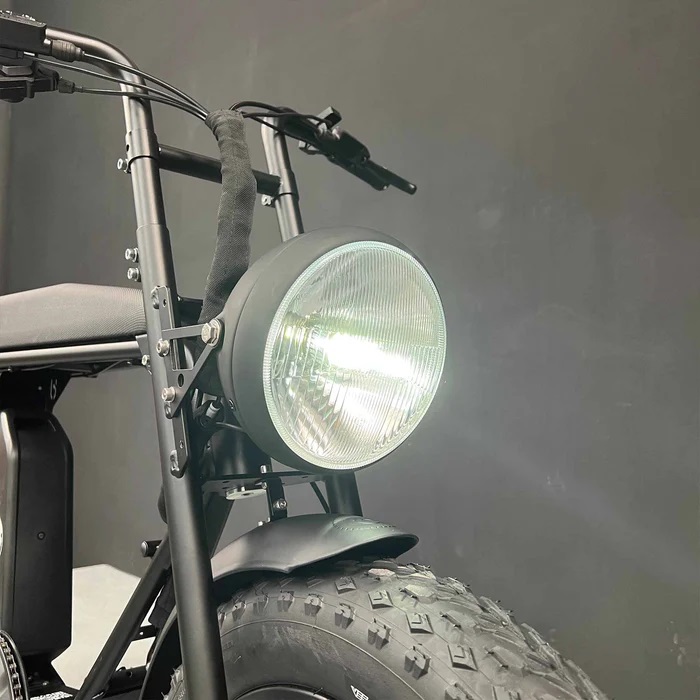

This headlight was also fitted to the UNI MK bikes at Urban Drivestyle!

Dimensions :

Glass diameter: ~ 176 mm (6 1/2 inch)
Outer diameter: ~ 190 mm
Total depth: ~ 150 mm
Depth from mounting: ~ 90 mm
Diameter between the fixing holes: ~ 170 mm
Cable length: ~ 10 cm
Weight: ~ 740 g

Approval:

With E-approval.

The headlight has an E4 approval mark and does not require any further documents.

It can therefore be installed without further ado in accordance with the installation regulations.

Please order accessories separately:

LED lamp Art. No.: LED-BUL-12V or UD3597
Conversion to e-bike typical HIGO connections: HIG-POL-2ADR-FEM or HIG-POL-2ADR-MAL

Note:

Many customers use the headlight in combination with a 12V starter battery for scooters or motorbikes.

E4 Zertifikat

0 of 0 reviews

Leave a review!

Share your experiences with other customers.

Login

Your email address

Your password

No reviews found. Share your insights with others.

Accessory Items

HIGO / Julet extension cable 30 cm for ebike, 2 PIN female HIG-POL-2ADR-FEM

Extension cable for Ebike Technical data: Connector: 2-pin HIGO / 1x Julet female, 1x open end Water resistance: IP65 Cable length: ~ 30 cm Plug connection: 1x red Outer material: ABS plastic General information: HIGO / Julet plugs are common on many e-bikes because they provide a firm and waterproof connection. There are different types, which differ in the number of pins and thus the area of use. A HIGO / Julet connector is generally quite firm because it is waterproof. It can be disconnected by pulling, NOT twisting. If twisted, the pins could be damaged. Please note the arrows on the outside - they help to align and fit the connectors. When the connections are properly plugged together, no coloured plastic should be visible.

€6.95*

HIGO / Julet extension cable 30 cm for ebike, 2 PIN male HIG-POL-2ADR-MAL

Extension cable for Ebike Technical data: Connector: 2-pin HIGO / 1x Julet male, 1x open end Water resistance: IP65 Cable length: ~ 30 cm Plug connection: 1x red Outer material: ABS plastic General information: HIGO / Julet plugs are common on many e-bikes because they provide a firm and waterproof connection. There are different types, which differ in the number of pins and thus the area of use. A HIGO / Julet connector is generally quite firm because it is waterproof. It can be disconnected by pulling, NOT twisting. If twisted, the pins could be damaged. Please note the arrows on the outside - they help to align and fit the connectors. When the connections are properly plugged together, no coloured plastic should be visible.

€6.95*

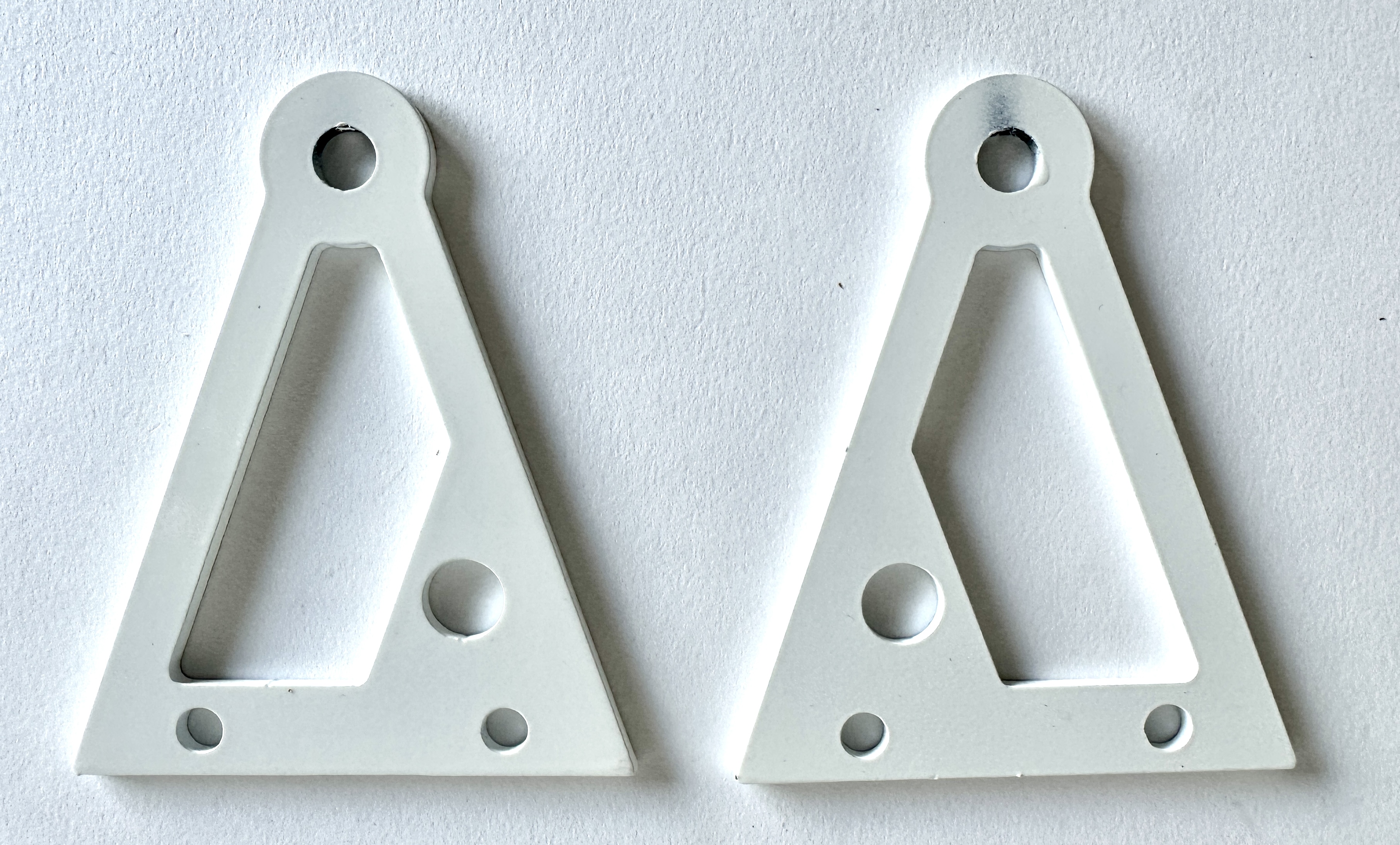

UD Lamp holder for front headlights, white LAM-HOL-WHT
