Fat Bike Plastic Fender Set 26 x 4.0 - 4.8 124 mm Black matte with Stays extra wide
Product information "Fat Bike Plastic Fender Set 26 x 4.0 - 4.8 124 mm Black matte with Stays extra wide"
Fat Bike 124 mm wide plastic mudguards with stays 26 x 4 - 4.8 + 24 x 4 - 4 1/4 inches matte black
High-quality splash protection for wide tires Optimize your fat bike for any terrain and weather condition. This robust and extra-wide mudguard set (124 mm) has been specifically developed to meet the extreme demands of fat bikes. Made from high-strength, flexible polycarbonate, it effortlessly withstands stone chips, mud, and the harshest weather conditions. The elegant matte black finish also blends perfectly into the powerful design of your bike. The set comes complete with four sturdy stainless steel stays and all necessary mounting hardware to ensure a vibration-free and secure installation. A clever detail: the rear mudguard features a factory-integrated indentation for the chain line to guarantee maximum compatibility without any rubbing.
Universal Fit & Compatibility The set is perfectly optimized for wide tire designs and is highly suitable for:
26-inch fat bikes with tire widths from 4.0 to 4.8 inches (or similar models).
24-inch fat bikes with tire widths from 4.0 to 4 1/4 inches.
Technical Data at a Glance
Material: High-quality polycarbonate plastic
Color: Black, matte
Total Weight: approx. 1200 g (including stays)

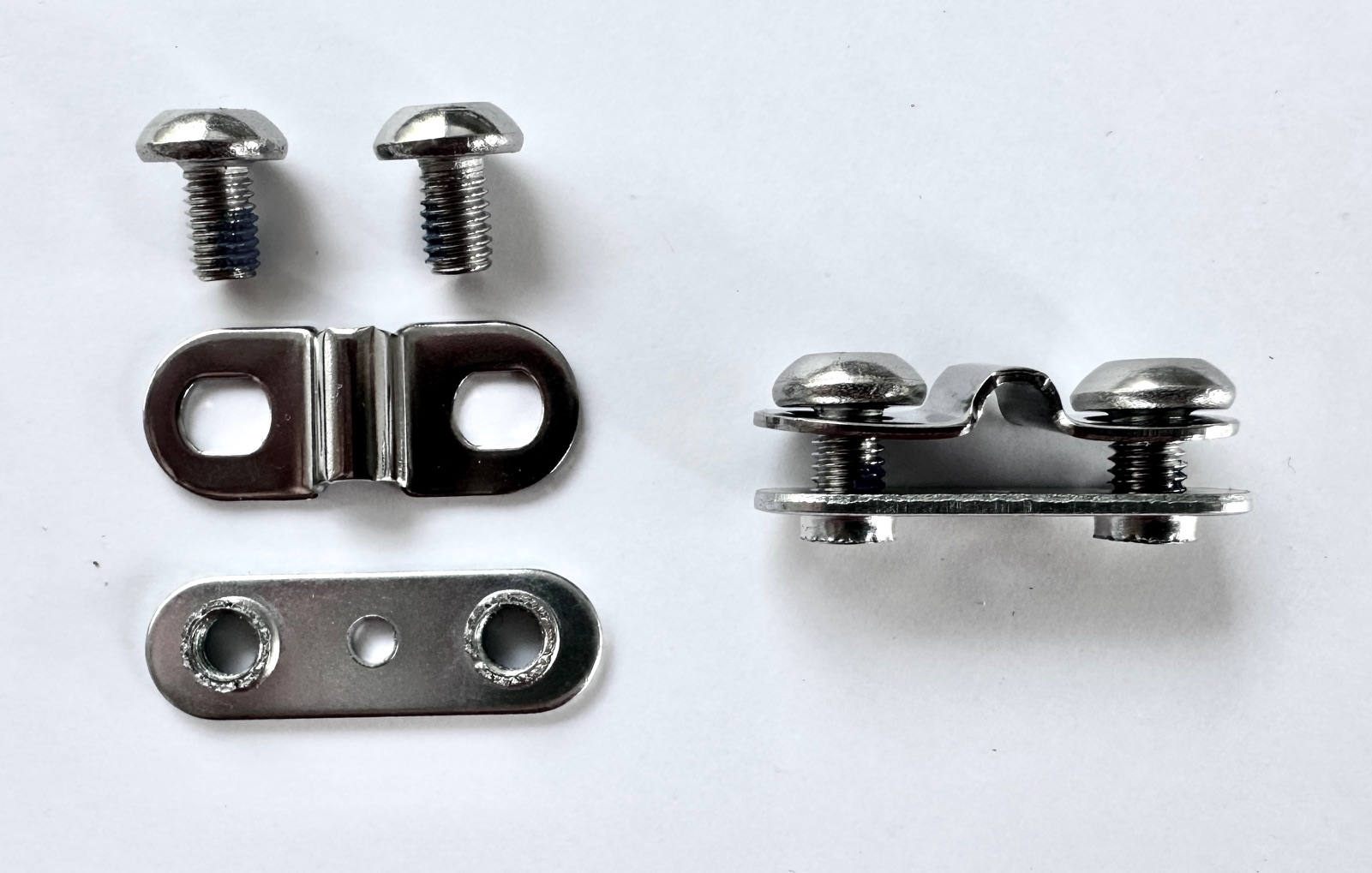

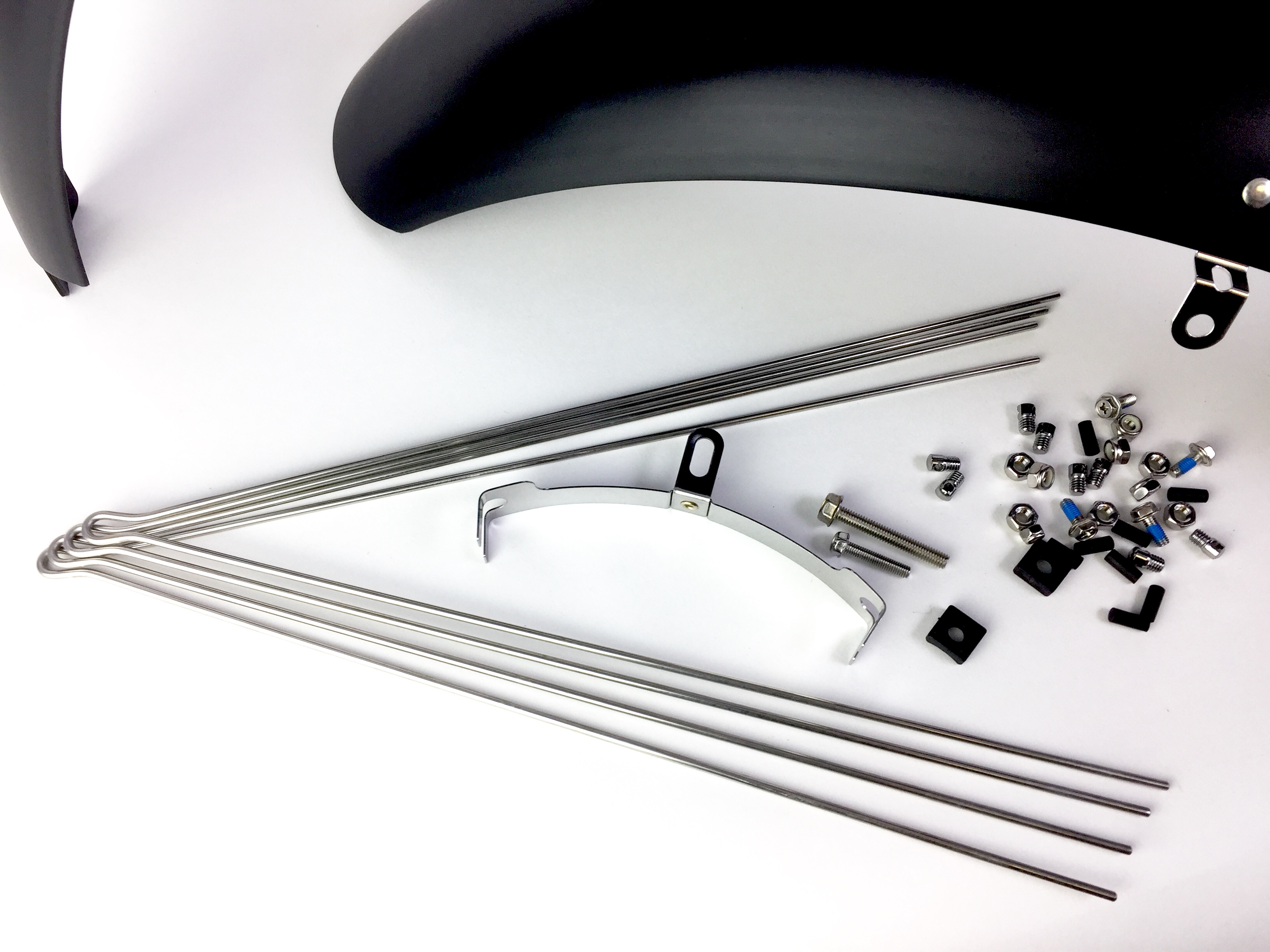

Accessories: 4x robust stainless steel stays + complete mounting hardware

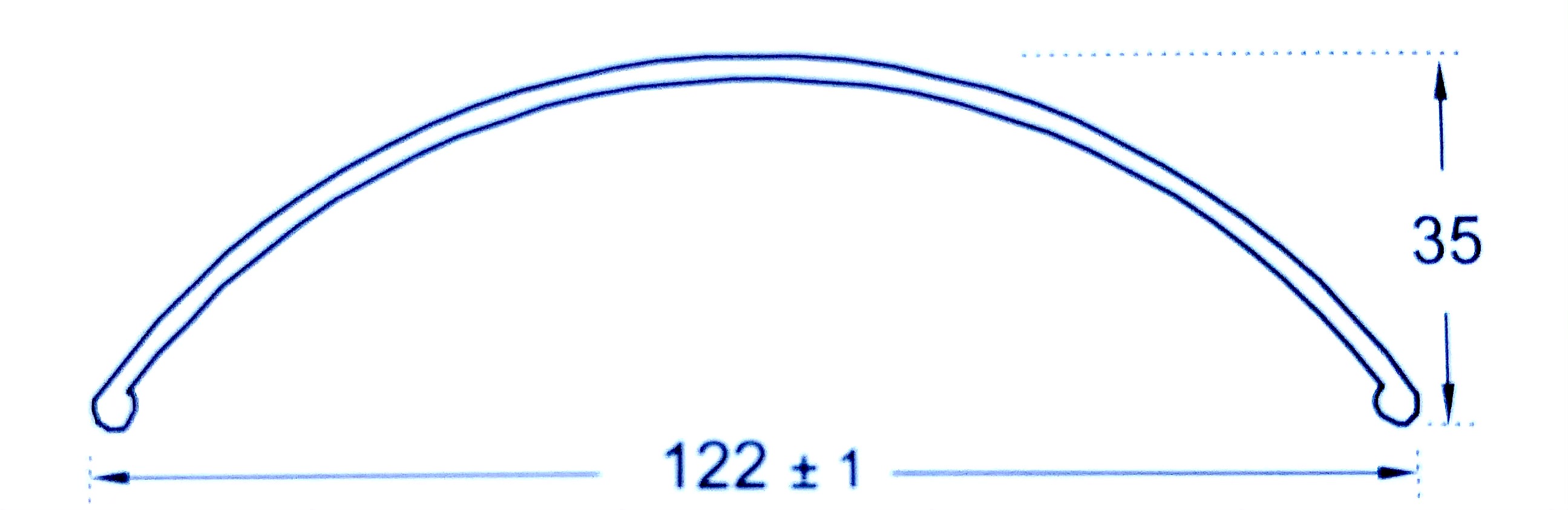

Detailed Dimensions
Front Mudguard:
Width: 124 mm
Height: approx. 35 mm
Circumference length: approx. 700 mm
Rear Mudguard:
Width: 124 mm
Height: approx. 35 mm
Circumference length: approx. 1190 mm
Inner diameter: approx. 770 mm
Outer diameter: approx. 810 mm
Special feature: Factory-standard chain line indentation on the chain side
⚠️ Important Installation Note: Due to the massive tire widths and the variety of fork and frame geometries, it is likely that the material will need to be customized (e.g., slightly filed down or trimmed with a rotary tool) in the area of the fork blades. Practical Tip: To prevent cracking and achieve a clean edge, please only process the material when it is at least hand-warm.
