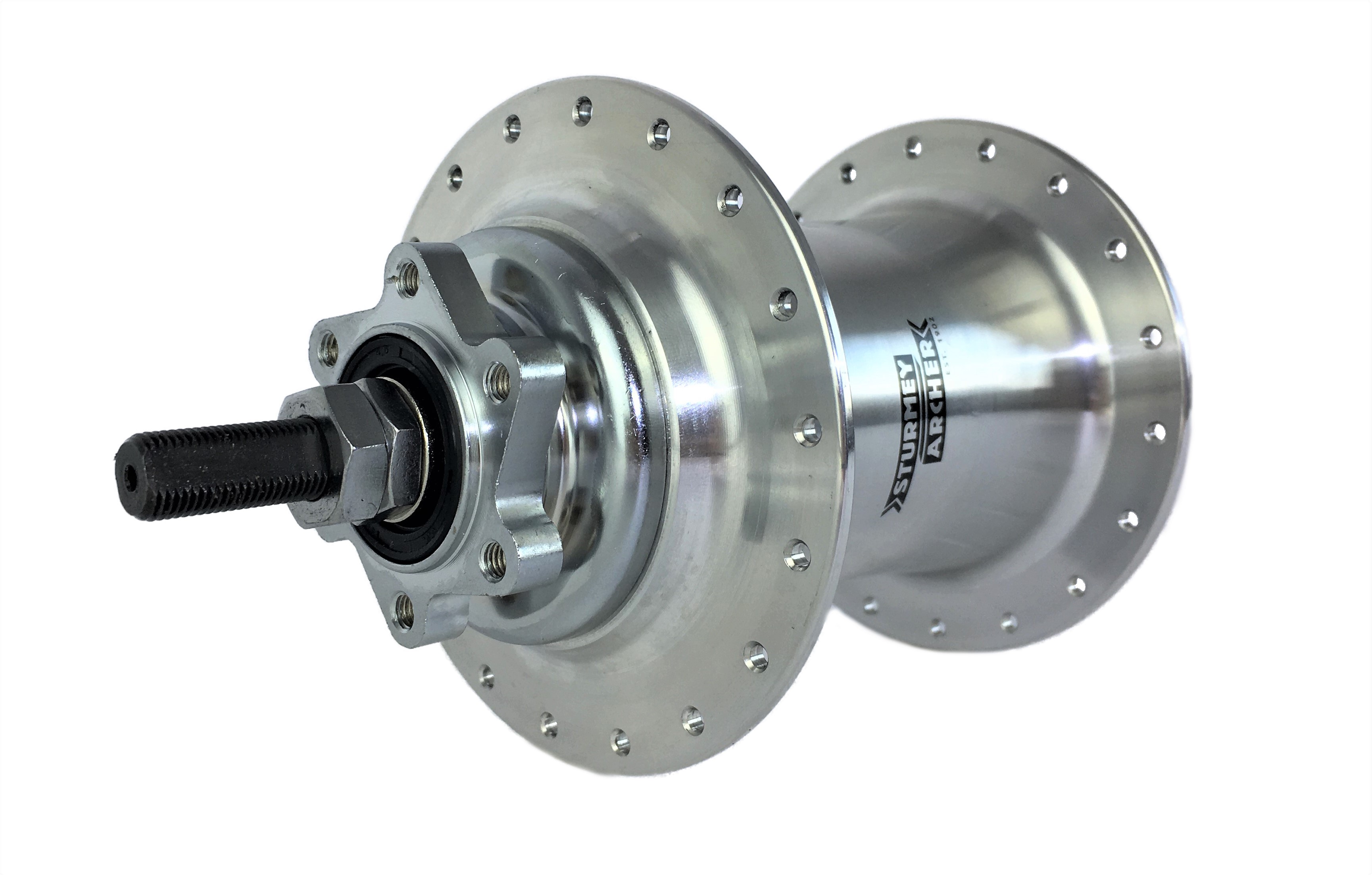

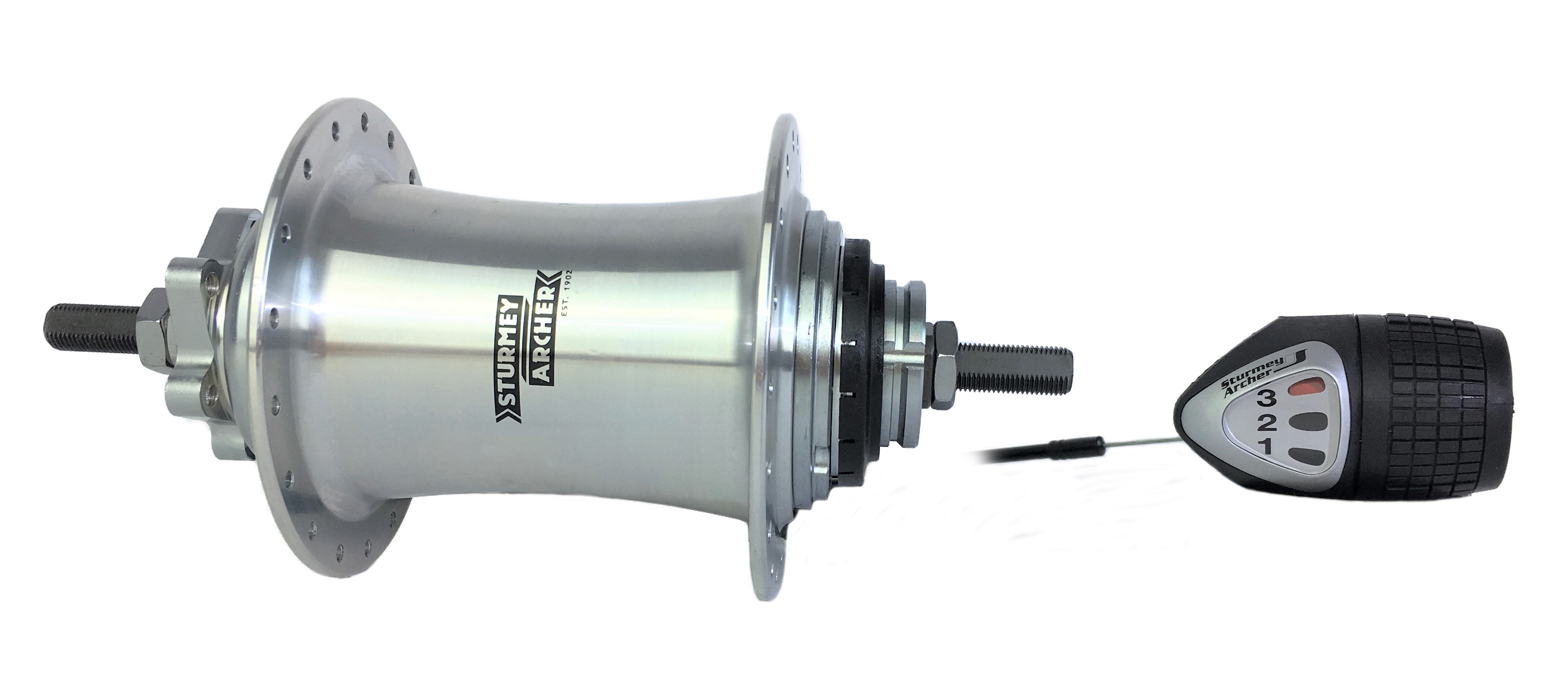

3 - Speed Sturmey Archer Cruiser Hub for Disc Brakes

€169.95*

Currently no longer available, we are working on a new delivery

Product number: Y585

Community Bilder

Product information "3 - Speed Sturmey Archer Cruiser Hub for Disc Brakes"

3 - Speed Sturmey Archer Cruiser Hub for Disc Brakes

  • SX-RK3
  • the original for wide rims (100-132 mm) and frames
  • aluminium with disc brake support and 36 spoke holes
  • revo-shifter TSS 31 with 1550 mm (~61 inches) cable and needed hardware
  • extra long axle shaft : 215 mm (~8,46 inches)
  • mounting size: 165 mm (~6,5 inches)
  • width of flange: 90,5 mm (~3,56 inches)
  • pitch circle diameter : 89 mm (~3,5 inches)
