TSP Custom Frame Wave HC 170mm + Demon Fork HC

€799.95*

Product number: FTSPHC17

Community Bilder

Product information "TSP Custom Frame Wave HC 170mm + Demon Fork HC"

NEW!!

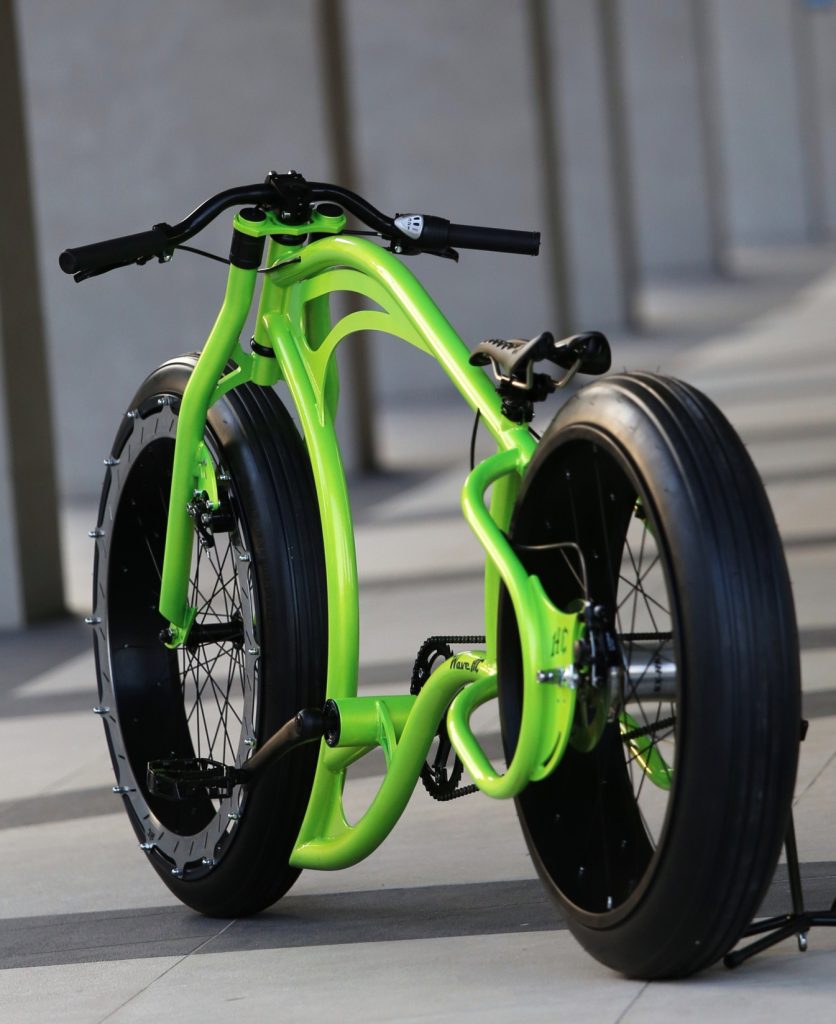

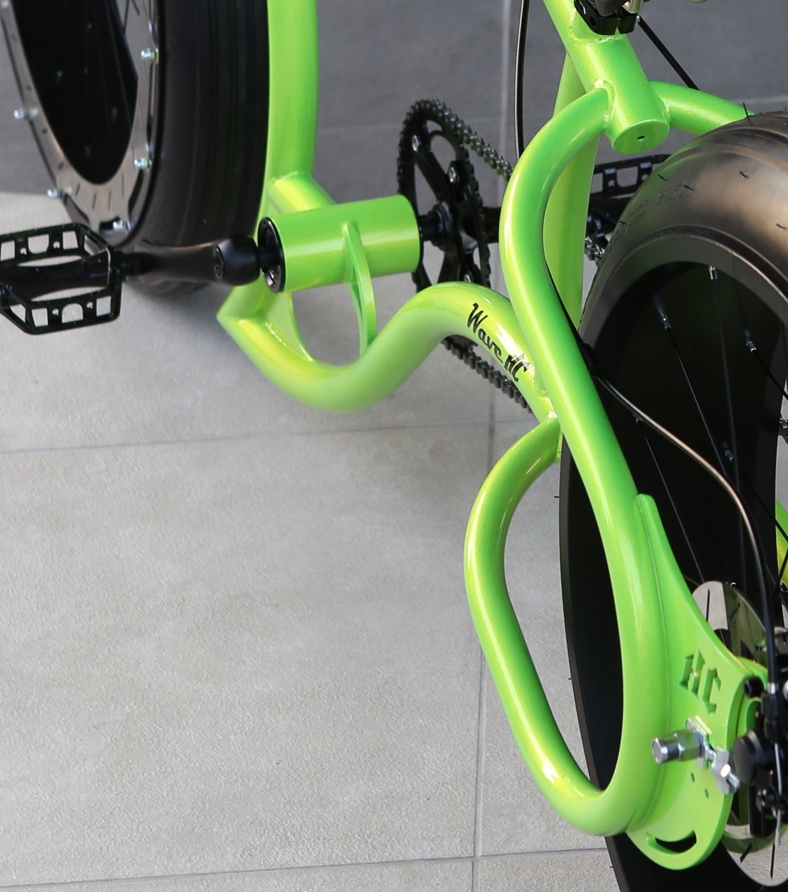

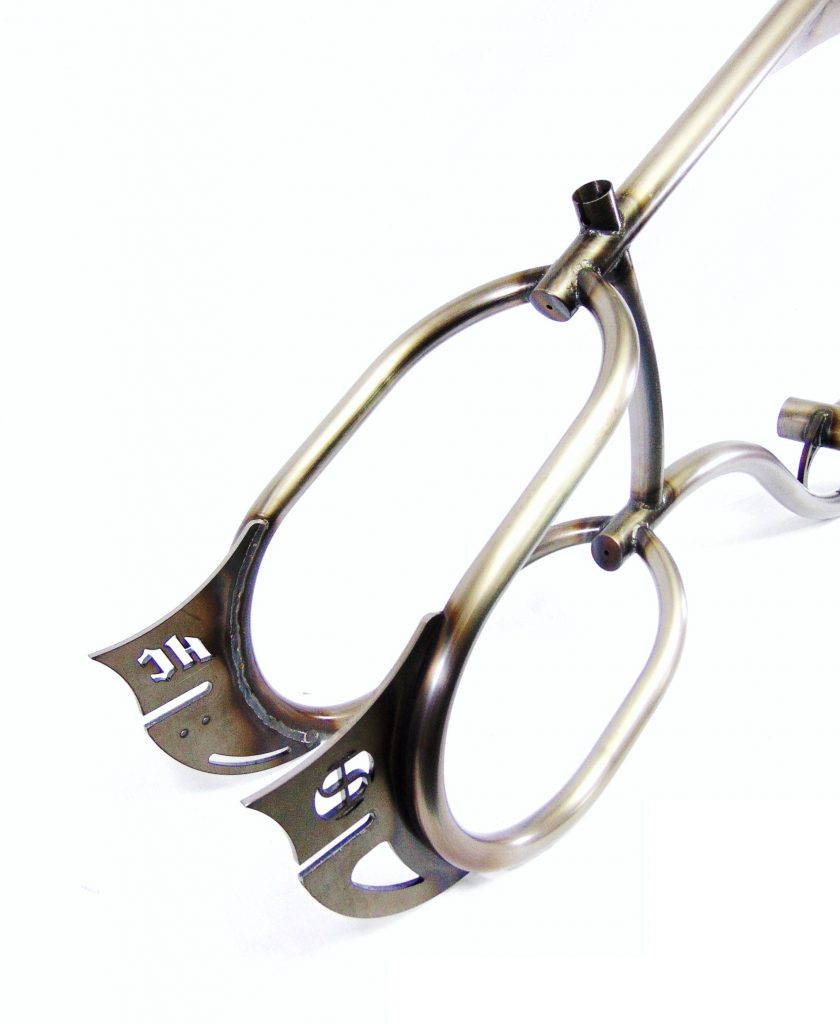

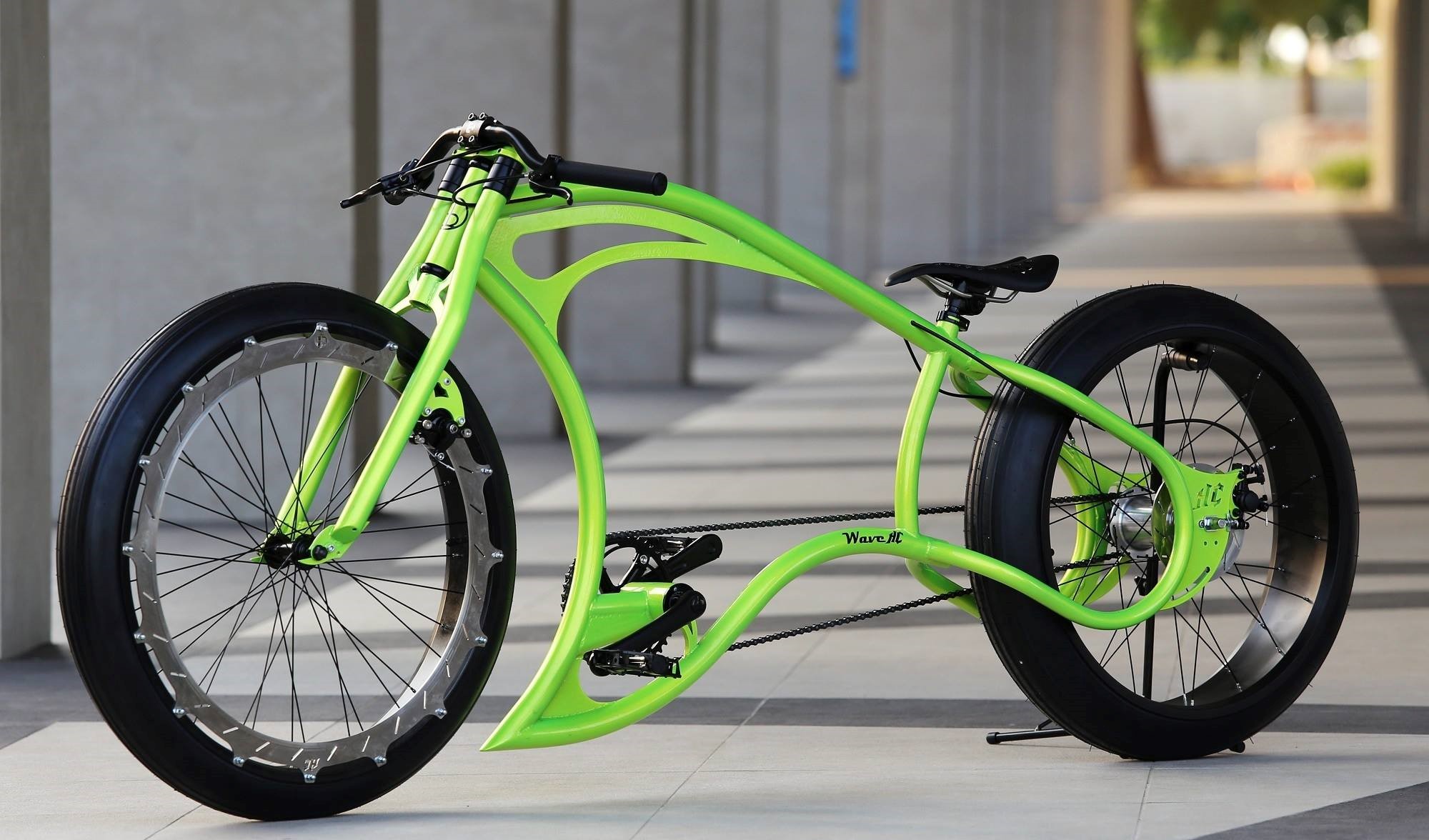

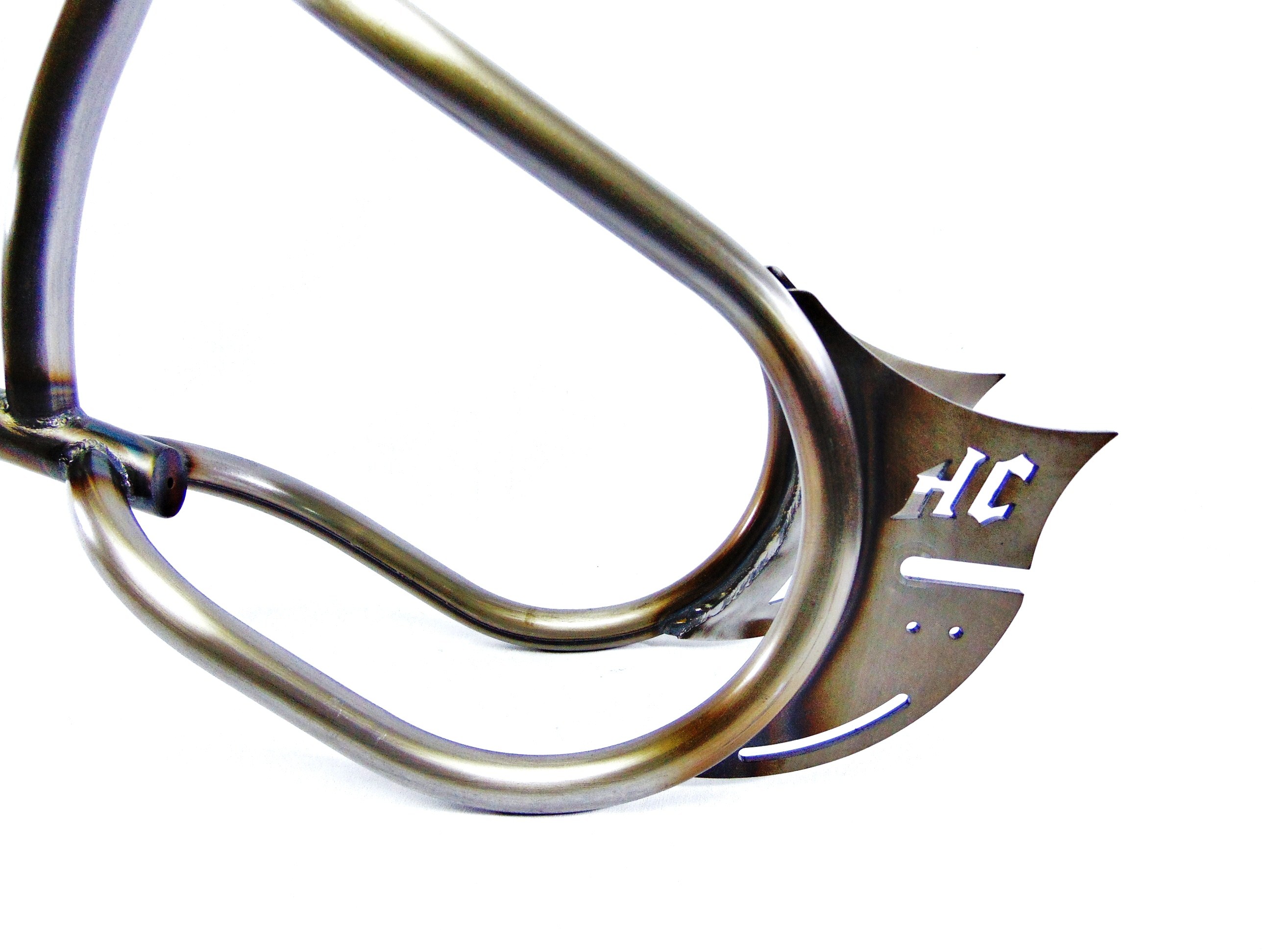

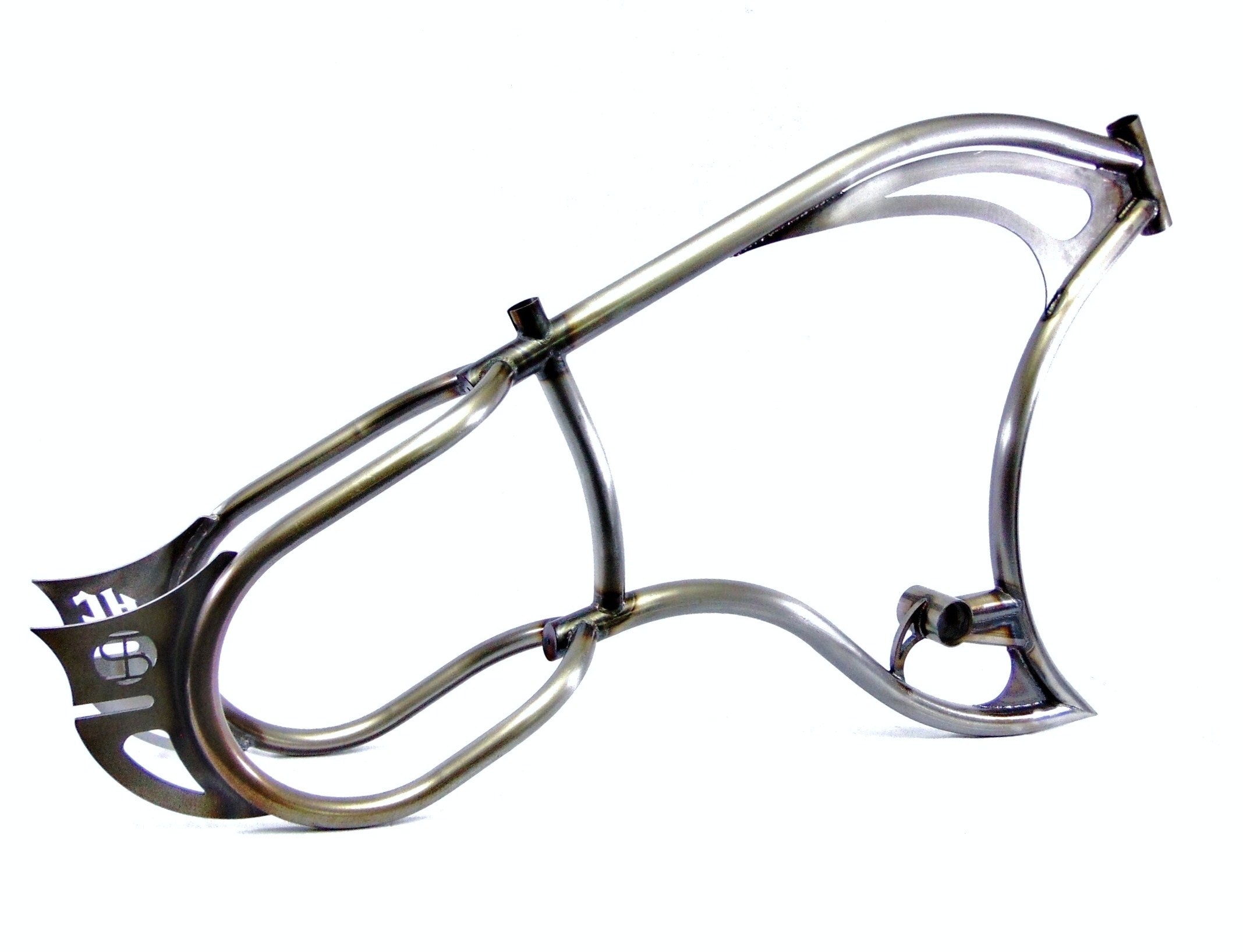

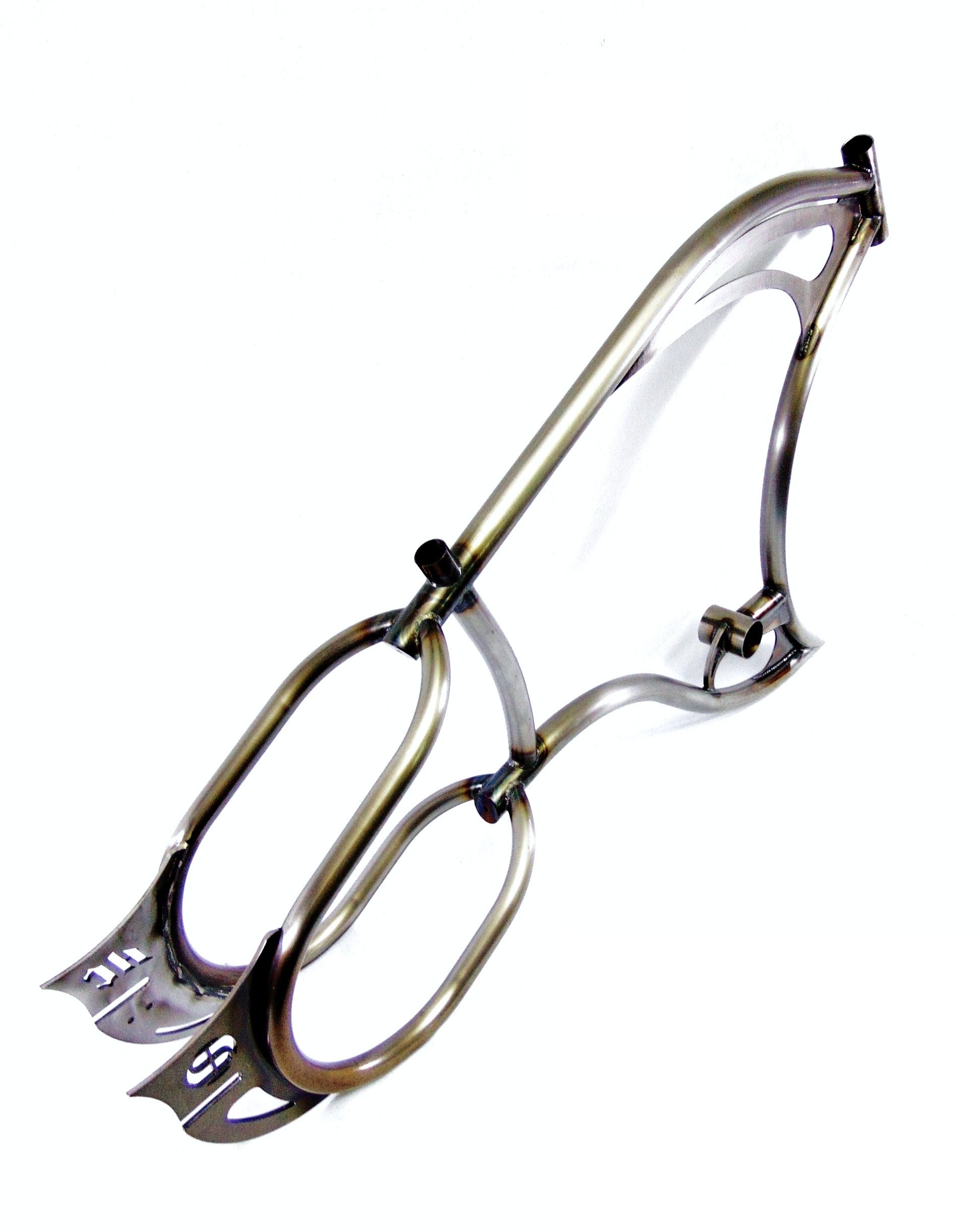

TSP Custom Frame Wave HC 170mm + Demon Fork HC

More than 100 years tradtion in frame building meets modern custom design in perfection.

TSP made it: they designed the perfect wave to cruise. The TSP Wave HC frame is a custom-made bike frame crafted in TSP workshops in Italy and is the ultimate and the most extreme design of bike frames. The Hard Core is near to those of our Wave line but lower and more aggressive! Even though overall extreme, it is easy to drive and suitable for long cruises.

It can be used in thousands of different configurations, giving vent to all your creativity: it can fit virtually any component on the market such as forks (cruiser, double crown, springer), rims (24″, 26″ up to 150 mm (~5,9 inches)), tires (24″ up to 4.5, 26″ up to 4.5″), handlebar (every model on the market), hubs (coaster brake, automatic gearboxes, integrated gearboxes, disc brakes).

Another unique feature of this chassis is the very low weight: about 25% less than other chassis of the same category!

It is one-size and suitable for people between 1,60 and 1,90 m (~5,25 - 6,23 ft).

All tsp frames / forks are not constructed for motorized vehicles, no matter if its a combustion or electric engine. If the frame is used with any kind of engine it's warranty will expire immediately.

A special highlight: Wheels 24 inch, 26 inch with 150 mm (~5,9 inches) rims

  • Colour: uncoloured / raw
  • possible rim sizes: 24" 26" up to 150 mm (~5,9 inches) width
  • bottom bracket size: BMX (US)  100 mm (~3,94 inches) with Conversion Kit OPC to BSA
  • head tube: 1 1/8"
  • needed seat post: 27,2 mm (~1,07 inches)
  • disc brake mounting possible: no!
  • coaster brake mounting possible: yes!
  • bike rider height: from 1,60 m to 1,95 m (~5,25 - 6,4 ft)

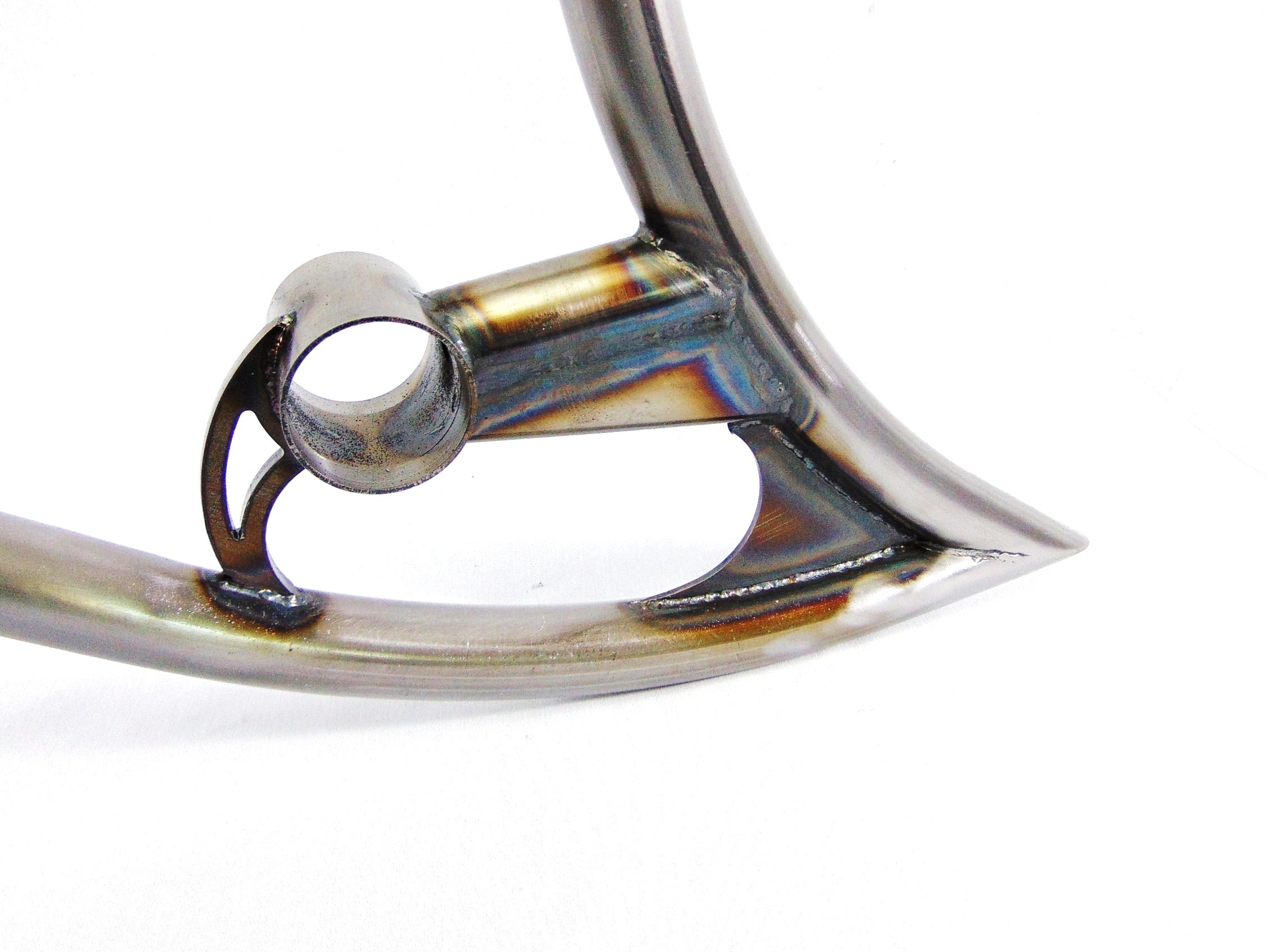

  • frame steel: tig welding cr-mo
  • head tube length: 140 mm (~5,51 inches)
  • width between chain stays: 170 mm (~6,69 inches)

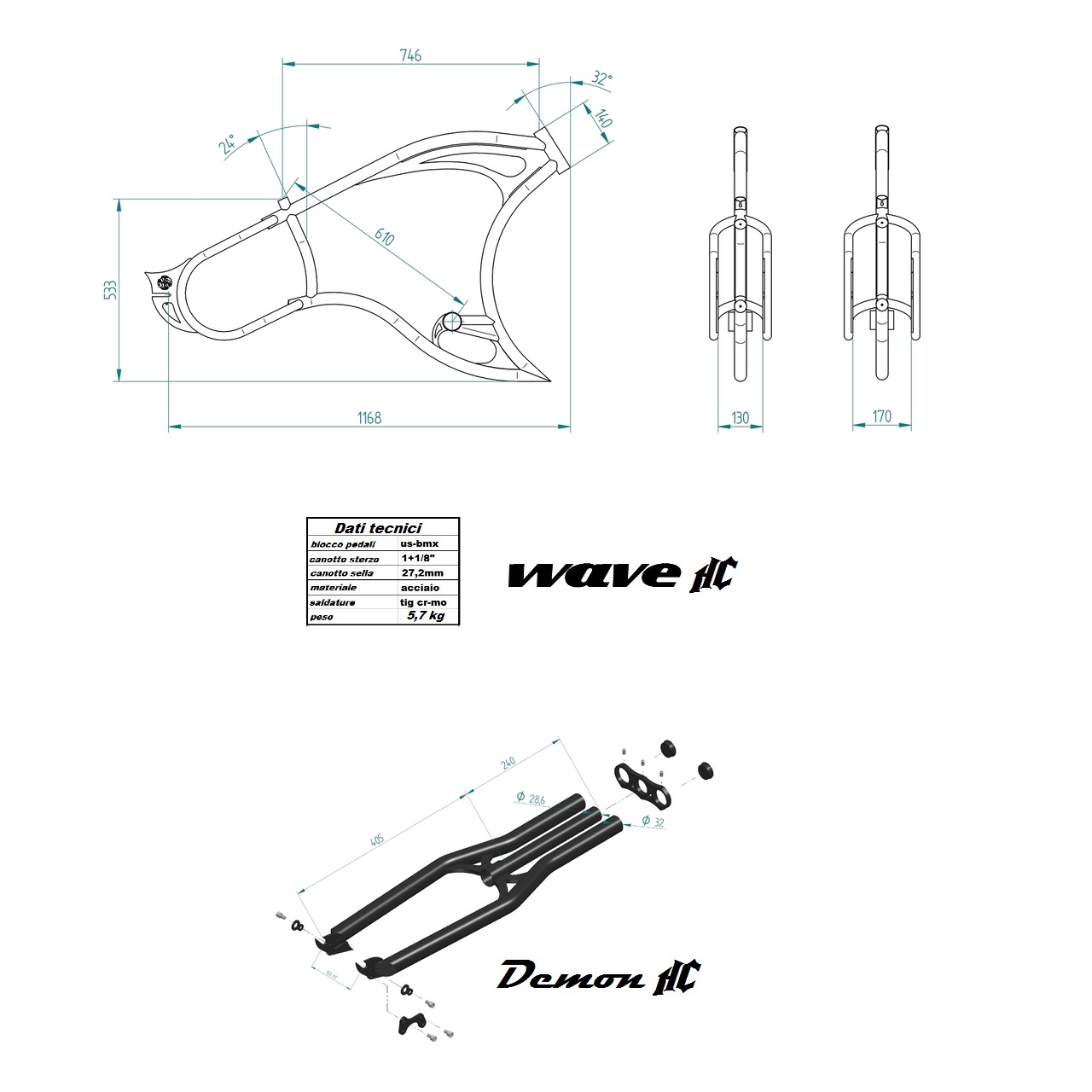

  • dimensions:
    • seat -> head tube: ~746 mm (~29,37 inches)
    • seat -> bottom bracket: ~610 mm (~24 inches)
    • Length over all: 1160 mm (~45,67 inches)
  • weight: about 5,7 kg (~12,57 pounds)

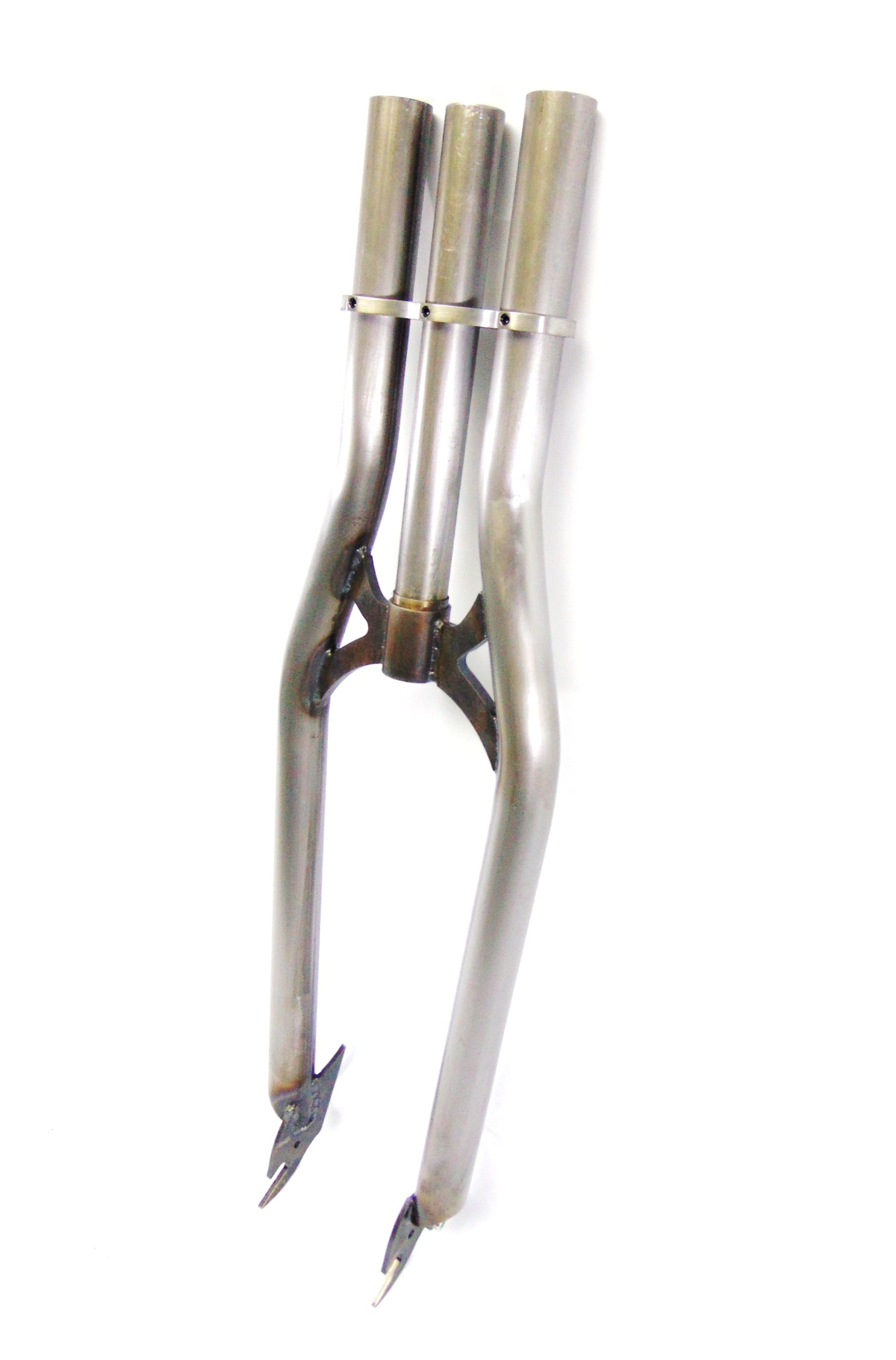

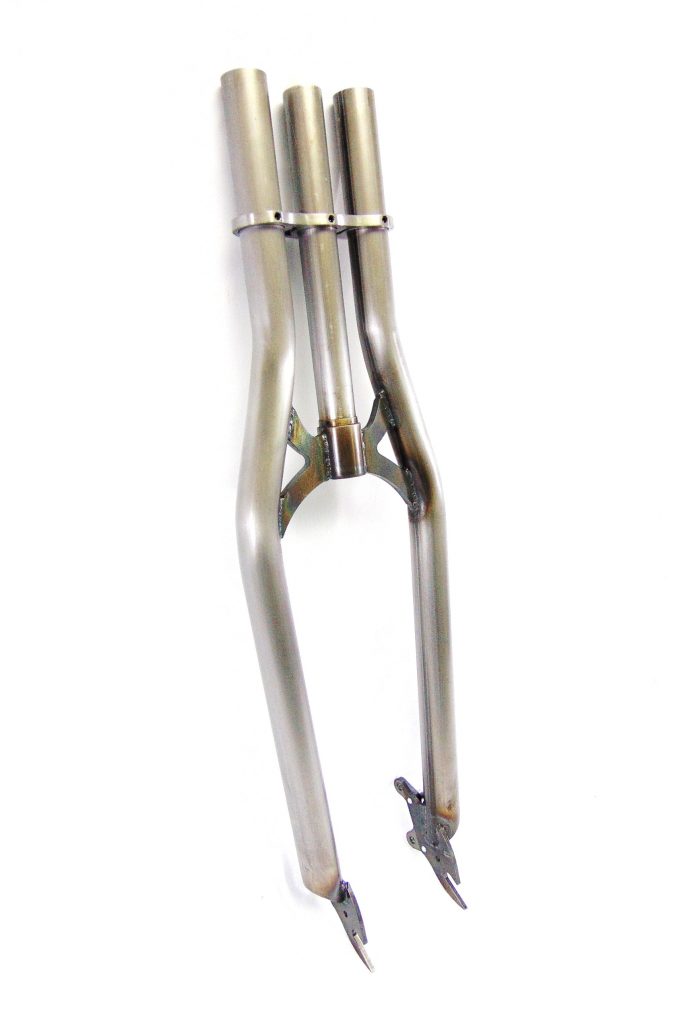

Demon Fork HC
Demon Fork TSP HC Custom Fork
Exceptional Custom Fork for all rims up to 100mm width. Innovative, italian Design connects rolling easiness with reliable stability.TSP sets new standards and shows again manual perfection.Multifunctional, nice shaped axle mounts complete this special attention getter on your custombike!

  • Raw unlaquered
  • for 24 oder 26 inch tires
  • up to 100 mm (~3,94 inches) rim width,
  • 1 1/8 inch shaft,
  • Length of shaft: 240 mm (~9,45 inches)

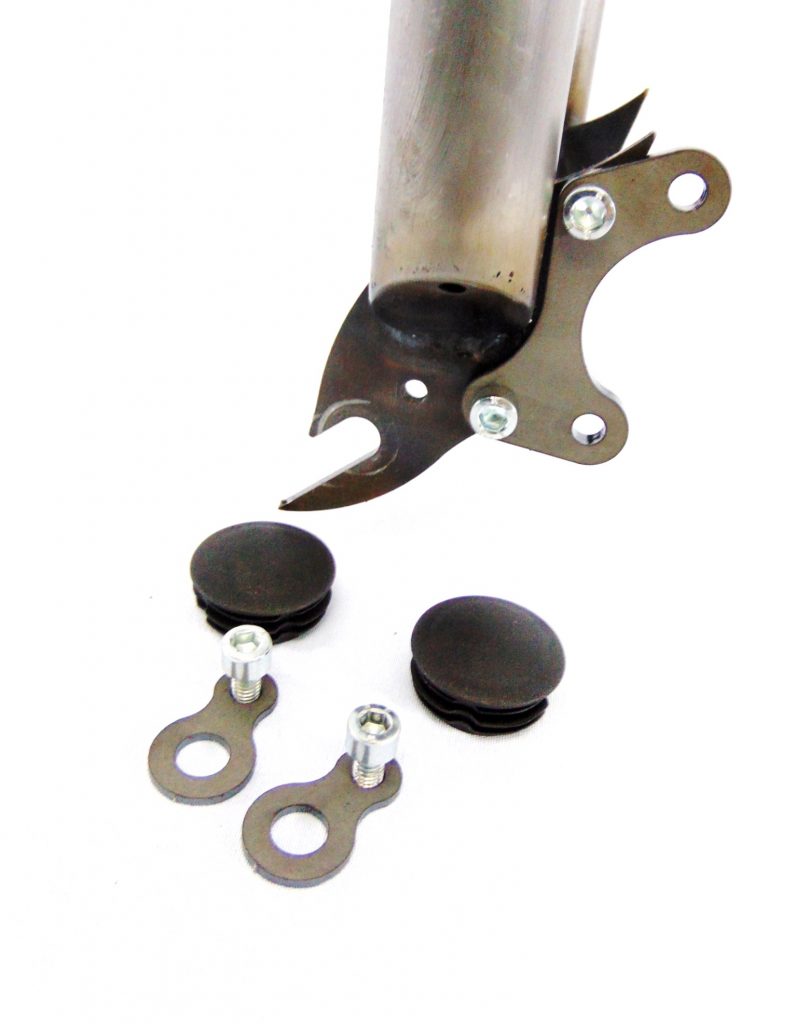

  • Brake: you can install left 160 mm (~6,3 inches) disc brakes with the special support included in the package.
  • Length over all: 705 mm (~27,75 inches)
  • Distance between axle mount and lower bridge 406 mm (~15,98 inches) (26 inch axlel mount), 377 mm (14,84 inches) (24 inch axle mount)
  • Diameter of fork tubes: 32 mm (~1,26 inches)
  • Width between fork tubes: 144 mm (~5,67 inches)
  • Width at axle mount: 100 mm (~3,94 inches)
  • The forks were developed for the 100 mm (~3,94 inches) rims.
  • Length of shaft and fork tubes are shortable.
  • Comes with end cover plugs for the fork tubes.
  • Made in Italy
