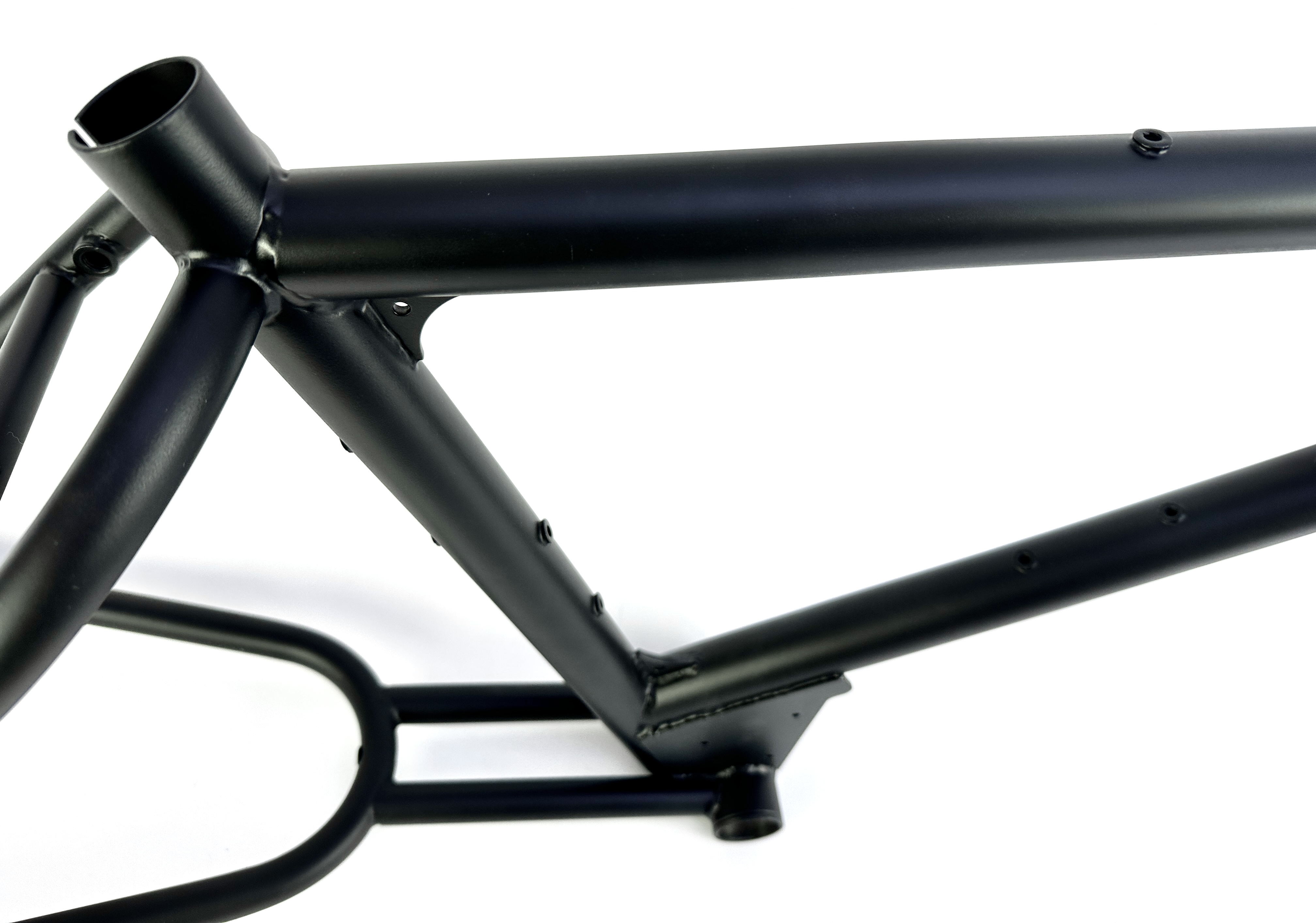

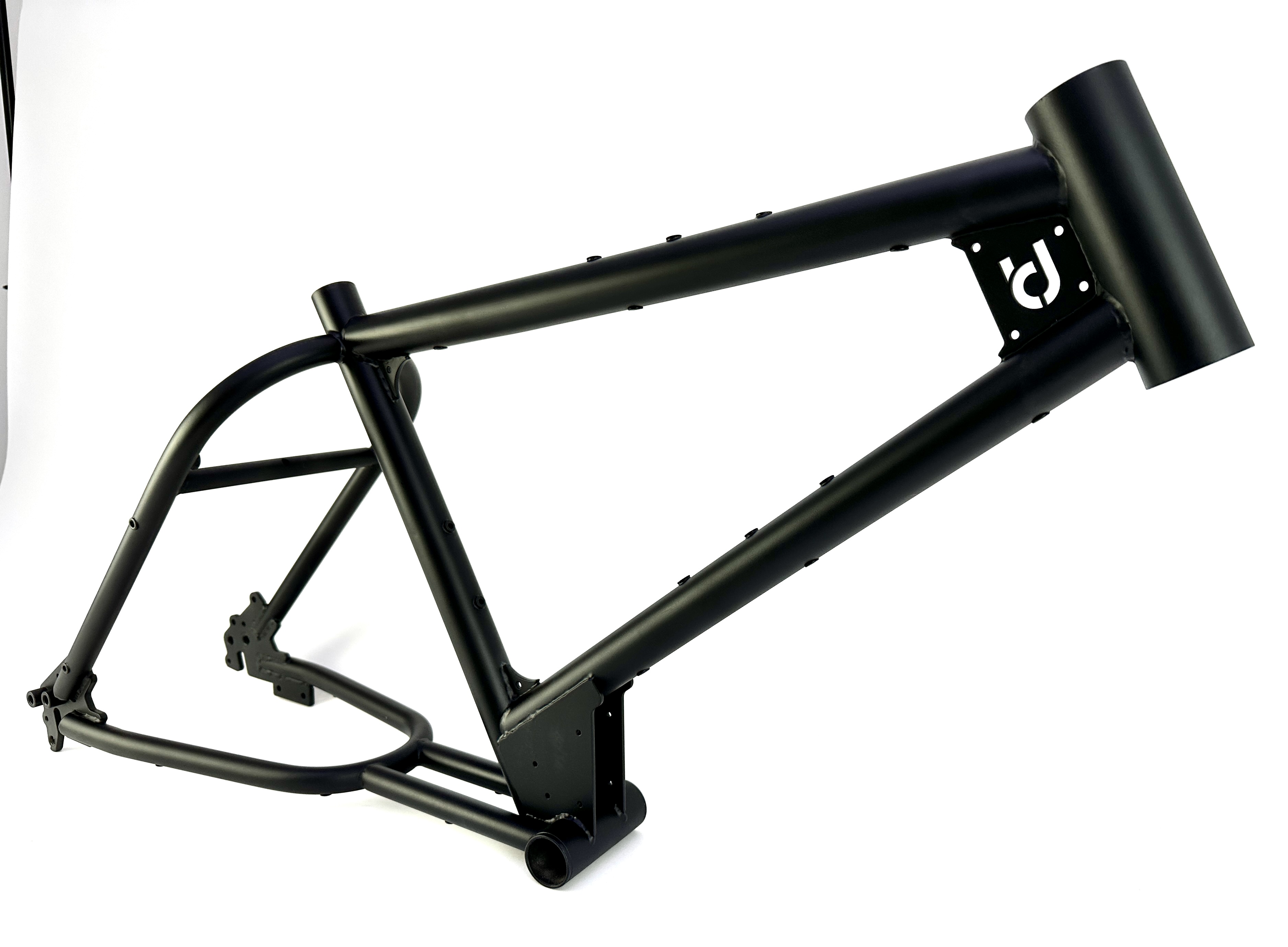

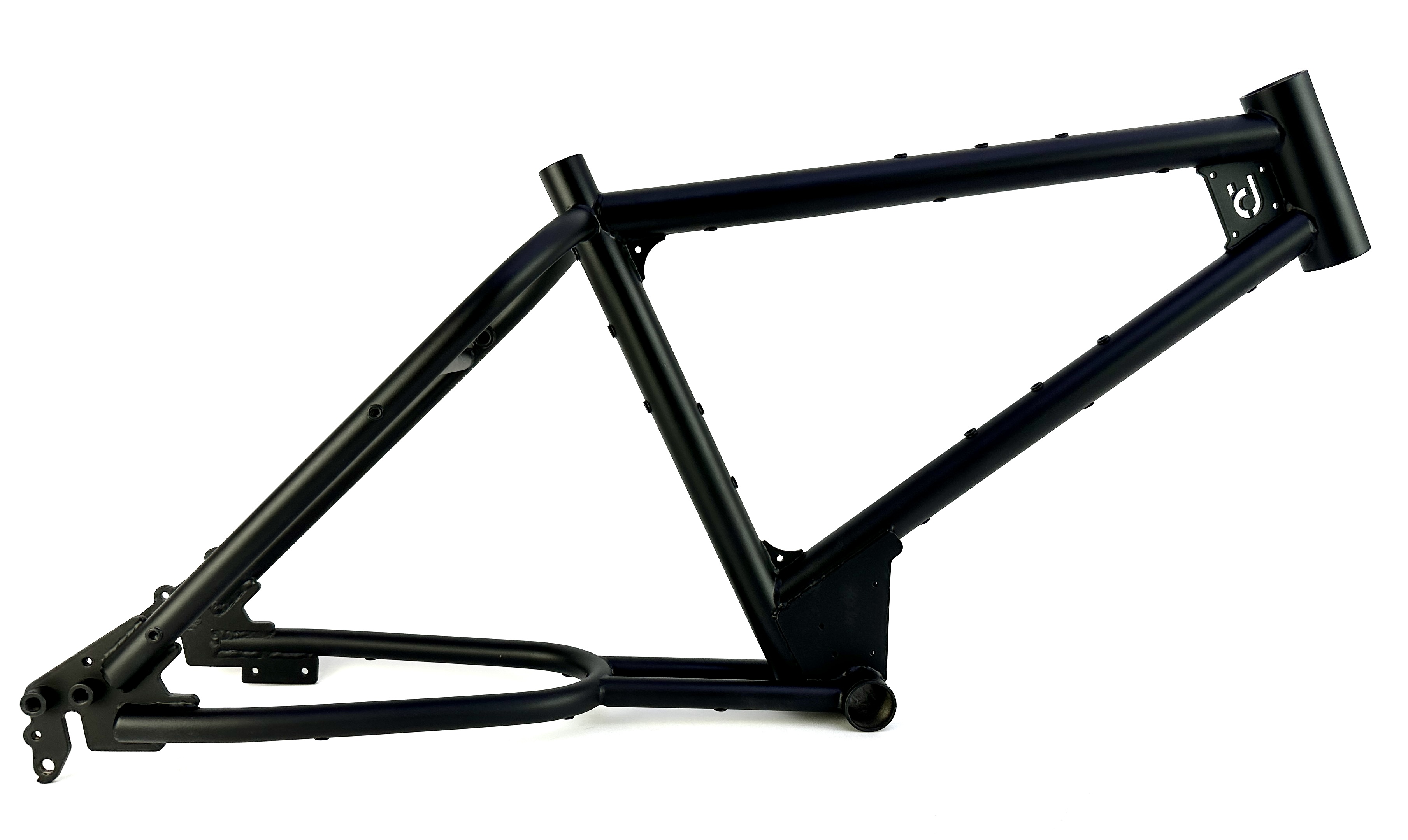

Original UDX hardtail frame, black matte
Product number:
UDX-FRA-BK-100
Product information "Original UDX hardtail frame, black matte"
Original UDX hardtail frame, black matte

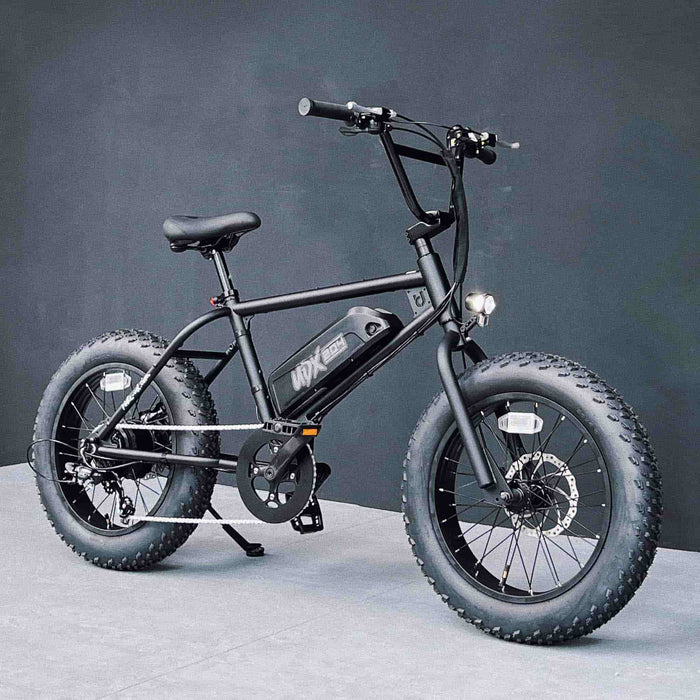

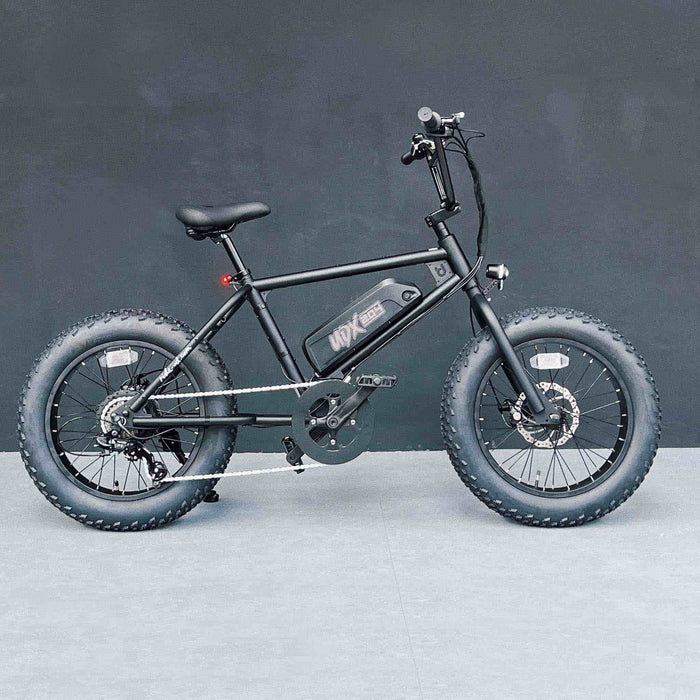

Build your own e-bike!
Made in Europe!
Details:
- Paintwork: black matte powder-coated - slight traces due to production or storing may occur
- Steel
- Hardtail
- Possible rim and tyre sizes: 20" rims up to 102 mm / ~4 inches width, maximum tyre size 20 x 4.0

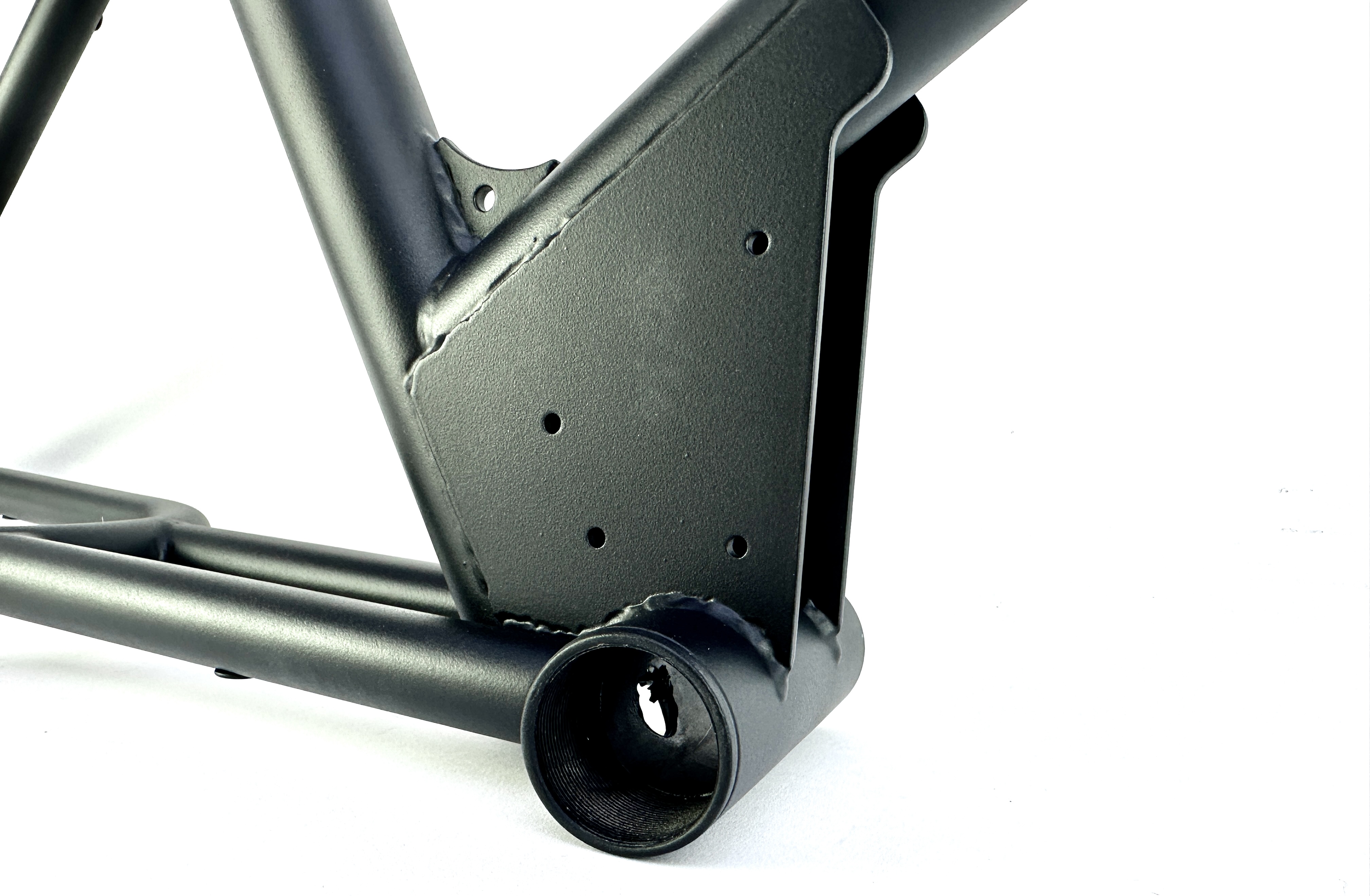

- Bottom bracket: BSA 100 mm / 3,94 inches

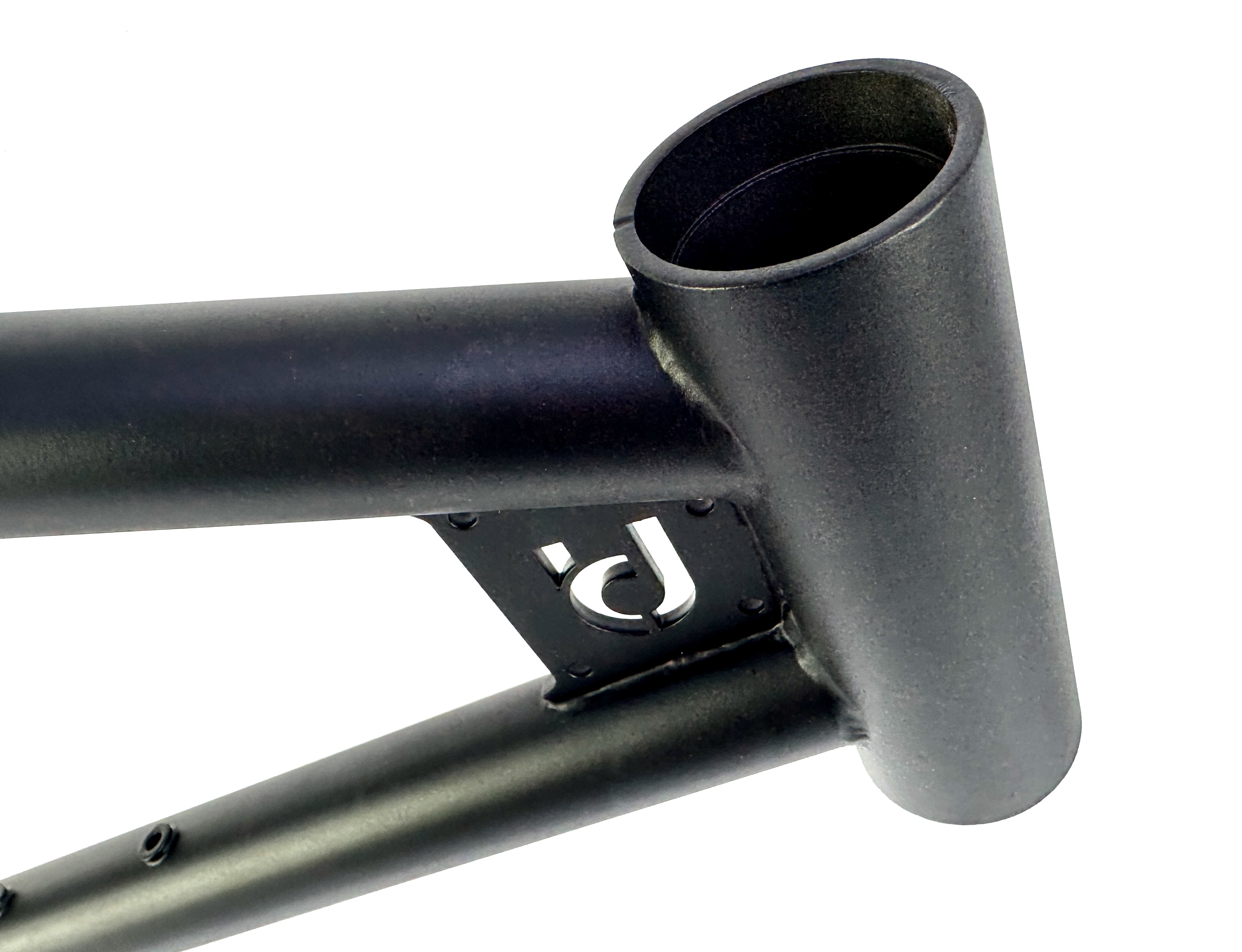

- Head tube diameter: 44 mm / 1,73 inches (measured inside)
- Seatpost mount for 32 / 1,26 inches mm seatposts
- Disc brake mount: yes
- Coaster brake mount: no
- derailleur: yes
- Side stand plate: yes

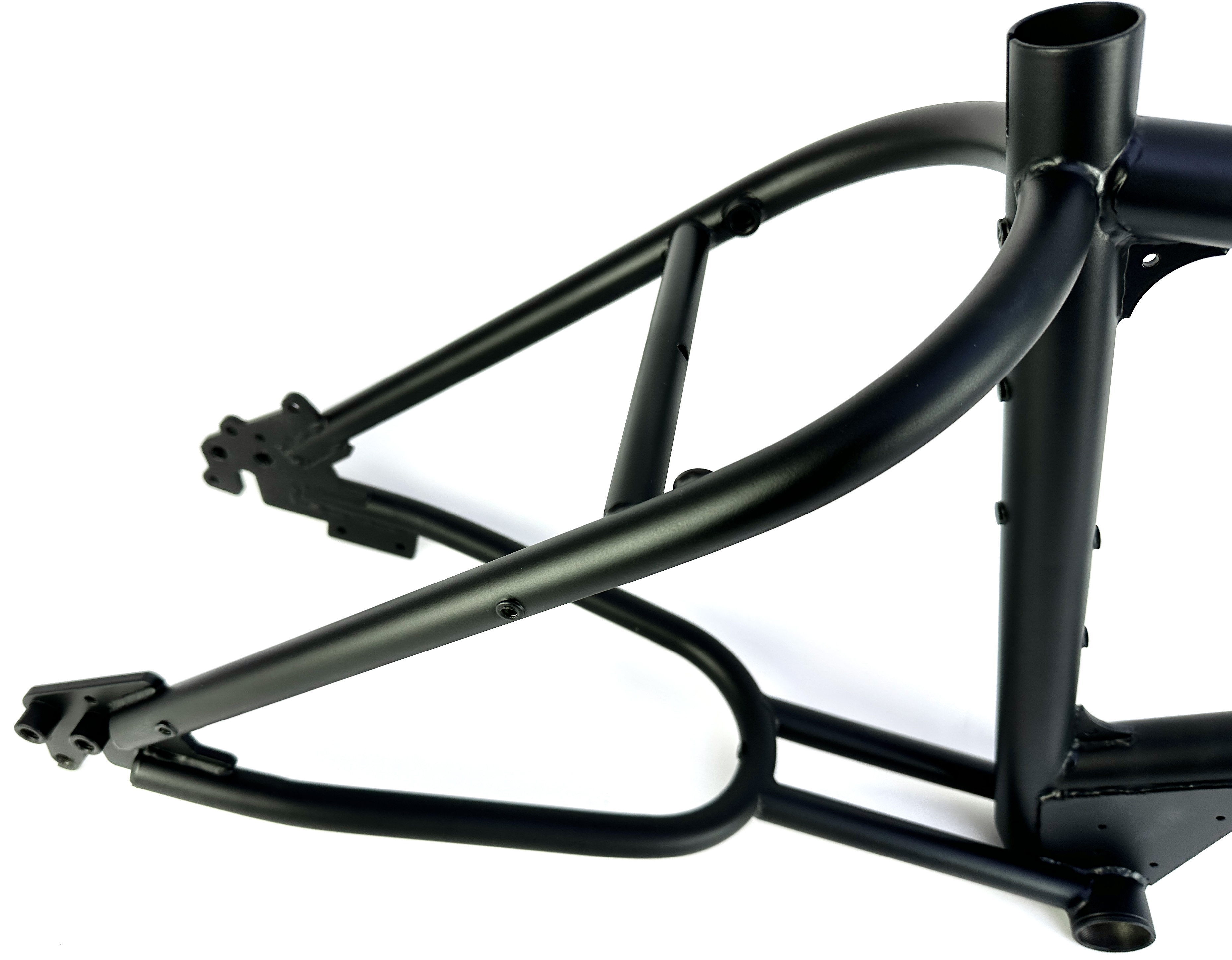

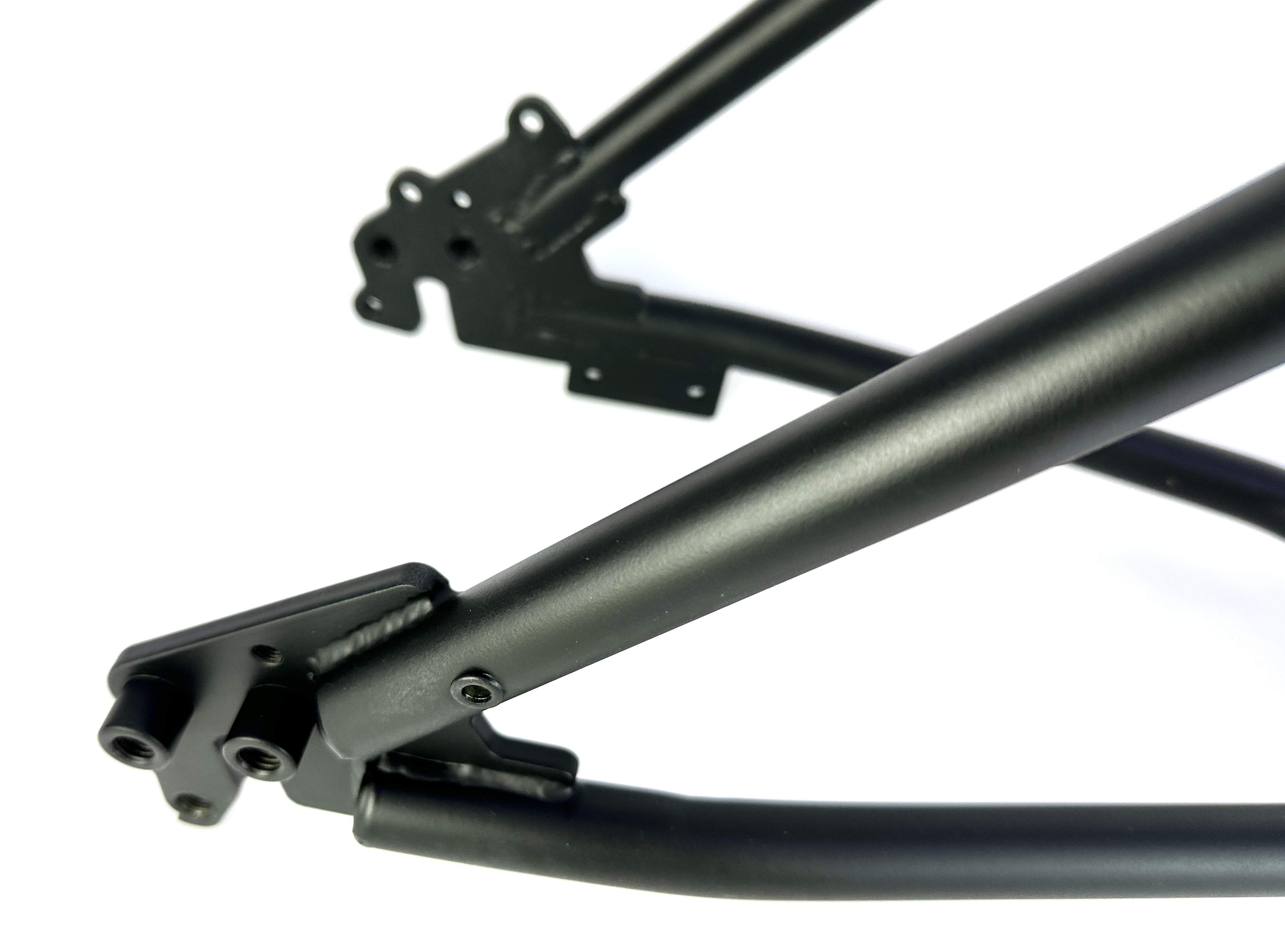

- Various mounting points on the rear triangle
- Head tube length: 150 mm / 5,90 inches
- Rear triangle width: 195 mm / 7,67 inches
- Dimensions:
- seat post mount -> head tube: ~ 565 mm / 22,24 inches
- seat post mount -> bottom bracket: ~ 470 mm / 18,5 inches
- seat tube: ~ 440 mm / 17,32 inches
- Weight: ~ 5.8 kg / 12,78 lbs
- various mounting points for e.g. batteries, controller....
Original frame from the UDX bike series by Urban Drivestyle Berlin!
