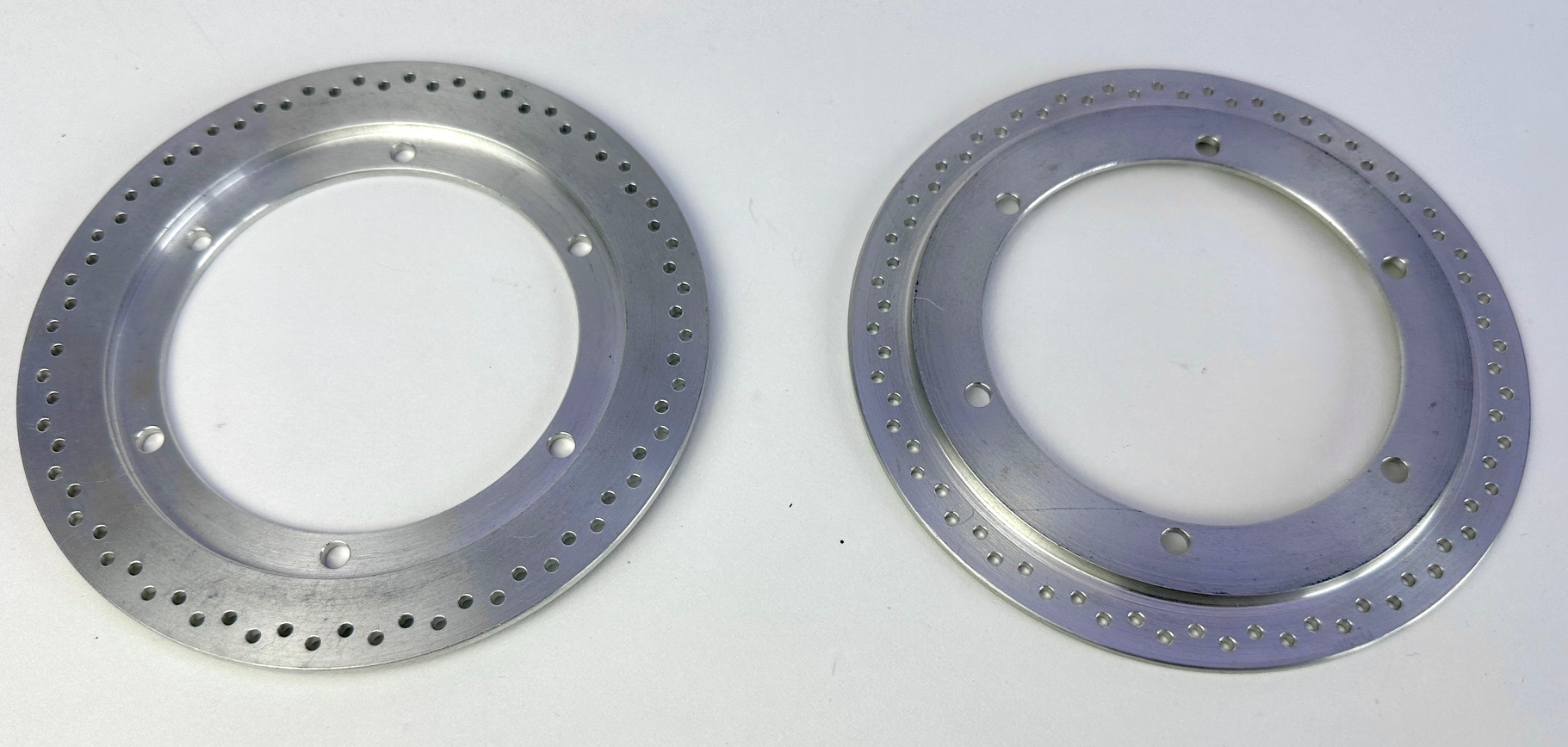

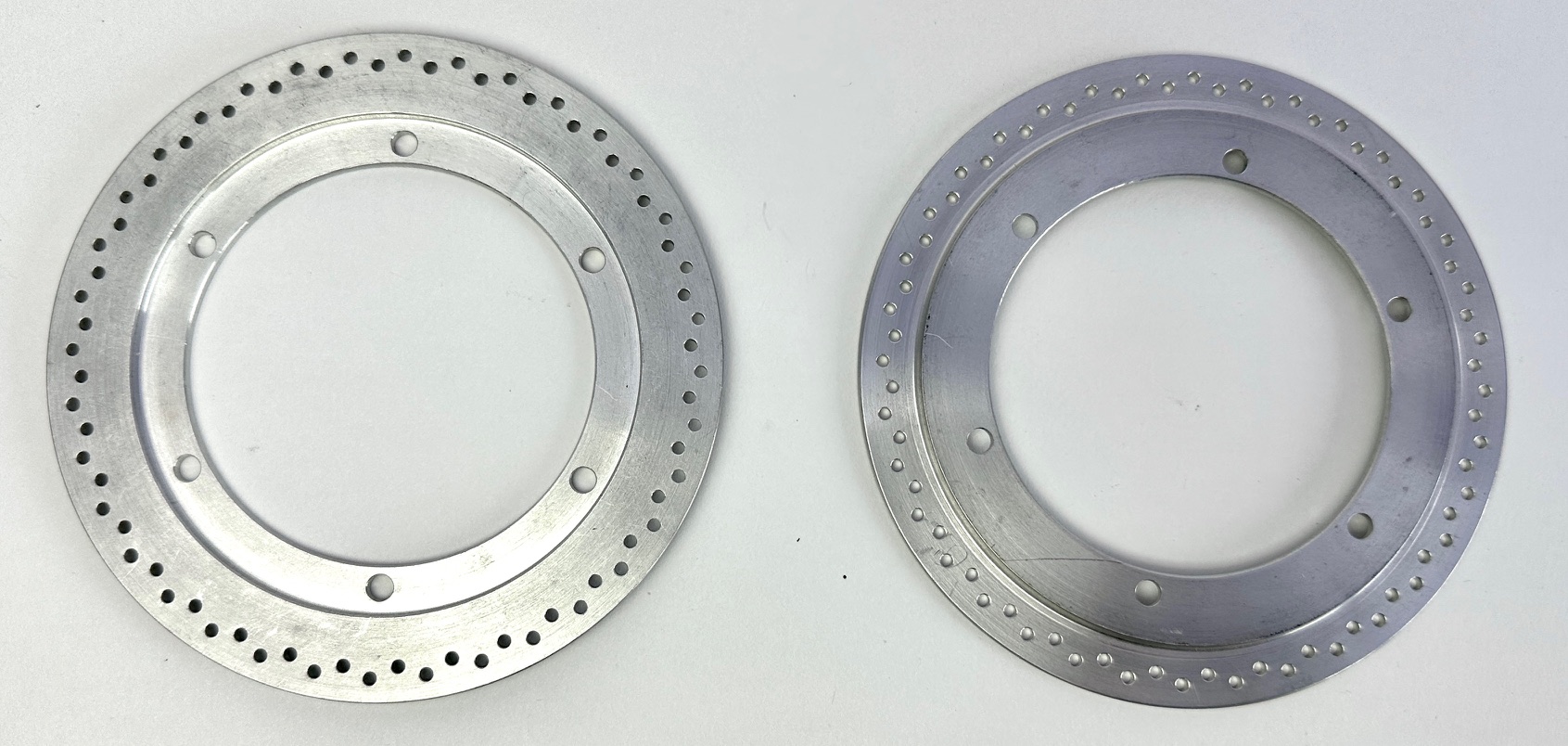

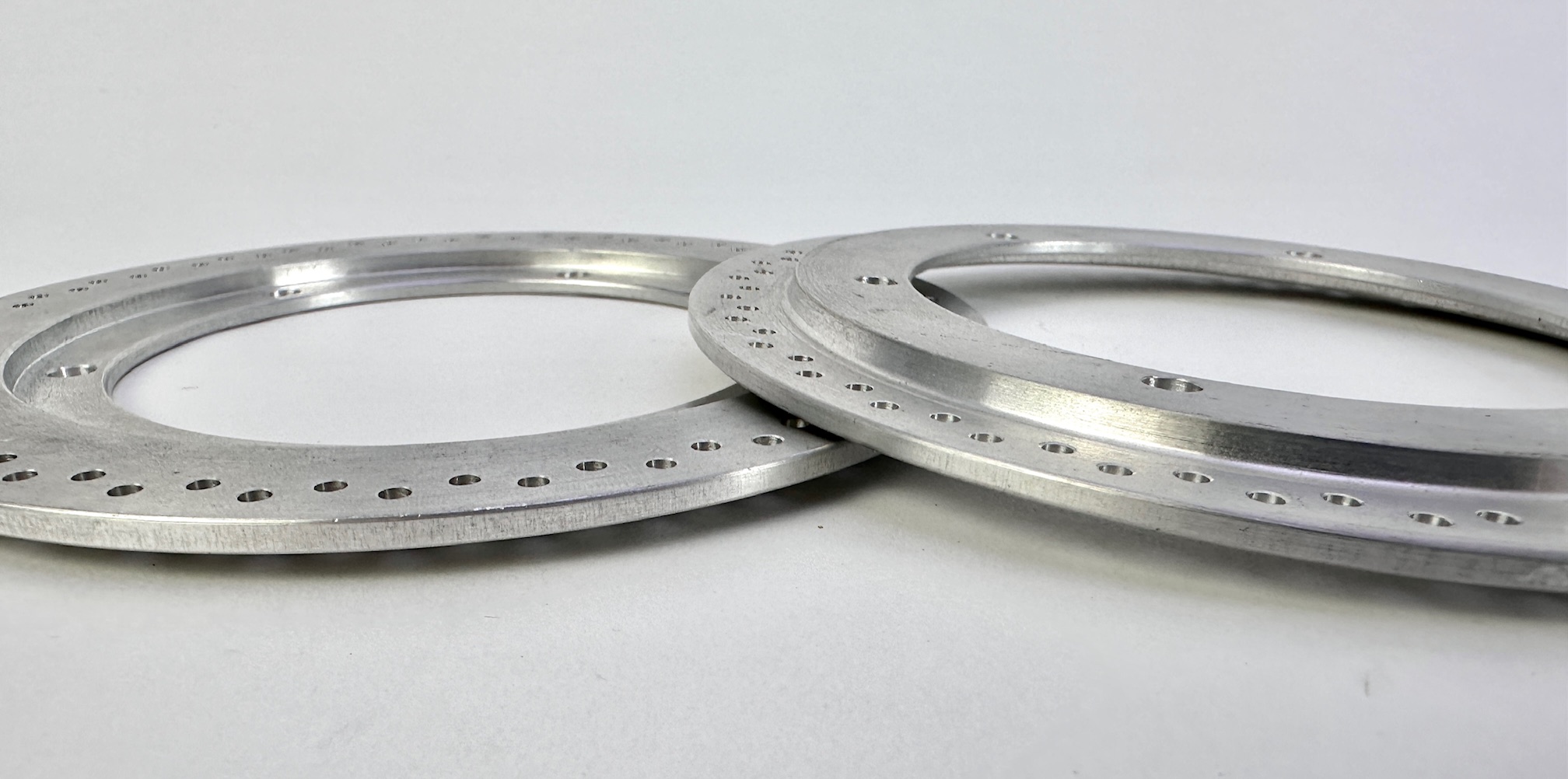

144 hole flange adapter 134 mm Aluminium

Classic Cycle

€69.95*

Prices incl. VAT plus shipping costs

Product number: RD-FA-134-AL

Product information "144 hole flange adapter 134 mm Aluminium"

144 hole flange adapter 134 mm

With the help of this adapter you can easily increase the number of spokes to 144!

For mounting between hub and a 144-hole rim
Fits Sturmey Archer SX-RK3
Material: Aluminium
Supplied with stainless steel bolts and self-locking nuts (12 pieces each)
Diameter: inner 81 mm, outer 134 mm
Bolt circle diameter = bolt circle diameter of the hub: ~ 90 mm
Offset: 3 mm

To calculate the spoke length:

Pitch circle of outer spoke holder: ~ 124 mm
Pitch circle of inner spoke holder: ~ 120 mm
