144 hole flange adapter for Shimano 3-speed Nexus

Classic Cycle

€59.95*

Prices incl. VAT plus shipping costs

Product number: KH-8475sw

Product information "144 hole flange adapter for Shimano 3-speed Nexus"

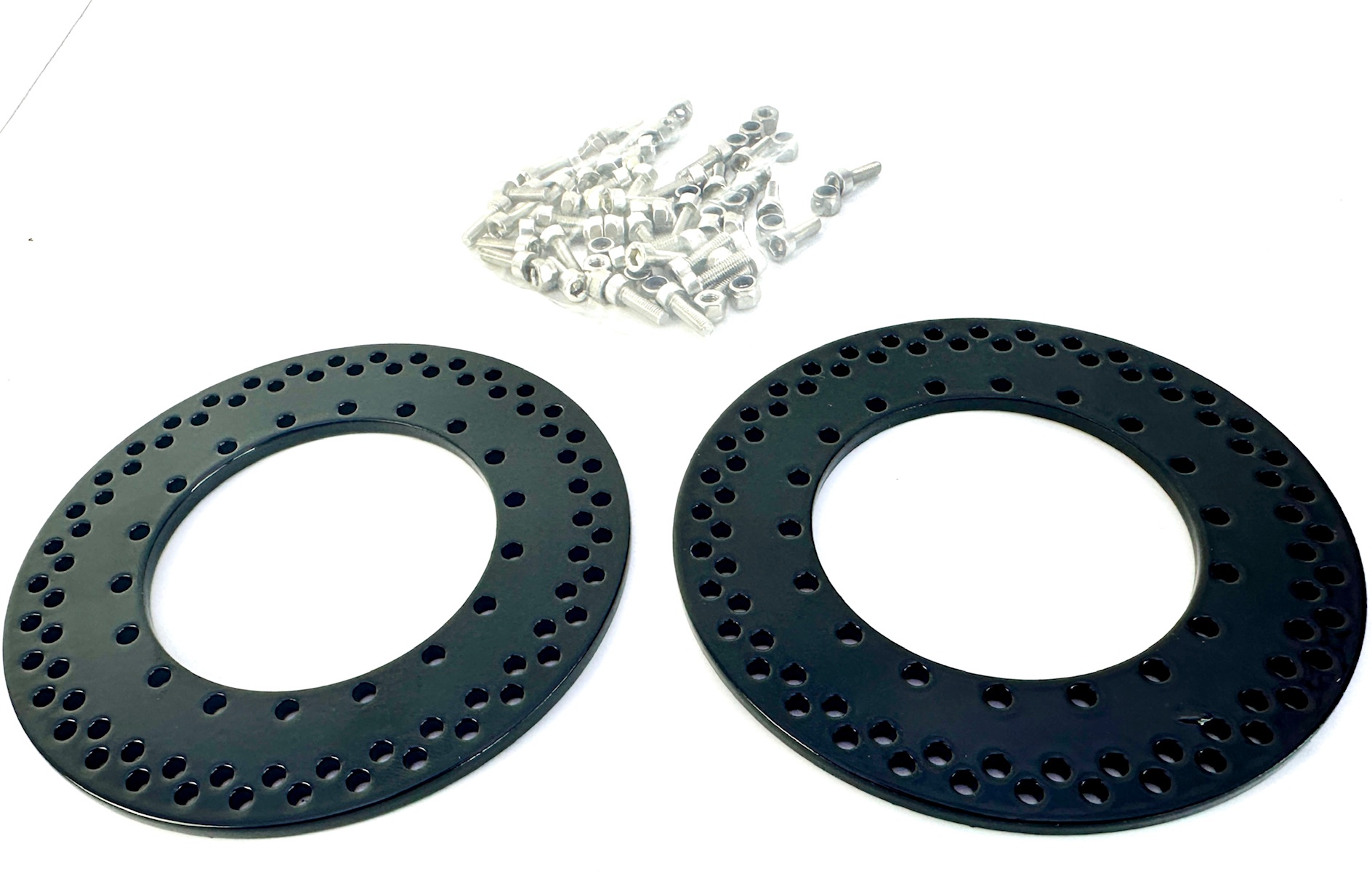

144 hole flange adapter for Shimano 3-speed Nexus

With the help of this adapter you can easily increase the number of spokes to 144!

For mounting between a 3-speed Shimano coaster brake hub and a 144-hole rim
Material: black steel
Supplied with stainless steel bolts and self-locking nuts (36 pieces each)
Diameter: inner 53 mm, outer 93 mm
Bolt circle diameter = bolt circle diameter of the hub: 59 mm

To calculate the spoke length:

Pitch circle of outer spoke holder: ~ 85 mm
Pitch circle of inner spoke holder: ~ 78 mm
