UD Seat Bracket / Hinge for short seat UD Swing and Uni MK
€24.95*
Available, delivery time: Instant download
Product information "UD Seat Bracket / Hinge for short seat UD Swing and Uni MK"

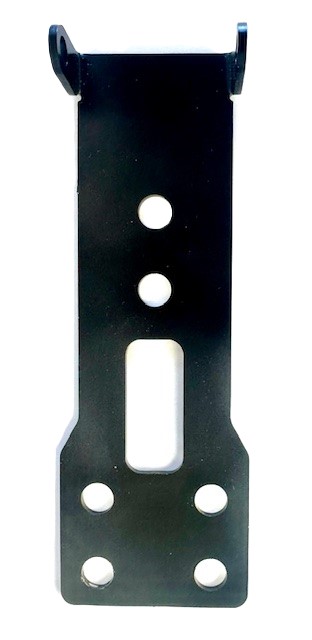

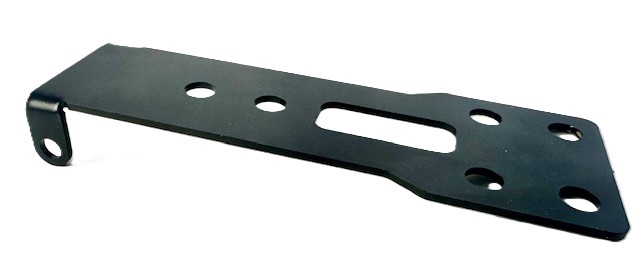

Seat Bracket / Hinge for Short Seat – Suitable for Urban Drivestyle Uni MK & Swing
Give your Urban Drivestyle bike maximum functionality and comfort. This specially developed seat bracket with hinge function allows your short seat to fold smoothly and securely. Whether for quick access to underlying components or for convenient maintenance work – the custom-made bracket ensures reliable, wobble-free movement. The bracket is made of high-strength 2 mm thick steel and features a durable black powder coating that provides optimal protection against corrosion and scratches. Installation is straightforward and done directly on the underside of the seat using three M8 screws.
Compatibility:

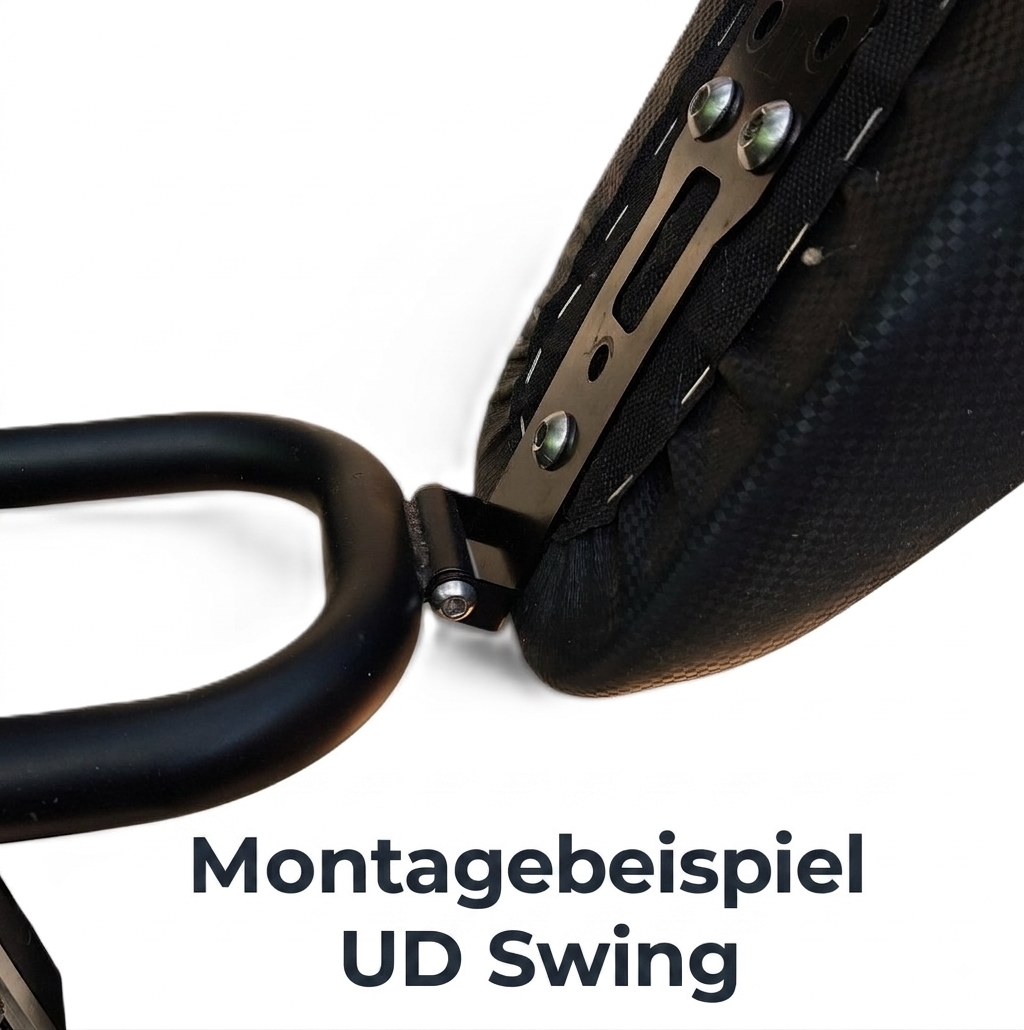

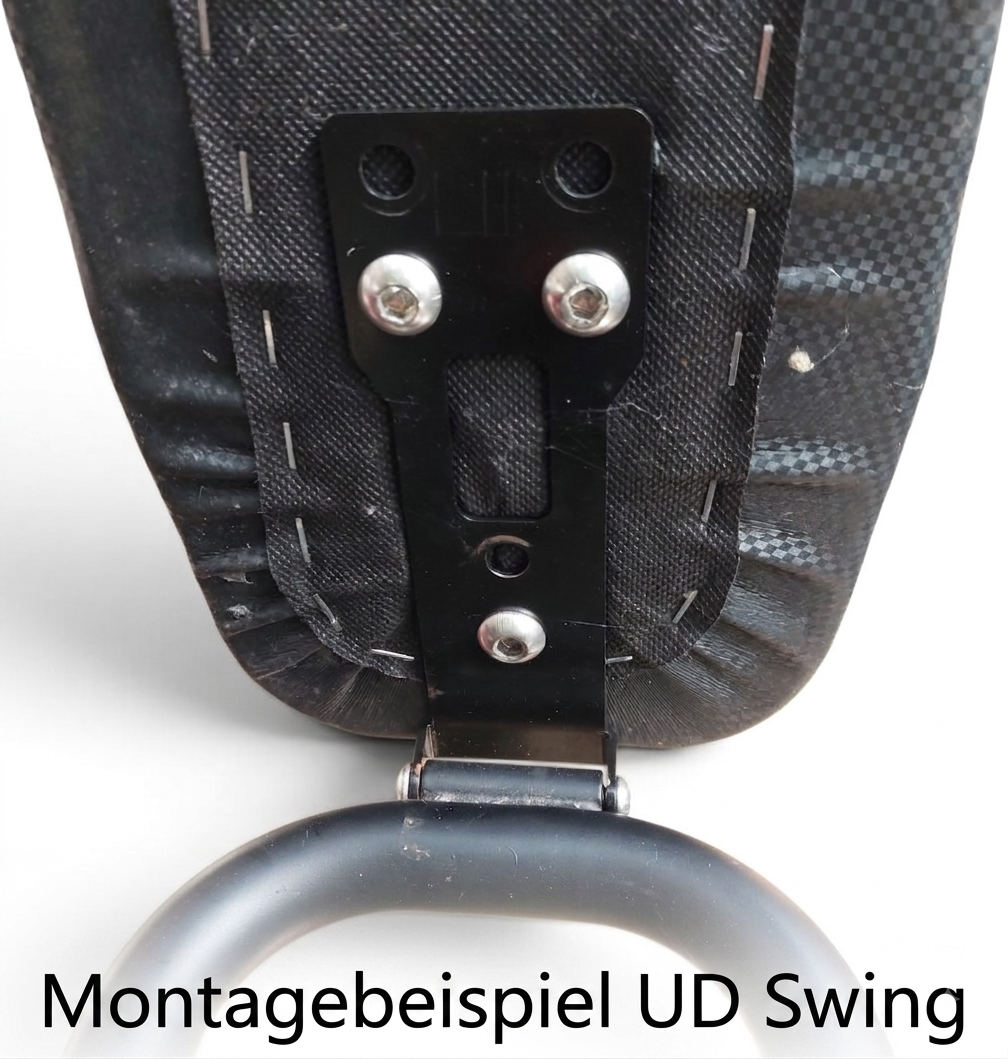

Swing: Direct fit.

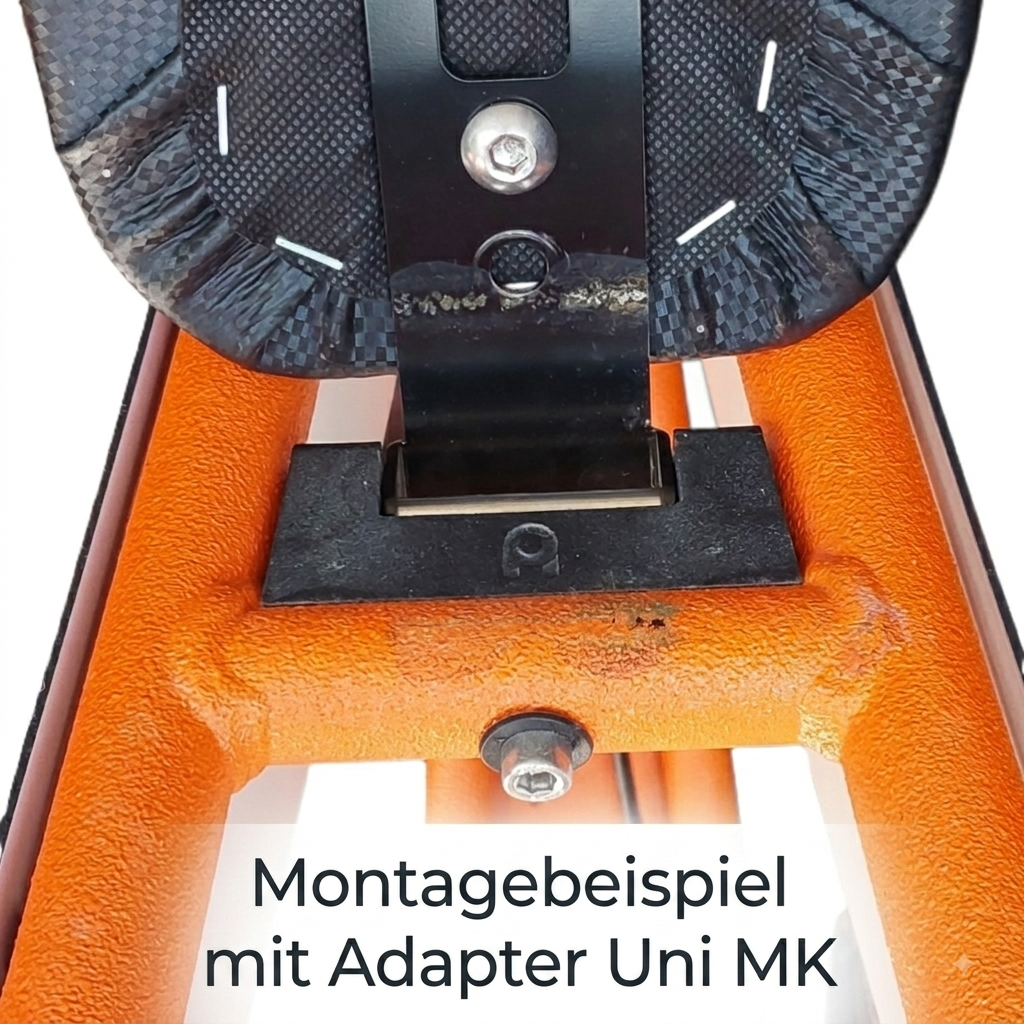

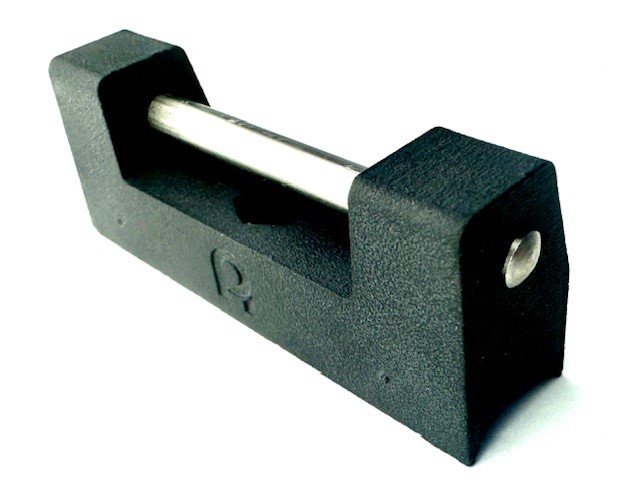

Uni MK: Only usable with the corresponding adapter (only fits frames from version V3 onwards).
Technical Data & Product Details:
Material: Steel, high-quality powder-coated
Color: Black
Dimensions: 144 mm × 50 mm × 2 mm
Attachment to seat: 3× M8 threaded connection
Package Includes:
1× Seat bracket / Hinge
3× M8 mounting screws
⚠️ Important Note: The hinge pin required for the folding function is not included in the scope of delivery.
