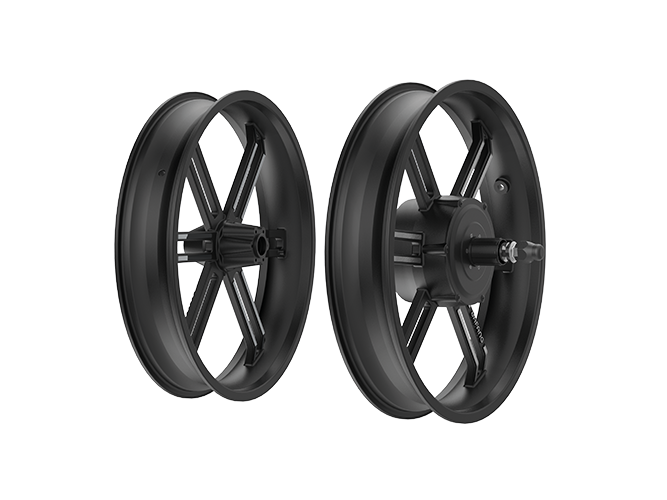

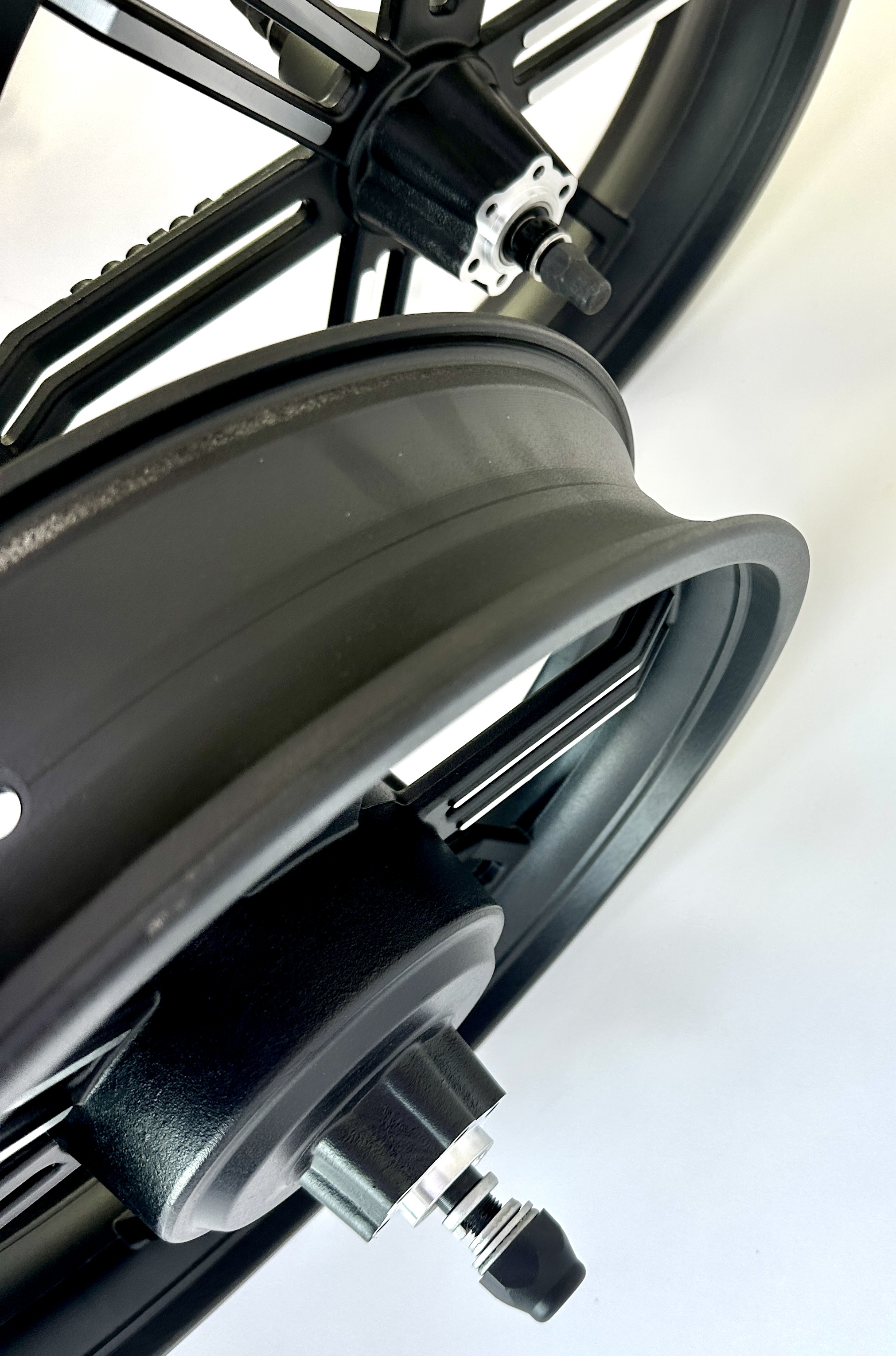

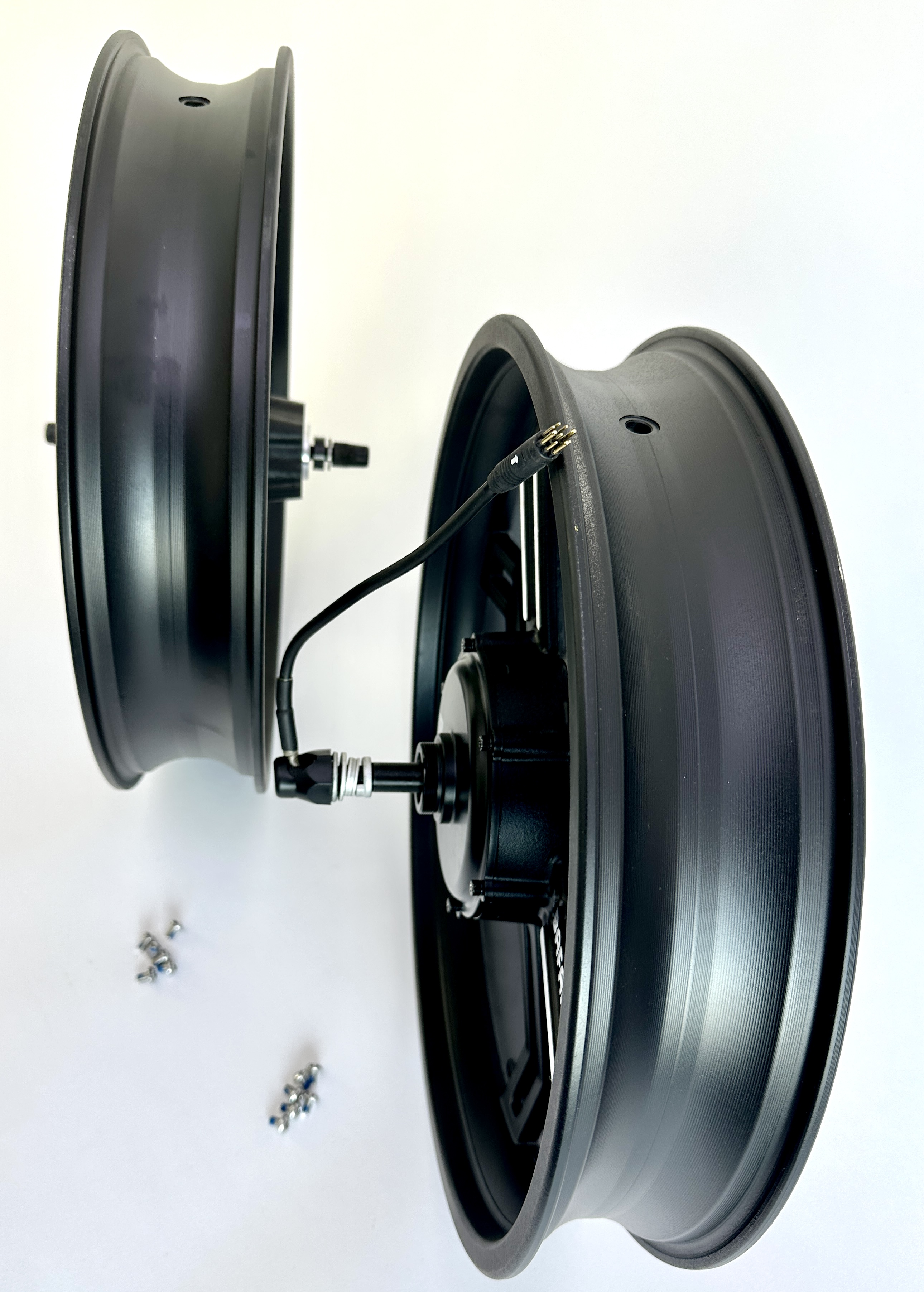

204 Bafang wheel set die-cast aluminium with 500W motor, 20 x 4

€499.95*

Product number: BAF-G0F0-48V-MC-SET
Product information "204 Bafang wheel set die-cast aluminium with 500W motor, 20 x 4"

204 Bafang wheel set with 500W motor, die-cast aluminium, 20 x 4


Technical specifications rear wheel:

  • Position: rear wheel motor
  • Wheel diameter (inches): 20
  • Construction: Geared motor
  • Rated voltage: 48V
  • Rated power: 500W peak
  • Control power: 250W
  • Factory set for support up to 25 km/ can be overridden by controller
  • Max torque: 80 N.m
  • Power: ≥ 80
  • Colour: Black / Silver
  • Operating temperature: -20 - 45℃
  • Volume: <60

Installation parameters rear wheel:

  • Brake: disc brake mount, 44 mm 6 holes
  • Installation width: 180 mm
  • Max. Diameter rim: 422 mm

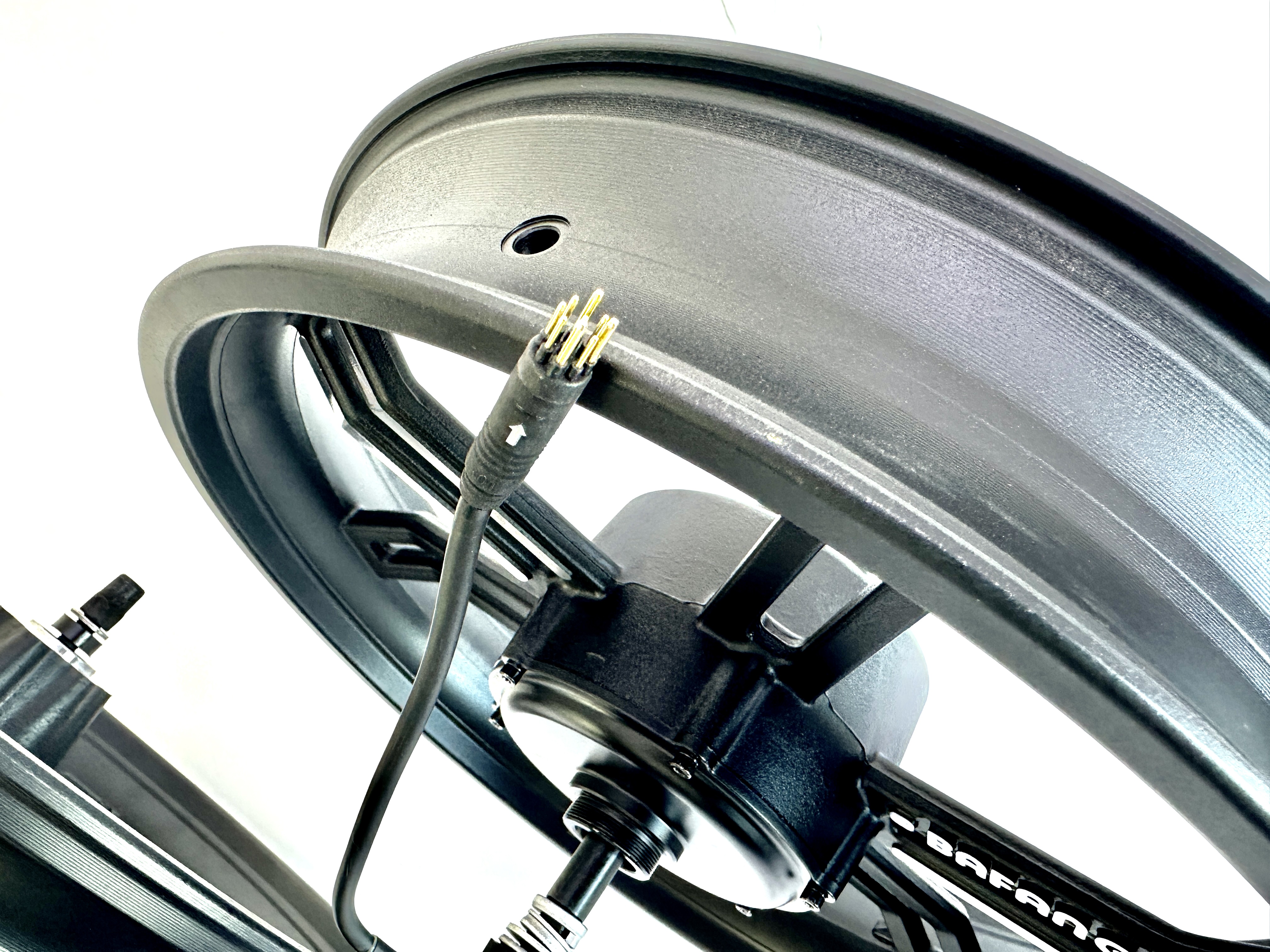

  • Cable connection: Shaft, right side
  • Cable length: ~ 200 mm
  • Connection: 9 Pin Jullet, male

Technical specifications front wheel:

  • Position: front wheel
  • Wheel diameter (inches): 20
  • Colour: Black / Silver

Installation parameters front wheel:

  • Installation width: 135 mm
  • Max. Diameter rim: 422 mm
  • Brake: Disc brake mount, 44 mm 6 hole

Tests & Certification:

  • IP Code: IP X5
  • Certification: ROHS / CE
  • Salt Spray Test Standard(h): 96

Special features:

  • Including installation material like pictured.
  • Weight: ~ 10 kg

Dimensions:

Dim A

100 mm

Dim B

76.6 mm

Dim C

422 mm

Dim D

44 mm

Dim E

33 mm

Dim F

2-M12X1.25-6g

Dim G

0

Dim H

26.5 mm

Dim I

15.25 mm

Dim OLD

175 mm

Dim WL

87.5 mm

Dim WR

87.5 mm

0 of 0 reviews

Leave a review!

Share your experiences with other customers.


Accessory Items

%

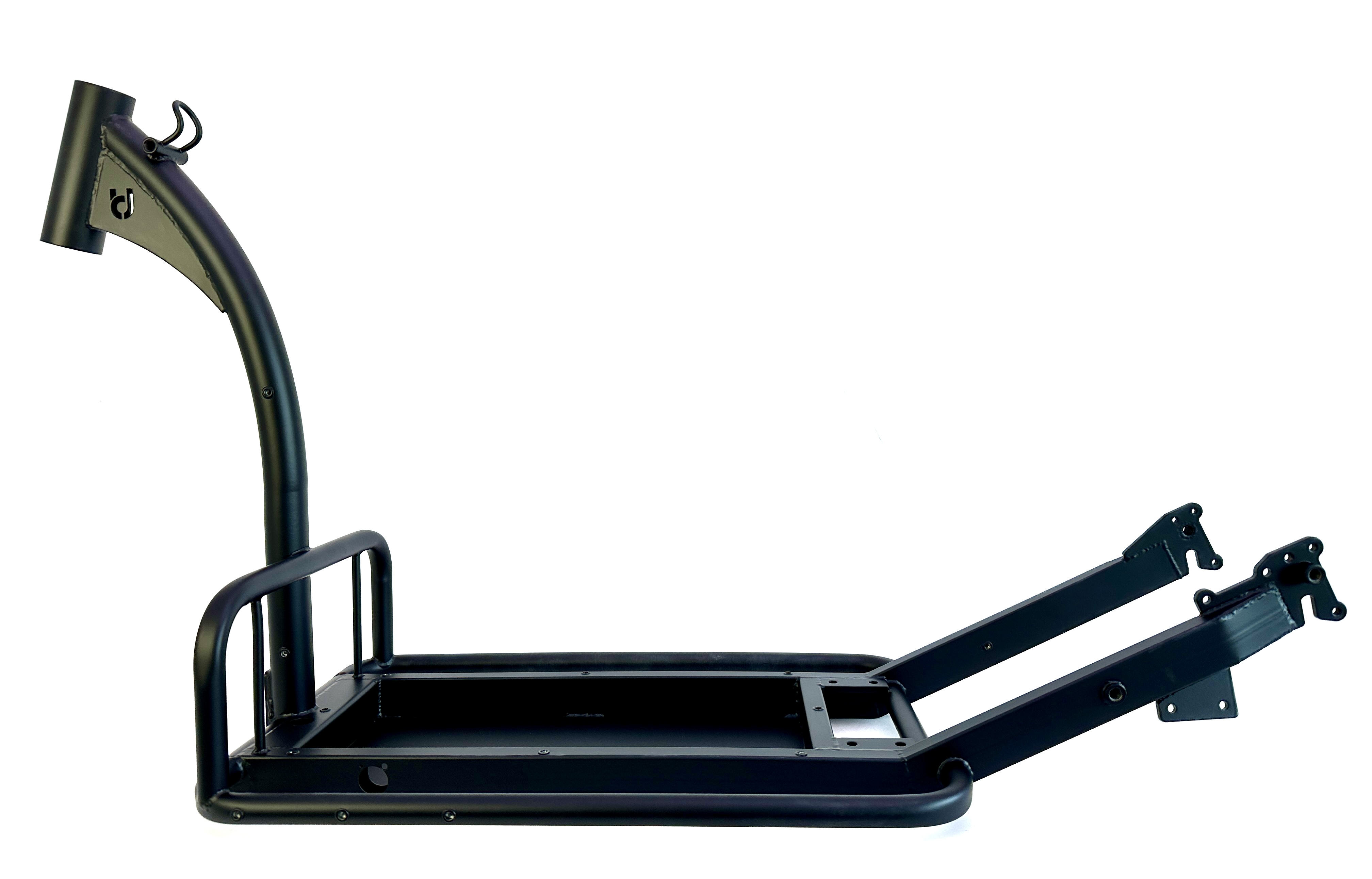

Original Boost scooter frame, black matt UNI-FRA-BOO-BLA
Original Boost scooter frame, black mattBuild your own e-scooter Made in Europe! The UNI Boost frame is made of chromoly steel and sets new standards in terms of robustness, safety and multifunctionality. It can be equipped with an extra large footprint that can comfortably accommodate the rider plus cargo. The Boost frame is designed for the wide 20 × 4 inch tires typical of Urban Drivestyle, giving the unique look while providing comfort and secure grip on the road. Curbs, potholes and streetcar tracks are no longer a problem. Details:Paint finish: matte black powder coat - may show production and storage related marks.CROMOLY steelScooterPossible rim and tire sizes: 20" rims up to 102 mm width, maximum tire size 20 x 4.0 / 20x 4 1/4Head tube diameter: 44 mm (measured inside)disc brake mount: yesside stand plate: yesvarious mounting points on the rear trianglehead tube length: 150 mmrear triangle width: 195 mmweight: approx. 9.8 kgvarious mounting points for e.g. batteries, controller....Original frame of the Boost series from Urban Drive Style Berlin!

€299.95* €449.95* (33.34% saved)
New

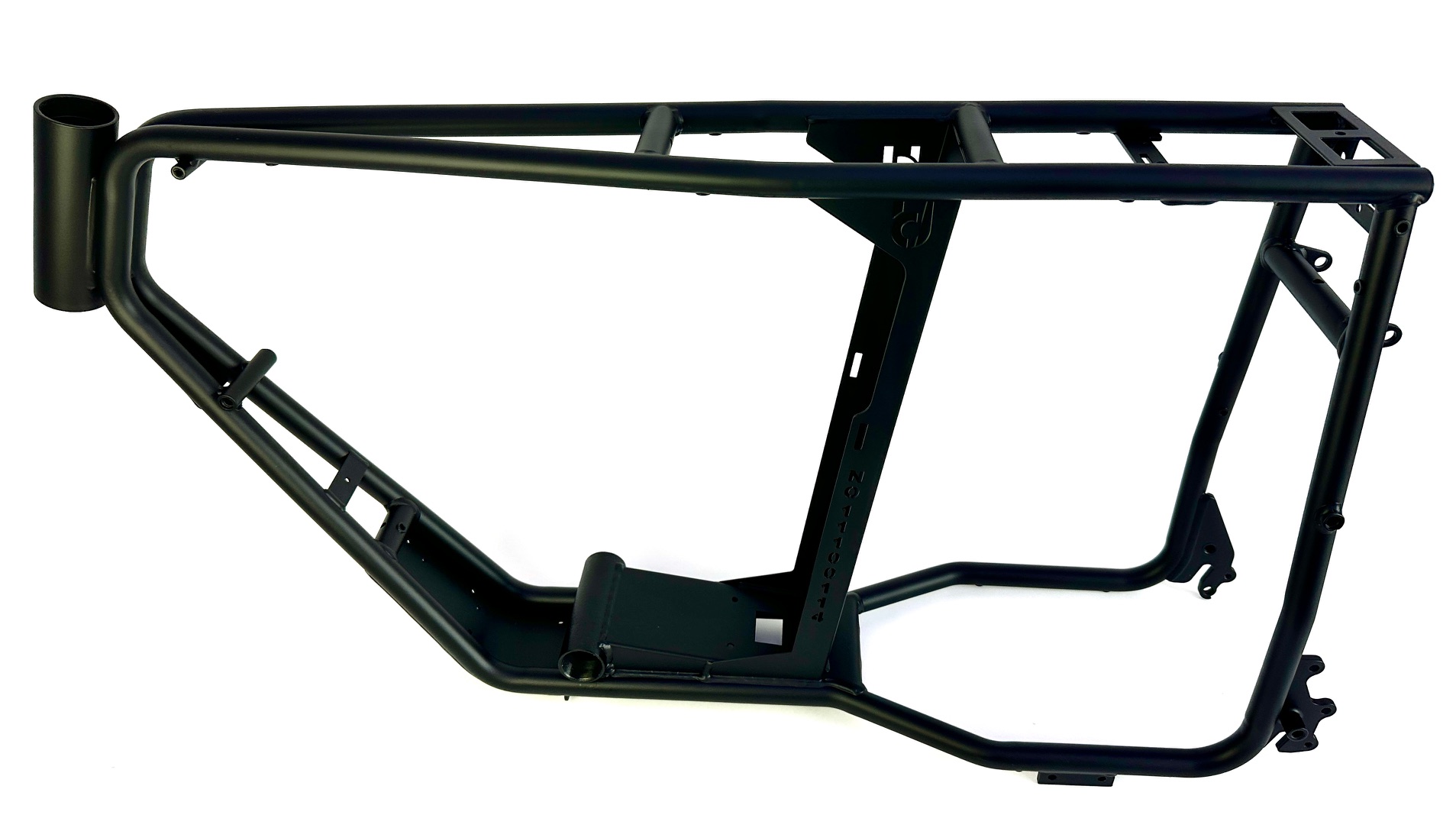

UNI MK Moke E-Bike Frame Urban Drivestyle UNI-FRA-MOK-BLA
UNI MK Moke E-Bike Frame Build your custom e-bike with the classic UNI MK e-bike frame in matte black. The UNI MK E-Bike frame comes in a classic moped design and can also be equipped with UNI MK long seat and all UD racks - just as you wish. It is 100% made of high quality ChroMo steel in Germany. Properties Material: High quality ChroMoly steel Color: Deep black Steering head bearing: 44 mm diameter / 70° inclination Bottom bracket: 120 mm length / 1.37 inch x 24 TPI diameter & thread Wheelbase: 1126 mm Max. Wheel size: 20 x 4 1/4 inch Axles: 10 mm front wheel / 14 mm rear wheel (12 mm flat for wheel mounting) Frame height (without handlebars): 465 mm Includes: Frame without fork Weight: ~ 8,1 kg Original Frame UD Moke series from Urban Drivestyle Berlin!

€399.95*
New

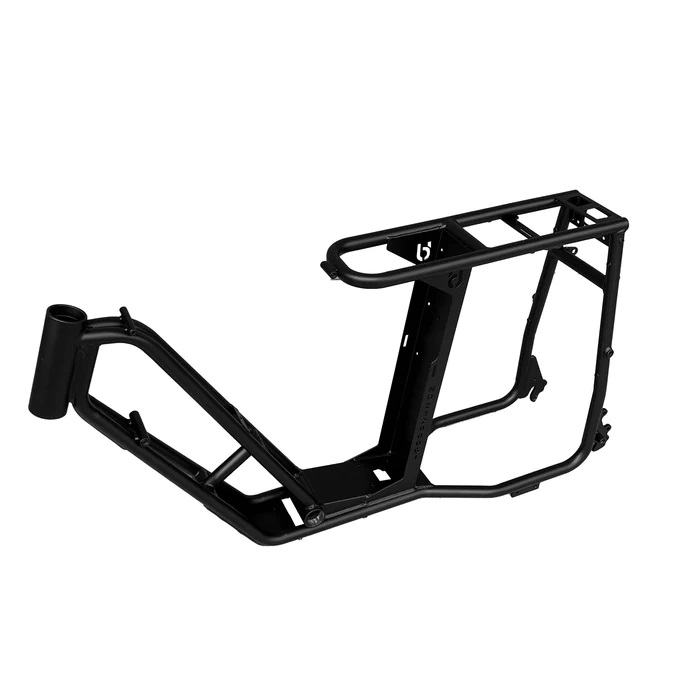

UNI Swing E-Bike Frame from Urban Drivestyle Berlin UNI-FRA-SWI-BLA
