Custom Frame original B46, raw

Classic Cycle

€399.95*

Prices incl. VAT plus shipping costs

1 Review

Product number: CC117

Community Bilder

Product information "Custom Frame original B46, raw"

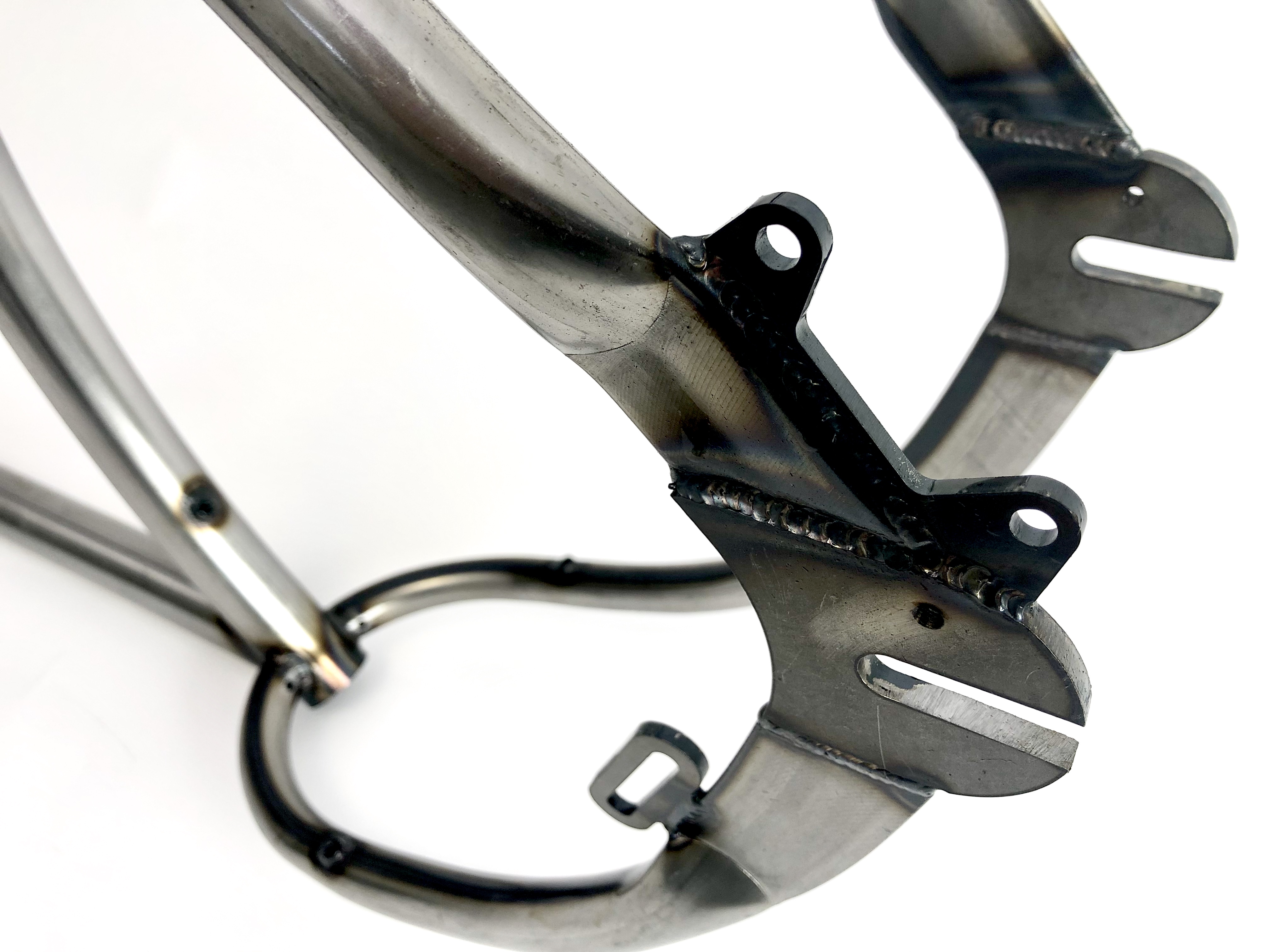

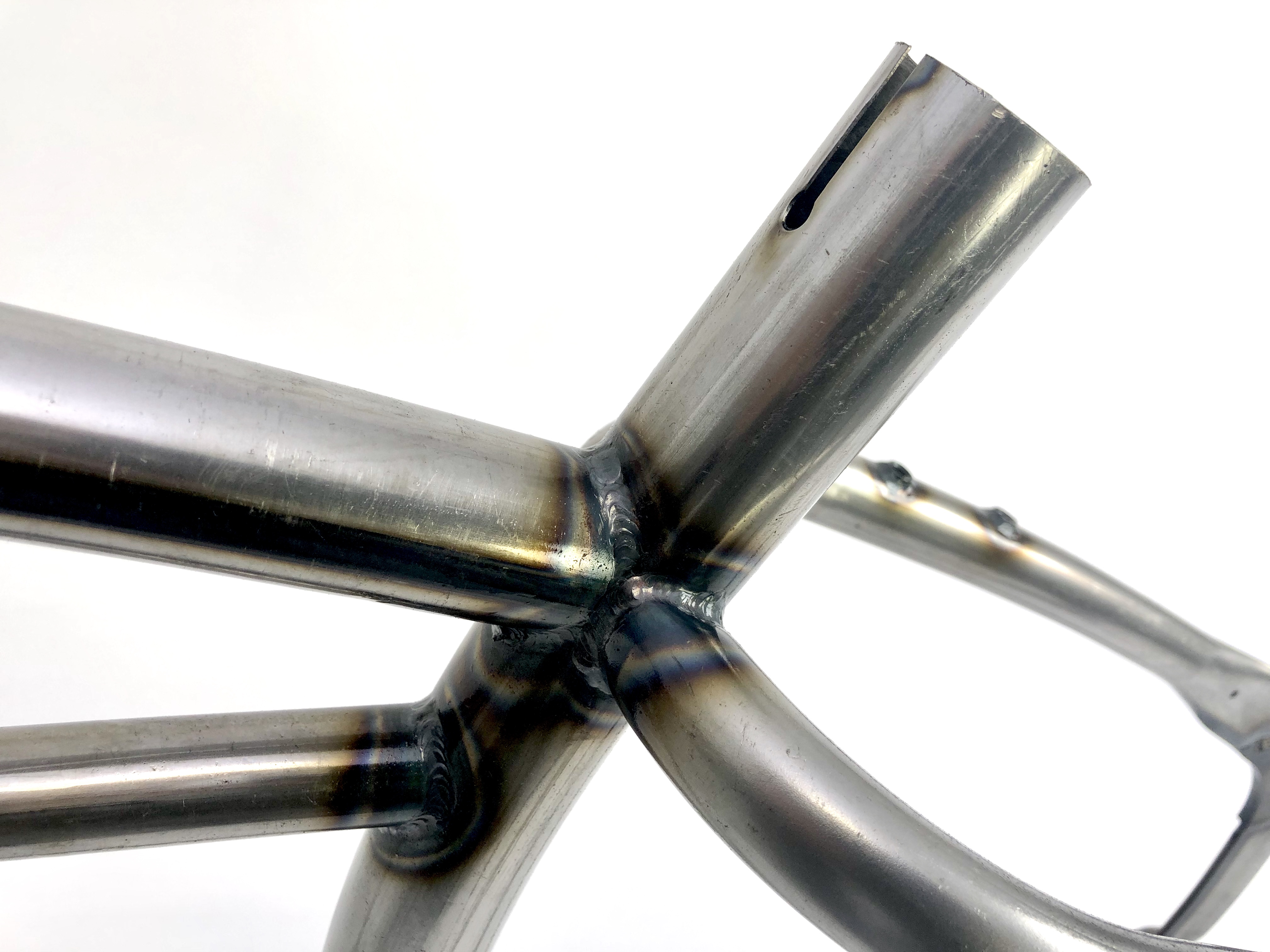

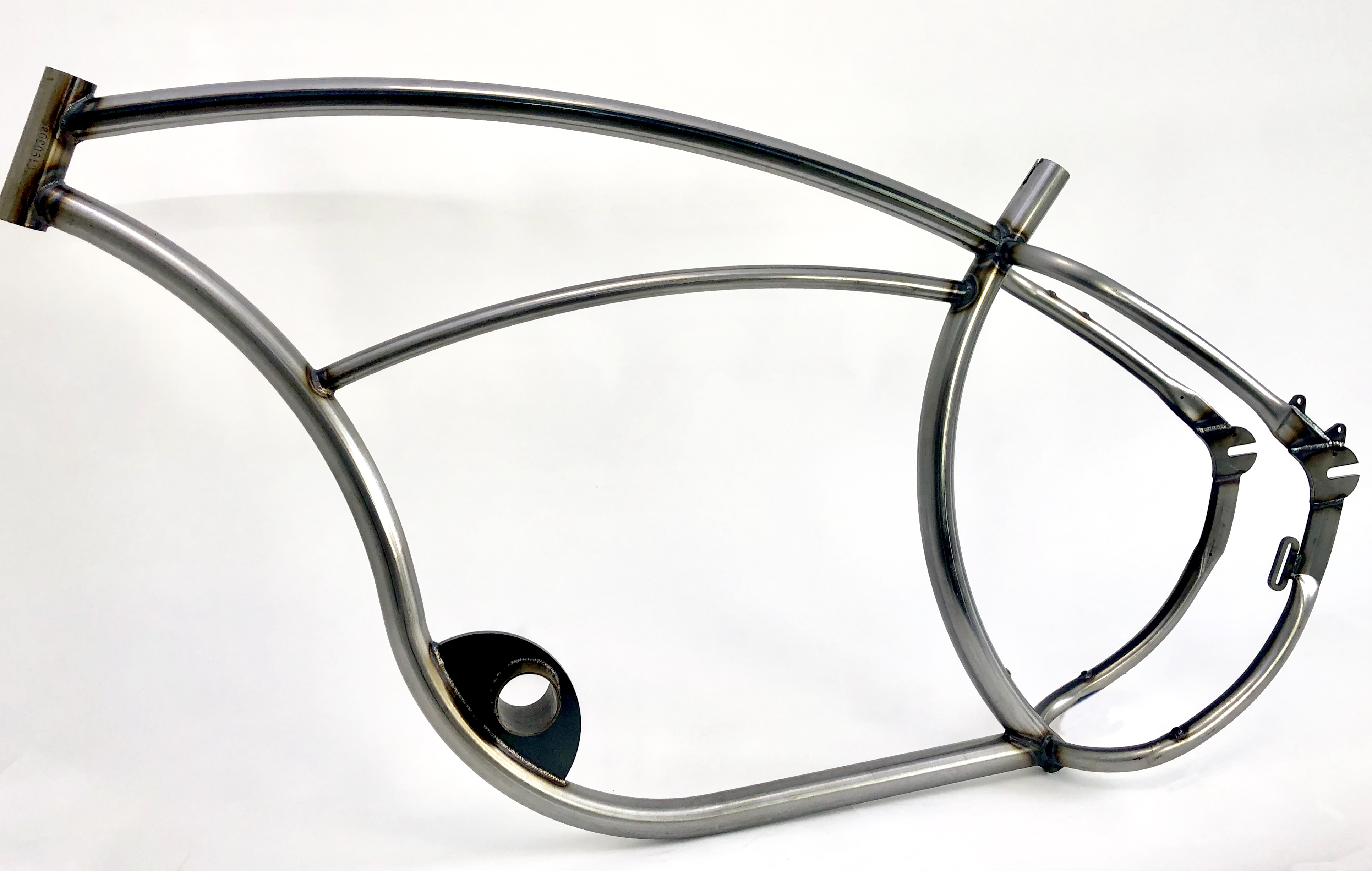

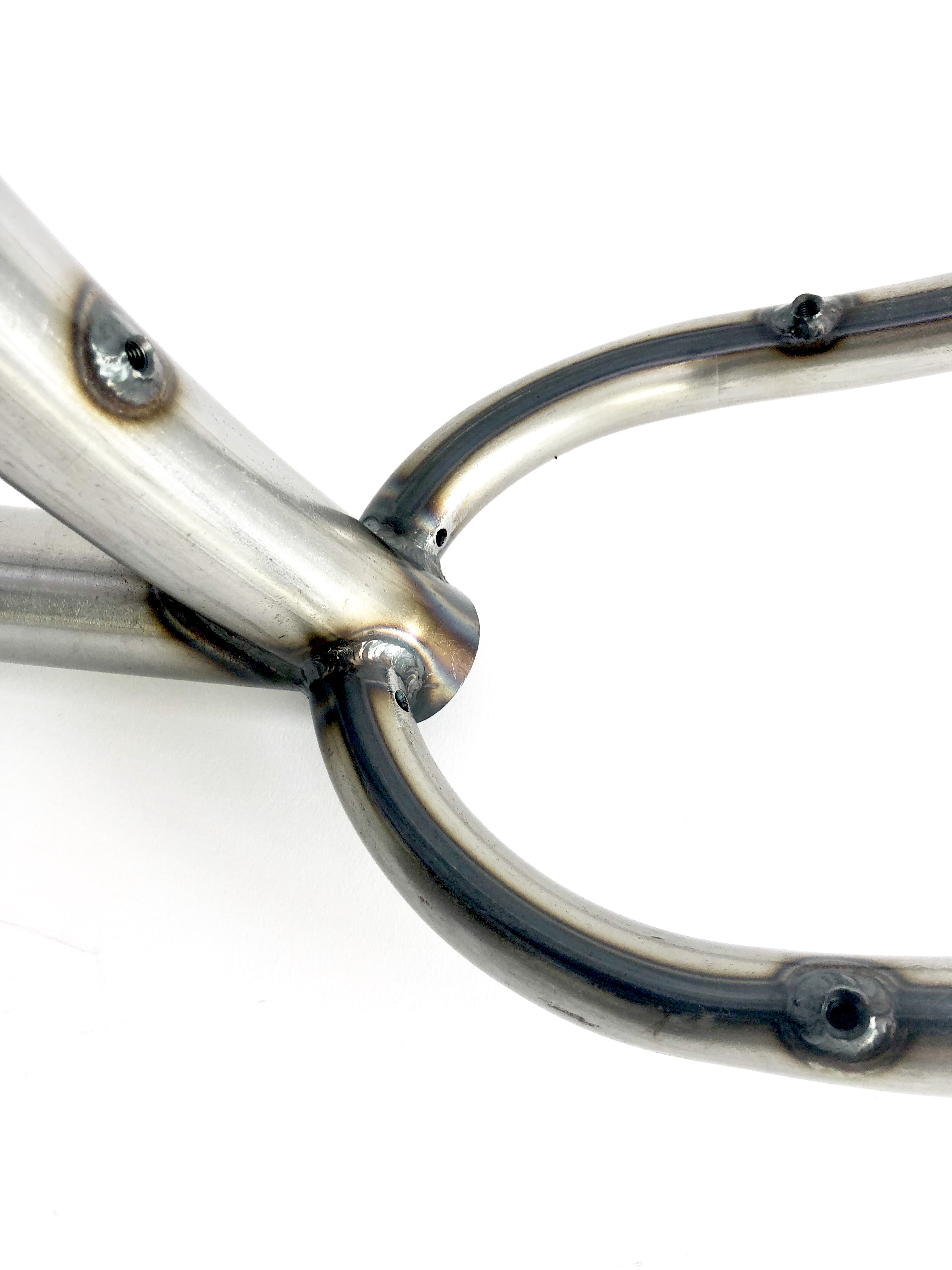

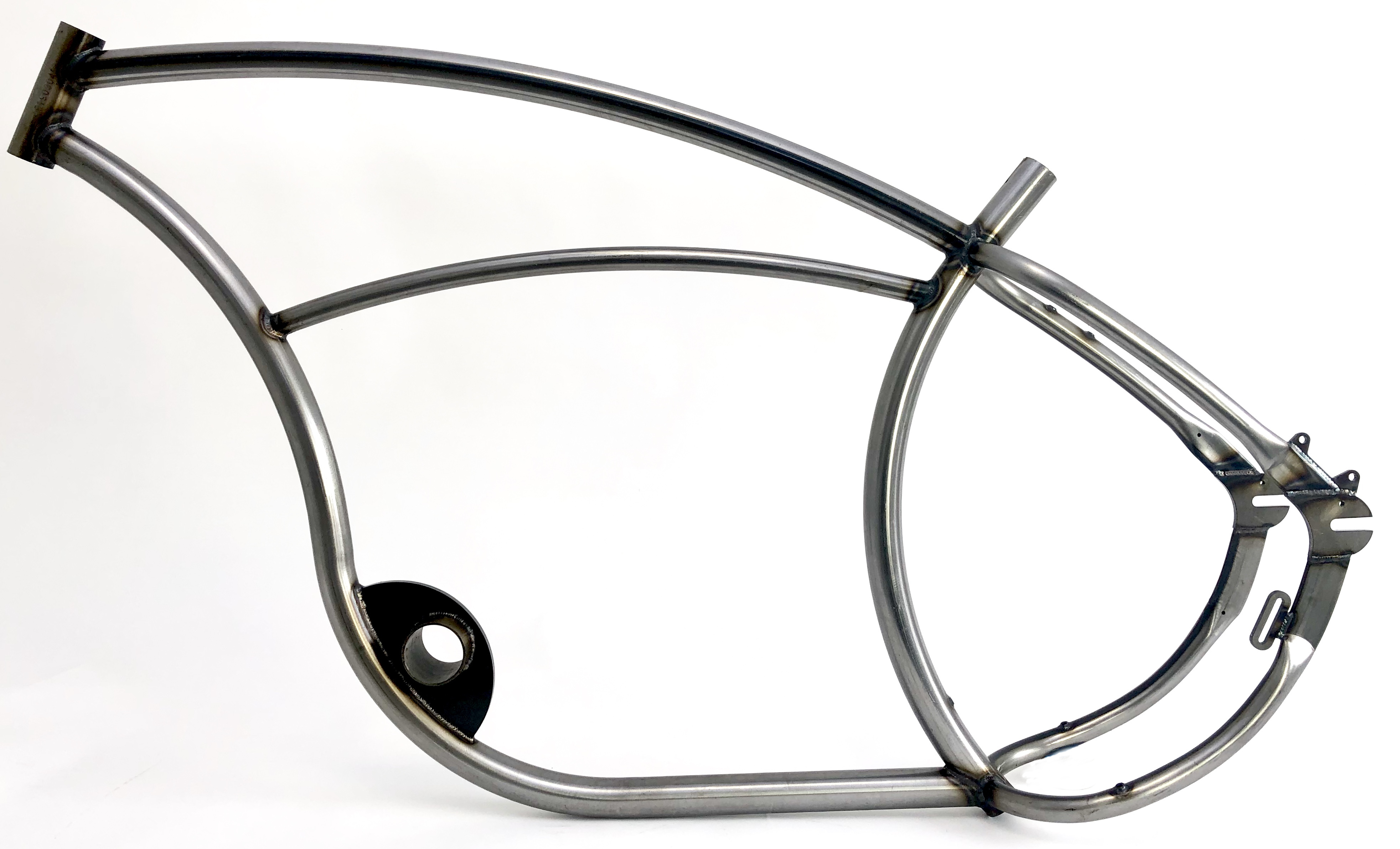

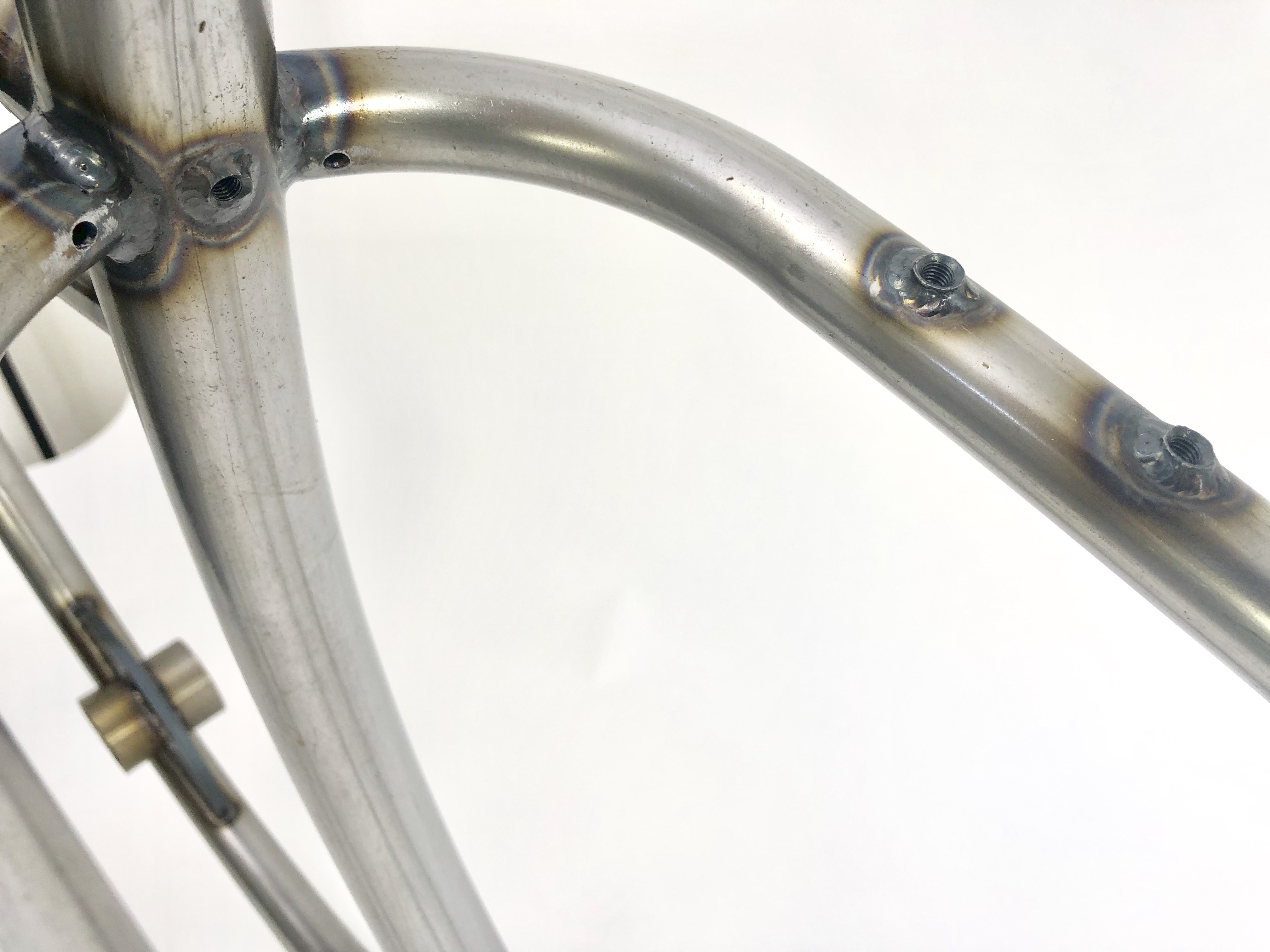

Custom Frame B46

The B46 Regular frame, unpainted - raw. Paint it the way you want or leave it unfinished for that Rat Rod look.

Original B46 from the same manufacturer as in former times imported from The Chopperdome - Amsterdam, Admiraal de Ruijterweg 346 and it's definitely made also for taller bike riders!

Colour: uncoloured / raw
possible rim sizes:

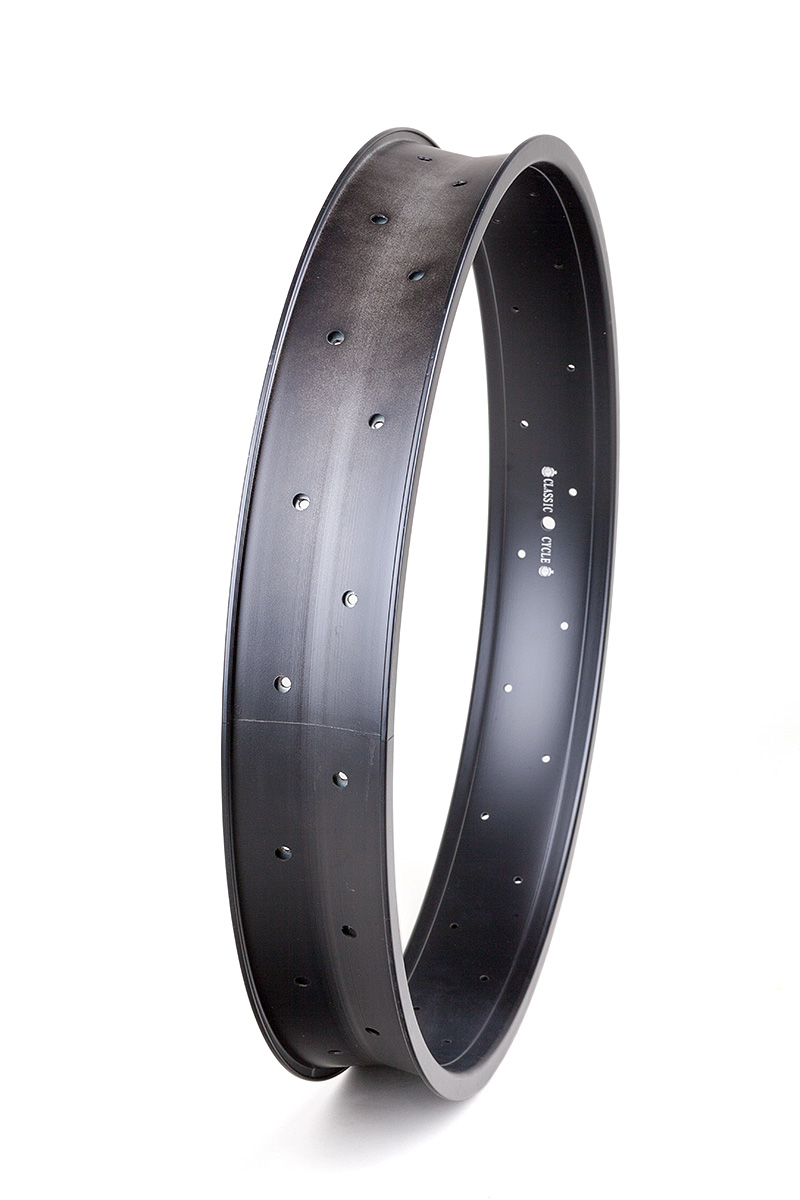

- 24" up to 102 mm width

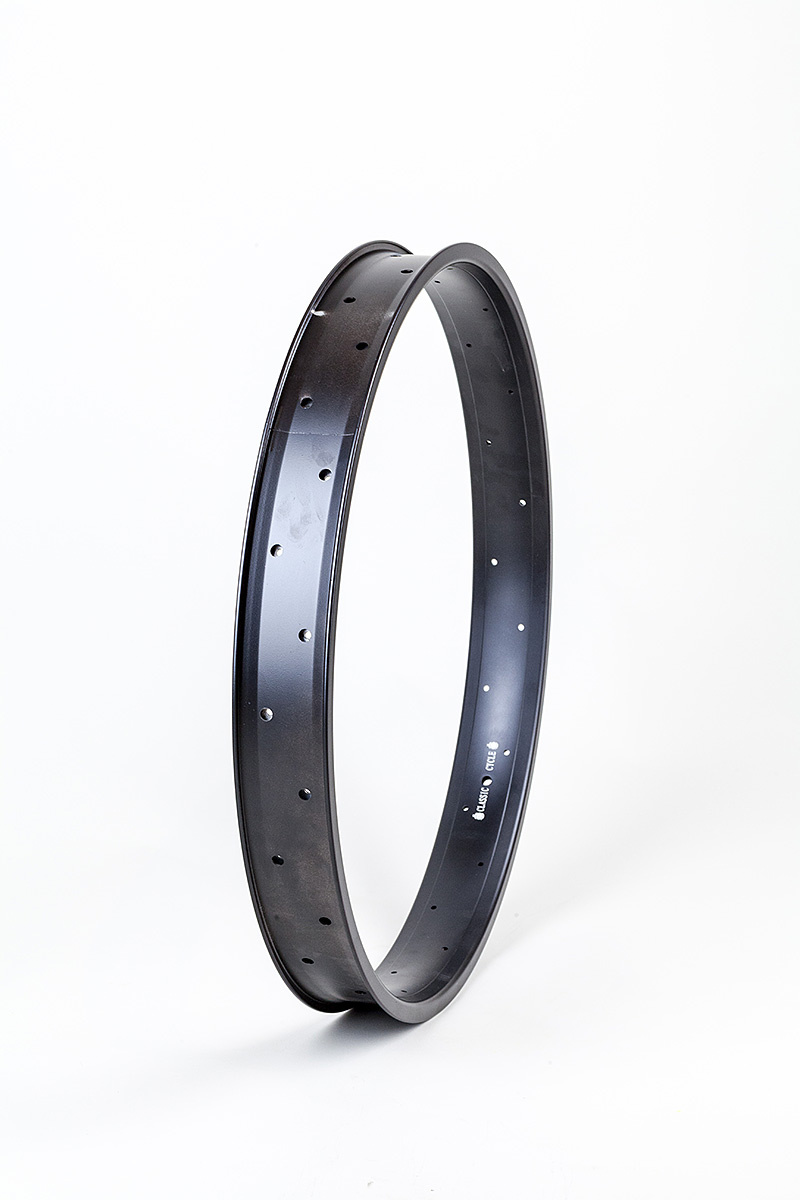

- 26" up to 82 mm width
bottom bracket size: BMX (US) one piece crank

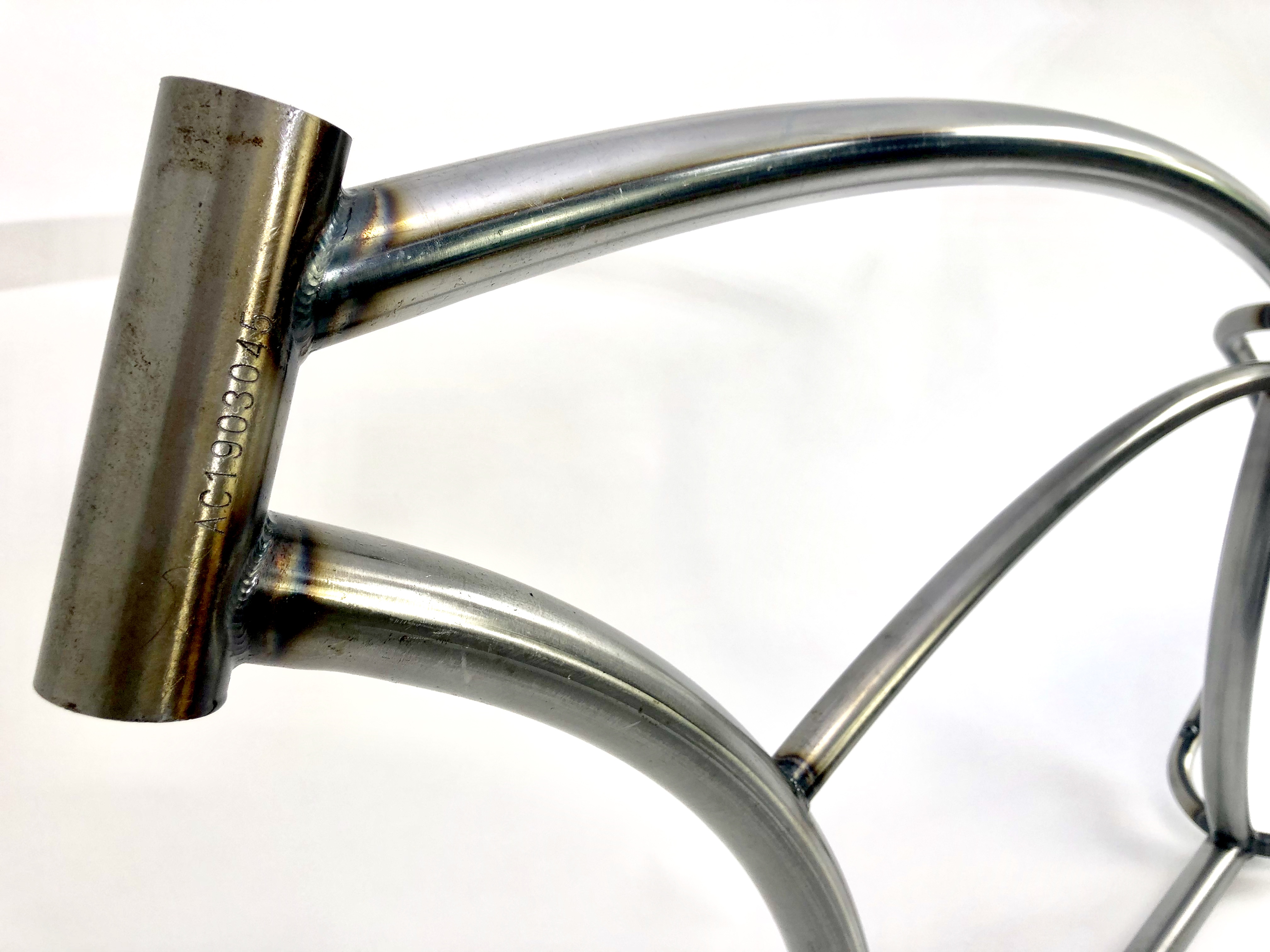

head tube: 1 1/8"
For Seat posts of 31.8 mm
disc brake mounting possible:yes!
coaster brake mounting possible: yes!
bike rider heights: from 1,65 m to 2,00 m
head tube length: 125 mm
width of chain stays: 135 mm
Material: Hi-Ten - Down tube in CRO-MO
dimensions:
- seat -> head tube: ~865 mm
- seat -> bottom bracket: ~690 mm
- seat tube: ~570 mm straight messured
weight: about 5,9 kg

1 of 1 reviews

5 out of 5 stars

Leave a review!

Share your experiences with other customers.

Login

Your email address

Your password

Sort by

2 July 2021 22:36

Super

Schnelle Lieferung, sehr gute Qualität

Accessory Items

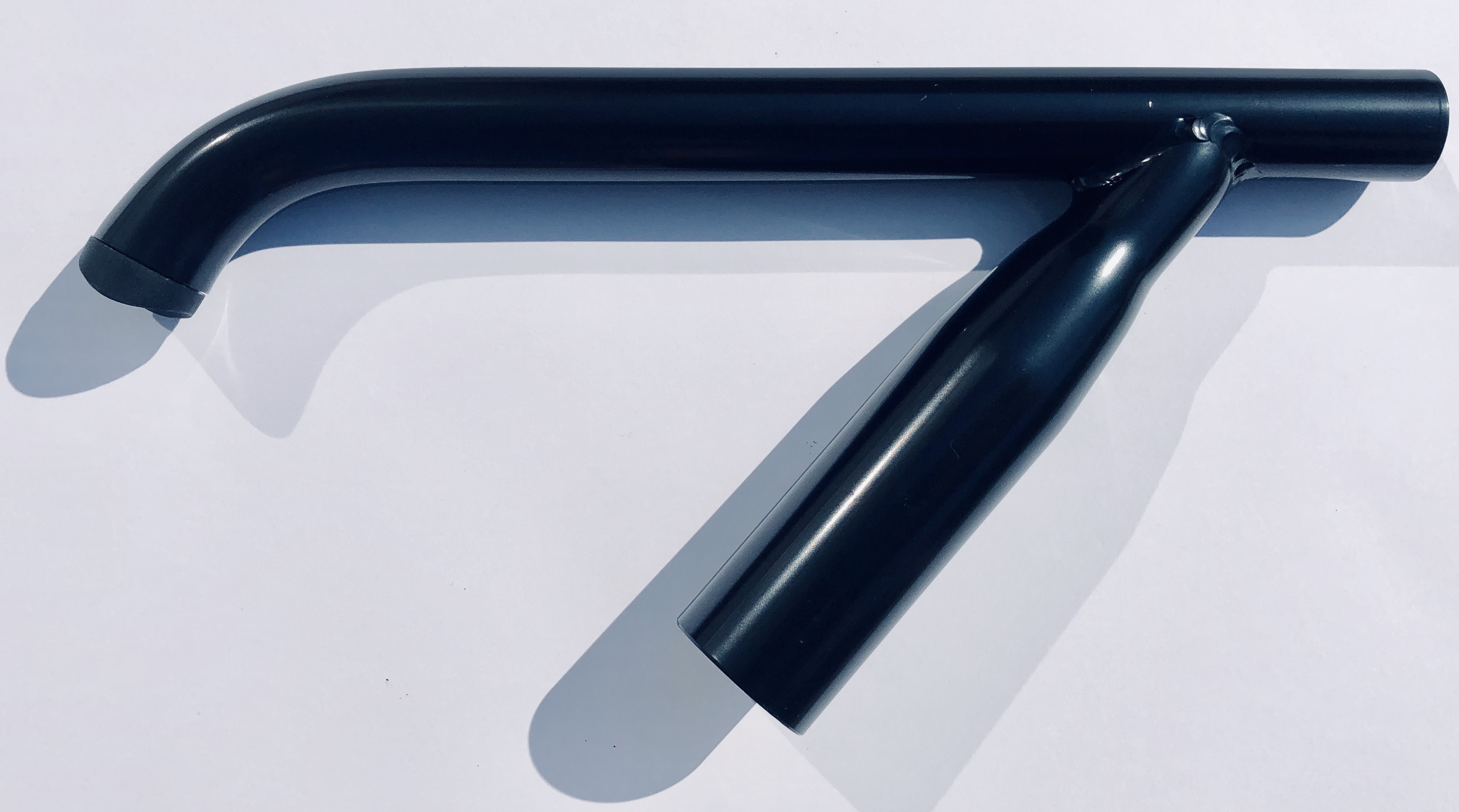

Original B46 Seat Post 31.8 mm, black steel NX-SP346-BK

Original B46 Seatpost 31,8 mm length to insert: 70 mm Diameter: 31,8 mm Steel Black satin finish

€24.95*

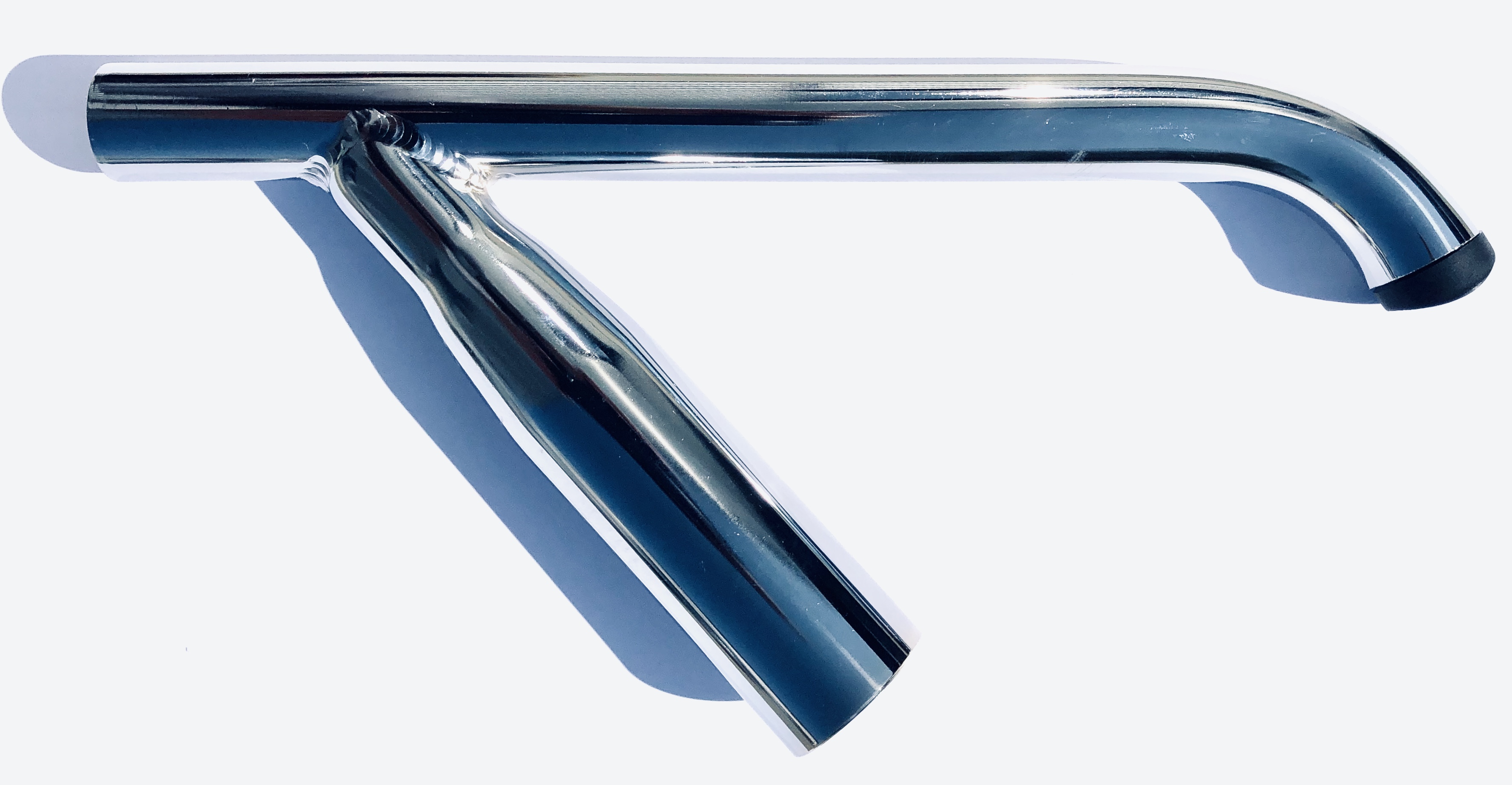

Original B46 Seat Post 31.8 mm, chrome plated steel 346TSTPST

Original B46 Seatpost 31,8 mm length to insert: 70 mm Diameter: 31,8 mm Chrome plated steel

€27.95*

Conversion Kit OPC to BSA Y285

American-to-Euro Conversion kit These beautifully machined aluminum bushings fit into the shell of a one-piece-crank bottom bracket, and are threaded to accept a: standard threaded bottom bracket normal 68 mm (~2,68 inches) width. 3 long CrMo bolts connect the two bushings to one another for a secure mounting.

€21.95*

Head Set Adapter 1 - 1 1/8 inch. 390627

Head Set Adapter kit 1 - 1 1/8 inch. 2 pieces, alloy to install into head of the frame to reduce head tube for using head set with smaller diameter to reduce 1 1/8" to 1" outer diameter: 34,0 mm (~1,34 inches) inner diameter: 30,2 mm (~1,19 inches)

€4.95*

Stickshifter for Shimano 3 speed 34601SH

Stickshifter for Shimano 3 speed Solid stickshifter made of partial polished steel with black nicely moulded plastic knob complete length: 14,5 cm width of mount: 6,3 cm speeds snap into place mounts with two wholes for frame assembling This gear lever was previously imported and distributed by The Chopperdome of 1055 LZ Amsterdam, Admiraal de Ruijterweg 346.

€39.95* €49.95* (20.02% saved)

New

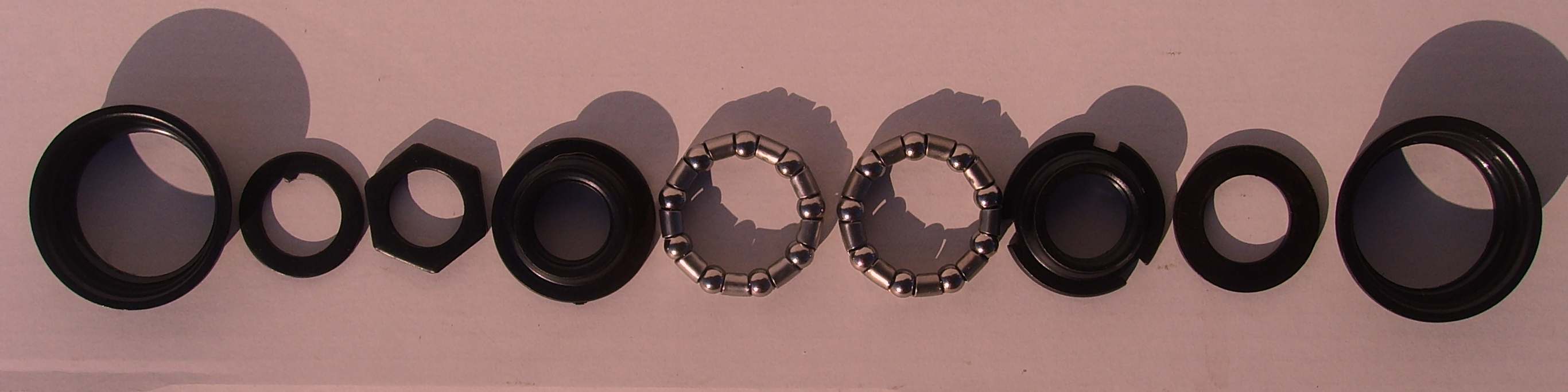

Bottom Bracket Bearing Kit for One Piece Cranks black 277sw

Bottom Bracket Bearing Kit for One Piece Cranks black complete bottom bearing kit for one piece cranks the internal diameter of the bearing shell for the BB lug is: 51,5 mm (~2,03 inches)

€9.95*

Details

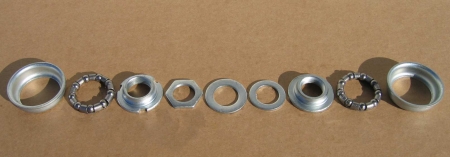

Bottom Bracket Bearing Kit for One Piece Cranks Y277
